Atlas ST-7000 7,000 lb Super Tall 4-Post Storage Lift

SKU: ATEXH-PRO7000ST-FPD

Ships from manufacturer

The Atlas ST-7000 is a 7,000 lb 4-post lift engineered specifically for vehicle storage with maximum vertical clearance. Featuring a super-tall 162-inch overall height and 147-inch lifting height, this lift creates the most under-lift space of any Atlas 4-post model, making it ideal for high-ceiling garages where maximizing vehicle stacking clearance is the priority.

Part #: ATEXH-PRO7000ST-FPD

MFR #: ATEXH-PRO7000ST-FPD

Designed for Maximum Vertical Storage

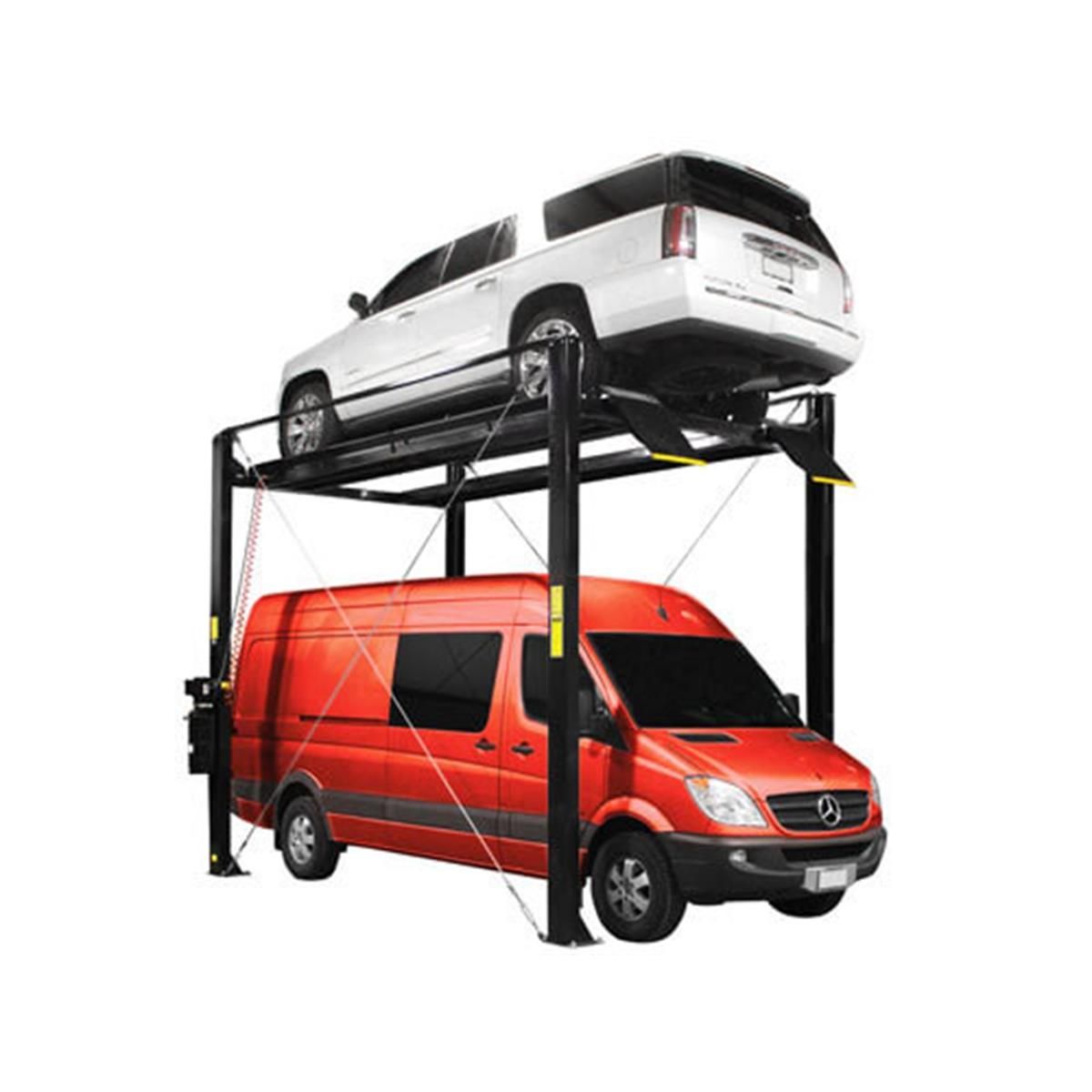

The Atlas ST-7000 is not a general-purpose lift that happens to store vehicles. It is a purpose-built storage lift designed from the ground up to maximize the vertical space between the raised platform and the floor below. With a 147-inch lifting height and 162-inch overall column height, the ST-7000 creates enough clearance to park even tall SUVs and trucks underneath a raised vehicle. This makes it the optimal choice for high-ceiling garages, warehouses, and collector facilities where vertical vehicle stacking is the primary use case.

147-Inch Lifting Height

The ST-7000's 147-inch lifting height is dramatically higher than standard 4-post lifts, which typically top out between 65 and 85 inches of rise. This extreme height creates enough clearance underneath to comfortably park a full-size SUV or truck below a raised vehicle. Even large vehicles like Suburbans, Expeditions, and full-size vans can fit underneath the raised platform, something that is simply not possible with conventional-height 4-post lifts.

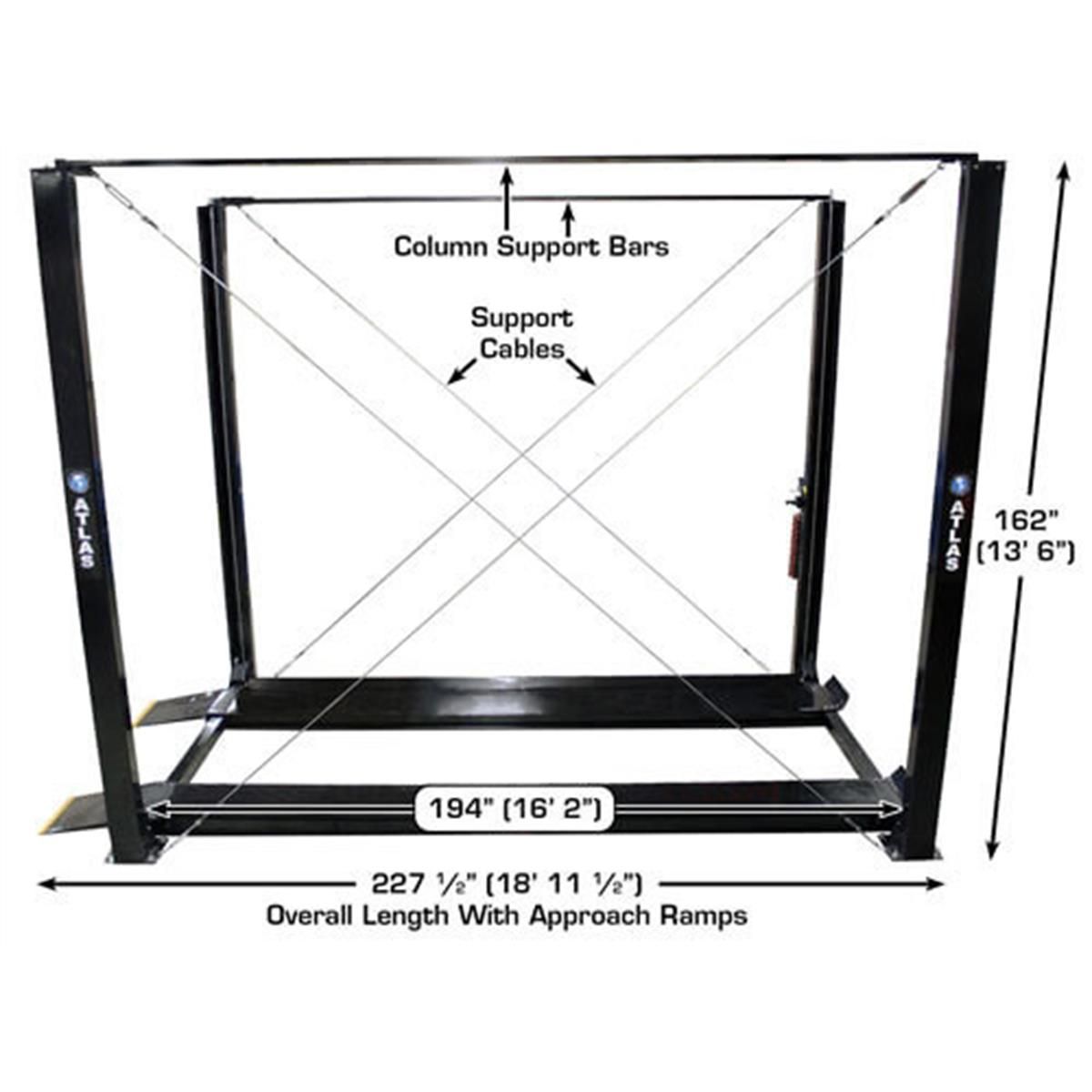

Super-Tall Column Design

The 162-inch (13.5-foot) overall column height is the tallest in the Atlas 4-post lineup. This height requires significant ceiling clearance, so the ST-7000 is best suited for garages with at least 14-16 feet of ceiling height, or detached garages, workshops, and purpose-built collector spaces with the headroom to accommodate the fully raised platform plus the vehicle on top. The reinforced column design maintains structural rigidity even at the extreme heights involved.

Storage-Optimized Operation

The ST-7000 uses the same drive-on runway design found across the Atlas 4-post lineup for easy vehicle loading. Multi-position safety locks secure the platform at various heights throughout the 147-inch travel range. The 120-second rise time reflects the extended travel distance, moving the platform smoothly and steadily to the desired storage height. The 7,000 lb capacity accommodates the vast majority of passenger vehicles, sports cars, sedans, and lighter SUVs that make up typical storage and collector inventories.

Features & Benefits

147" Lifting Height

Dramatically higher than standard 4-post lifts, creating enough clearance to park SUVs and trucks underneath.

  • 147" maximum lifting height
  • Park SUVs underneath
  • Dramatically exceeds standard lifts
  • Maximum vertical storage

Super-Tall 162" Columns

Tallest columns in the Atlas 4-post lineup provide the most vertical travel and storage clearance available.

  • 162" overall column height
  • 13.5 feet of column reach
  • Tallest in Atlas lineup
  • Maximum vertical space

Purpose-Built Storage

Designed from the ground up for vehicle stacking in high-ceiling garages, warehouses, and collector facilities.

  • Vehicle stacking optimized
  • High-ceiling garage ideal
  • Collector facility ready
  • Warehouse compatible

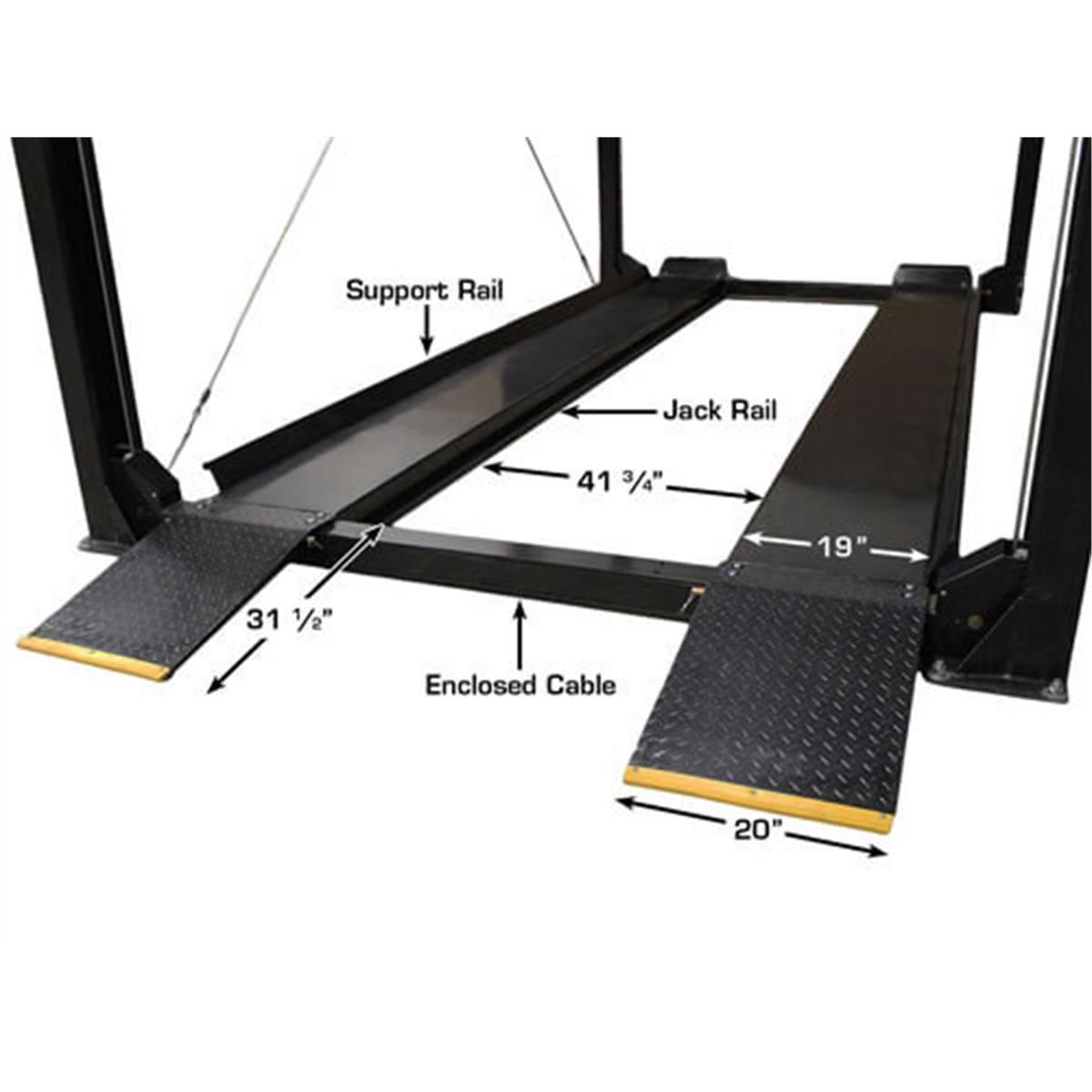

Easy Drive-On Design

Standard drive-on operation makes loading vehicles quick and accessible for any experience level.

  • Drive directly onto runways
  • Built-in approach ramps
  • No arm positioning needed
  • Simple intuitive operation

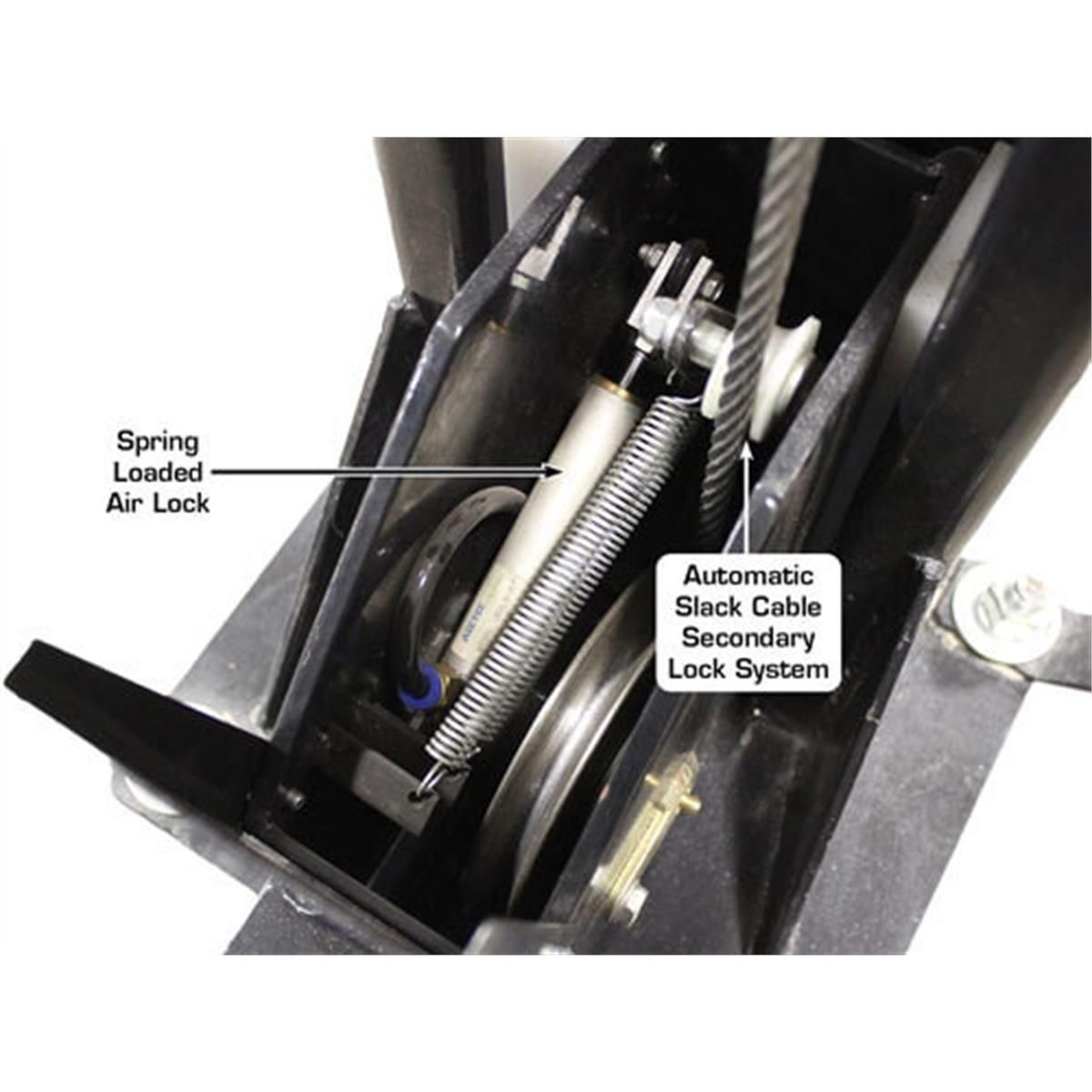

Multi-Position Safety Locks

Lock ladder provides secure parking positions throughout the full 147-inch travel range.

  • Full-range lock positions
  • Automatic lock engagement
  • Secure long-term storage

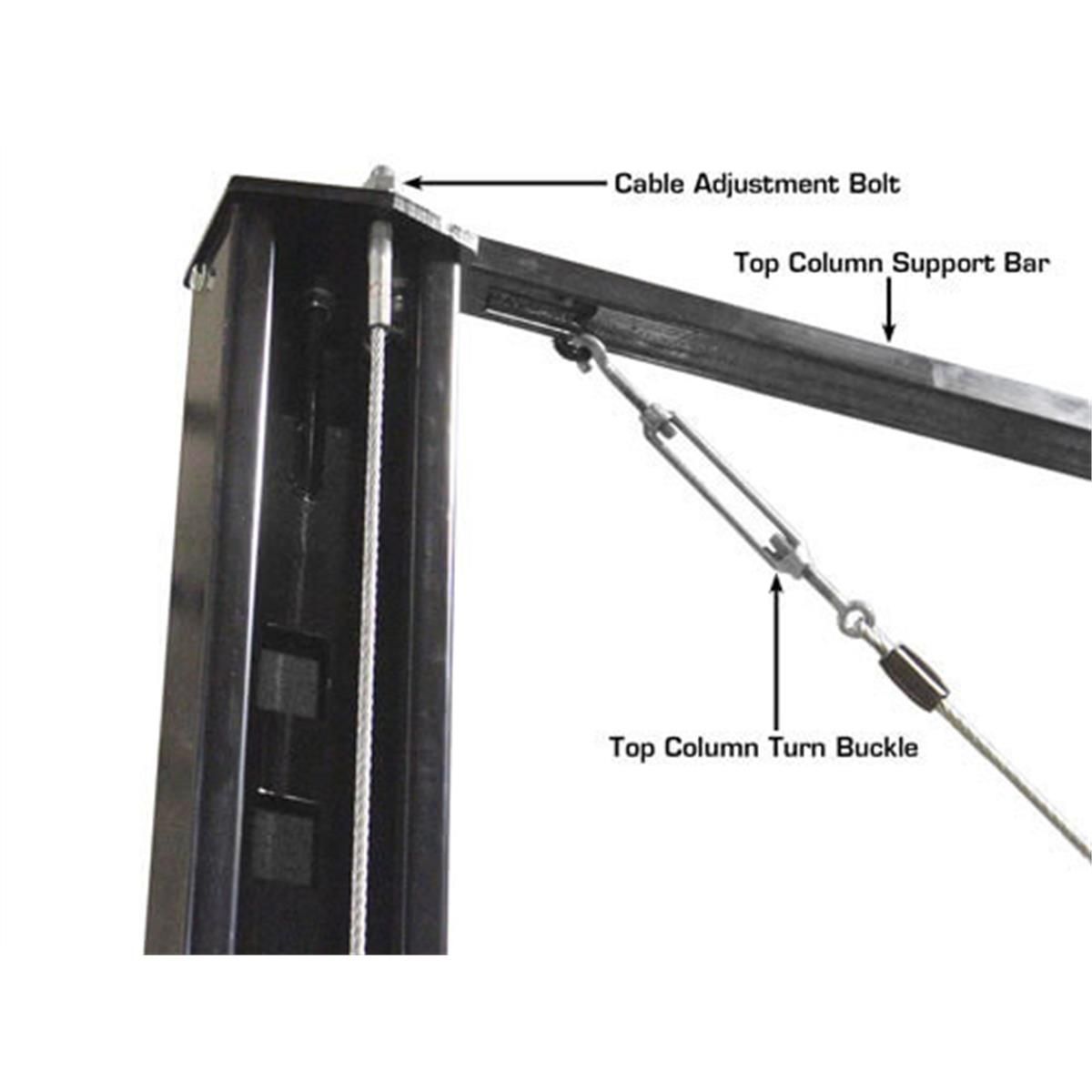

  • Cable equalization system

Smooth 120-Second Rise

Steady rise time ensures safe, controlled movement through the extended travel distance.

  • 120-second full rise
  • Smooth controlled movement
  • Safe extended travel
  • Consistent lift speed

Specifications

ModelATEXH-PRO7000ST-FPDATEXH-PRO7000ST
Price
$9,749.00
$8,549.00
Width of Runways19" in19" in
Overall Length194" in194" in
Shipping Weight~2,450 lbs~2,450 lbs
Max Wheelbase182" in182" in
Width Between Runways100" in100" in
Lifting Capacity7,000 lb lbs7,000 lb lbs
Lift Configuration4-Post Storage4-Post Storage
Rise Height147" "147" "
Overall Height162 in162 in
Overall Width123123
Speed of Rise~120s sec~120s sec
Ceiling Height Required14' minimum14' minimum
Colors AvailableBlueBlue

Before You Buy

Super-Tall Storage Design

147-inch lifting height is dramatically higher than standard 4-post lifts, enabling full-size SUVs and trucks to park underneath.

7,000 lb Capacity

Handles most passenger vehicles, sports cars, and lighter SUVs for collector and enthusiast storage.

Free Freight Shipping

Ships freight-free to commercial addresses within the continental United States.

Unloading Requirements

A forklift or loading dock is required. Shipping weight approximately 2,450 lbs.

Concrete Requirements

Minimum 4 inches of concrete rated at 3,000 PSI or greater.

High Ceiling Required

Requires at least 14-16 feet of ceiling height to accommodate the 162" column height plus stored vehicle.

Frequently Asked Questions

The ST-7000 has a 162-inch (13.5-foot) overall column height. With a vehicle on the raised platform, you need at least 14-16 feet of ceiling clearance minimum, and more is better for taller stored vehicles.
Minimum 4 inches of concrete rated at 3,000 PSI or greater.
Yes. The 147-inch lifting height creates enough clearance for most SUVs and trucks to park underneath a raised vehicle, which is the primary design intent of the ST-7000.
The ST-7000 reaches full 147-inch lift height in approximately 120 seconds. The longer rise time compared to standard lifts reflects the significantly greater travel distance.
Yes. Contact our team to schedule professional installation.
While the ST-7000 can be used for maintenance at lower lock positions, it is primarily designed and optimized for vehicle storage. For regular daily service work, a standard-height 4-post lift may be more practical.
Regular maintenance includes checking hydraulic fluid, lubricating moving parts, inspecting cables and chains, and verifying safety locks. Annual checks recommended.
Check product specifications for exact voltage requirements.
Includes manufacturer warranty. Contact Panther Lift for complete terms.
Absolutely. The ST-7000 is ideal for car collectors and enthusiast garages where maximizing the number of stored vehicles is the priority.
