ATEXH-PRO7000ST

Atlas Automotive Equipment

Atlas ATEXH-PRO7000ST 7000 lb Super-tall 4-POST Lift — Tri-State Discount

SKU: ATEXH-PRO7000ST

$8,549.00
Ships from manufacturer

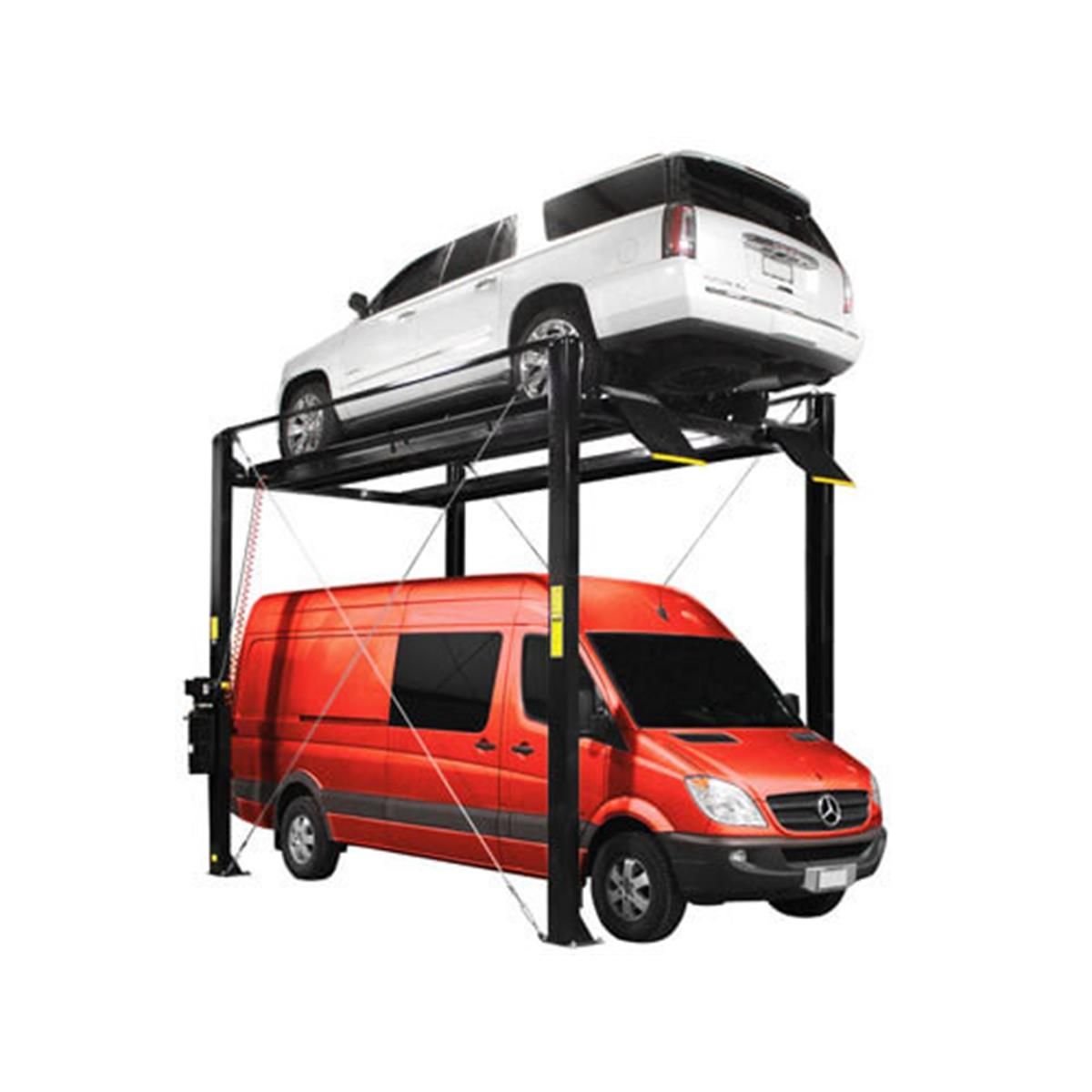

Atlas 7000 lb Super-tall 4-POST Lift

Part #: ATEXH-PRO7000ST

MFR #: ATEXH-PRO7000ST

Atlas 7000 lb Super-tall 4-POST Lift

Features & Benefits

147" Lifting Height

Dramatically higher than standard 4-post lifts, creating enough clearance to park SUVs and trucks underneath.

  • 147" maximum lifting height
  • Park SUVs underneath
  • Dramatically exceeds standard lifts
  • Maximum vertical storage

Super-Tall 162" Columns

Tallest columns in the Atlas 4-post lineup provide the most vertical travel and storage clearance available.

  • 162" overall column height
  • 13.5 feet of column reach
  • Tallest in Atlas lineup
  • Maximum vertical space

Purpose-Built Storage

Designed from the ground up for vehicle stacking in high-ceiling garages, warehouses, and collector facilities.

  • Vehicle stacking optimized
  • High-ceiling garage ideal
  • Collector facility ready
  • Warehouse compatible

Easy Drive-On Design

Standard drive-on operation makes loading vehicles quick and accessible for any experience level.

  • Drive directly onto runways
  • Built-in approach ramps
  • No arm positioning needed
  • Simple intuitive operation

Multi-Position Safety Locks

Lock ladder provides secure parking positions throughout the full 147-inch travel range.

  • Full-range lock positions
  • Automatic lock engagement
  • Secure long-term storage
  • Cable equalization system

Smooth 120-Second Rise

Steady rise time ensures safe, controlled movement through the extended travel distance.

  • 120-second full rise
  • Smooth controlled movement
  • Safe extended travel
  • Consistent lift speed

Specifications

Lift Configuration4-Post Storage
Overall Width123
Overall Length194" in
Colors AvailableBlue
Width of Runways19" in
Lifting Capacity7,000 lb lbs
Speed of Rise~120s sec
Rise Height147" "
Ceiling Height Required14' minimum
Width Between Runways100" in
Overall Height162 in
Max Wheelbase182" in
Shipping Weight~2,450 lbs

Before You Buy

Super-Tall Storage Design

147-inch lifting height is dramatically higher than standard 4-post lifts, enabling full-size SUVs and trucks to park underneath.

7,000 lb Capacity

Handles most passenger vehicles, sports cars, and lighter SUVs for collector and enthusiast storage.

Free Freight Shipping

Ships freight-free to commercial addresses within the continental United States.

Unloading Requirements

A forklift or loading dock is required. Shipping weight approximately 2,450 lbs.

Concrete Requirements

Minimum 4 inches of concrete rated at 3,000 PSI or greater.

High Ceiling Required

Requires at least 14-16 feet of ceiling height to accommodate the 162" column height plus stored vehicle.

Frequently Asked Questions

The ST-7000 has a 162-inch (13.5-foot) overall column height. With a vehicle on the raised platform, you need at least 14-16 feet of ceiling clearance minimum, and more is better for taller stored vehicles.
Minimum 4 inches of concrete rated at 3,000 PSI or greater.
Yes. The 147-inch lifting height creates enough clearance for most SUVs and trucks to park underneath a raised vehicle, which is the primary design intent of the ST-7000.
The ST-7000 reaches full 147-inch lift height in approximately 120 seconds. The longer rise time compared to standard lifts reflects the significantly greater travel distance.
Yes. Contact our team to schedule professional installation.
While the ST-7000 can be used for maintenance at lower lock positions, it is primarily designed and optimized for vehicle storage. For regular daily service work, a standard-height 4-post lift may be more practical.
Regular maintenance includes checking hydraulic fluid, lubricating moving parts, inspecting cables and chains, and verifying safety locks. Annual checks recommended.
Check product specifications for exact voltage requirements.
Includes manufacturer warranty. Contact Panther Lift for complete terms.
Absolutely. The ST-7000 is ideal for car collectors and enthusiast garages where maximizing the number of stored vehicles is the priority.
