Atlas Automotive Equipment
Atlas ATEAP-PVL15 Platinum 15000 lb Certified 2-POST Lift — Tri-State Discount
SKU: ATEAP-PVL15
$13,149.00
Ships from manufacturer

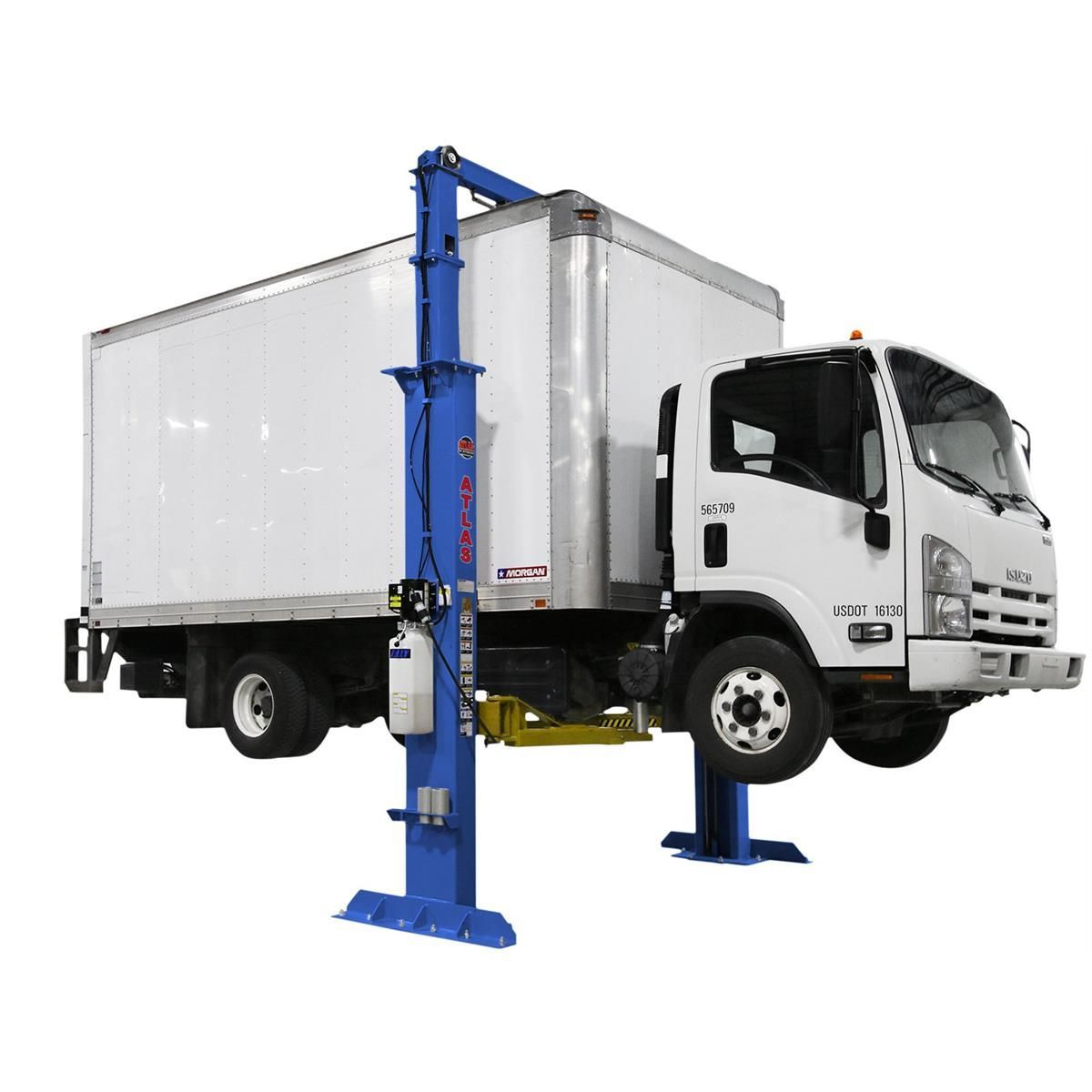

Atlas Platinum 15000 lb Certified 2-POST Lift
Part #: ATEAP-PVL15
MFR #: ATEAP-PVL15
Atlas Platinum 15000 lb Certified 2-POST Lift
Features & Benefits
ALI Certified Heavy-Duty Capacity
Rated for 15,000 lbs with professional-grade safety systems
- American Lift Institute certified for commercial use
- Overhead anti-crush safety bar with automatic cut-off
- Single-point lock release mechanism
Extended Service Range
Lifts larger SUVs, trucks, and commercial vehicles with precision
- 15,000 lb capacity accommodates heavy vehicles
- 72½ inch maximum lifting height (1,844mm)
- 3-stage front and 2-stage rear arms for versatile mounting
Optional Extension Kit for Tall Vehicles
Column extension kit (PVL15-EXT, sold separately) raises overall height
- Standard version: 174½ inches (requires 14½ ft ceiling)
- Extended version: 198½ inches (requires 16½ ft ceiling)
- Accommodates taller vehicles and specialty servicing needs
Patented Double S Column Design
Proven structural engineering for maximum durability and stability
- Double S column provides exceptional structural rigidity
- Chain-over-cylinder equalization for balanced lifting
- Reliable performance under sustained heavy loads
Optimized Cycle Times
Professional efficiency even under heavy-duty conditions
- 80-second full lift cycle
- 40-second lower cycle
- High-powered 2HP hydraulic system
Flexible Installation Options
Adapts to any service bay configuration and ceiling height
- Symmetric and asymmetric installation capability
- 105⅛ inches clearance between columns
- Compatible with retrofit and new build applications
Before You Buy
Professional Freight Delivery
This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.
Ships Within 2-5 Business Days
This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.
Frequently Asked Questions
The PVL12 has a 12,000 lb capacity, while the PVL15 has a 15,000 lb capacity. The PVL15 is designed for shops that regularly service heavier vehicles such as large SUVs, trucks, and commercial vehicles.
The standard PVL15 has an overall height of 174½ inches (4,430mm) and requires a minimum ceiling of 14½ feet. An optional column extension kit (PVL15-EXT, sold separately) raises the overall height to 198½ inches (5,040mm) and requires approximately 16½ feet of ceiling height for shops servicing taller vehicles.
The extension kit is optional and depends on your facility's ceiling height and the vehicles you service. If your shop has a minimum 16½ foot ceiling and regularly services taller vehicles (lifted trucks, RVs, etc.), the extension kit allows for improved clearance. The standard version is suitable for shops with 14½ foot ceilings.
Yes, the Atlas Platinum PVL15 is fully ALI (American Lift Institute) certified, meeting all professional safety standards for commercial service facilities. It includes all required safety features including an overhead anti-crush safety bar with automatic cut-off.
The PVL15 completes a full lift in 80 seconds and lowers in 40 seconds. These cycle times reflect the heavier capacity and are typical for professional-grade 15,000 lb lifts used in demanding service environments.
The PVL15 provides a maximum lifting height of 72½ inches (1,844mm) and a minimum lowered height of 4⅞ inches (118mm). This range allows you to service vehicles from ground level to a comfortable working height.
The PVL15 requires a dedicated circuit with 2HP motor operation at 208-240V/50-60Hz single-phase. Like the PVL12, a licensed electrician should verify your facility's electrical capacity is adequate for this heavy-duty equipment.
Yes, the PVL15 supports both symmetric (centered between columns) and asymmetric (offset) vehicle positioning. This flexibility accommodates various service bay layouts and vehicle sizes.
This proprietary system synchronizes lifting between both columns, maintaining perfect platform levelness even when servicing vehicles with asymmetric weight distribution. This prevents platform tilting and ensures safe, balanced operation under all loading conditions.
Regular maintenance includes checking hydraulic fluid levels, inspecting for leaks, testing safety systems quarterly, and performing comprehensive annual inspections. Consult the operator manual for detailed maintenance schedules. Professional servicing is recommended annually.
