ATEAP-PVL15-FPD

Atlas Automotive Equipment

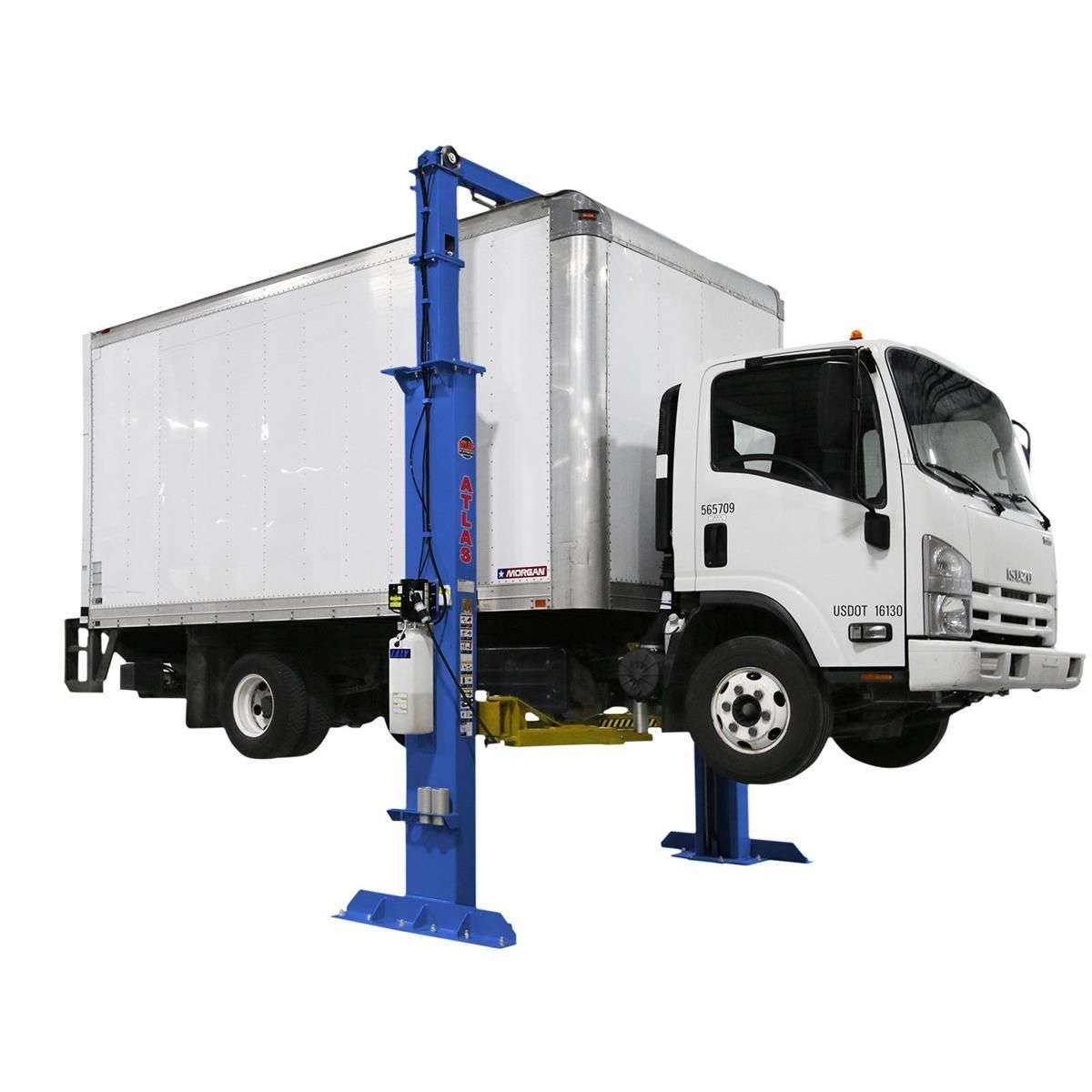

Atlas Platinum PVL15 — 15,000 lb ALI Certified 2-Post Overhead Lift

SKU: ATEAP-PVL15-FPD

Ships from manufacturer

Heavy-duty 15,000 lb overhead lift with ALI certification, optional extension kit for taller vehicles, and professional-grade chain-over-cylinder equalization for perfectly balanced lifting.

Part #: ATEAP-PVL15-FPD

MFR #: ATEAP-PVL15-FPD

Atlas Platinum PVL15 — Heavy-Duty 2-Post Overhead Lift

The Atlas Platinum PVL15 is engineered for demanding professional service environments that require maximum capacity and versatility. With a 15,000 lb capacity and full ALI certification, this lift accommodates a broader range of vehicles including larger SUVs, trucks, and commercial vehicles while maintaining the highest safety and performance standards.

Flexible Height Configurations

The PVL15 offers two installation options to suit your facility's ceiling height and vehicle servicing needs. The standard version delivers an overall height of 174½ inches (4,430mm), requiring a minimum ceiling height of 14½ feet (approximately 14'8"). For shops with higher ceilings and a need to service taller vehicles, an optional column extension kit (model PVL15-EXT, sold separately) raises the overall height to 198½ inches (5,040mm), requiring a minimum ceiling of approximately 16½ feet (16'8"). This flexibility allows you to choose the configuration that best matches your facility and service requirements.

Superior Engineering & Performance

The PVL15 features the same patented Double S column design that provides exceptional structural integrity under full load. The lift delivers a maximum lifting height of 72½ inches (1,844mm) with a minimum lowered height of 4⅞ inches (118mm), accommodating vehicles from ground level to premium service height. Lifting is completed in 80 seconds with lowering in 40 seconds, providing excellent workflow efficiency even under heavy-duty conditions.

Professional-grade components include 3-stage front arms and 2-stage rear arms with secure mounting adapters, a single-point lock release for simplified operation, and an overhead anti-crush safety bar protecting personnel. The chain-over-cylinder equalization system ensures perfectly synchronized lifting between columns, maintaining platform levelness even when lifting vehicles with asymmetric weight distribution.

Power & Installation

Like the PVL12, the PVL15 operates on a 2 HP motor at 208-240V/50-60Hz single-phase, powered by the ALLY certified hydraulic power unit. The lift supports both symmetric and asymmetric installation configurations, adapting to virtually any service bay layout. The standard version weighs 3,306 lbs (1,500kg) and is designed for indoor installation only, with an operating temperature range of 14°F to 104°F.

Installation requires a concrete foundation with a minimum thickness of 4 inches and 3,000 PSI compressive strength. The heavier capacity and structural requirements make professional installation highly recommended. The clearance between columns is 105⅛ inches (2,670mm), providing ample workspace for larger vehicles.

Features & Benefits

ALI Certified Heavy-Duty Capacity

Rated for 15,000 lbs with professional-grade safety systems

  • American Lift Institute certified for commercial use
  • Overhead anti-crush safety bar with automatic cut-off
  • Single-point lock release mechanism

Extended Service Range

Lifts larger SUVs, trucks, and commercial vehicles with precision

  • 15,000 lb capacity accommodates heavy vehicles
  • 72½ inch maximum lifting height (1,844mm)
  • 3-stage front and 2-stage rear arms for versatile mounting

Optional Extension Kit for Tall Vehicles

Column extension kit (PVL15-EXT, sold separately) raises overall height

  • Standard version: 174½ inches (requires 14½ ft ceiling)
  • Extended version: 198½ inches (requires 16½ ft ceiling)
  • Accommodates taller vehicles and specialty servicing needs

Patented Double S Column Design

Proven structural engineering for maximum durability and stability

  • Double S column provides exceptional structural rigidity
  • Chain-over-cylinder equalization for balanced lifting
  • Reliable performance under sustained heavy loads

Optimized Cycle Times

Professional efficiency even under heavy-duty conditions

  • 80-second full lift cycle
  • 40-second lower cycle
  • High-powered 2HP hydraulic system

Flexible Installation Options

Adapts to any service bay configuration and ceiling height

  • Symmetric and asymmetric installation capability
  • 105⅛ inches clearance between columns
  • Compatible with retrofit and new build applications

Specifications

ModelATEAP-PVL15-FPD
Price
$13,999.00
Installation TypeSymmetric
Shipping Weight2,600 lbs
Product Type2 Post Lifts
Lifting Capacity15,000 lb lbs
Rise Height72 3/4" "
ArmsSymmetric
Overall Height174 1/2" (14' 6 1/2") in
Overall Width148" (12' 4")
Drive-Thru Clearance107 1/2" (8' 11 1/2")
Screw Pad Height6"
Inside Columns119 1/4" (9' 11 1/4")
Motor220V 1Ph HP
Voltage220V, 60Hz, 1Ph
ALI/ETL CertifiedYes

Before You Buy

Professional Freight Delivery

This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.

Ships Within 2-5 Business Days

This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.

Frequently Asked Questions

The PVL12 has a 12,000 lb capacity, while the PVL15 has a 15,000 lb capacity. The PVL15 is designed for shops that regularly service heavier vehicles such as large SUVs, trucks, and commercial vehicles.
The standard PVL15 has an overall height of 174½ inches (4,430mm) and requires a minimum ceiling of 14½ feet. An optional column extension kit (PVL15-EXT, sold separately) raises the overall height to 198½ inches (5,040mm) and requires approximately 16½ feet of ceiling height for shops servicing taller vehicles.
The extension kit is optional and depends on your facility's ceiling height and the vehicles you service. If your shop has a minimum 16½ foot ceiling and regularly services taller vehicles (lifted trucks, RVs, etc.), the extension kit allows for improved clearance. The standard version is suitable for shops with 14½ foot ceilings.
Yes, the Atlas Platinum PVL15 is fully ALI (American Lift Institute) certified, meeting all professional safety standards for commercial service facilities. It includes all required safety features including an overhead anti-crush safety bar with automatic cut-off.
The PVL15 completes a full lift in 80 seconds and lowers in 40 seconds. These cycle times reflect the heavier capacity and are typical for professional-grade 15,000 lb lifts used in demanding service environments.
The PVL15 provides a maximum lifting height of 72½ inches (1,844mm) and a minimum lowered height of 4⅞ inches (118mm). This range allows you to service vehicles from ground level to a comfortable working height.
The PVL15 requires a dedicated circuit with 2HP motor operation at 208-240V/50-60Hz single-phase. Like the PVL12, a licensed electrician should verify your facility's electrical capacity is adequate for this heavy-duty equipment.
Yes, the PVL15 supports both symmetric (centered between columns) and asymmetric (offset) vehicle positioning. This flexibility accommodates various service bay layouts and vehicle sizes.
This proprietary system synchronizes lifting between both columns, maintaining perfect platform levelness even when servicing vehicles with asymmetric weight distribution. This prevents platform tilting and ensures safe, balanced operation under all loading conditions.
Regular maintenance includes checking hydraulic fluid levels, inspecting for leaks, testing safety systems quarterly, and performing comprehensive annual inspections. Consult the operator manual for detailed maintenance schedules. Professional servicing is recommended annually.
