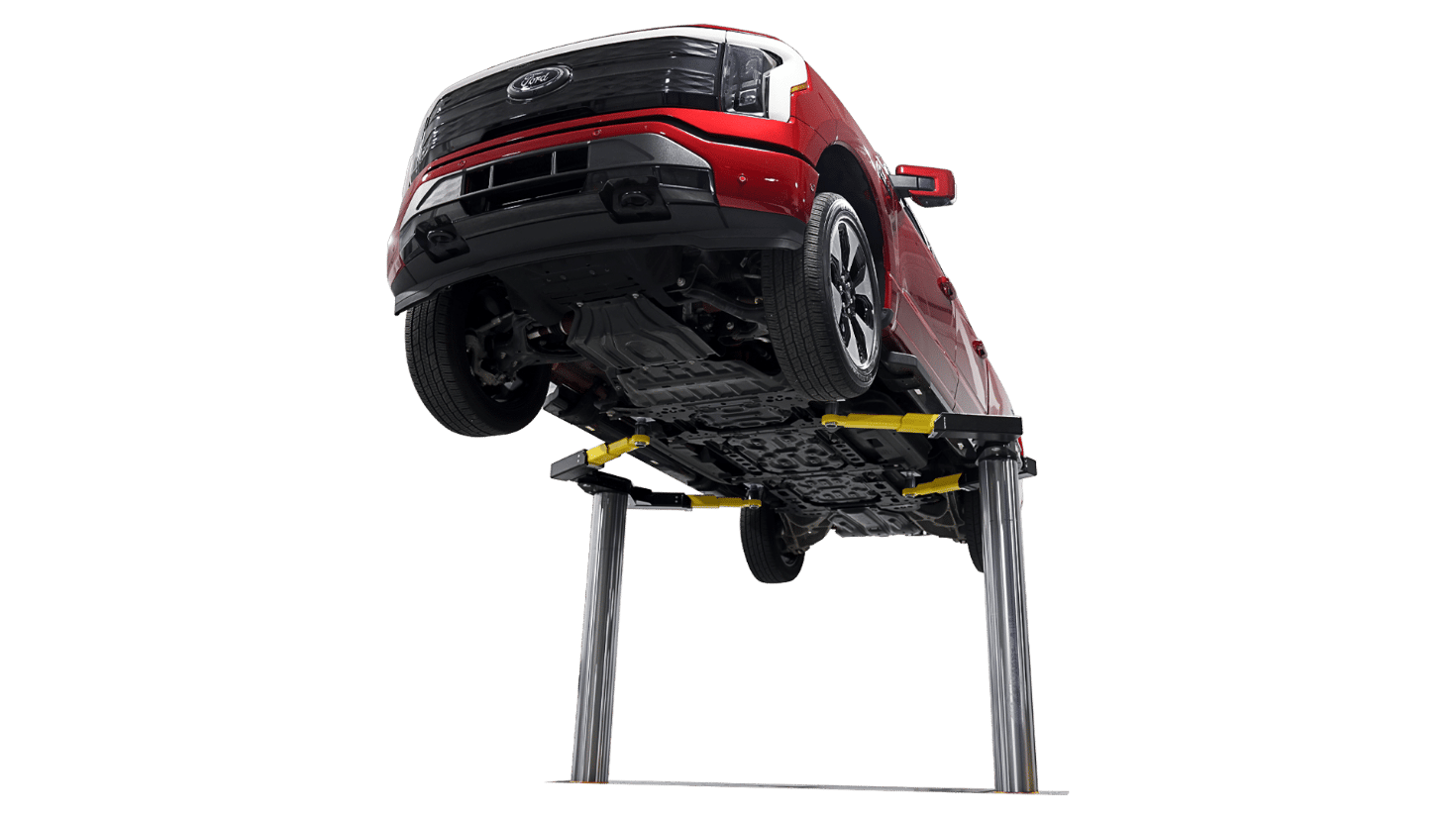

Challenger EW12 12,000 lb Inground Lift Wide

Atlas Automotive Equipment

Challenger EW12 12,000 lb Inground Lift Wide

SKU: EW12

Ships from manufacturer

Wide Ew Electric/Hydraulic Inground Lift With 8.5 In. Chrome Pistons, Wide Drive-Through 3-Stage Arms And Double Telescoping Screw Pads. 12,000 Lbs Capacity

12,000 lb Wide-Configuration Inground Lift System

The Challenger EW12 combines the lifting power of a 12,000 lb system with a wider cylinder spacing specifically engineered for larger vehicles. The WIDE configuration provides optimal support for full-size trucks, SUVs, and commercial vehicles with extended wheelbases. This complete system includes hydraulic cylinders with wider spacing, lifting adapters, control unit, and all necessary hardware for installation in concrete pits.

Wide-Footprint Design

Unlike standard inground lifts, the EW12 features increased cylinder spacing that accommodates the wider stance of large trucks and SUVs. This wider footprint ensures balanced weight distribution and enhanced stability when lifting heavier vehicles with different axle configurations.

Flush-Mount Installation

The EW12 installs directly into concrete pits with a flush-mount design. When fully lowered, the lift sits level with your facility floor, providing a professional appearance and maintaining a clean service environment. The system operates on standard 220V electric/hydraulic power.

Features & Benefits

12,000 lb Wide-Capacity Lifting

Heavy-duty performance with wider footprint

  • Full-size trucks
  • Large SUVs
  • Commercial vehicles

Wide Cylinder Spacing

Wider footprint for enhanced stability

  • Increased wheel spacing accommodation
  • Better load distribution
  • Improved safety

Complete Full System

All components for wide-lift installation

  • Wide-spaced cylinders
  • Lifting adapters
  • Control unit and hardware

Flush-Mount Inground Design

Professional installation with zero obstruction

  • Concrete pit installation
  • Level with floor when lowered
  • Clean workspace

220V Electric/Hydraulic Operation

Standard commercial power requirements

  • Single-phase 220V
  • Reliable hydraulic performance
  • Smooth cycles

Heavy-Duty Wide-Body Construction

Engineered for larger vehicle types

  • Reinforced components
  • Extended durability
  • Long service life

Specifications

ModelEW12EW12-BMCEW12-BMC-QCEW12-QC
Price
$22,325.12$34,883.00
Save 36% ($12,557.88)
$23,258.26$36,341.04
Save 36% ($13,082.78)
$24,395.44$38,117.89
Save 36% ($13,722.45)
$23,305.20$36,414.38
Save 36% ($13,109.18)
Product TypeIn Ground LiftIn Ground LiftIn Ground LiftIn Ground Lift
Lifting Capacity12,000 lb lbs12,000 lb lbs12,000 lb lbs12,000 lb lbs
Lift ConfigurationWide IngroundWide IngroundWide IngroundWide Inground
Rise Height78" "78" "78" "78" "
Arms3-stage front/3-stage rear3-stage front/3-stage rear3-stage front/3-stage rear3-stage front/3-stage rear
Overall Width118118118118
Drive-Thru Clearance88"88"88"88"
Speed of Rise41s sec41s sec24s sec24s sec
Front Arm Reach20" - 42"20" - 42"20" - 42"20" - 42"
Screw Pad Height4" - 6.125"4" - 6.125"4" - 6.125"4" - 6.125"
Motor2HP, 208-230v, 60Hz, 1Ph HP2HP, 208-230v, 60Hz, 1Ph HP3HP, 208-230v, 60Hz, 1Ph HP3HP, 208-230v, 60Hz, 1Ph HP
ALI/ETL CertifiedYesYesYesYes
Colors AvailableBlack, Red, BlueBlack, Red, BlueBlack, Red, BlueBlack, Red, Blue

Before You Buy

Professional Freight Delivery

This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.

Ships Within 2-5 Business Days

This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.

Wide-Lift Professional Installation

The EW12 wide-configuration design requires careful site assessment and pit preparation. Contact our installation partners to evaluate your facility's compatibility with wide-lift systems.

Frequently Asked Questions

WIDE configuration refers to the cylinder spacing. The EW12 has wider-spaced cylinders than standard inground lifts, providing better support and stability for larger trucks and SUVs with extended wheelbases.
The EW12 has a 12,000 lb lifting capacity. The wider spacing makes it particularly suitable for heavier vehicles with longer wheelbases.
Full-size pickup trucks, heavy SUVs, and commercial vehicles with extended wheelbases benefit from the wider cylinder spacing. The improved weight distribution enhances safety and lift performance.
Both have 12,000 lb capacity, but the EW12 has a wider cylinder spacing (18 inches vs. 12 inches). Choose EW12 for larger vehicles with longer wheelbases, and EV1220 for standard-size vehicles.
Yes, the EW12 can lift standard-size vehicles. However, its wider spacing is optimized for larger vehicles. If you primarily service standard-size vehicles, the EV1220 may be more suitable.
The EW12 operates on standard 220V single-phase power. Ensure your facility has appropriate electrical infrastructure installed by a licensed electrician.
Yes, the EW12 features a flush-mount design. When fully lowered, it sits level with your facility floor, creating a professional, obstruction-free service bay.
Regular maintenance includes hydraulic fluid checks, seal inspections, and control unit testing. We recommend professional maintenance checks annually or per manufacturer guidelines.
Yes, multiple EW12 lifts can be installed in a single facility. Coordinate electrical and hydraulic requirements with our installation specialists for your specific layout and vehicle mix.
Yes, professional installation is strongly recommended. Inground lift installation requires concrete cutting, pit preparation, electrical connections, and hydraulic setup. Licensed professionals should handle the installation process.
