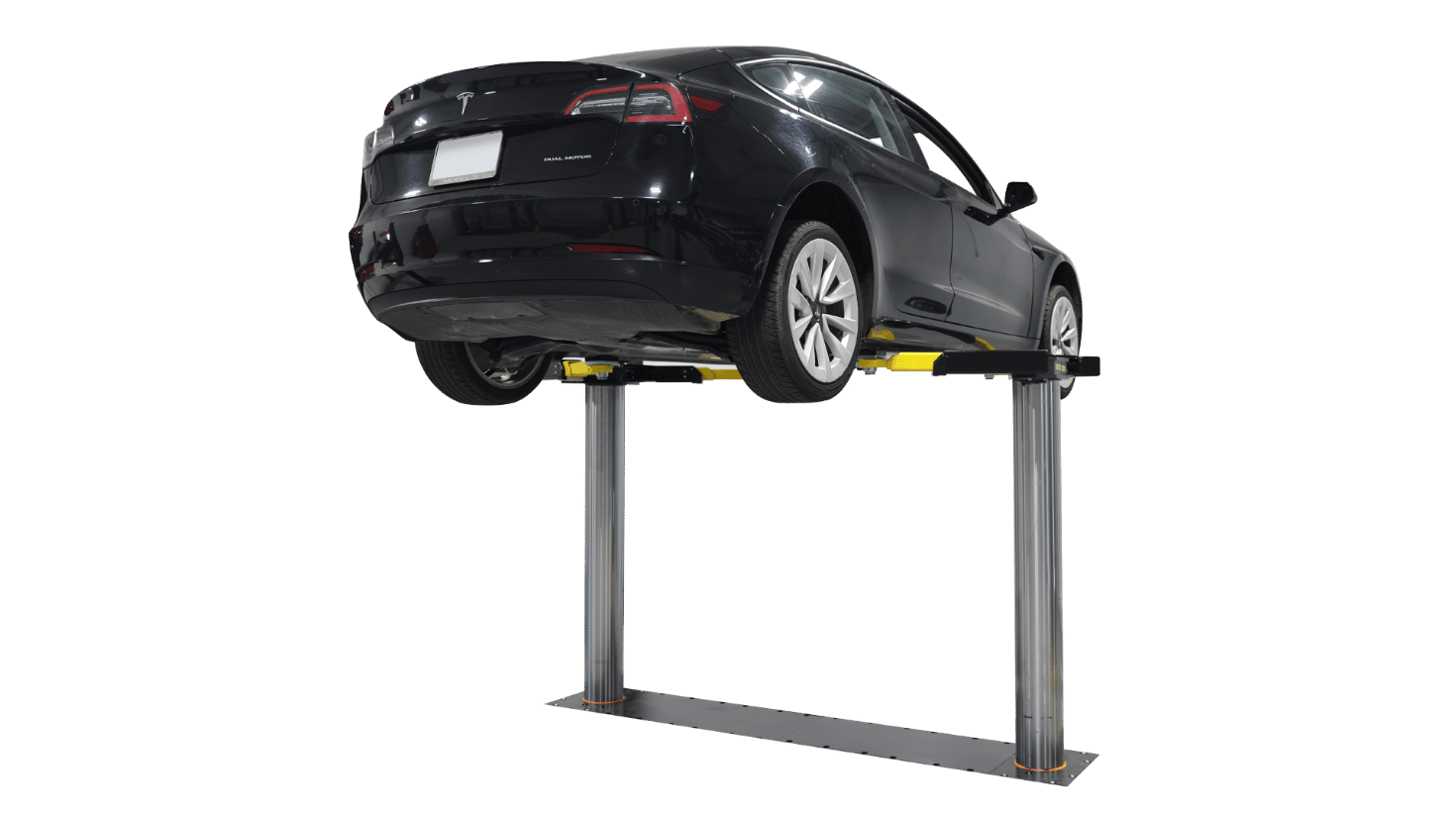

Challenger EW10 10,000 lb Inground Lift Wide

SKU: EW10

Ships from manufacturer

Wide Ew Electric/Hydraulic Inground Lift With 8.5 In. Chrome Pistons, Wide Drive-Through 3-Stage Arms And Double Telescoping Screw Pads. 10,000 Lbs Capacity

10,000 lb Wide-Configuration Inground Lift System

The Challenger EW10 provides a 10,000 lb lifting capacity with a wider cylinder spacing designed to optimize stability and weight distribution for larger sedans and medium SUVs. The WIDE configuration features increased spacing between hydraulic cylinders, ensuring better support for vehicles with longer wheelbases and broader track widths. This complete system includes wide-spaced cylinders, lifting adapters, control unit, and all necessary hardware for concrete pit installation.

Enhanced Stability & Support

The EW10 wide-footprint design distributes vehicle weight more effectively across a wider mounting area. This configuration is ideal for service facilities that work on mid-size to large vehicles where improved load stability enhances both safety and lift performance.

Professional Installation

The EW10 installs directly into concrete pits with a flush-mount design. When fully lowered, the lift sits level with your facility floor. The system operates on standard 220V electric/hydraulic power.

Features & Benefits

10,000 lb Wide-Capacity Lifting

Versatile capacity with wider footprint

  • Larger sedans
  • Medium SUVs
  • Extended-wheelbase vehicles

Wide Cylinder Spacing

Improved stability and load distribution

  • Wider wheel spacing
  • Better weight distribution
  • Enhanced safety

Complete Full System

All components for wide-lift setup

  • Wide-spaced cylinders
  • Lifting adapters
  • Control unit and hardware

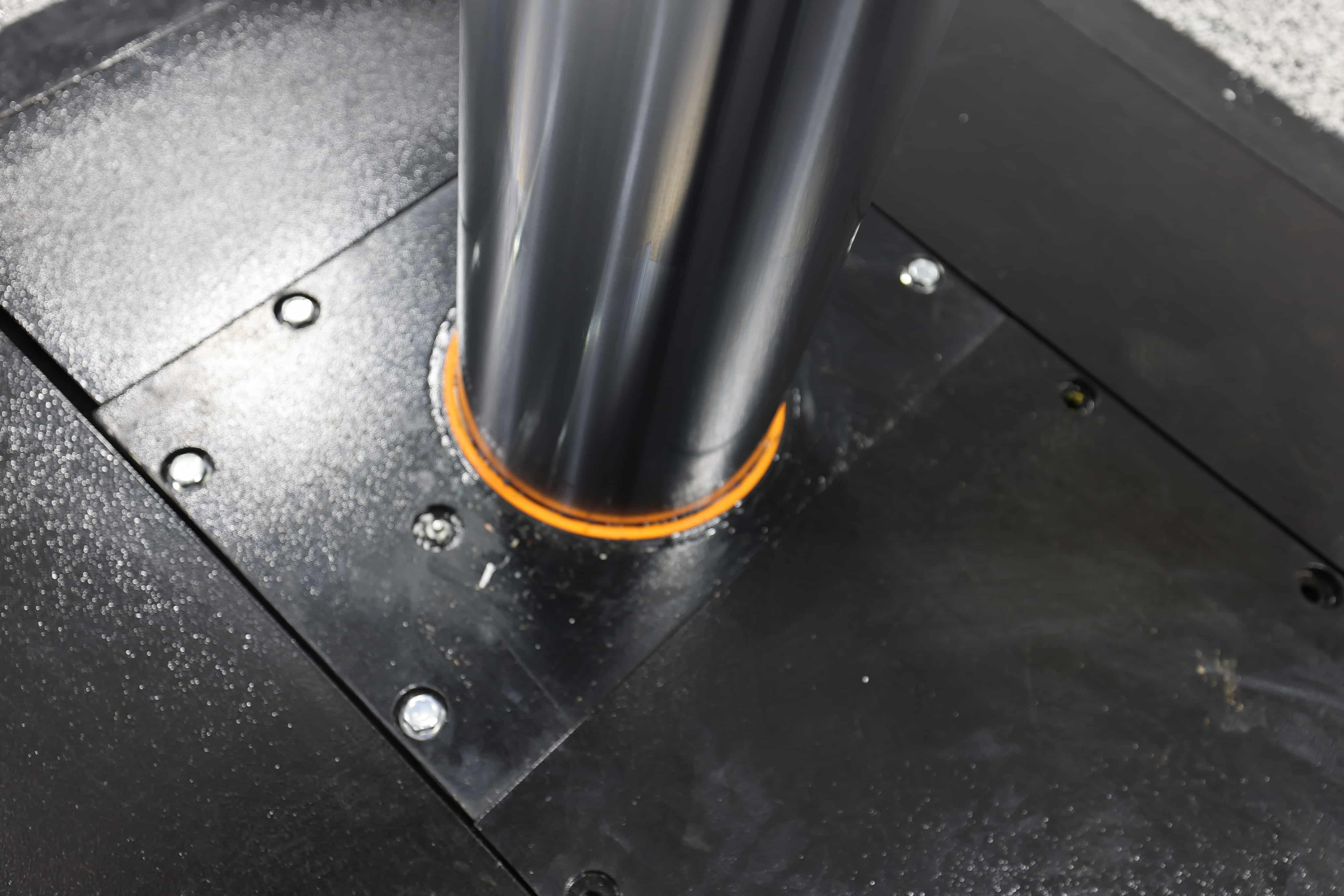

Flush-Mount Inground Design

Professional appearance with zero obstruction

  • Concrete pit installation
  • Level with floor when lowered
  • Clean workspace

220V Electric/Hydraulic Operation

Standard commercial power requirements

  • Single-phase 220V
  • Reliable performance
  • Smooth operation

Durable Wide-Body Construction

Built for wider vehicle support

  • Reinforced framework
  • Long service life
  • Professional grade

Specifications

ModelEW10EW10-BMCEW10-BMC-QCEW10-QC
Price
$19,136.81$29,901.27
Save 36% ($10,764.46)
$20,121.78$31,440.29
Save 36% ($11,318.51)
$21,071.72$32,924.58
Save 36% ($11,852.86)
$19,893.97$31,084.34
Save 36% ($11,190.37)
Product TypeIn Ground LiftIn Ground LiftIn Ground Lift—
Lifting Capacity10,000 lb lbs10,000 lb lbs10,000 lb lbs10,000 lb lbs
Lift ConfigurationWide IngroundWide IngroundWide IngroundWide Inground
Rise Height78" "78" "78" "78" "
Arms3-stage front/3-stage rear3-stage front/3-stage rear3-stage front/3-stage rear—
Overall Width118118118118
Drive-Thru Clearance88"88"88"—
Speed of Rise41s sec41s sec24s sec24s sec
Front Arm Reach20" - 42"20" - 42"20" - 42"—
Screw Pad Height4" - 6.125"4" - 6.125"4" - 6.125"—
Motor2HP Single Phase 60Hz HP2HP, 208-230v, 60Hz, 1Ph HP3HP, 208-230v, 60Hz, 1Ph HP3HP Single Phase 60Hz HP
Voltage208-230V——208-230V
ALI/ETL CertifiedYesYesYesYes
Colors AvailableBlack, Red or BlueBlack, Red, BlueBlack, Red, BlueBlack, Red or Blue

Before You Buy

Professional Freight Delivery

This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.

Ships Within 2-5 Business Days

This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.

Wide-Footprint Lift Installation

The EW10 wide-spacing design requires proper pit layout and foundation preparation. Our installation partners can assess your facility and recommend the optimal placement.

Frequently Asked Questions

The EW10 with its 10,000 lb capacity and wide spacing is ideal for larger sedans, medium SUVs, and vehicles with extended wheelbases. Verify your vehicle weight against the 10,000 lb rating.
The wider cylinder spacing provides better weight distribution and load stability. This configuration accommodates vehicles with broader track widths and distributes lift forces more effectively.
Both have 10,000 lb capacity, but the EW10 has wider cylinder spacing (18 inches vs. 12 inches). Choose EW10 for larger vehicles with extended wheelbases, and EV1020 for standard-size vehicles.
Yes, the EW10 can lift standard-size sedans. However, its wider spacing is optimized for larger vehicles. The wider footprint provides enhanced stability for all vehicles within its 10,000 lb capacity.
The EW10 operates on standard 220V single-phase power. Ensure your facility has appropriate electrical infrastructure installed by a licensed electrician.
Yes, this is a complete full system. It includes wide-spaced cylinders, lifting adapters, control unit, and all necessary hardware. No additional major components are required.
Yes, the EW10 features a flush-mount design. When fully lowered, the lift sits level with your facility floor, creating a professional, obstruction-free workspace.
Regular maintenance includes hydraulic fluid checks, seal inspections, and control unit testing. We recommend professional maintenance checks annually or per manufacturer guidelines.
Yes, multiple EW10 lifts can be installed in a single facility. Coordinate electrical and hydraulic requirements with our installation specialists for your specific layout.
Yes, the EW10 wide-configuration is excellent for facilities servicing a variety of mid-size to larger vehicles. The wider spacing accommodates different vehicle types while maintaining stability.
