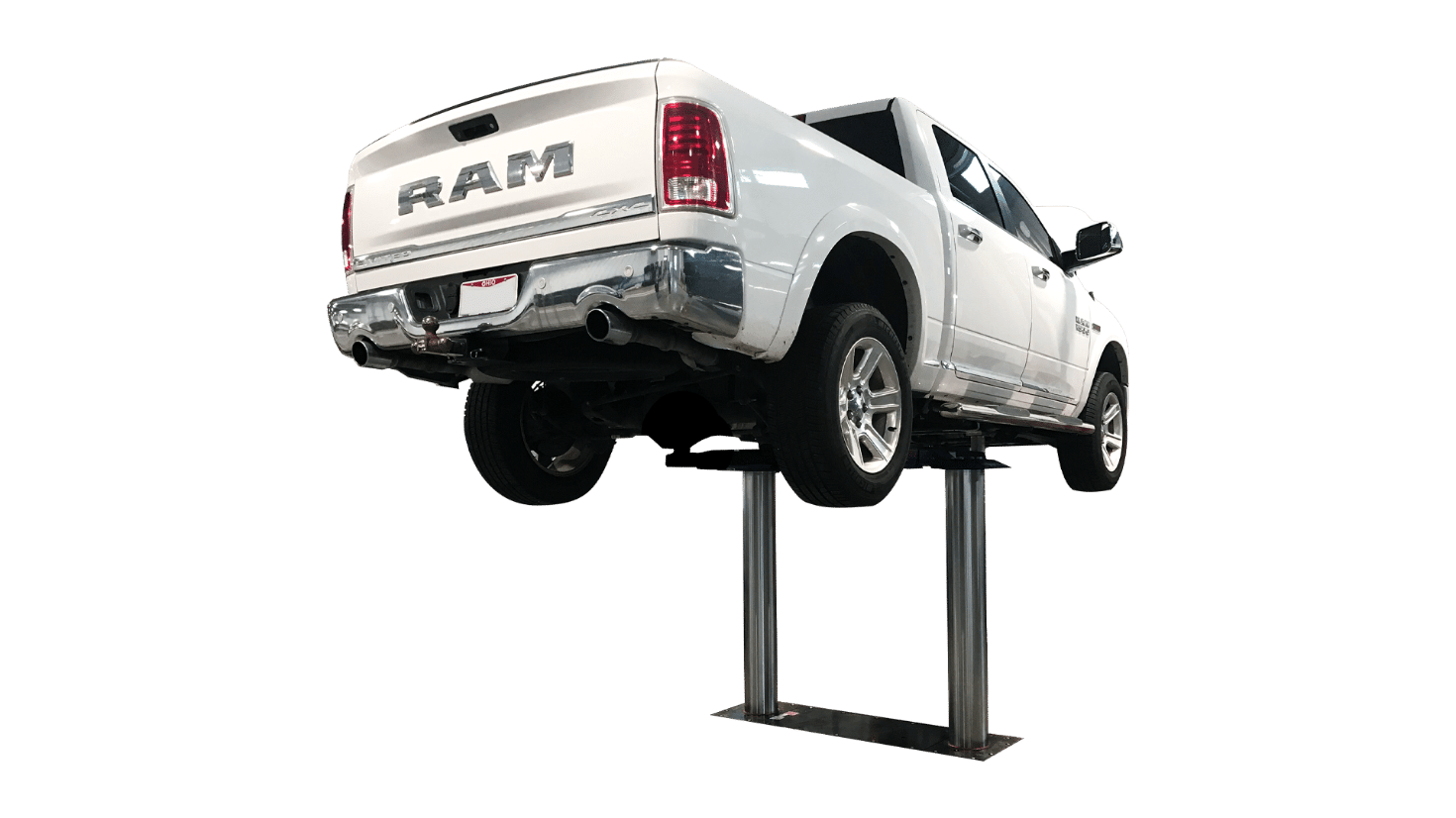

Challenger EV1220 12,000 lb Inground Lift

SKU: EV1220

Ships from manufacturer

Electric/Hydraulic Inground Lift With Chrome Pistons, 3-Stage Arms

Complete 12,000 lb Inground Lift System

The Challenger EV1220 is a heavy-duty inground lift system engineered for facilities that service larger vehicles. With a 12,000 lb lifting capacity, this complete system handles full-size SUVs, trucks, and commercial vehicles with confidence. The full system includes hydraulic cylinders, lifting adapters, control unit, and all necessary hardware for concrete pit installation.

Higher Capacity Performance

The EV1220 is ideal for service facilities that regularly work on heavy vehicles. Whether you're servicing full-size pickup trucks, large SUVs, or commercial vehicles, this lift provides the capacity and stability required. The flush-mount design maintains a professional, organized service bay environment.

Installation & Power

This electric/hydraulic system operates on standard 220V single-phase power and installs directly into concrete pits. Once lowered, the lift sits level with your facility floor, eliminating above-ground obstructions and safety hazards.

Features & Benefits

12,000 lb Heavy-Duty Capacity

Lift larger vehicles with confidence

  • Full-size SUVs
  • Pickup trucks
  • Commercial vehicles

Complete Full System

All components included for immediate installation

  • Hydraulic cylinders
  • Lifting adapters
  • Control unit and hardware

Flush-Mount Inground Design

Professional appearance with zero obstruction

  • Concrete pit installation
  • Level with floor when lowered
  • Clean workspace

220V Electric/Hydraulic Operation

Standard commercial power requirements

  • Single-phase 220V
  • Reliable hydraulic system
  • Smooth operation

Heavy-Duty Construction

Built for demanding commercial environments

  • Reinforced cylinders
  • Durable components
  • Extended service life

Professional Grade Control

Intuitive operation and safety features

  • Precision control
  • Safety mechanisms
  • Reliable performance

Specifications

ModelEV1220EV1220-BMCEV1220-BMC-QCEV1220-QC
Price
$13,591.08$21,236.07
Save 36% ($7,644.99)
$14,621.89$22,846.71
Save 36% ($8,224.82)
$15,619.18$24,404.98
Save 36% ($8,785.80)
$14,612.90$22,832.67
Save 36% ($8,219.77)
Product TypeIn Ground LiftIn Ground LiftIn Ground LiftIn Ground Lift
Lifting Capacity12,000 lb lbs12,000 lb lbs12,000 lb lbs12,000 lb lbs
Lift ConfigurationHeavy-Duty IngroundHeavy-Duty IngroundHeavy-Duty IngroundHeavy-Duty Inground
Rise Height74" "74" "74" "74" "
Arms3-stage front/3-stage rear3-stage front/3-stage rear3-stage front/3-stage rear3-stage front/3-stage rear
Drive-Thru Clearance87"87"87"87"
Speed of Rise38s sec38s sec27s sec27s sec
Front Arm Reach19.625" - 42.125"19.625" - 42.125"19.625" - 42.125"19.625" - 42.125"
Screw Pad Height3.875" - 6"3.875" - 6"3.875" - 6"3.875" - 6"
Motor2HP, 208-230v, 60Hz, 1Ph HP2HP, 208-230v, 60Hz, 1Ph HP3HP, 208-230v, 60Hz, 1Ph HP3HP, 208-230v, 60Hz, 1Ph HP
ALI/ETL CertifiedYesYesYesYes
Colors AvailableRed, Blue, BlackRed, Blue, BlackRed, Blue, BlackRed, Blue, Black

Before You Buy

Professional Freight Delivery

This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.

Ships Within 2-5 Business Days

This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.

Heavy-Duty Capacity Equipment

The EV1220 requires robust electrical infrastructure and proper concrete foundation. We recommend professional installation and facility assessment before purchase.

Frequently Asked Questions

The EV1220 has a 12,000 lb capacity, suitable for full-size SUVs, pickup trucks, and commercial vehicles. Always verify your vehicle's weight against the 12,000 lb rating before lifting.
This is a complete full system. It includes hydraulic cylinders, lifting adapters, control unit, and all necessary hardware. No additional major components are required for operation.
The primary difference is capacity. The EV1020 lifts 10,000 lb (better for sedans and light SUVs), while the EV1220 lifts 12,000 lb (better for trucks and heavy vehicles). The EV1220 has reinforced components for heavier loads.
The EV1220 operates on standard 220V single-phase power. Ensure your facility has appropriate electrical infrastructure installed by a licensed electrician.
Yes, the cylinders install in concrete pits. Installation requires concrete cutting and pit preparation. The process is often easier during facility renovation or new construction.
The EV1220 features a flush-mount design. When fully lowered, the lift sits level with your facility floor, creating a seamless, obstruction-free workspace.
Regular maintenance includes hydraulic fluid checks, seal inspections, and control unit testing. We recommend professional maintenance checks annually or per manufacturer guidelines.
The system includes lifting adapters suitable for most vehicles. However, different vehicle types may require specific adapters, so having a variety available is recommended for flexibility.
Installation timelines vary based on facility conditions, concrete preparation, and electrical work required. Most installations take 2-4 weeks from delivery. Consult with our installation specialists for your specific project.
Yes, the EV1220 is designed for commercial environments and is particularly suitable for facilities servicing larger vehicles. The heavy-duty construction and 12,000 lb capacity make it ideal for demanding commercial applications.
