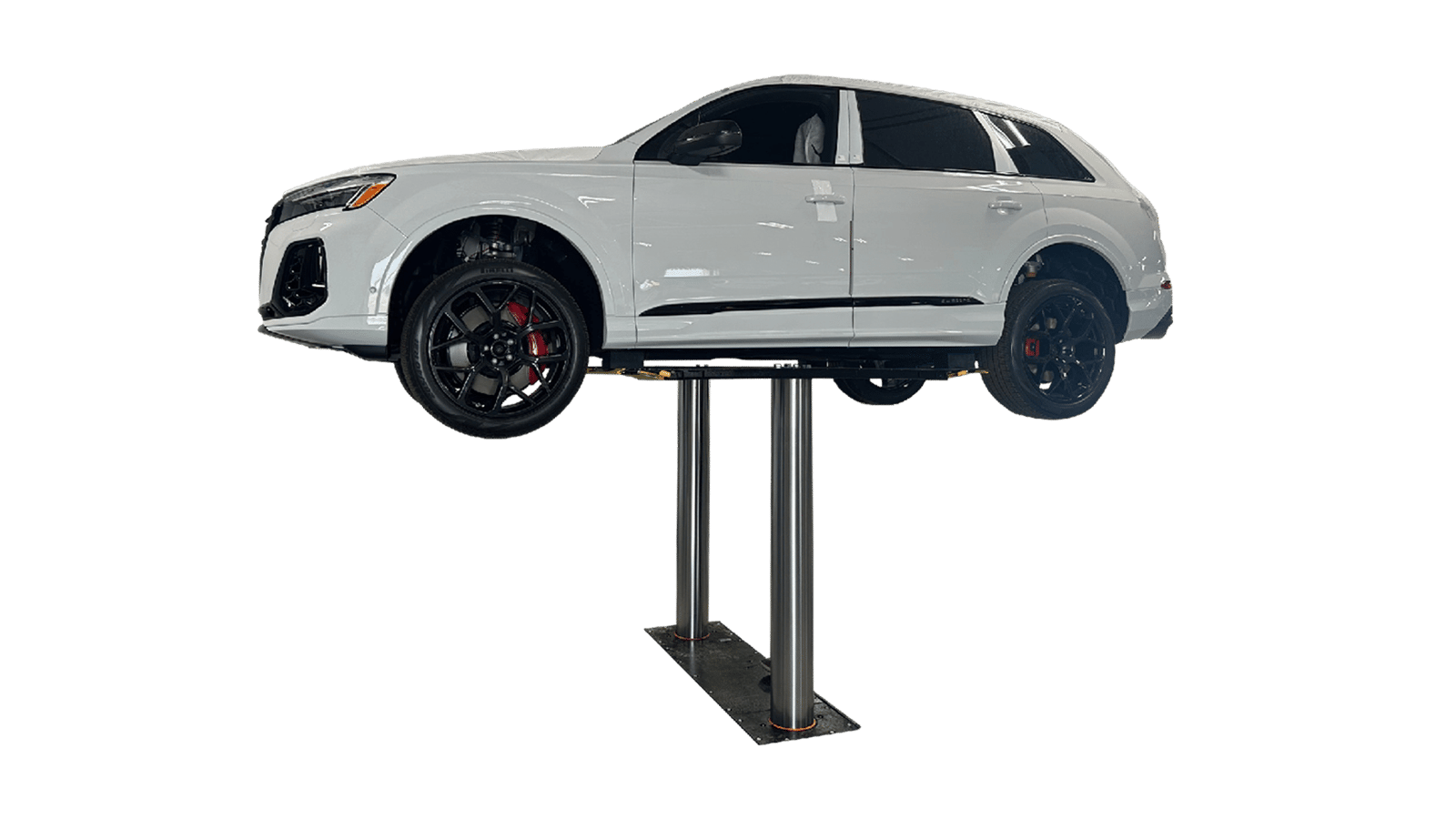

Challenger EV1020XP9 9,000 lb Inground Lift Express Service

Atlas Automotive Equipment

Challenger EV1020XP9 9,000 lb Inground Lift Express Service

SKU: EV1020XP9

Ships from manufacturer

Electric/Hydraulic Inground Lift With 8.5 In. Chrome Pistons, And Express Service Pad Featuring Flip-Up Ramps

9,000 lb Inground Express Service Lift

The Challenger EV1020XP9 is purpose-built for express service operations where speed and efficiency are essential. This 9,000 lb inground lift is optimized for high-volume, quick-turnaround tasks such as oil changes, inspections, tire rotations, and fluid services. The XP9 designation represents express service configuration with accelerated cycle times to maximize throughput in busy service facilities.

Express Service Optimization

Unlike standard inground lifts, the EV1020XP9 features fast cycle times that reduce vehicle dwell time on the lift. The streamlined design allows technicians to complete services quickly without compromising safety or vehicle security. The flush-mount installation keeps your service bay clean and organized.

Power & Installation

The system operates on standard 220V electric/hydraulic power and installs directly into concrete pits. The compact configuration is ideal for facilities focused on rapid-turn service operations.

Features & Benefits

Express Service Optimization

Fast cycle times for quick-turnaround services

  • Oil changes
  • Inspections
  • Tire rotations

Accelerated Cycle Times

Reduced lift cycle duration for high throughput

  • Faster raise cycle
  • Faster lower cycle
  • Minimal dwell time

Flush-Mount Inground Design

Seamless integration with service bay floor

  • Concrete pit installation
  • Clean appearance
  • No obstructions

9,000 lb Capacity

Suitable for most passenger vehicles

  • Sedans
  • Compact SUVs
  • Light trucks

220V Electric/Hydraulic System

Standard commercial power operation

  • Single-phase 220V
  • Energy efficient
  • Reliable performance

Complete System Package

All components for express service setup

  • Hydraulic cylinders
  • Control unit
  • Service adapters

Specifications

ModelEV1020XP9EV1020XP9-BMCEV1020XP9-BMC-QCEV1020XP9-QC
Price
$14,426.93$22,542.09
Save 36% ($8,115.16)
$15,377.82$24,027.84
Save 36% ($8,650.02)
$16,257.94$25,403.04
Save 36% ($9,145.10)
$15,509.84$24,234.13
Save 36% ($8,724.29)
Product TypeIn Ground LiftIn Ground LiftIn Ground LiftIn Ground Lift
Lifting Capacity9,000 lb lbs9,000 lb lbs9,000 lb lbs9,000 lb lbs
Lift ConfigurationDrive-on Pad IngroundDrive-on Pad IngroundDrive-on Pad IngroundDrive-on Pad Inground
Rise Height70" "70" "70" "70" "
ArmsDrive-on PadsDrive-on PadsDrive-on PadsDrive-on Pads
Overall Width79.7579.7579.7579.75
Drive-Thru Clearance87"87"87"87"
Speed of Rise38s sec38s sec27s sec27s sec
Front Arm Reach19.625" - 42.125"19.625" - 42.125"19.625" - 42.125"19.625" - 42.125"
Screw Pad Height3.875" - 6"3.875" - 6"3.875" - 6"3.875" - 6"
Motor2HP, 208-230v, 60Hz, 1Ph HP2HP, 208-230v, 60Hz, 1Ph HP2HP, 208-230v, 60Hz, 1Ph HP2HP, 208-230v, 60Hz, 1Ph HP
ALI/ETL CertifiedYesYesYesYes
Colors AvailableBlackBlackBlackBlack

Before You Buy

Professional Freight Delivery

This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.

Ships Within 2-5 Business Days

This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.

Express Service Facility Setup

Optimize your service bay with coordinated lift placement and electrical routing. Our installation partners can design express service bays with multiple lifts for maximum throughput.

Frequently Asked Questions

XP9 stands for 'Express Service' configuration. It's optimized with faster cycle times specifically for high-volume express service operations like oil changes and inspections, rather than complex repairs.
The EV1020XP9 has a 9,000 lb lifting capacity, suitable for sedans, compact SUVs, and light trucks. Always verify vehicle weight before lifting.
The XP9 configuration reduces cycle times significantly compared to standard inground lifts, allowing technicians to complete express services quickly. Exact cycle times depend on system setup and configuration.
While the EV1020XP9 can be used for various services, it's specifically optimized for express services. For extended, complex repair work, you may want a different configuration.
The system requires standard 220V single-phase power. Ensure your facility has appropriate electrical infrastructure installed by a licensed electrician.
Yes, multiple inground lifts can be installed in a single facility. Coordinate electrical and hydraulic requirements with our installation specialists for your specific layout.
Yes, the complete system includes lifting adapters designed for express service applications. Verify compatibility with your most common vehicle types.
Regular maintenance includes hydraulic fluid checks, seal inspections, and control unit testing. High-volume express service environments benefit from more frequent professional maintenance checks.
Yes, the EV1020XP9 features a flush-mount design. When fully lowered, it sits level with your facility floor, maintaining a clean, obstruction-free service bay.
The key difference is the express service optimization with faster cycle times. Standard inground lifts are better for general-purpose service, while the XP9 excels in high-volume, quick-turnaround environments.
