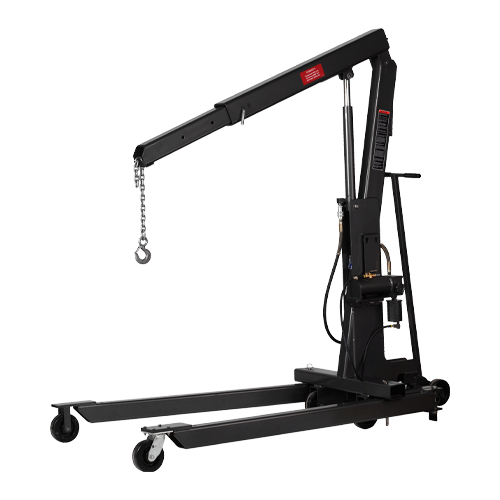

Challenger CLHMSC-220 Shop Crane — 2,200 Lb Capacity

Built for Heavy Pulls

The Challenger CLHMSC-220 is a heavy-duty 2,200 lb shop crane designed for engine removal, transmission pulls, and heavy component handling in professional service bays. With a full 2,200 lb lifting capacity in the retracted boom position and a maximum hook height of 114 inches, this crane handles the heaviest automotive powertrains with confidence. Available in two pump configurations — manual hydraulic or air-over-hydraulic — so you can match the crane to your shop setup and workflow.

Choose Your Pump Type

The standard manual hydraulic configuration uses an MP-50 pump for smooth, controlled lifting without requiring compressed air — ideal for shops without centralized air systems or bays away from existing drops. The air-over-hydraulic configuration (-H model) connects to your shop's compressed air supply and raises loads with the push of a lever, eliminating manual pumping for faster cycle times and reduced operator fatigue during back-to-back pulls.

Adjustable Reach & Capacity

Three boom positions let you match reach to capacity for any job. Retracted position delivers the full 2,200 lb rating for heavy engine blocks. Center position provides 1,900 lbs with moderate reach. Extended position stretches to 1,650 lbs for components further from the crane's base. Three leg width settings — 22 inches, 36 inches, and 50 inches — straddle vehicles from compact cars to full-size trucks. When the job is done, the legs fold flat for compact storage against the shop wall.

Professional-Grade Construction

At 540 lbs, the CLHMSC-220 is built from heavy-gauge steel that won't flex under full load. Six-inch polyurethane wheels roll smoothly across concrete shop floors, and the 8-1/8 inch leg height clears minor floor irregularities and embedded tracks. The 82-inch overall length provides a stable footprint and smooth leverage during heavy pulls.
