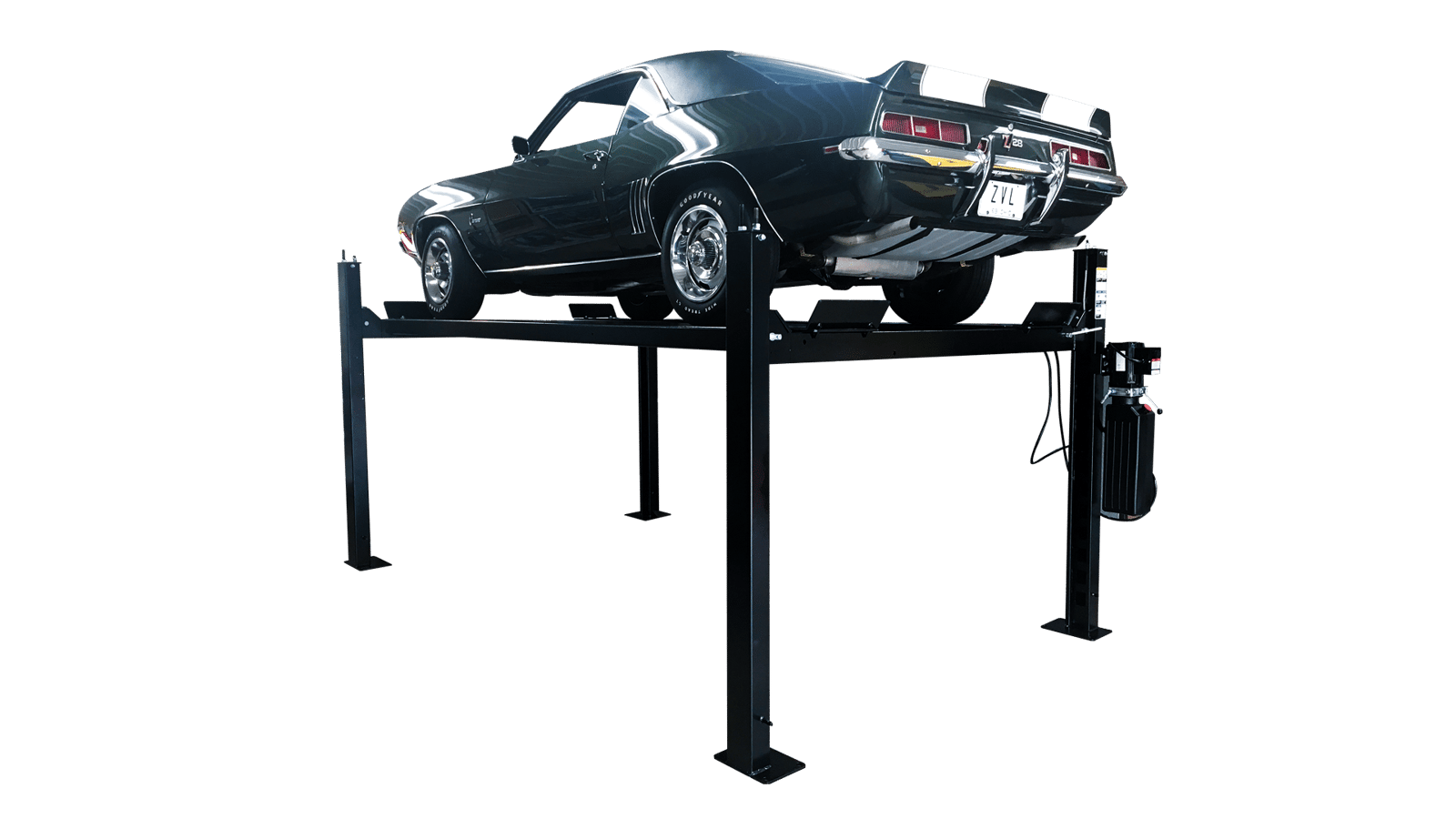

Challenger CL4P7-SR 7,000 lb 4-Post Lift Home Garage Storage Standard Rise

Challenger Lifts

Challenger CL4P7 7,000 lb Home Storage Lift

SKU: CL4P7-SR

Ships from manufacturer

7,000 lb ALI/ETL-Certified cable-driven 4-post home storage lift with 63" drive-under clearance, 14 lock positions, single-point manual lock release, and dual motor options (1HP 115V or 2HP 230V). Designed for home garage vehicle storage and light-duty service with commercial-grade formed runways and built-in rail system for rolling jacks and drip trays.

Cable-Driven Home Storage & Light-Duty Service Lift

The Challenger CL4P7 is a 7,000 lb capacity cable-driven 4-post lift purpose-built for home garage vehicle storage and light-duty service applications. Unlike traditional hydraulic 4-post lifts, the CL4P7 uses a single hydraulic cylinder with a synchronized cable system to deliver smooth, even lifting across both runways. With 63 inches of drive-under clearance in the top locked position, this lift lets you park a second vehicle underneath — effectively doubling your garage's storage capacity without expanding your footprint.

Flexible Installation & Dual Motor Options

The CL4P7 offers true installation flexibility with both free-standing and bolt-to-floor configurations. Anchoring is not required to maintain ALI/ETL certification, making it an ideal choice for rental properties or situations where permanent floor modifications aren't possible. Choose between the standard 1HP 115V motor (plugs into any standard 20A household outlet) or the optional 2HP 230V motor for faster 60-second rise times. Adjustable lock ladders accommodate uneven garage floors, and 14 lock positions from floor level to maximum rise give you precise height control for both storage and service work.

Commercial-Grade Construction for Home Use

Despite being designed for home garages, the CL4P7 doesn't cut corners on build quality. Commercial-grade formed steel runways provide a strong, stable lifting platform with 20-inch-wide runways and 150½ inches of usable runway length. The built-in runway rail system accepts optional rolling jacks and oil drip trays (sold separately) for convenient light-duty service. A single-point manual lock release simultaneously disengages all column locks for smooth, controlled lowering. The durable powder coat finish in black stands up to daily garage use while maintaining a clean, professional appearance.

Installation Requirements & Bay Sizing

The CL4P7 requires a minimum bay size of 10 feet wide by 20 feet long. While anchoring is optional for certification, Challenger recommends a minimum 4-inch thick concrete floor rated at 3,500 PSI (cured at least 28 days) if you choose to bolt down. The power unit requires a dedicated 20-amp circuit — either 110V or 220V depending on your motor selection. This lift is rated for indoor use only in environments between 41°F and 104°F. The overall footprint is 16 feet 3½ inches long by 8 feet 4½ inches wide with a column height of 79½ inches, so verify your garage ceiling height accommodates the lift plus your vehicle before purchasing.

Features & Benefits

7,000 lb Capacity

ALI/ETL-Certified cable-driven lifting system handles cars, SUVs, and light trucks with ease for home garage storage and service.

  • Single hydraulic cylinder with synchronized cable system for even lifting
  • 3,500 lb capacity per runway for balanced weight distribution
  • 14 lock positions from floor level to 63" drive-under clearance

Cable-Driven Power System

Dual motor options let you choose the right power unit for your garage electrical setup and performance needs.

  • Standard 1HP 115V motor plugs into any household 20A outlet
  • Optional 2HP 230V motor delivers faster 60-second rise times
  • 2,600 PSI hydraulic operating pressure for reliable, consistent performance

Single-Point Manual Lock Release

One-handle lock release simultaneously disengages all column locks for safe, controlled lowering without compressed air.

  • No compressed air required — fully mechanical lock operation
  • Adjustable lock ladders accommodate uneven garage floors
  • 14 locking positions for precise height control during storage or service

Free-Standing or Bolt-to-Floor

Install with or without floor anchoring — ALI/ETL certification is maintained either way for maximum installation flexibility.

  • Free-standing option ideal for rental properties and temporary setups
  • Bolt-to-floor option with 150 ft-lb anchor torque for permanent installation
  • 4" concrete at 3,500 PSI recommended if anchoring (28+ day cure)

Compact Home Garage Footprint

Purpose-sized for residential garages with a 10' x 20' minimum bay requirement and 79½" column height.

  • Overall dimensions: 16'3½" long x 8'4½" wide x 79½" tall
  • 92⅛" inside columns accommodates most cars, SUVs, and light trucks
  • 141½" maximum wheelbase capacity covers full-size sedans and SUVs

Built-In Runway Rail System

Commercial-grade formed steel runways with integrated rail system for optional rolling jacks and oil drip trays.

  • 20" wide runways with 150½" usable runway length
  • 38" between runways for comfortable underbody access
  • Powder coat black finish for lasting durability in garage environments

Specifications

ModelCL4P7-SRCL4P7-ER
Price
$5,823.31$9,098.93
Save 36% ($3,275.62)
$6,089.78$9,515.29
Save 36% ($3,425.51)
Width of Runways20 in20 in
Max Wheelbase141.5 in141.5 in
Width Between Runways38 in38 in
Overall Length195.5 in195.5 in
Product TypeHome Storage LiftsHome Storage Lifts
Lifting Capacity7,000 lb lbs7,000 lb lbs
Lift ConfigurationHome Storage 4-PostHome Storage 4-Post
Rise Height68.125" "68.125" "
Overall Width100.5100.5
Speed of Rise~120s (115V) / ~60s (230V) sec~120s (115V) / ~60s (230V) sec
Motor1HP, 115v, 60Hz, 1Ph / 2HP, 230v, 60Hz, 1Ph HP1HP, 115v, 60Hz, 1Ph / 2HP, 230v, 60Hz, 1Ph HP
Voltage115V / 230V Single Phase115V / 230V Single Phase
ALI/ETL CertifiedALI/ETLALI/ETL
Colors AvailableBlackBlack

Before You Buy

Concrete Floor Recommended

Challenger recommends a 4-inch thick concrete floor rated at 3,500 PSI (cured 28+ days) if anchoring. Floor must be level within ½" side-to-side and 2½" front-to-rear. Anchoring is optional — ALI/ETL certification maintained free-standing.

Dedicated Electrical Circuit Required

The CL4P7 requires a dedicated 20-amp circuit — either 110V for the standard 1HP motor or 220V for the optional 2HP motor. No other devices should share this circuit. Verify your garage panel has an available breaker before ordering.

Indoor Use Only

This lift is rated for indoor use only in environments between 41°F and 104°F. Do not install in outdoor, uncovered, or unheated garage spaces that drop below freezing. Temperature extremes can affect hydraulic fluid performance and cable integrity.

Hydraulic Fluid Not Included

The CL4P7 ships without hydraulic fluid. You will need 10-weight anti-foam hydraulic oil or Dexron III automatic transmission fluid. Approximately 2 gallons required. Purchase fluid before your installation date to avoid delays.

Verify Garage Ceiling Height

Column height is 79½ inches (6 feet 7½ inches). Your ceiling must accommodate the column height PLUS the height of the tallest vehicle you plan to store on top. Most standard 8-foot garage ceilings work, but measure before ordering — especially if storing SUVs or trucks.

Professional Installation Recommended

While the CL4P7 is designed for home use, professional installation is strongly recommended. The lift requires assembly of hydraulic components, cable routing through four sheaves, and electrical connections. Improper installation can affect safety and warranty coverage.

Free Freight Shipping

This lift ships via freight carrier at no additional charge to most commercial addresses in the contiguous United States. Residential deliveries may require additional coordination — contact us for a delivery quote to your home address.

Unloading Requirements — Freight Delivery

This lift ships on a freight truck and must be unloaded at the delivery location. A loading dock, forklift, or similar equipment is required to unload. Most residential deliveries will need a liftgate service — contact us before ordering to arrange proper delivery to your home garage.

Frequently Asked Questions

Challenger recommends a minimum 4-inch thick concrete floor rated at 3,500 PSI that has been cured for at least 28 days if you plan to anchor the lift. The floor should be level within ½ inch side-to-side and 2½ inches front-to-rear. However, anchoring is optional — the CL4P7 maintains its ALI/ETL certification in both free-standing and bolted configurations.
While the CL4P7 is designed for home garage use, professional installation is strongly recommended. The lift weighs approximately 1,500-2,000 lbs and requires proper assembly of the hydraulic system, cable routing through four sheaves, and electrical connections. Improper installation can affect safety and void warranty coverage. Challenger recommends using an authorized installer familiar with their equipment.
Regular maintenance includes inspecting cables for wear or fraying, checking hydraulic fluid levels (10-weight anti-foam hydraulic oil or Dexron III ATF — fluid is NOT included with the lift), lubricating lock ladders, and inspecting all mechanical connections. Challenger recommends following the maintenance schedule in the IOM manual. The single hydraulic cylinder and cable system have fewer moving parts than direct-drive lifts, simplifying ongoing maintenance.
The CL4P7 accommodates most passenger vehicles with a maximum wheelbase of 141½ inches and overall width under 92⅛ inches (inside column measurement). This covers most sedans, coupes, smaller SUVs, and light trucks. Each runway is 20 inches wide with 150½ inches of usable length. For larger trucks, full-size SUVs, or extended-cab pickups, consider the 9,000 lb CL4P9 series which offers longer runways and wider column spacing.
No. Unlike many commercial 4-post lifts, the CL4P7 uses a single-point manual lock release that operates entirely mechanically — no compressed air is required. This is a major advantage for home garage installation where a shop air compressor may not be available. One handle simultaneously disengages all column locks for controlled lowering.
The CL4P7-SR (Standard Rise) provides 68⅛ inches of maximum rise with 63 inches of drive-under clearance in the top locked position. The CL4P7-ER (Extended Rise) offers additional rise height for taller vehicles or more clearance underneath. Both models share the same 7,000 lb capacity, footprint dimensions, and feature set — the extended rise version simply has taller columns.
The CL4P7 is designed for both vehicle storage and light-duty service applications. The 14 lock positions let you set the lift at comfortable working heights, and the built-in runway rail system accepts optional rolling jacks (sold separately) for wheel-off service. Optional oil drip trays are also available. For heavy commercial service, Challenger offers dedicated service-rated 4-post lifts in their commercial lineup.
The CL4P7 requires a dedicated 20-amp circuit. The standard 1HP motor operates on 115V (standard household outlet), while the optional 2HP motor requires 230V. Rise time is approximately 120 seconds on 115V and 60 seconds on 230V. A dedicated circuit means no other devices should share the breaker — this protects the motor and ensures consistent performance.
No. The CL4P7 maintains its full ALI/ETL certification in both free-standing and bolt-to-floor configurations. This is unusual for 4-post lifts and makes the CL4P7 ideal for rental properties, temporary garage setups, or situations where you don't want to drill into your concrete floor. If you do anchor, Challenger specifies 150 ft-lb minimum torque on anchor bolts into 4-inch concrete rated at 3,500 PSI.
The CL4P7 provides 63 inches (5 feet 3 inches) of drive-under clearance when in the top locked position. This is enough to park most sedans, sports cars, and many compact SUVs underneath the raised vehicle. The lowered runway height is 5¾ inches, which provides a gentle approach angle for loading vehicles. For greater clearance, the CL4P9X and CL4P9W extended models offer up to 80 inches of clearance.
Challenger Lifts provides warranty coverage on the CL4P7 that covers manufacturing defects in materials and workmanship. Warranty terms and coverage periods should be confirmed directly with your dealer at the time of purchase, as they may vary. Professional installation by an authorized installer is typically required to maintain full warranty coverage.
Rise time depends on your motor selection. The standard 1HP 115V motor raises the lift in approximately 120 seconds (2 minutes), while the optional 2HP 230V motor cuts that to approximately 60 seconds (1 minute). For daily storage use where you're raising and lowering vehicles once or twice a day, either motor option works well. The 230V motor is better suited if you'll be raising and lowering frequently for service work.
