Challenger Lifts

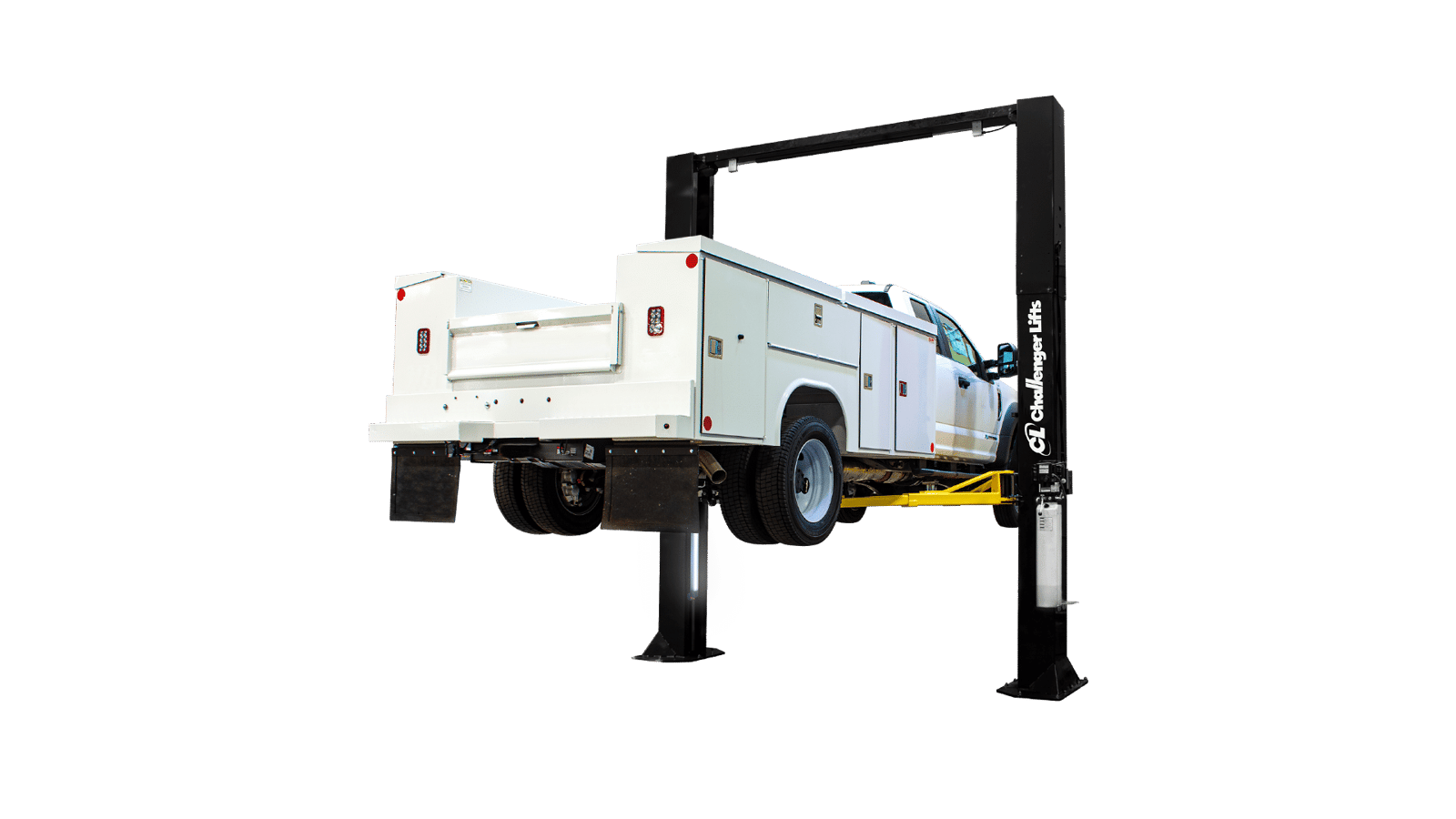

Challenger CL20 20,000 lb 2-Post Lift Symmetric Arms Heavy-Duty
SKU: CL20
Ships from manufacturer
Symmetric 2-Post Lift, 2-Stage Front And 2-Stage Rear Arms, Single Point Air Actuated Lock Release (174 In. Height)
Specifications
| Model | CL20 | CL20-2 |
|---|---|---|
| Price | $28,775.43$44,961.62 Save 36% ($16,186.19) | $29,214.25$45,647.27 Save 36% ($16,433.02) |
| Product Type | HD 2 Post Lift | HD 2 Post Lift |
| Lifting Capacity | 20,000 lb lbs | 20,000 lb lbs |
| Lift Configuration | Symmetric | Symmetric |
| Rise Height | 76.6" - 84.6" " | 76.6" - 84.6" " |
| Arms | 2-Stage Front/Rear | 2-Stage Front/Rear |
| Overall Height | 162", 168", 174" in | 186", 192", 198" in |
| Overall Width | 166.75", 160.75", 154.75" | 166.75", 160.75", 154.75" |
| Drive-Thru Clearance | 104.25", 110.25", 116.25" | 104.25", 110.25", 116.25" |
| Floor to Overhead Switch | 155", 161", 167" | 179", 185", 191" |
| Speed of Rise | 62s sec | 62s sec |
| Front Arm Reach | 38.5" - 62" | 38.5" - 62" |
| Screw Pad Height | 6.2" - 7.6" | 6.2" - 7.6" |
| Inside Columns | 120", 126", 132" | 120", 126", 132" |
| Motor | 3HP, 208-230v, 60Hz, 1Ph HP | 3HP, 208-230v, 60Hz, 1Ph HP |
| Controls | Single Pendant | Single Pendant |
| Ceiling Height Required | 14'8" | 16'8" |
| ALI/ETL Certified | Yes | Yes |
