Challenger Lifts

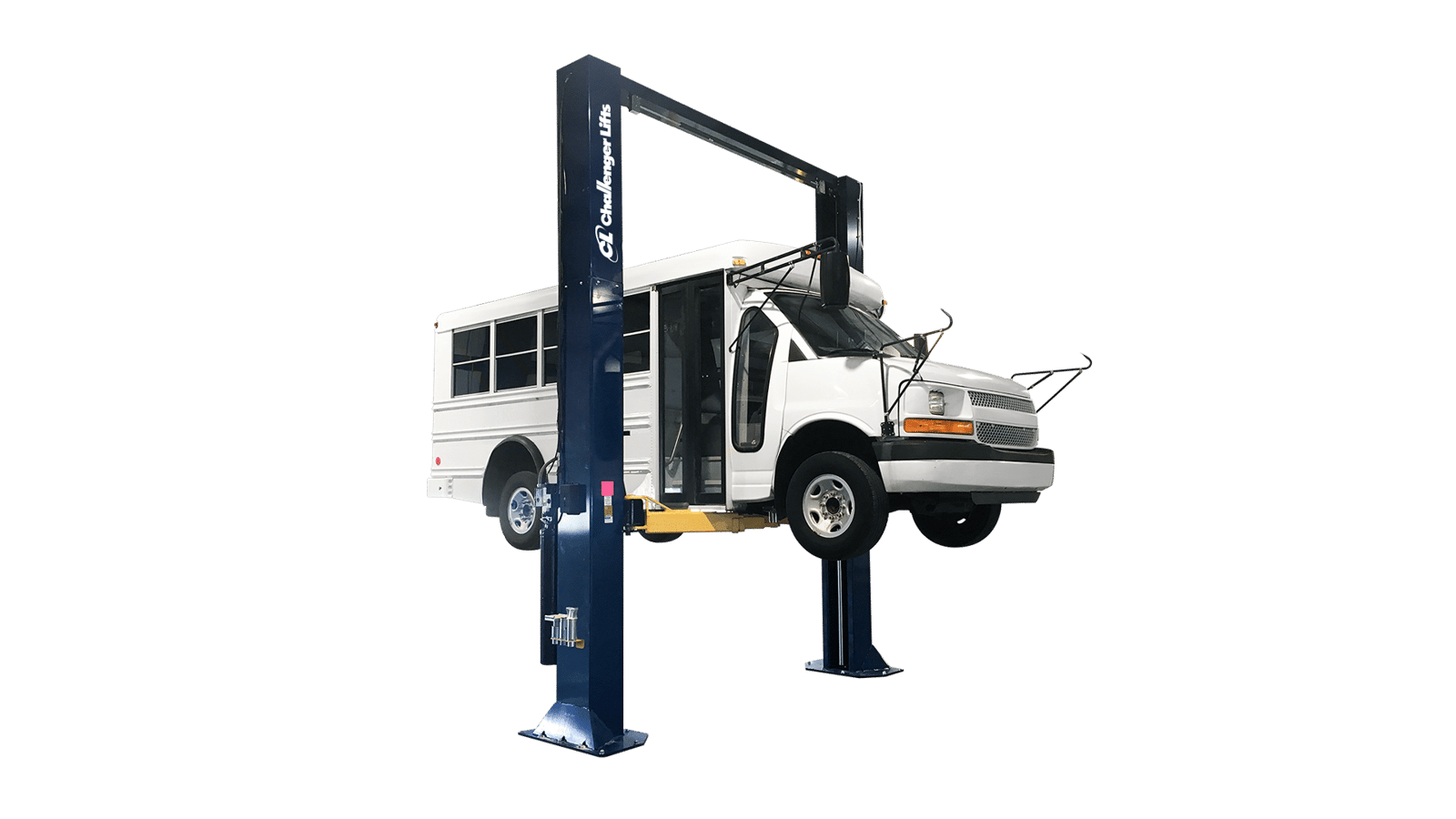

Challenger CL16-3S 16,000 lb 2-Post Lift Symmetric Arms Heavy-Duty
SKU: CL16-3S
Ships from manufacturer
Symmetric Cargo Vehicle 2-Post Lift, 3-Stage Front And 3-Stage Rear Arms (174 In. Height) - Designed Specifically For Cargo Van Style Carrying Vehicles.
Specifications
| Model | CL16-3S | CL16-2-3S |
|---|---|---|
| Price | $23,750.58$37,110.29 Save 36% ($13,359.71) | $24,032.64$37,551.00 Save 36% ($13,518.36) |
| Product Type | HD 2 Post Lift | HD 2 Post Lift |
| Lifting Capacity | 16,000 lb lbs | 16,000 lb lbs |
| Lift Configuration | Symmetric | Symmetric |
| Rise Height | 75.5" - 81.5" " | 75.5" - 81.5" " |
| Arms | 3-Stage Front/Rear | 3-Stage Front/Rear |
| Overall Height | 162", 168", 174" in | 186", 192", 198" in |
| Overall Width | 166.75", 160.75", 154.75" | 166.75", 160.75", 154.75" |
| Drive-Thru Clearance | 104.25", 110.25", 116.25" | 104.25", 110.25", 116.25" |
| Floor to Overhead Switch | 155", 161", 167" | 179", 185", 191" |
| Speed of Rise | 62s sec | 62s sec |
| Front Arm Reach | 36.625" - 75" | 36.625" - 75" |

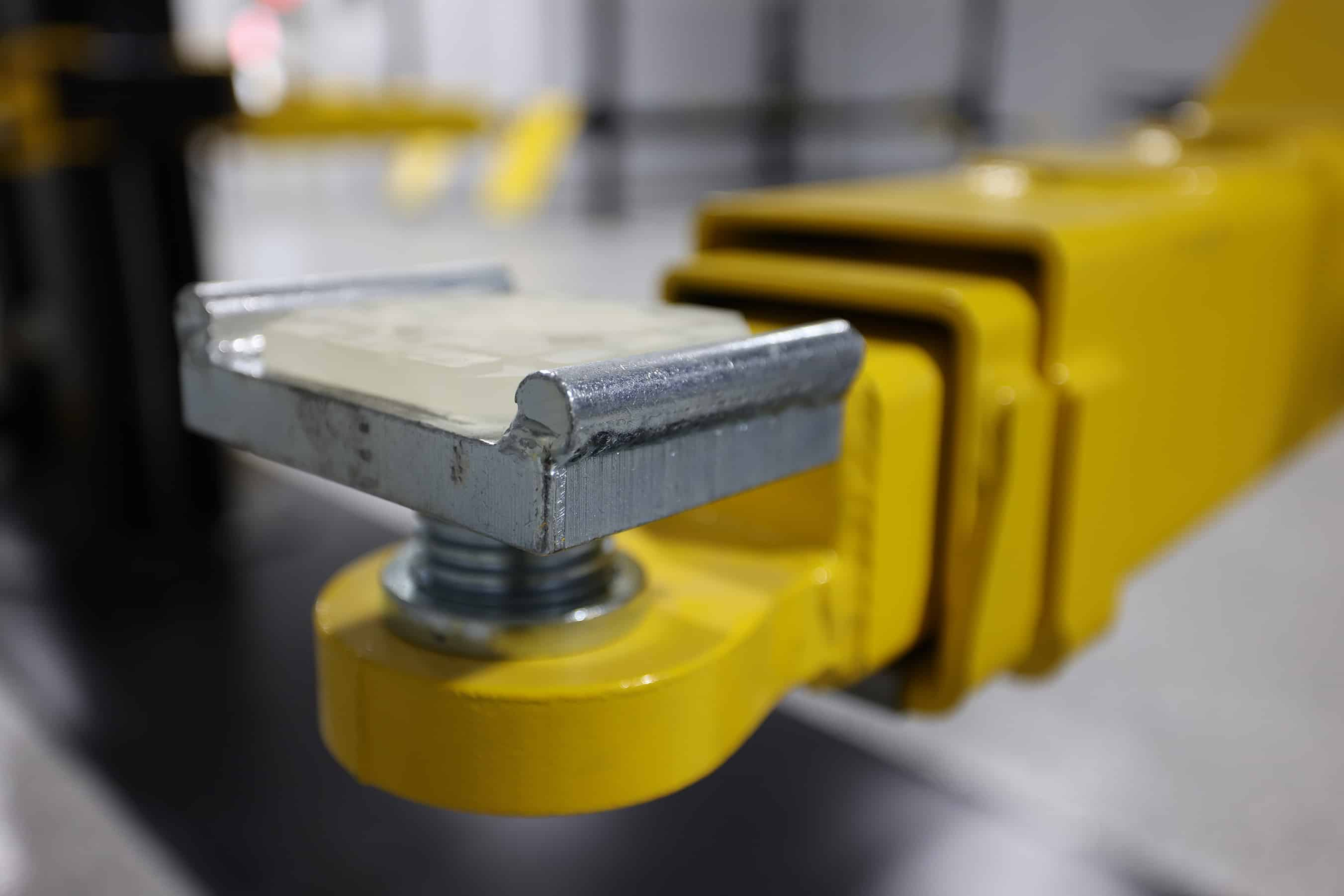

| Screw Pad Height | 5" - 6.5" | 5" - 6.5" |
| Inside Columns | 120", 126", 132" | 120", 126", 132" |
| Motor | 3HP, 208-230v, 60Hz, 1Ph HP | 3HP, 208-230v, 60Hz, 1Ph HP |
| Controls | Single Pendant | Single Pendant |
| Ceiling Height Required | 14'8" | 16'8" |
| ALI/ETL Certified | Yes | Yes |
