Challenger Lifts
Challenger CL12A 12,000 lb 2-Post Lift Symmetric Arms
SKU: CL12A
Ships from manufacturer
Symmetric 2-Post Lift, 3-Stage Front & Rear Arms, Adjustable Width, Single-Point Mechanical Lock Release, Stack Adapter Kit Included (164 In. Height)
MFR #: CL12A

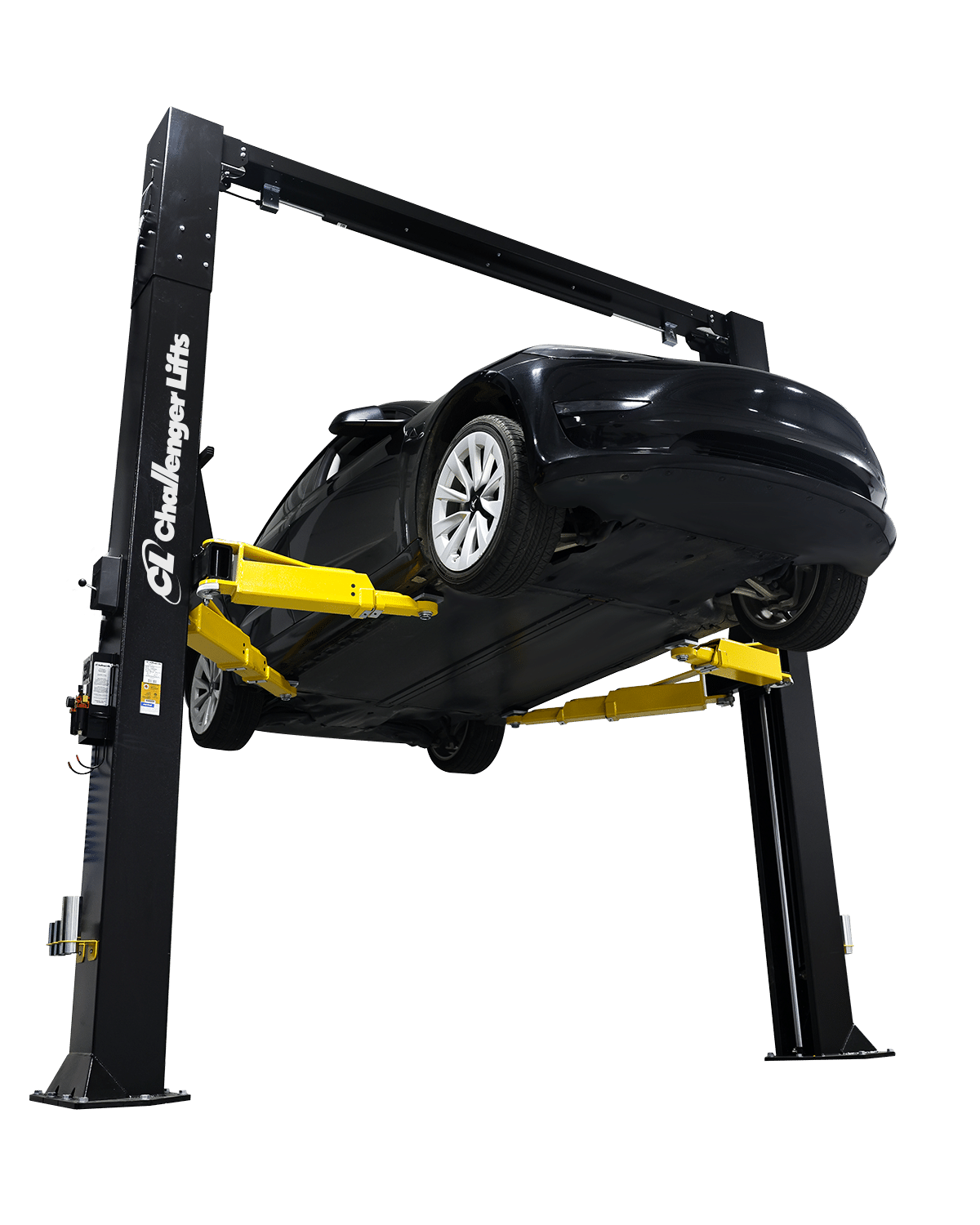

Challenger CL12A — 12,000 lb Symmetric 2-Post Lift
The Challenger Lifts CL12A is a 12,000 lb capacity ALI-Certified symmetric 2-post vehicle lift built for shops that need heavy-duty lifting performance with installation flexibility. Its 3-stage front and rear arms with 27.5" to 59" reach, adjustable column width settings (142"/148"/154" overall), and four column height configurations — including a low-ceiling model — make it one of the most versatile 12K lifts on the market for servicing cars, trucks, vans, SUVs, and electric vehicles.
Configurable Width & Height
The CL12A installs in three width settings with +6" and +12" adjustments to accommodate different bay layouts. Four column height configurations are available: CL12A-LC (low-ceiling, fits 12 ft ceilings), CL12A standard (13 ft 3 in / 13 ft 9 in ceiling required), CL12A-1 with 1-foot extension (14 ft 3 in / 14 ft 9 in ceiling), and CL12A-2 with 2-foot extension (15 ft 3 in / 15 ft 9 in ceiling). All models share the same 12,000 lb capacity, 3,000 lb per arm rating, and 84.75" rise height (80.75" for LC).
Optional Upgrades
QuickCycle reduces rise time from approximately 63 seconds to approximately 40 seconds on standard models (60 to 38 seconds on LC). Dual Pendant Controls add pendant-operated power controls at both columns with dual single-point mechanical lock release. The EV Adapter Kit adds 6" adapters, adapter caddies, and EVFPK foot pads for servicing electric vehicles at their manufacturer-specified lift points.
Standard Equipment & Installation
Every CL12A comes standard with a stack adapter extension kit (P/N 10315) including 3" and 6" stack extensions, organizer racks, and enhanced screw pads with built-in raised edges for frame-locating. The lift features geared arm restraints, steel pulleys, a padded overhead shut-off system, and Challenger's textured powder coating for enhanced durability. Requires 208-230V, single-phase, 60Hz, 20A electrical service. Indoor installation only.
See It In Action
Features & Benefits
12,000 lb Capacity
Heavy-duty lifting capacity handles a wide range of standard cars, trucks, vans, and SUVs within the same service bay.
- 3,000 lb per arm
- ALI Certified
- 84.75 in. rise height (80.75 in. LC)

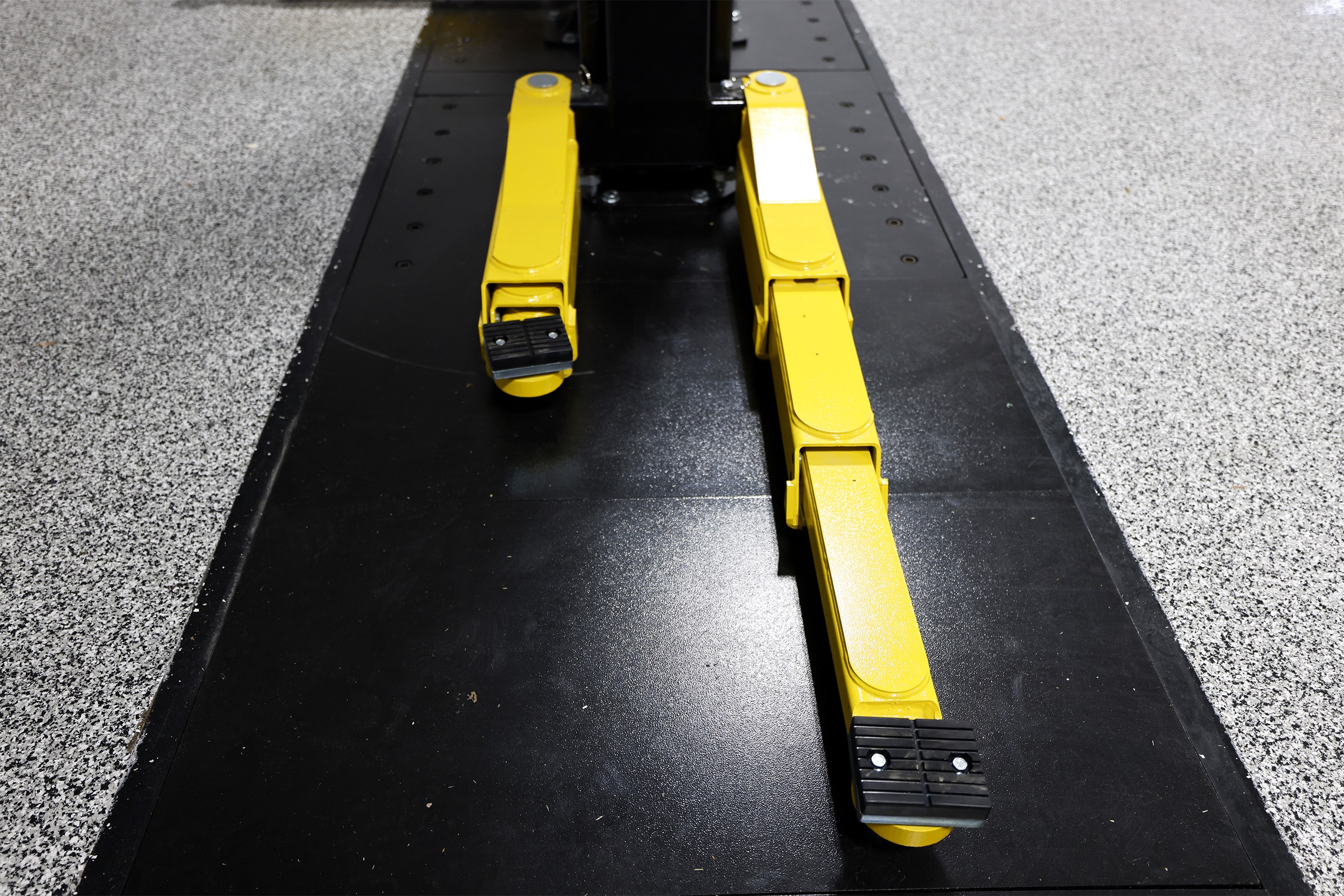

Symmetric Arm Design
3-stage front and rear arms with 27.5" to 59" reach provide versatile vehicle positioning for balanced lifting.
- 3-stage front and rear arms
- 27.5" to 59" reach range
- Premium telescoping footpads
Adjustable Width & Height
Three width settings at installation (142"/148"/154" overall) and multiple column height options accommodate a variety of shop configurations.
- 3 width settings (+6"/+12")
- 4 column heights: LC, Standard, -1, -2
- Fits ceilings from 12 ft to 15+ ft
ALI Certified & ETL Listed
Third-party validated to meet rigorous safety standards with mechanical single-point lock release system.
- Independently tested & validated
- Mechanical single-point lock release
- Padded overhead shut-off system
EV Service Ready
Compatible with Challenger's EV adapter kit including 6" adapters, adapter caddies, and EVFPK foot pads for servicing electric vehicles.
- 6" adapters & adapter caddies
- EVFPK foot pads included
- Manufacturer-specified lift points
Low-Ceiling Option Available
CL12A-LC model fits shops with ceilings as low as 12 feet while maintaining 80.75" of rise height.
- CL12A-LC: 11' 11" column height
- Fits shops with 12 ft ceilings
- 80.75" rise height maintained
Specifications
| Model | CL12A | CL12A-1 | CL12A-1-DPC-QC | CL12A-1-DPC-QC-EV | CL12A-1-EV | CL12A-1-QC | CL12A-1-QC-EV | CL12A-2 | CL12A-2-DPC-QC | CL12A-2-DPC-QC-EV | CL12A-2-EV | CL12A-2-QC | CL12A-2-QC-EV | CL12A-DPC-QC | CL12A-DPC-QC-EV | CL12A-EV | CL12A-LC | CL12A-LC-DPC-QC | CL12A-LC-DPC-QC-EV | CL12A-LC-EV | CL12A-LC-QC | CL12A-LC-QC-EV | CL12A-QC | CL12A-QC-EV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price | $11,166.17$17,447.16 Save 36% ($6,280.99) | $11,332.83$17,707.56 Save 36% ($6,374.73) | $12,716.45$19,869.47 Save 36% ($7,153.02) | $13,706.88$21,417.00 Save 36% ($7,710.12) | $12,185.82$19,040.36 Save 36% ($6,854.54) | $12,327.82$19,262.22 Save 36% ($6,934.40) | $13,180.81$20,595.02 Save 36% ($7,414.21) | $11,612.00$18,143.76 Save 36% ($6,531.76) | $12,932.18$20,206.53 Save 36% ($7,274.35) | $13,785.17$21,539.33 Save 36% ($7,754.16) | $12,464.99$19,476.56 Save 36% ($7,011.57) | $12,547.74$19,605.84 Save 36% ($7,058.10) | $13,400.71$20,938.62 Save 36% ($7,537.91) | $12,775.55$19,961.80 Save 36% ($7,186.25) | $13,628.54$21,294.60 Save 36% ($7,666.06) | $12,019.17$18,779.96 Save 36% ($6,760.79) | $11,328.35$17,700.56 Save 36% ($6,372.21) | $13,105.53$20,477.40 Save 36% ($7,371.87) | $13,958.52$21,810.20 Save 36% ($7,851.68) | $12,181.34$19,033.36 Save 36% ($6,852.02) | $12,072.68$18,863.58 Save 36% ($6,790.90) | $12,925.68$20,196.38 Save 36% ($7,270.70) | $11,895.58$18,586.84 Save 36% ($6,691.26) | $12,748.57$19,919.64 Save 36% ($7,171.07) |
| Shipping Weight | ~1,703 lbs | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
| Product Type | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts |
| Lifting Capacity | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs | 12,000 lb lbs |
| Lift Configuration | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric | Symmetric |
| Rise Height | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 84.75" " | 80.75" " | 80.75" " | 80.75" " | 80.75" " | 80.75" " | 80.75" " | 84.75" " | 84.75" " |
| Arms | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear | 3-stage front/3-stage rear |
| Overall Height | 13' 2" or 13' 8" in | 14' 2" or 14' 8" in | 14' 2" or 14' 8" in | 14' 2" or 14' 8" in | 14' 2" or 14' 8" in | 14' 2" or 14' 8" in | 14' 2" or 14' 8" in | 15' 2" or 15' 8" in | 15' 2" or 15' 8" in | 15' 2" or 15' 8" in | 15' 2" or 15' 8" in | 15' 2" or 15' 8" in | 15' 2" or 15' 8" in | 13' 2" or 13' 8" in | 13' 2" or 13' 8" in | 13' 2" or 13' 8" in | 11' 11" in | 11' 11" in | 11' 11" in | 11' 11" in | 11' 11" in | 11' 11" in | 13' 2" or 13' 8" in | 13' 2" or 13' 8" in |
| Overall Width | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" | 142" / 148" / 154" |
| Drive-Thru Clearance | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" | 103.5", 109.5" or 115.5" |
| Floor to Overhead Switch | 12' 8" or 13' 2" | 13' 8" or 14' 2" | 13' 8" or 14' 2" | 13' 8" or 14' 2" | 13' 8" or 14' 2" | 13' 8" or 14' 2" | 13' 8" or 14' 2" | 14' 8" or 15' 2" | 14' 8" or 15' 2" | 14' 8" or 15' 2" | 14' 8" or 15' 2" | 14' 8" or 15' 2" | 14' 8" or 15' 2" | 12' 8" or 13' 2" | 12' 8" or 13' 2" | 12' 8" or 13' 2" | 11' 4.5" | 11' 4.5" | 11' 4.5" | 11' 4.5" | 11' 4.5" | 11' 4.5" | 12' 8" or 13' 2" | 12' 8" or 13' 2" |
| Speed of Rise | 63s sec | 63s sec | 27s sec | 27s sec | 63s sec | 27s sec | 27s sec | 63s sec | 27s sec | 27s sec | 63s sec | 27s sec | 27s sec | 27s sec | 27s sec | 63s sec | 60s sec | 27s sec | 27s sec | 60s sec | 27s sec | 27s sec | 27s sec | 27s sec |
| Front Arm Reach | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" | 27.5" - 59" |
| Screw Pad Height | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" | 4.75" - 6.625" |
| Inside Columns | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" | 114.5" / 120.5" / 126.5" |
| Motor | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP |
| Controls | Single Pendant | Single Pendant | Dual Pendant | Dual Pendant | Single Pendant | Single Pendant | Single Pendant | Single Pendant | Dual Pendant | Dual Pendant | Single Pendant | Single Pendant | Single Pendant | Dual Pendant | Dual Pendant | Single Pendant | Single Pendant | Dual Pendant | Dual Pendant | Single Pendant | Single Pendant | Single Pendant | Single Pendant | Single Pendant |
| EV Ready | No | No | No | Yes | Yes | No | Yes | No | No | Yes | Yes | No | Yes | No | Yes | Yes | No | No | Yes | Yes | No | Yes | No | Yes |
| Ceiling Height Required | 13' 3" / 13' 9" | 14' 3" / 14' 9" | 14' 3" / 14' 9" | 14' 3" / 14' 9" | 14' 3" / 14' 9" | 14' 3" / 14' 9" | 14' 3" / 14' 9" | 15' 3" / 15' 9" | 15' 3" / 15' 9" | 15' 3" / 15' 9" | 15' 3" / 15' 9" | 15' 3" / 15' 9" | 15' 3" / 15' 9" | 13' 3" / 13' 9" | 13' 3" / 13' 9" | 13' 3" / 13' 9" | 12' | 12' | 12' | 12' | 12' | 12' | 13' 3" / 13' 9" | 13' 3" / 13' 9" |
| ALI/ETL Certified | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2' Height Extension | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available |
| 3' Height Extension | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available | Not Available |
| Colors Available | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black |
Before You Buy
Installation Requirements
13 ft 3 in minimum ceiling height for standard model (12 ft for LC). 208-230V single-phase 20A dedicated circuit. Width adjustable +6" and +12" at install. Indoor installation only. Confirm concrete specs against the installation manual before purchase.
EV Ready
Add the optional EV Adapter Kit for specialized lifting points designed for electric vehicles. Includes 6" adapters, adapter caddies, and EVFPK foot pads for servicing EVs at manufacturer-specified lift points.
Available in 3 Colors
Choose from Textured Red, Textured Blue, or Textured Black finishes. Red & Black ship in 10 business days. Blue ships in 15 business days.
Free Freight Shipping
Ships free via freight carrier to the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.
Unloading Requirements
This lift ships curbside via freight truck and weighs approximately 1,900–2,200 lbs depending on configuration. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.
Review Product Manuals
Before purchasing, review the official Challenger Lifts installation manual and spec sheet for your specific model. These documents contain critical details on concrete requirements, ceiling clearances, electrical specifications, and bay dimensions that must be verified for your shop.
Frequently Asked Questions
The CL12A has a rated lifting capacity of 12,000 lbs (3,000 lbs per arm), making it suitable for standard cars, trucks, vans, and SUVs.
The standard CL12A requires a minimum ceiling height of 13 ft 3 in or 13 ft 9 in depending on the column height setting chosen at installation. The CL12A-LC low-ceiling model requires only 12 ft. Extended height models (-1 and -2) require progressively taller ceilings.
The standard CL12A rises 84.75 inches in approximately 63 seconds. The low-ceiling CL12A-LC rises 80.75 inches in approximately 60 seconds. QuickCycle models reduce rise time to 40 seconds (standard) or 38 seconds (LC).
The CL12A requires 208-230V, single phase, 60Hz, 20A power supply. An optional three-phase motor (50/60Hz) is available for 208V, 230V, or 460V configurations.
The CL12A is available in four height configurations: LC (low-ceiling, 143" column height for 12 ft ceilings), Standard (158"/164" column height), -1 extension (170"/176" column height), and -2 extension (182"/188" column height). Rise height remains the same within standard and extended models.
QuickCycle reduces the rise time from 63 seconds to approximately 40 seconds on standard-height models, and from 60 seconds to 38 seconds on the low-ceiling model, increasing shop throughput. All QuickCycle models use the same 2HP motor.
The CL12A requires a concrete floor that is at least 4 inches thick, reinforced, free from cracks and seams, rated at a minimum of 3,000 psi compressive strength, and cured for at least 28 days. The floor must be level over the installation area, and no anchor bolts can be placed within 8 inches of any crack, edge, or expansion joint. If your existing slab doesn't meet these requirements, a concrete pad can be poured specifically for the lift installation.
Dual Pendant Controls provide pendant-operated power controls for raising and lowering the lift, plus a dual single-point mechanical lock release system. DPC models include a stack adapter kit, document caddy, and pendant holder.
Yes. The CL12A EV-Ready package includes 6" adapters, adapter caddies, and EVFPK foot pads designed for safely lifting electric vehicles at their manufacturer-specified lift points.
Yes. The CL12A is ALI Certified, meaning it has been independently tested and validated by a third-party laboratory to meet the ANSI/ALI ALCTV standard — the gold standard for vehicle lift safety certification in North America. It is also ETL Listed for electrical safety compliance.
Yes. Panther Lift provides professional lift installation services throughout the tri-state area and surrounding regions. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.
The CL12A requires daily visual checks for loose or broken parts, hydraulic leaks, and adapter wear. Weekly, inspect synchronizer cables, sheaves, and lock release cable adjustment. Monthly, torque all concrete anchor bolts to the manufacturer-specified setting, lubricate carriage slide tracks with heavy viscous grease on all four corners of both columns, and inspect the concrete floor for cracks within 12 inches of the base plates. Always use genuine Challenger Lifts replacement parts.
