Challenger CL10AV3 10,000 lb 2-Post Lift Versymmetric Arms
SKU: CL10AV3
Ships from manufacturer
Versymmetric® 2-Post Lift With Conventional Power Controls, Directspot™Offset 3-Stage Front & Rear Arms & Single-Point Mechanical Lock Release (143 In. Height At Full Stroke)
MFR #: CL10AV3

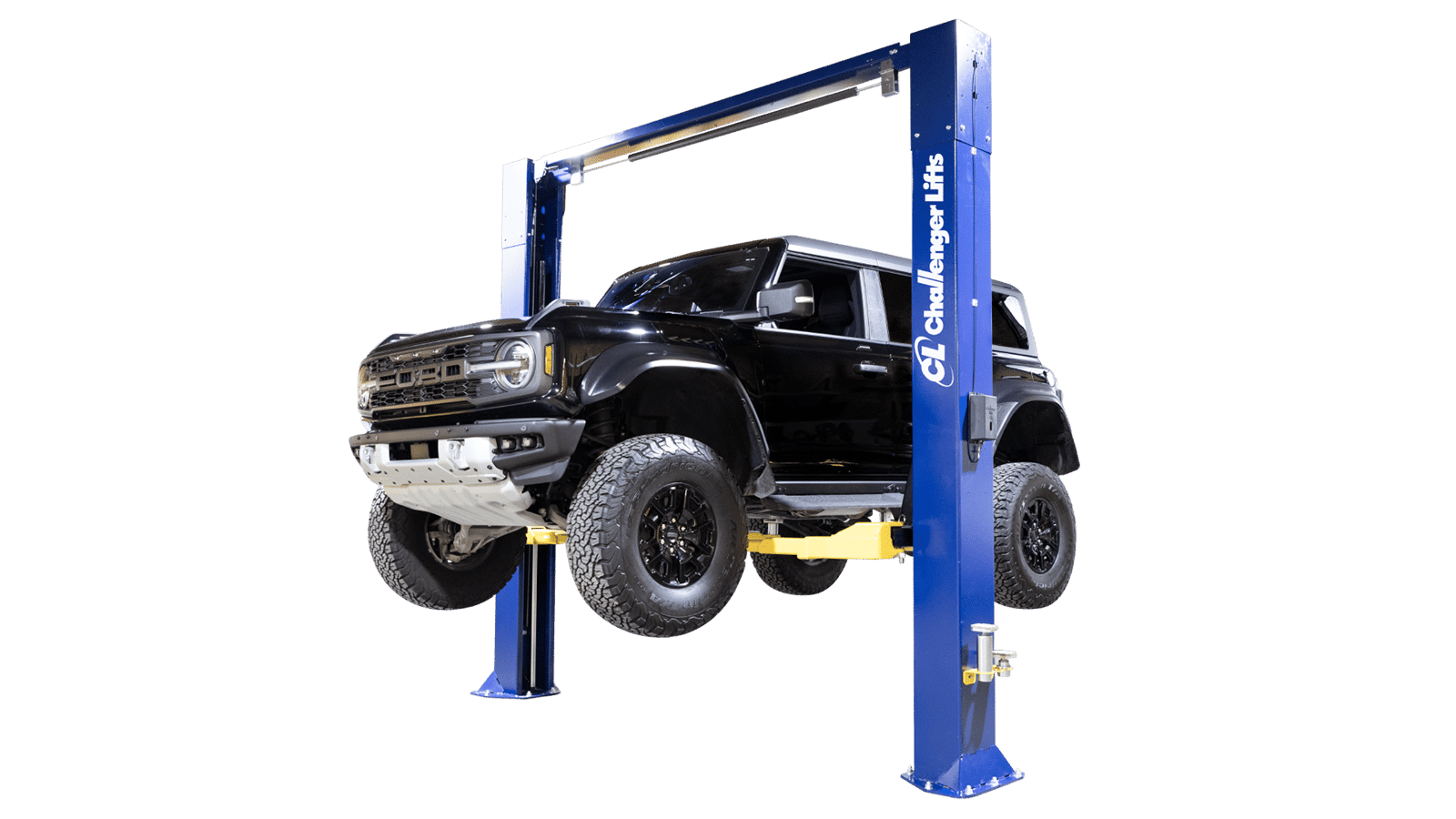

Challenger CL10AV3 — 10,000 lb Versymmetric 2-Post Lift
The Challenger Lifts CL10AV3 is a 10,000 lb capacity ALI-Certified Versymmetric 2-post vehicle lift engineered for shops that service a wide range of vehicles. Its exclusive Versymmetric technology with 3-stage front and 3-stage rear arms, combined with the industry-first directSPOT design, eliminates the need to reposition vehicles to reach manufacturer-recommended lift points — saving time on every car, truck, SUV, or electric vehicle you service.
Configurable for Your Shop
Available in three column height variants: standard (CL10AV3), 2-foot extension (CL10AV3-2), and 3-foot extension (CL10AV3-3). All variants share the same 10,000 lb lifting capacity, 74-1/8" rise height, and 2,500 lb max load per arm. Three adjustable width configurations — Narrow, Universal, and Wide — let you optimize column spacing for your bay layout and the vehicles you service most.
Optional Upgrades
QuickCycle reduces rise time from approximately 38 seconds to approximately 24 seconds. Dual Pendant Controls provide multi-position operation for busy bays. The EV Adapter Kit adds specialized lift point adapters for electric vehicles with sensitive underbody battery areas.
Installation Requirements
The CL10AV3 requires a minimum 12-foot ceiling (14 ft recommended), 24-foot recommended bay depth, and a dedicated 208-230V single-phase 20A electrical circuit. Indoor installation only. Confirm concrete specifications against the installation manual before purchase.
See It In Action
Features & Benefits
directSPOT Positioning
Industry-first design eliminates the need to shuffle vehicles back and forth to swing the front arm clear of the tire. Reach manufacturer-recommended lift points on the first try.
- No repositioning needed
- Faster vehicle spotting
- Works on all vehicle types

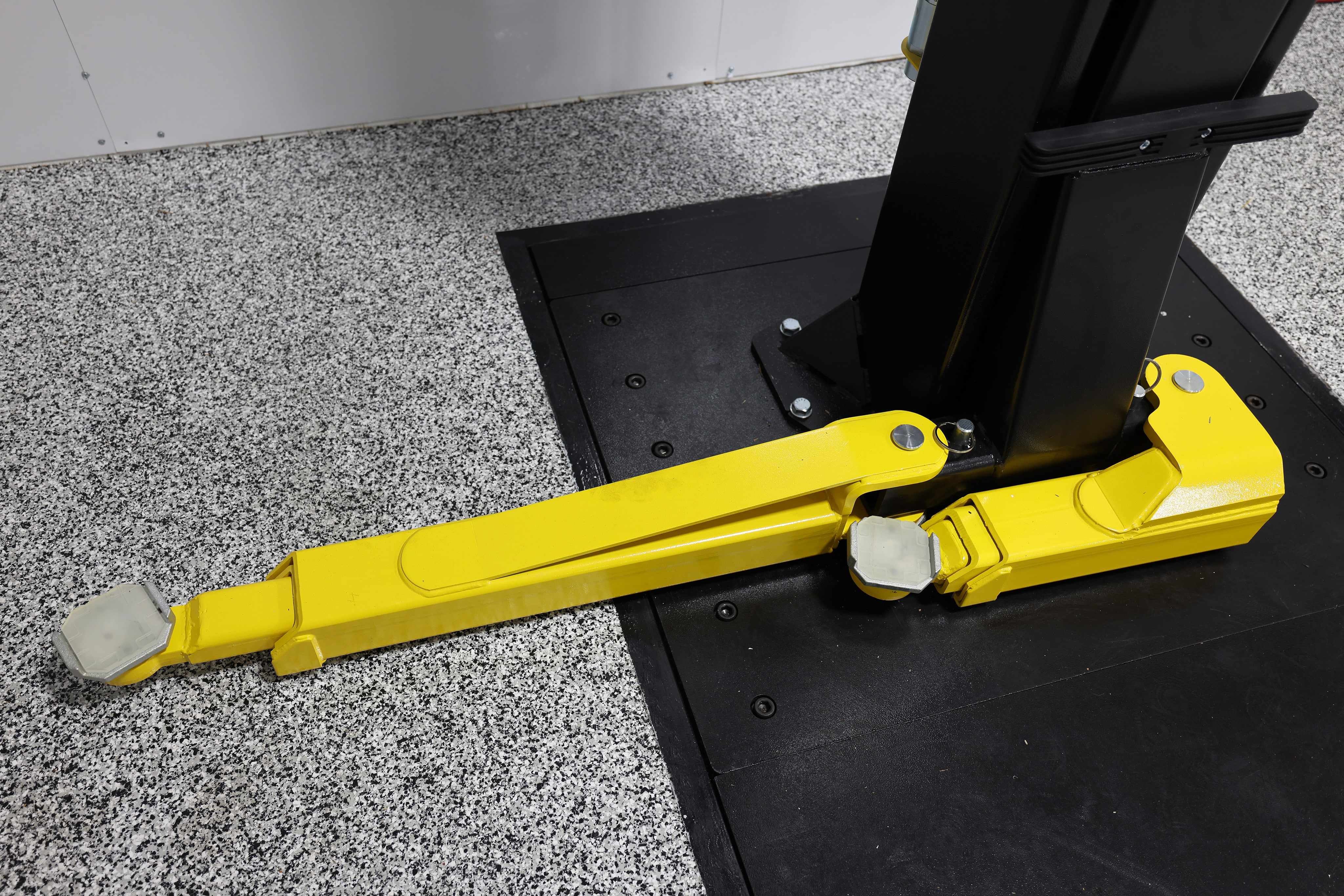

Versymmetric 3-Stage Arms
Exclusive Versymmetric technology combines symmetric and asymmetric arm configurations. 3-stage front and 3-stage rear arms service the widest range of vehicles.
- Cars, trucks, SUVs, EVs
- Symmetric or asymmetric positioning
- Maximum reach flexibility
10,000 lb Capacity
ALI-Certified 10,000 lb lifting capacity with 2,500 lb max load per arm. Independently tested and validated to ANSI/ALI ALCTV safety standards.
- 2,500 lb per arm
- ALI Certified
- 74-1/8 in. rise height
3 Width Configurations
Adjustable column spacing to match your bay and vehicle mix. Narrow for tight spaces, Universal for most vehicles, Wide for luxury and EVs.
- Narrow: space-constrained bays
- Universal: cars, SUVs, trucks, EVs
- Wide: luxury & EV optimized
3 Column Height Options
Standard height, 2-foot extension, or 3-foot extension. Choose the right column height for your ceiling and overhead clearance needs.
- Standard: 12 ft min ceiling
- 2 ft extension: ~14 ft ceiling
- 3 ft extension: ~15 ft+ ceiling
QuickCycle Option
Optional upgrade reduces rise time from approximately 38 seconds to approximately 24 seconds — roughly 37% faster for higher throughput shops.
- Standard: ~38 sec rise
- QuickCycle: ~24 sec rise
- Significant productivity gain
Specifications
| Model | CL10AV3 | CL10AV3-2 | CL10AV3-2-DPC | CL10AV3-2-DPC-EV | CL10AV3-2-DPC-QC | CL10AV3-2-EV | CL10AV3-2-QC | CL10AV3-2-QC-EV | CL10AV3-3 | CL10AV3-3-DPC | CL10AV3-3-DPC-EV | CL10AV3-3-DPC-QC | CL10AV3-3-EV | CL10AV3-3-QC | CL10AV3-3-QC-EV | CL10AV3-DPC | CL10AV3-DPC-EV | CL10AV3-DPC-QC | CL10AV3-EV | CL10AV3-QC | CL10AV3-QC-EV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price | $7,290.92 | $7,588.43 | $10,295.25$16,086.33 Save 36% ($5,791.08) | $11,148.24$17,419.13 Save 36% ($6,270.89) | $10,469.63$16,358.80 Save 36% ($5,889.17) | $8,441.42 | $9,518.12 | $10,371.11$16,204.87 Save 36% ($5,833.76) | $8,209.84 | $10,657.37$16,652.16 Save 36% ($5,994.79) | $11,506.19$17,978.42 Save 36% ($6,472.23) | $10,801.16$16,876.82 Save 36% ($6,075.66) | $8,983.31 | $9,538.91 | $10,391.90$16,237.36 Save 36% ($5,845.46) | $10,295.25$16,086.33 Save 36% ($5,791.08) | $10,819.64$16,905.69 Save 36% ($6,086.05) | $10,066.36$15,728.69 Save 36% ($5,662.33) | $8,143.95 | $9,372.95 | $10,228.80$15,982.51 Save 36% ($5,753.71) |
| Shipping Weight | ~1,835 lbs | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
| Product Type | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts |
| Lifting Capacity | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs | 10,000 lb lbs |
| Lift Configuration | Standard | Standard | Dual Pendant Controls | Dual Pendant Controls | Dual Pendant Controls & QuickCycle | Standard | QuickCycle | QuickCycle | Standard | Dual Pendant Controls | Dual Pendant Controls | Dual Pendant Controls & QuickCycle | Standard | QuickCycle | QuickCycle | Dual Pendant Controls | Dual Pendant Controls | Dual Pendant Controls & QuickCycle | Standard | QuickCycle | QuickCycle |
| Rise Height | 74.125" " | 93" " | 93" " | 93" " | 93" " | 93" " | 93" " | 93" " | 105" " | 105" " | 105" " | 105" " | 105" " | 105" " | 105" " | 79" " | 79" " | 79" " | 79" " | 79" " | 79" " |
| Arms | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear | 3-stage front / 3-stage rear |
| Overall Height | 143 in | 165 in | 165 in | 165 in | 165 in | 165 in | 165 in | 165 in | 177 in | 177 in | 177 in | 177 in | 177 in | 177 in | 177 in | 151 in | 151 in | 151 in | 151 in | 151 in | 151 in |
| Overall Height (Extended) | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" | 11' 11" |
| Overall Width | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" | 11' 6.5" / 12' 0.5" / 12' 6.5" |
| Drive-Thru Clearance | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" | 100" / 106" / 112" |
| Floor to Overhead Switch | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" | 10' 8.5" - 11' 2.5" |
| Speed of Rise | 38s sec | 55s sec | 55s sec | 55s sec | 35s sec | 55s sec | 35s sec | 35s sec | 55s sec | 55s sec | 55s sec | 35s sec | 55s sec | 35s sec | 35s sec | 55s sec | 55s sec | 35s sec | 55s sec | 35s sec | 35s sec |
| Front Arm Reach | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" | 20" - 42" |
| Rear Arm Reach | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" | 37.625" - 60" |
| Screw Pad Height | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" | 3.875" - 6.125" |
| Inside Columns | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" | 110" / 116" / 122" |
| Motor | 2HP HP | 2HP HP | 2HP HP | 2HP HP | 3HP HP | 2HP HP | 3HP HP | 3HP HP | 2HP HP | 2HP HP | 2HP HP | 3HP HP | 2HP HP | 3HP HP | 3HP HP | 2HP HP | 2HP HP | 3HP HP | 2HP HP | 3HP HP | 3HP HP |
| Voltage | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph | 208-230V, 60Hz, 1Ph |
| Controls | Single Point Lock Release | Single Point Lock Release | Dual Pendant Controls | Dual Pendant Controls | Dual Pendant Controls | Single Point Lock Release | Single Point Lock Release | Single Point Lock Release | Single Point Lock Release | Dual Pendant Controls | Dual Pendant Controls | Dual Pendant Controls | Single Point Lock Release | Single Point Lock Release | Single Point Lock Release | Dual Pendant Controls | Dual Pendant Controls | Dual Pendant Controls | Single Point Lock Release | Single Point Lock Release | Single Point Lock Release |
| EV Ready | No | No | No | Yes | No | Yes | No | Yes | No | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes | No | Yes |
| Ceiling Height Required | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' | 12' |
| ALI/ETL Certified | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2' Height Extension | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 3' Height Extension | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Colors Available | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black |
Before You Buy
Installation Requirements
12 ft minimum ceiling height (14 ft recommended). 24 ft recommended bay depth. 208-230V single-phase 20A dedicated circuit. Indoor installation only. Confirm concrete specs against the installation manual before purchase.
EV Ready
Add the optional EV Adapter Kit for specialized lifting points designed for electric vehicles with sensitive underbody battery packs. The Wide width configuration is optimized for EVs and luxury vehicles.
Available in 3 Colors
Choose from Textured Black, Textured Red, or Textured Blue finishes to match your shop.
Free Freight Shipping
Ships free via freight carrier to the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.
Unloading Requirements
This lift ships curbside via freight truck and weighs approximately 1,835–2,025 lbs depending on configuration. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.
Review Product Manuals
Before purchasing, review the official Challenger Lifts installation manual and spec sheet for your specific model. These documents contain critical details on concrete requirements, ceiling clearances, electrical specifications, and bay dimensions that must be verified for your shop.
Frequently Asked Questions
The standard CL10AV3 requires a minimum 12-foot ceiling, with 14 feet recommended. The CL10AV3-2 (2-foot extension) adds roughly 2 feet to the column height, and the CL10AV3-3 (3-foot extension) adds 3 feet. Always measure from your slab to the lowest ceiling obstruction — door tracks, lights, garage door openers — and compare against the Floor to Overhead Switch dimension for your chosen configuration.
Challenger's exclusive Versymmetric technology combines symmetric and asymmetric arm configurations in one lift. The 3-stage front and 3-stage rear arms let you position vehicles symmetrically or asymmetrically to reach manufacturer-recommended lift points on virtually any vehicle — cars, trucks, SUVs, and EVs — without repositioning.
directSPOT is Challenger's industry-first arm design that eliminates the need to shuffle a vehicle back and forth to swing the front arm clear of the tire to reach recommended lift points. It saves time on every vehicle you service — especially valuable in high-volume shops.
They differ only in column height. CL10AV3 is standard (11'2" or 11'8" columns), CL10AV3-2 adds 2 feet (13'2" or 13'8"), and CL10AV3-3 adds 3 feet (14'2" or 14'8"). All share the same 10,000 lb capacity, arm design, 74-1/8" rise height, and pad range. The taller columns also increase overall width, drive-thru clearance, and inside column spacing.
Standard models use a 2 HP motor on 208-230V, single-phase, 60 Hz with a 20-amp dedicated circuit. QuickCycle models use a 3 HP motor on the same electrical supply. Consult the installation manual wiring diagram and your local electrical code for specific wiring requirements.
The CL10AV3 requires a concrete floor that is at least 4 inches thick, reinforced, free from cracks and seams, rated at a minimum of 3,000 psi compressive strength, and cured for at least 28 days. The floor must be level over the installation area, and no anchor bolts can be placed within 8 inches of any crack, edge, or expansion joint. If your existing slab doesn't meet these requirements, a concrete pad can be poured specifically for the lift installation.
Yes. The CL10AV3 is ALI Certified, meaning it has been independently tested and validated by a third-party laboratory to meet the ANSI/ALI ALCTV standard — the gold standard for vehicle lift safety certification in North America.
Yes. The Universal and Wide width settings accommodate most electric vehicles. For EVs with sensitive underbody battery areas, Challenger offers an optional EV Adapter Kit (EVFPK) that provides specialized low-profile lift point adapters, universal foot pads, 3-inch and 6-inch adapters, and a storage rack.
Three configurations: Narrow (110" inside columns, 100" drive-thru, for tight bays), Universal (116" inside, 106" drive-thru, fits cars, SUVs, trucks, most EVs), and Wide (122" inside, 112" drive-thru, optimal for luxury vehicles and EVs).
Standard models with the 2 HP motor rise in approximately 38 seconds. The optional QuickCycle upgrade uses a 3 HP motor and reduces rise time to approximately 27 seconds — roughly 29% faster. QuickCycle models can lower in approximately 17 seconds.
The DPC option adds dual single-point mechanical lock release with pendant power controls at both columns, a stack adapter kit (Part No. 10315), document caddy (Part No. 10320), and pendant holder (Part No. 10321). DPC models require single-phase power only.
The EV package includes 4x EVFPK low-profile EV-ready foot pads, 4x universal foot pads, 4x 3-inch adapters, 4x 6-inch adapters, 2x adapter organizer caddies, and a storage rack. It prepares the lift for safely servicing all electric vehicles.
Yes. Panther Lift provides professional lift installation services throughout the tri-state area and surrounding regions. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.
The CL10AV3 requires daily visual checks for loose or broken parts, hydraulic leaks, and adapter wear. Weekly, inspect synchronizer cables, sheaves, and lock release cable adjustment. Monthly, torque all concrete anchor bolts to the manufacturer-specified setting, lubricate carriage slide tracks with heavy viscous grease on all four corners of both columns, and inspect the concrete floor for cracks within 12 inches of the base plates. Always use genuine Challenger Lifts replacement parts.
