Atlas Automotive Equipment

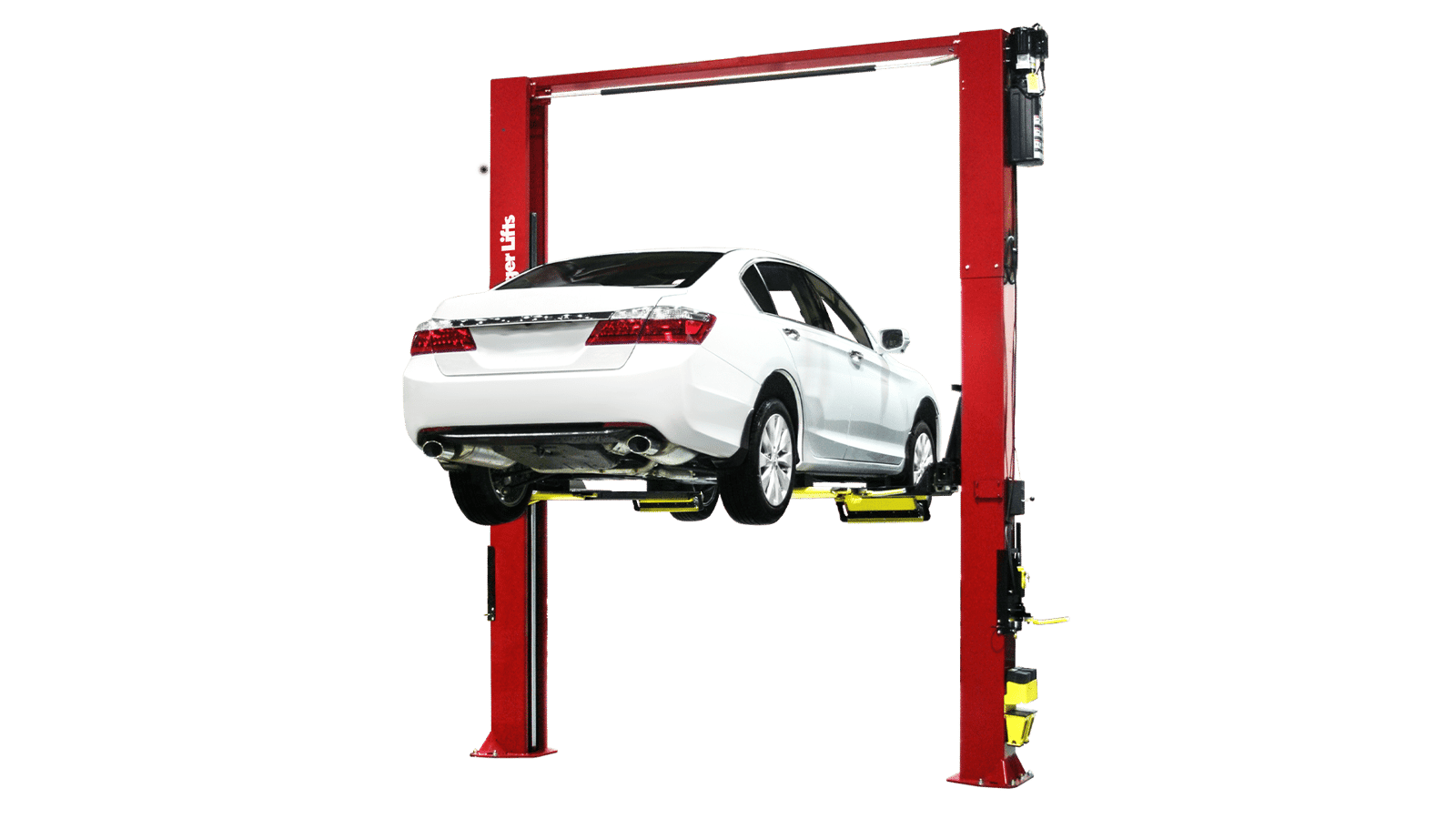

Challenger CL10A-XP9 9,000 lb 2-Post Express Lift
SKU: CL10A-XP9
Ships from manufacturer
2-Post Lift With Express Service Pad Featuring Flip-Up Ramps, Includes (4) 1.5 In. Rubber Spotting Blocks, (4) 3 In. Rubber Spotting Blocks And (2) Spotting Block Storage Caddies. Conventional Power Controls, Single-Point Mechanical Lock Release (143 In. Height At Full Stroke)
Premium Commercial 2-Post Overhead Lift
The Challenger CL10A-XP9 is a 9,000 lb 2-post overhead lift engineered for quick-service automotive applications. The XP9 'Express' designation indicates optimized performance for rapid turnarounds on oil changes, fluid services, and vehicle inspections. Built on decades of commercial lift manufacturing expertise, this unit delivers fast rise times and smooth operation in busy shop environments.
ALI Certified Construction
ALI (Automotive Lift Institute) certification ensures compliance with ANSI safety standards. Heavy-duty hydraulic system rated for continuous commercial use. 220V single-phase power requirement supports most shop electrical configurations. The compact overhead design maximizes shop floor space while providing safe, reliable lifting for routine maintenance tasks.
Ideal For
Fast-turn quick-lube operations, tire shops, fleet maintenance facilities, and independent automotive service centers focused on rapid vehicle servicing and inspections.
Specifications
| Model | CL10A-XP9 | CL10A-XP9-2 | CL10A-XP9-2-DPC | CL10A-XP9-2-DPC-QC | CL10A-XP9-2-QC | CL10A-XP9-3 | CL10A-XP9-3-DPC | CL10A-XP9-3-DPC-QC | CL10A-XP9-3-QC | CL10A-XP9-DPC | CL10A-XP9-DPC-QC | CL10A-XP9-QC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Price | $12,566.11$19,634.56 Save 36% ($7,068.45) | $12,668.06$19,793.84 Save 36% ($7,125.78) | $14,248.12$22,262.69 Save 36% ($8,014.57) | $15,683.88$24,506.07 Save 36% ($8,822.19) | $14,678.28$22,934.82 Save 36% ($8,256.54) | $12,812.11$20,018.93 Save 36% ($7,206.82) | $14,794.99$23,117.18 Save 36% ($8,322.19) | $16,230.74$25,360.53 Save 36% ($9,129.79) | $14,977.12$23,401.76 Save 36% ($8,424.64) | $14,059.86$21,968.53 Save 36% ($7,908.67) | $15,770.02$24,640.67 Save 36% ($8,870.65) | $14,803.76$23,130.89 Save 36% ($8,327.13) |
| Product Type | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts | 2 Post Lifts |
| Lifting Capacity | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs | 9,000 lb lbs |
| Lift Configuration | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad | Drive-on express pad |
| Rise Height | 70" " | 70" " | 70" " | 70" " | 70" " | 70" " | 70" " | 70" " | 70" " | 70" " | 70" " | 70" " |
| Overall Height | 140 in | 164 in | 164 in | 164 in | 164 in | 176 in | 176 in | 176 in | 176 in | 140 in | 140 in | 140 in |
| Overall Width | 138.5 | 138.5 | 138.5 | 138.5 | 138.5 | 138.5 | 138.5 | 138.5 | 138.5 | 138.5 | 138.5 | 138.5 |
| Drive-Thru Clearance | 90" | 90" | 90" | 90" | 90" | 90" | 90" | 90" | 90" | 90" | 90" | 90" |
| Floor to Overhead Switch | 134.5" | 134.5" | 134.5" | 134.5" | 134.5" | 134.5" | 134.5" | 134.5" | 134.5" | 134.5" | 134.5" | 134.5" |
| Speed of Rise | 38s sec | 38s sec | 38s sec | 27s sec | 27s sec | 38s sec | 38s sec | 27s sec | 27s sec | 38s sec | 27s sec | 27s sec |
| Inside Columns | 110" | 110" | 110" | 110" | 110" | 110" | 110" | 110" | 110" | 110" | 110" | 110" |
| Motor | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 3HP, 208-230v, 60Hz, 1Ph HP | 3HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 3HP, 208-230v, 60Hz, 1Ph HP | 3HP, 208-230v, 60Hz, 1Ph HP | 2HP, 208-230v, 60Hz, 1Ph HP | 3HP, 208-230v, 60Hz, 1Ph HP | 3HP, 208-230v, 60Hz, 1Ph HP |
| Controls | Single Pendant | Single Pendant | Dual Pendant | Dual Pendant | Single Pendant | Single Pendant | Dual Pendant | Dual Pendant | Single Pendant | Dual Pendant | Dual Pendant | Single Pendant |
| Ceiling Height Required | 12' | 14' | 14' | 14' | 14' | 15' | 15' | 15' | 15' | 12' | 12' | 12' |
| ALI/ETL Certified | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2' Height Extension | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available |
| 3' Height Extension | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available | Available |
| Colors Available | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black | Red, Blue, Black |
Before You Buy
Professional Freight Delivery
This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.
Ships Within 2-5 Business Days
This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.
Frequently Asked Questions
The XP9 designation indicates this lift is specifically optimized for quick-service applications like oil changes, fluid services, and vehicle inspections. The fast rise time and responsive controls make it ideal for high-volume shops that prioritize turnaround time.
Yes, the Challenger CL10A-XP9 is ALI (Automotive Lift Institute) certified and complies with ANSI safety standards. This certification ensures the lift meets industry safety requirements for commercial automotive service use.
The CL10A-XP9 requires 220V single-phase power supply. Most automotive shops already have this electrical configuration available. Consult with your electrician to ensure your facility meets the power requirements before installation.
The 9,000 lb capacity accommodates most sedans, compact SUVs, and light-duty pickup trucks. Never exceed the rated capacity. Always verify your vehicle's curb weight against the lift's maximum capacity before lifting.
Yes, the CL10A-XP9 is a 2-post overhead lift requiring secure mounting to building structure above. Professional installation is strongly recommended to ensure proper anchoring and safe operation. The lift cannot function as a ground-level installation.
Regular maintenance includes checking hydraulic fluid levels monthly, inspecting hoses and cylinders for leaks, and verifying lock engagement before use. Annual professional servicing is recommended to maintain ALI compliance and extend equipment lifespan.
No, the 9,000 lb capacity is designed for sedans and light trucks only. For heavier vehicles like full-size trucks or SUVs, consider our 4-post lifts with capacities up to 50,000 lbs that accommodate medium and heavy-duty applications.
The lift system includes the structural frame, hydraulic pump and cylinders, control pad, hose assemblies, and mounting hardware. Installation service, power supply upgrades, and pad plates are available as separate options.
Professional installation typically requires 6-10 hours depending on site conditions and existing infrastructure. Your installation team will coordinate with the facility to minimize downtime and ensure proper safety compliance testing before use.
Standard warranty covers defects in materials and workmanship for 12 months from installation. Extended warranty options are available. See included documentation for complete warranty terms and coverage details.
