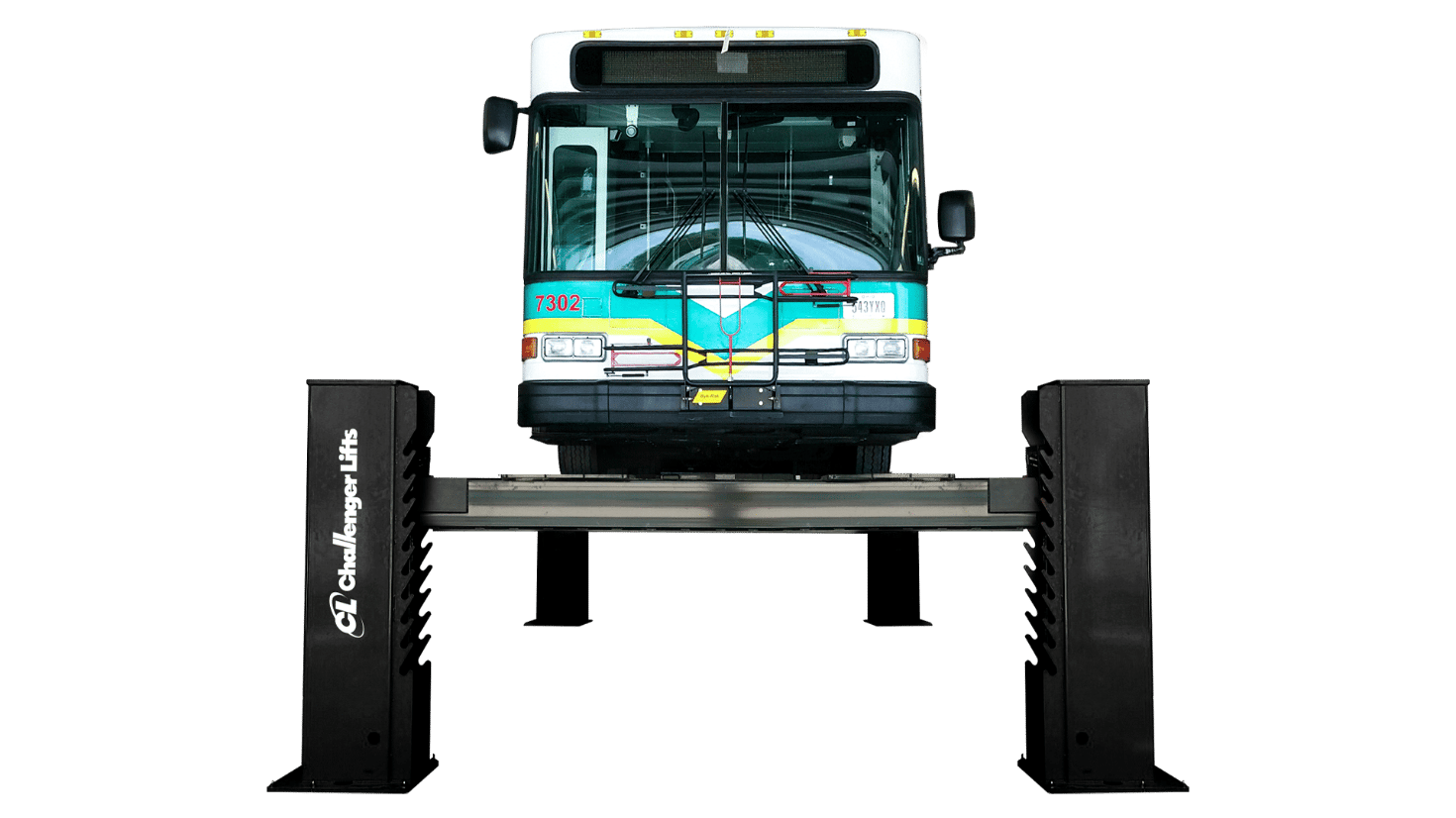

Challenger 44060 60,000 lb 4-Post Lift Heavy-Duty

Challenger 44060 — 60,000 lb ALI/ETL Certified Heavy-Duty 4-Post Lift

The Challenger 44060 is a 60,000 lb capacity ALI and ETL Certified heavy-duty 4-post lift built for fleet maintenance facilities, municipal shops, truck dealerships, fire apparatus bays, transit authorities, and any operation servicing Class 6–8 commercial vehicles, buses, and heavy vocational equipment. This is the highest-capacity lift in the Challenger 4-post lineup — built to handle loaded refuse trucks, concrete mixers, fire engines, transit buses, and military vehicles that smaller lifts can't touch. The chain-driven lifting system distributes 60,000 lbs across four massive columns with a 73-inch rise height, putting the underside of the heaviest commercial vehicles at a comfortable standing working height for technicians. The 44060 features 32-inch-wide runways with adjustable track spacing from 36 to 58 inches to accommodate the full range of heavy-duty vehicle widths, and 10 pneumatic air lock positions provide precise height selection for different service tasks.

Chain-Driven Heavy-Duty Lifting System

The 44060 uses a chain-driven power train — the preferred system for lifts at this capacity class where cable-driven systems don't deliver the strength required. A 15HP, 230–460V three-phase motor powers the hydraulic system, raising a full 60,000 lb load to maximum height in approximately 75 seconds. The equalizer chain system ensures all four columns rise and descend at the same rate, keeping the vehicle level throughout the lifting cycle. The three-phase power requirement reflects the industrial-grade infrastructure these lifts operate in — this is equipment for commercial facilities with dedicated electrical service, not residential garages.

10 Pneumatic Air Lock Positions

The 44060 features 10 pneumatic safety lock positions, providing a wide range of working heights from just above runway level to the full 73-inch rise. The pneumatic lock system requires compressed shop air to engage and disengage — standard infrastructure in any commercial maintenance facility. Unlike mechanical locks that require manual release at each column, the air lock system allows the technician to control all four locks from the power unit station. This is critical when working under vehicles weighing up to 30 tons — safety lock engagement must be positive, reliable, and verifiable from a single control point.

32-Inch Wide Runways with Adjustable Track Spacing

The 44060's 32-inch-wide runways provide a stable driving surface for the widest commercial vehicles, from standard single-rear-axle trucks to dual-rear-axle configurations, refuse trucks with side-loading arms, and transit buses. Track spacing adjusts from 36 to 58 inches between runways, allowing shops to configure the lift for their specific vehicle mix. The runways sit 14 inches above floor level — low enough for fixed approach ramps while providing clearance for the chain-driven lift mechanism underneath. Rub blocks protect the columns from contact damage during vehicle positioning.

Installation Requirements

The Challenger 44060 requires a concrete slab at least 5 inches thick, steel reinforced, rated at 3,000 PSI or higher, and cured for a minimum of 28 days. The floor must be level within 2 inches between any two post locations and free from cracks and seams. Anchor bolts require a minimum of 5 inches from the slab edge. The recommended minimum bay size for the standard-length 44060 is 26 feet 1 inch wide by 42 feet 4 inches long. A minimum ceiling height of 16 feet is recommended. The 44060 requires 230–460V, three-phase power with a 30-amp circuit. The lift ships without hydraulic fluid — approximately 20 gallons of AW-32 hydraulic oil are required at setup. The motors are not sealed against weather or moisture, so the lift must be installed indoors in a climate-controlled environment.
