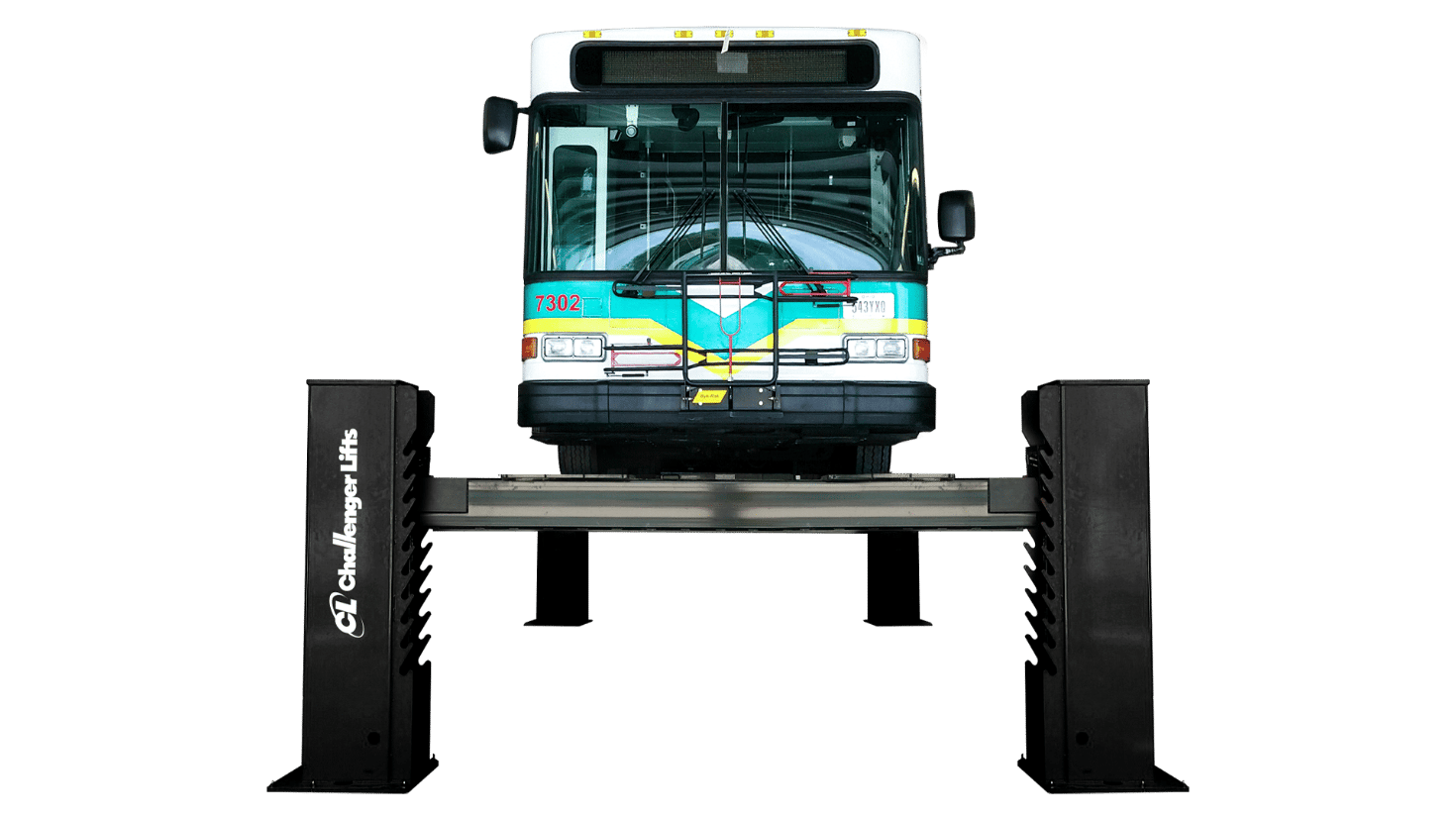

Challenger 44050 50,000 lb 4-Post Lift Heavy-Duty

Atlas Automotive Equipment

Challenger 44050 50,000 lb 4-Post Lift Heavy-Duty

SKU: 44050

Ships from manufacturer

Heavy-Duty 4-Post Lift, 50,000 lb Capacity, ALI/ETL Certified, 25' Standard Track Length, 310" Max Wheelbase, 73" Rise Height, Chain-Driven, 15HP 230–460V 3-Phase Motor, 10 Pneumatic Air Lock Positions, 32" Wide Runways, Textured Black

Challenger 44050 — 50,000 lb ALI/ETL Certified Heavy-Duty 4-Post Lift

The Challenger 44050 is a 50,000 lb heavy-duty 4-post drive-on lift built for commercial fleet maintenance facilities servicing Class 6–8 vehicles. Chain-driven with a 15HP three-phase motor, 10 pneumatic air lock positions, 32-inch-wide adjustable runways, and 73 inches of rise height — this is the same platform as the 60,000 lb 44060 at a lower capacity rating for operations that don't need the full 30-ton lift. The 44050 is ALI and ETL Certified, comes in three track lengths (25', 30', and 35'), and shares the industrial-grade construction that makes the Challenger heavy-duty 4-post lineup the standard in fleet maintenance.

Chain-Driven Heavy-Duty Lifting System

The 44050 uses a chain-driven power train — not cables or screws. A 15HP, 230–460V three-phase motor powers the hydraulic system, raising a full 50,000 lb load to maximum height in approximately 75 seconds. The equalizer chain system ensures all four columns rise and descend at the same rate, keeping the vehicle level throughout the lifting cycle. The three-phase power requirement reflects the industrial-grade infrastructure these lifts operate in — this is equipment for commercial facilities with dedicated electrical service, not residential garages.

10 Pneumatic Air Lock Positions

The 44050 features 10 pneumatic safety lock positions, providing a wide range of working heights from just above runway level to the full 73-inch rise. The pneumatic lock system requires compressed shop air to engage and disengage — standard infrastructure in any commercial maintenance facility. Unlike mechanical locks that require manual release at each column, the air lock system allows the technician to control all four locks from the power unit station. This is critical when working under vehicles weighing up to 25 tons — safety lock engagement must be positive, reliable, and verifiable from a single control point.

32-Inch Wide Runways with Adjustable Track Spacing

The 44050's 32-inch-wide runways provide a stable driving surface for the widest commercial vehicles, from standard single-rear-axle trucks to dual-rear-axle configurations, refuse trucks with side-loading arms, and transit buses. Track spacing adjusts from 36 to 58 inches between runways, allowing shops to configure the lift for their specific vehicle mix. The runways sit 14 inches above floor level — low enough for fixed approach ramps while providing clearance for the chain-driven lift mechanism underneath. Rub blocks protect the columns from contact damage during vehicle positioning.

Installation Requirements

The Challenger 44050 requires a concrete slab at least 5 inches thick, steel reinforced, rated at 3,000 PSI or higher, and cured for a minimum of 28 days. The floor must be level within 2 inches between any two post locations and free from cracks and seams. Anchor bolts require a minimum of 5 inches from the slab edge. The recommended minimum bay size for the standard-length 44050 is 26 feet 1 inch wide by 42 feet 4 inches long. A minimum ceiling height of 16 feet is recommended. The 44050 requires 230–460V, three-phase power with a 30-amp circuit. The lift ships without hydraulic fluid — approximately 20 gallons of AW-32 hydraulic oil are required at setup. The motors are not sealed against weather or moisture, so the lift must be installed indoors in a climate-controlled environment.

Features & Benefits

50,000 lb ALI/ETL Certified Capacity

ALI and ETL Certified for servicing loaded Class 6–8 commercial vehicles, buses, fire apparatus, and heavy vocational equipment up to 50,000 lbs.

  • 50,000 lb maximum lifting capacity
  • ALI and ETL Certified to industry safety standards
  • Handles transit buses, fire engines, refuse trucks, medium-heavy vocational equipment

Chain-Driven Power Train

Heavy-duty chain-driven lifting system powered by a 15HP three-phase motor. Full 50,000 lb load to 73" rise in approximately 75 seconds.

  • 15HP, 230–460V, three-phase motor
  • Equalizer chain system for level lifting
  • 73-inch maximum rise height

10 Pneumatic Air Lock Positions

Compressed-air-operated safety locks with 10 height positions. All four locks controlled from a single station — critical for 25-ton vehicles.

  • 10 working height positions
  • Pneumatic engagement from power unit station
  • Compressed shop air required

Three Track Lengths Available

The 44050 series comes in three track lengths to match your vehicle fleet: standard (44050), extended (44050E), and extra-long (44050X). Each length shares the same 50,000 lb capacity and lifting system.

  • 44050: 25' track — 310" max wheelbase — 36' overall
  • 44050E: 30' track — 370" max wheelbase — 41' overall
  • 44050X: 35' track — 430" max wheelbase — 46' overall

32" Wide Runways — Adjustable Track Spacing

Extra-wide 32-inch runways handle the broadest commercial vehicles. Track spacing adjusts from 36 to 58 inches between runways for different vehicle configurations.

  • 32-inch runway width for heavy commercial vehicles
  • Adjustable track spacing: 36" to 58" between runways
  • 14-inch runway height with rub block column protection

Built for Commercial Fleets

Designed for the demands of municipal, transit, refuse, fire, military, and heavy commercial fleet operations where uptime and safety are non-negotiable.

  • Indoor installation — climate-controlled facility required
  • Industrial 230–460V three-phase power
  • 20-gallon hydraulic reservoir — AW-32 oil

Specifications

Model4405044050E44050X
Price
$103,067.43$161,042.87
Save 36% ($57,975.44)
$116,959.16$182,748.69
Save 36% ($65,789.53)
$121,417.37$189,714.64
Save 36% ($68,297.27)
Width of Runways32 in32 in32 in
Width Between Runways36-58 in36-58 in36-58 in
Overall Length432 in492 in552 in
Between Columns290 in350 in410 in
Height of Runways14 in14 in14 in
Max Wheelbase310 in370 in430 in
Amps42-2142-2142-21
Product TypeHD 4 Post LiftHD 4 Post LiftHD 4 Post Lift
Lifting Capacity50,000 lbs50,000 lbs50,000 lbs
Lift ConfigurationHeavy-Duty 4-Post Chain-DrivenHeavy-Duty 4-Post Chain-DrivenHeavy-Duty 4-Post Chain-Driven
Rise Height73 "73 "73 "
Overall Height92 in92 in92 in
Overall Width205.25205.25205.25
Speed of Rise75 sec75 sec75 sec
Inside Columns144144144
Motor15 HP15 HP15 HP
Voltage230-460V Three Phase230-460V Three Phase230-460V Three Phase
ALI/ETL CertifiedALI/ETLALI/ETLALI/ETL
Colors AvailableBlackBlackBlack

Before You Buy

Concrete Requirements

Requires a concrete slab at least 5 inches thick, steel reinforced, rated at 3,000 PSI or higher, cured 28 days. Floor level within 2 inches between posts. Anchors minimum 5 inches from slab edge. Verify your facility floor meets spec before ordering.

ALI/ETL Certified

The Challenger 44050 is both ALI and ETL Certified — independently tested and validated to ANSI/ALI ALCTV safety standards. Dual certification required by many fleet operations, government contracts, and insurance carriers.

Indoor Installation Only

The 44050 must be installed indoors. The motors and electrical components are not sealed against weather or moisture. A climate-controlled commercial facility with adequate ceiling height (16 ft minimum recommended) is required.

Three-Phase Power Required

The 44050 requires 230–460V, three-phase electrical service with a 30-amp circuit. This is industrial-grade infrastructure — confirm your facility has three-phase power before ordering. A licensed electrician is required for installation.

Hydraulic Oil Not Included

The 44050 ships without hydraulic fluid. Approximately 20 gallons of AW-32 hydraulic oil are required at setup. AW-32 is standard anti-wear hydraulic oil available from any industrial supply source.

Compressed Air Required

The pneumatic safety lock system requires compressed shop air for operation. Standard in commercial maintenance facilities. No compressed air = no lock engagement.

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded — contact us for a shipping quote to those locations.

Unloading Requirements

This heavy-duty 4-post lift ships via freight truck in multiple crates. A forklift or equivalent heavy equipment rated for the crate weights must be available on-site at delivery. The carrier will not unload the freight.

Frequently Asked Questions

The Challenger 44050 is rated at 50,000 lbs — ALI and ETL Certified. This handles most Class 6–8 commercial vehicles including loaded transit buses, fire apparatus, refuse trucks, and medium-heavy vocational equipment. For operations requiring the full 60,000 lb capacity, the Challenger 44060 uses the same platform with a higher rating.
Three track lengths: the standard 44050 has 25-foot tracks (310" max wheelbase, 36' overall), the 44050E has 30-foot tracks (370" max wheelbase, 41' overall), and the 44050X has 35-foot tracks (430" max wheelbase, 46' overall). All three share the same 50,000 lb capacity, motor, and lifting system — the only difference is track length.
Capacity rating. The 44050 is rated at 50,000 lbs, the 44060 at 60,000 lbs. Both share the same physical platform — identical dimensions, 15HP motor, 73" rise, 75-second rise time, 32" runways, and chain-driven system. Choose based on the maximum vehicle weights in your fleet.
The 44050 has a maximum rise height of 73 inches (just over 6 feet). The pneumatic lock system provides 10 working height positions from just above runway level to full rise.
Concrete slab at least 5 inches thick, steel reinforced, rated at 3,000 PSI or higher, cured 28 days minimum. Floor level within 2 inches between any two posts. Anchors minimum 5 inches from slab edge. These are heavy-duty commercial requirements — verify your facility floor meets spec before ordering.
230–460V, three-phase power with a 30-amp circuit. The 15HP motor draws approximately 42 amps at 230V or 21 amps at 460V. This is industrial three-phase infrastructure — confirm your facility has three-phase power before ordering. A licensed electrician is required for installation.
The 44050 uses a chain-driven lifting system. At the 50,000 lb capacity level, chain drive provides the strength and reliability required for heavy commercial vehicles. The equalizer chain system synchronizes all four columns for level lifting.
The 44050 has 10 pneumatic safety lock positions operated by compressed shop air. All four locks are engaged and released from the power unit control station — a single control point. Compressed air is required for operation. No compressed air = no lock engagement. Standard in commercial maintenance facilities.
The standard 44050 requires a minimum bay of 26 feet 1 inch wide by 42 feet 4 inches long. The 44050E needs 26'1" × 47'4", and the 44050X needs 26'1" × 52'4". A minimum ceiling height of 16 feet is recommended for all models.
Yes. Challenger offers the SAJ25 (25,000 lb) and SAJ35 (35,000 lb) rolling jacks that fit the 44050 series. The optional 44AK40 internal air line kit routes compressed air through the runways for the jacks.
The 44050 requires regular inspection and maintenance per the IOM schedule: daily visual checks during the first week after installation, then periodic inspection of anchor bolts, equalizer chains, hydraulic lines, locking latches, and adapters/pads. Hydraulic fluid level checks and top-offs as needed. Professional annual inspection recommended to maintain ALI compliance.
No. The 44050 must be installed indoors in a climate-controlled commercial facility. The motors and electrical components are not sealed against weather or moisture.
The 44050 uses AW-32 hydraulic oil in a 20-gallon reservoir. The lift ships without hydraulic fluid — approximately 20 gallons of AW-32 oil are required at setup. AW-32 is standard anti-wear hydraulic oil available from any industrial supply source.
Yes. Panther Lift provides professional lift installation services. Contact us to schedule installation or get a quote. Professional installation is strongly recommended for heavy-duty 4-post lifts.
