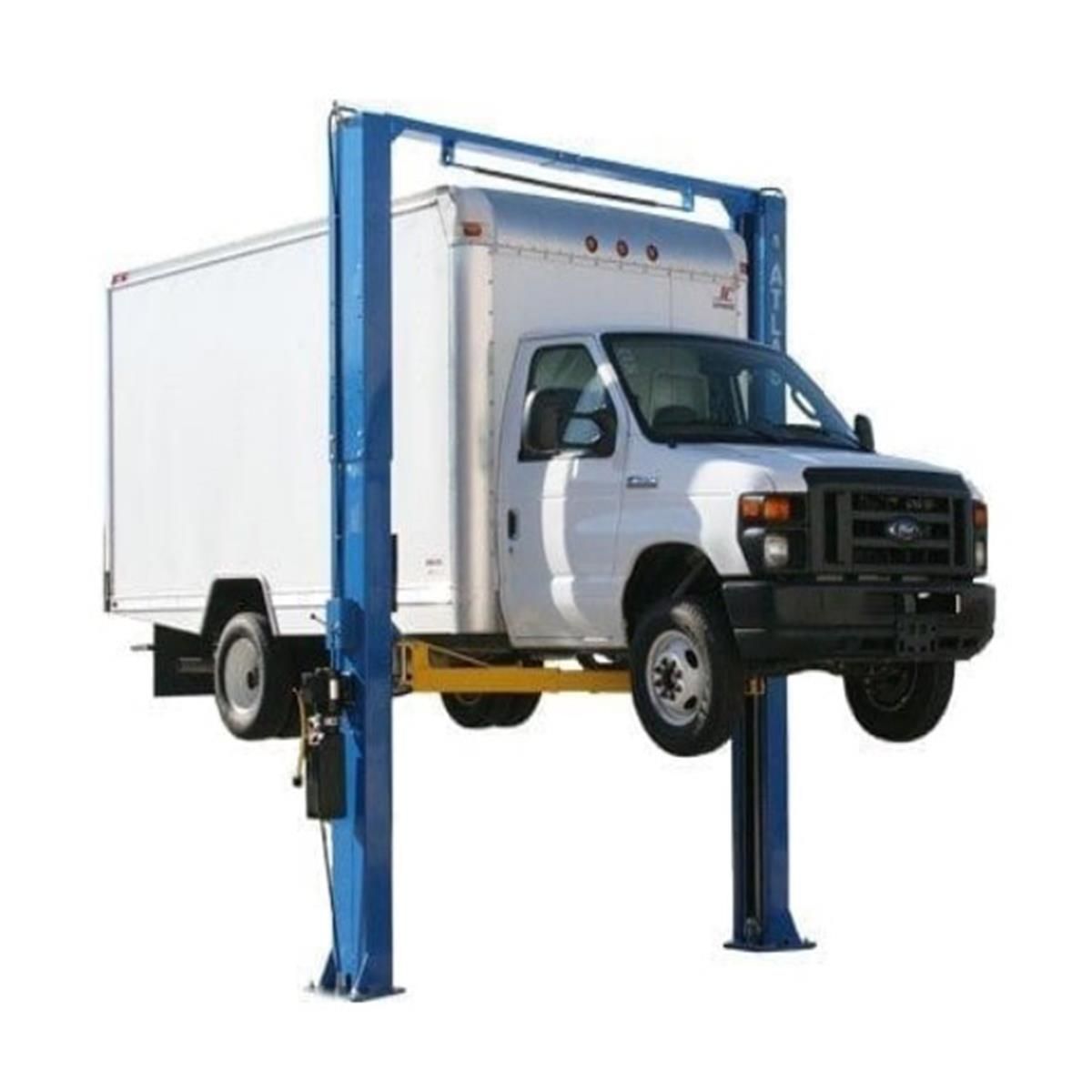

Atlas PV-15PX 15,000 lbs 2-Post Overhead Lift

Overview

Purpose and Capacity

The Atlas PV-15PX is a heavy-duty direct-drive hydraulic 2-post overhead lift engineered for service facilities handling the most demanding vehicle types. With a 15,000 lb capacity (6,800 kg) and ALI/ETL certification, this lift safely handles full-size sedans, SUVs, light trucks, vans, and fleet vehicles in professional service bays. The extended lifting range, three adjustable height settings, and maximum arm reach accommodate the full spectrum of commercial and fleet vehicle maintenance requirements while delivering the reliability and low-maintenance benefits of direct-drive hydraulic technology.

Key Technical Features

Direct-Drive Hydraulic Design

The PV-15PX employs direct-drive hydraulic cylinders for smooth, synchronized power without mechanical wear points. ANSI-compliant dual hydraulic cylinders provide redundant safety, ensuring the lift remains secure even if one cylinder fails. This engineering eliminates routine chain adjustments, cable replacements, or tensioning maintenance required by traditional chain-driven lifts. The result is lower total cost of ownership, reduced maintenance downtime, and extended equipment life in demanding commercial environments.

Heavy-Duty Safety and Stability

Self-lubricating UHMW slider blocks guide the columns during extension and retraction, ensuring smooth motion without binding. A single-point safety release mechanism allows controlled descent if power is lost. The overhead design provides a clear floor without base columns, maximizing workspace under the lift and accommodating various vehicle configurations including trucks and vans. Built-in overhead safety shut-off protection prevents over-extension. The 15,000 lb capacity ensures safe handling of heavier fleet vehicles.

Exceptional Lifting Performance

The PV-15PX lifts vehicles in 70-90 seconds and lowers them in 40-60 seconds to a maximum height of 75.125 inches (1,908 mm). Three adjustable column height settings (special low at 152.5 inches, lower at 164.875 inches, and higher at 176.875 inches overall height) provide maximum flexibility for facilities with diverse ceiling constraints. The extended arm reach from 41 to 63 inches accommodates large vehicle footprints including full-size SUVs and trucks. Operating at 75 dB noise level, it maintains a professional service environment. The 3HP single-phase motor operates at 208-240V, 60Hz.

Configuration Options

Extended Heavy-Duty Arm Reach

The PV-15PX features adjustable asymmetric lifting arms with reach from 41 to 63 inches, allowing technicians to customize lifting points for the full range of commercial and fleet vehicles. This extended reach is particularly valuable for full-size SUVs, vans, pickup trucks, and commercial vehicles. The flexible arm positioning ensures safe, balanced lifting and accommodates diverse wheelbase configurations.

Three Height Settings for Maximum Flexibility

Three adjustable column height configurations (special low at 152.5 inches, lower at 164.875 inches, and higher at 176.875 inches overall height) allow optimization for virtually any service bay constraint. This flexibility ensures seamless integration into existing facilities without requiring structural modifications. The three options provide compatibility with low-ceiling spaces while also accommodating facilities with higher ceilings.

Installation Requirements

Concrete Foundation

The PV-15PX requires a minimum 4-inch thick concrete pad with 3,000 PSI compressive strength. The concrete floor must be level within 0.25 inches across the lift footprint to ensure proper hydraulic performance and safety. The 15,000 lb capacity requires a solid foundation. Panther Lift can inspect your existing concrete or recommend reinforcement if needed.

Electrical and Power

The lift requires standard 208-240V single-phase, 60Hz electrical service with a dedicated 20-amp circuit and appropriate disconnect switch installed per National Electrical Code (NEC) requirements. Panther Lift handles all electrical connections and safety compliance during professional installation.
