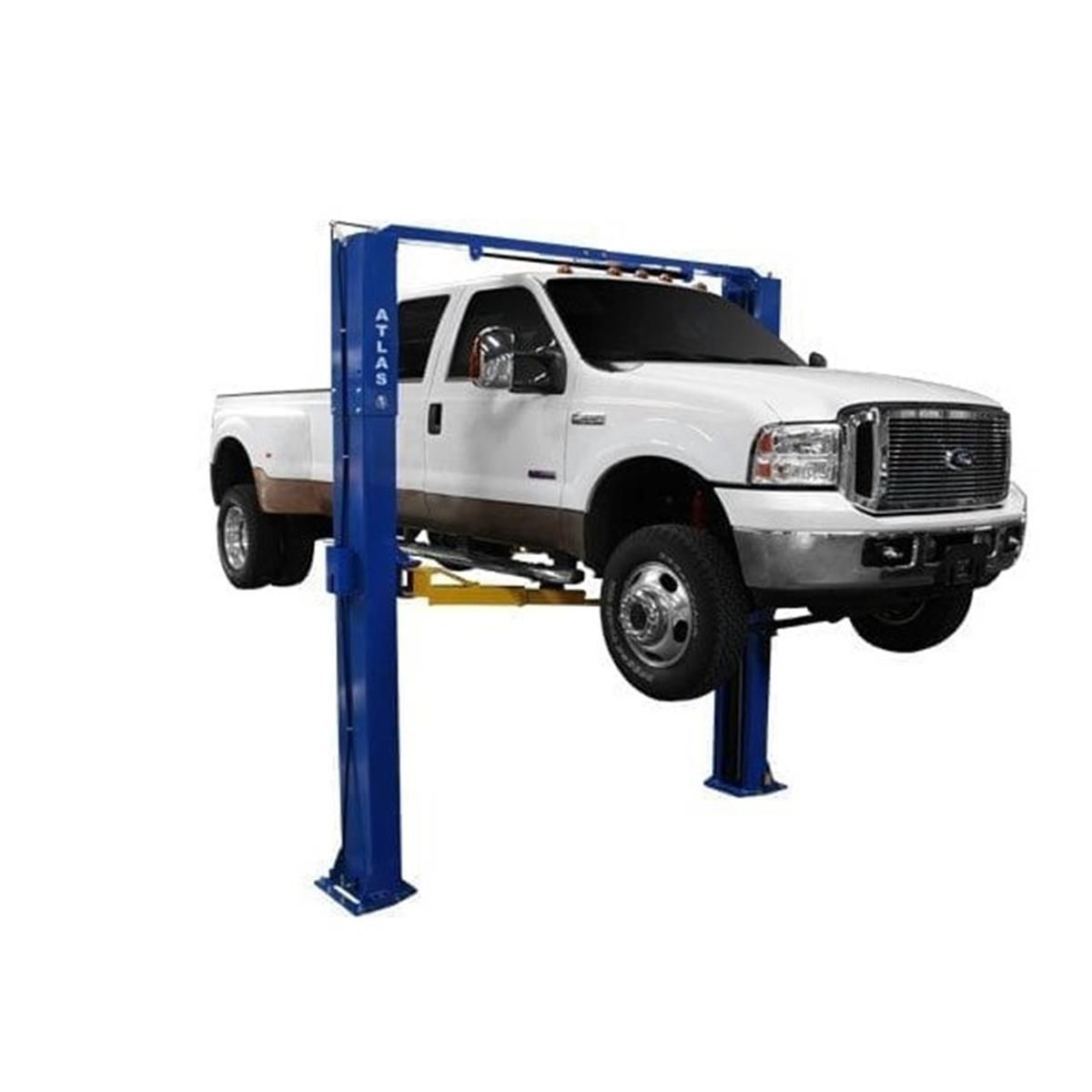

Atlas PV-10PX 10,000 lbs 2-Post Overhead Lift

Overview

Purpose and Capacity

The Atlas PV-10PX is a direct-drive hydraulic 2-post overhead lift engineered for service facilities requiring a compact, reliable lifting solution. With a 10,000 lb capacity (4,536 kg) and ALI/ETL certification, this lift safely handles sedans, coupes, and light-duty vehicles in facilities with moderate to limited ceiling heights. The self-contained hydraulic system with no exposed chains or cables ensures durability in demanding commercial environments.

Key Technical Features

Direct-Drive Hydraulic Design

Unlike chain-driven or cable-driven systems, the Atlas PV-10PX employs direct-drive hydraulic cylinders that deliver smooth, synchronized power without mechanical wear points. ANSI-compliant dual hydraulic cylinders provide redundant safety, meaning the lift remains secure even if one cylinder fails. This engineering eliminates the need for periodic chain adjustments, cable replacements, or cable-tensioning maintenance that traditional lifts require.

Safety and Stability Features

The lift features self-lubricating UHMW (ultra-high-molecular-weight polyethylene) slider blocks that guide the columns during extension and retraction, ensuring smooth motion without binding. A single-point safety release mechanism allows controlled descent if power is lost. The overhead design provides a clear floor without base columns, maximizing workspace under the lift and accommodating various vehicle configurations. Built-in overhead safety shut-off protection prevents over-extension.

Performance Specifications

The PV-10PX lifts vehicles in 55 seconds and lowers them in 20 seconds, with a maximum lifting height of 72.5 inches (1,842 mm). The adjustable column heights accommodate service bays from 143.125 to 147 inches overall height, making it suitable for facilities with space constraints. Operating at 75 dB noise level, it maintains a professional service bay environment. The 3HP single-phase motor operates at 208-240V, 60Hz, making it compatible with standard North American electrical infrastructure.

Configuration Options

Asymmetric Arm Design

The PV-10PX features asymmetric lifting arms with a 3-stage front and rear configuration, allowing technicians to customize lifting points to accommodate different vehicle profiles. This flexibility ensures safe, balanced lifting for everything from compact vehicles to short-wheelbase trucks. The arm design minimizes workspace obstruction while providing extended reach coverage.

Height Adjustment

Adjustable column heights allow customization to fit your specific service bay constraints, supporting installations from 143.125 to 147 inches overall height. This flexibility ensures the lift integrates seamlessly into existing facilities without requiring structural modifications.

Installation Requirements

Concrete Foundation

The PV-10PX requires a minimum 4-inch thick concrete pad with 3,000 PSI compressive strength. The concrete floor must be level within 0.25 inches across the lift footprint to ensure proper hydraulic performance and safety. Panther Lift can inspect your existing concrete or recommend reinforcement if needed.

Electrical and Power

The lift requires standard 208-240V single-phase, 60Hz electrical service with a dedicated 20-amp circuit and appropriate disconnect switch installed per National Electrical Code (NEC) requirements. Panther Lift handles all electrical connections and safety compliance during professional installation.
