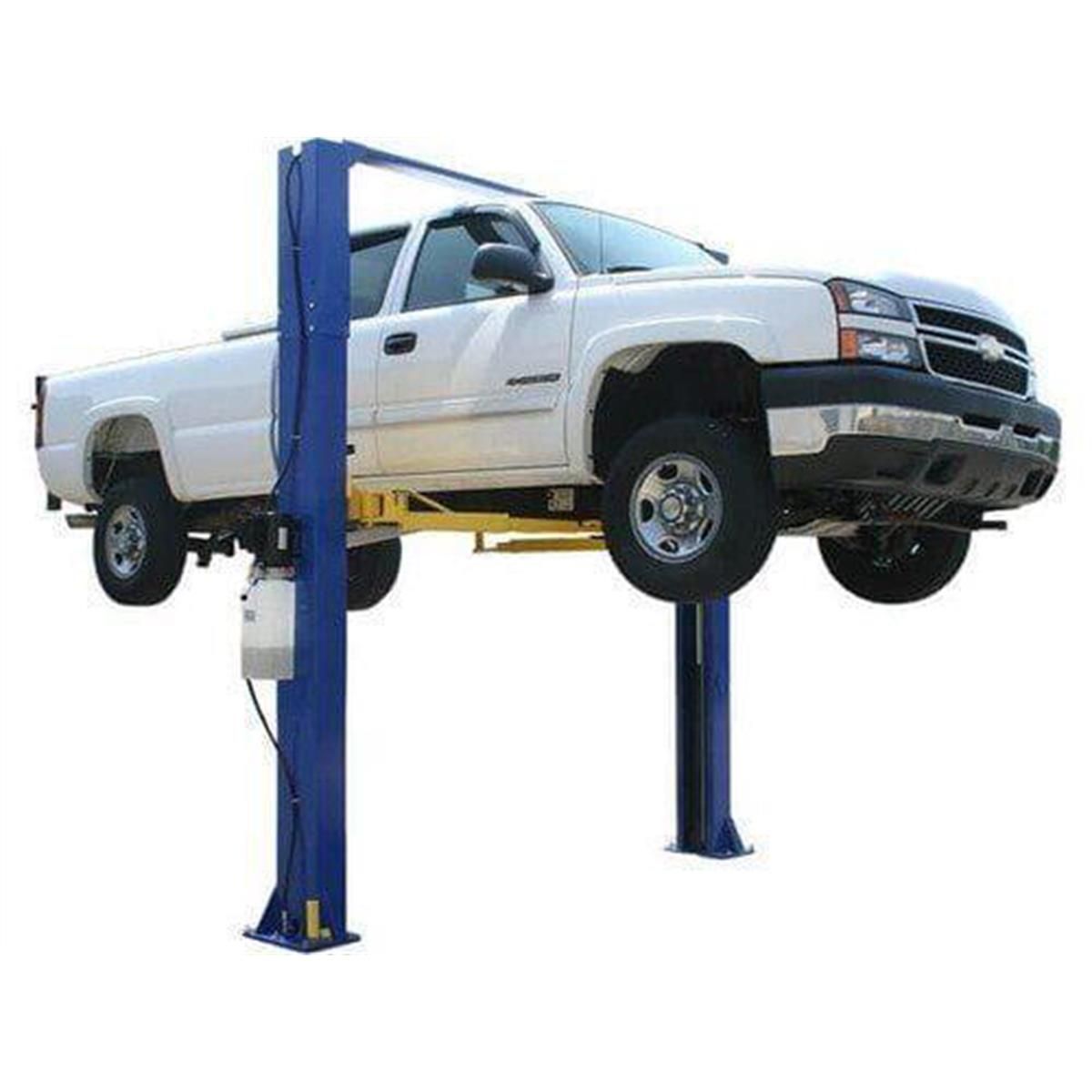

Atlas 9KOHX 9,000 lbs 2-Post Overhead Lift

SKU: ATEXH-9KOHX-FPD

Ships from manufacturer

9,000 lbs Capacity, 74" Rise Height, 142" Overall Height, Chain-Driven, 2HP Motor, 60-Second Rise Time

Part #: ATEXH-9KOHX-FPD

MFR #: ATEXH-9KOHX-FPD

Professional 2-Post Overhead Lift System

The Atlas 9KOHX represents a proven solution for shops requiring reliable, space-efficient lifting capacity. At Panther Lift, we recognize that shops need equipment that delivers consistent performance without occupying excessive floor space. This chain-driven 2-post overhead lift provides 9,000 lbs of total capacity (4,500 lbs per arm), making it suitable for most standard vehicles and light truck work. The overhead configuration maximizes your available shop floor, keeping valuable workspace clear for other equipment and operations.

Design and Performance Features

The 9KOHX features a robust chain-driven design with a 2HP motor that achieves a rise time of approximately 60 seconds. The system incorporates 3-stage front arms and 2-stage rear arms, allowing technicians to adjust reach and height for optimal positioning of different vehicle types. With a rise height of 74 inches and an overall height of 142 inches, this lift requires a minimum ceiling height of 148 inches to operate safely. The width between columns measures 109.75 inches, providing adequate spacing for vehicle positioning while maintaining a compact footprint. Front arm reach extends from 28.5 to 41.625 inches, while rear arm reach ranges from 39.125 to 57.625 inches, accommodating various vehicle configurations.

Safety and Installation

Panther Lift recommends professional installation for all overhead lift systems to ensure proper mounting, electrical connection, and safety mechanism verification. The 9KOHX includes mechanical safety locks that prevent unexpected lowering during maintenance work. Installation requires a minimum of 4 inches of concrete with a PSI rating of 3,000 or higher. The system features an overhead shutoff mechanism located approximately 135 inches from the floor, providing convenient emergency shutdown capability. The motor operates on 208-230V, 60Hz, single-phase electrical service, which is standard in most commercial shops.

Color Options and Long-Term Value

The 9KOHX is available in Blue, Red, or Black finishes, allowing you to coordinate the lift with your shop's existing color scheme and branding. At Panther Lift, we stand behind the durability and reliability of this system for years of dependable service. The chain-driven mechanism and mechanical lock system represent time-tested technology that many shops continue to rely on for daily operations.

Features & Benefits

2HP Motor Drive System

Efficient 208-230V single-phase motor delivers consistent power for smooth, reliable lifting operations in commercial shop environments.

  • 60-second rise time
  • Energy-efficient operation
  • Quiet chain-driven mechanism

Multi-Stage Arm Configuration

Three-stage front arms and two-stage rear arms provide maximum flexibility for positioning different vehicle types and sizes.

  • Front reach: 28.5" to 41.625"
  • Rear reach: 39.125" to 57.625"
  • Adjustable screw pads for precision

Mechanical Safety Locks

Integrated mechanical safety mechanism prevents unexpected lowering, protecting technicians during vehicle maintenance and inspection work.

  • Dual-point lock system
  • Fail-safe design
  • Emergency overhead shutoff

Space-Efficient Overhead Design

Overhead post configuration preserves valuable floor space in your shop, allowing equipment and vehicles to be positioned freely without obstruction.

  • 109.75" column spacing
  • 109" wide overall footprint
  • Maximizes usable shop floor

Adjustable Pad Heights

Screw pad height adjustment from 3.875 to 5.75 inches accommodates various vehicle suspension types and undercarriage configurations.

  • Mechanical pad adjustment
  • Supports sedans and light trucks
  • Precision vehicle contact points

Professional Finish Options

Choose from three industrial-grade color finishes that complement your shop environment and brand identity.

  • Blue finish
  • Red finish
  • Black finish

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 1,500 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Frequently Asked Questions

The 9KOHX has a total weight capacity of 9,000 lbs (4,500 lbs per arm). This capacity makes it suitable for most standard passenger vehicles and light trucks. At Panther Lift, we recommend consulting the vehicle manufacturer's specifications to ensure compatibility with your specific service needs.
The 9KOHX requires a minimum of 4 inches of concrete with a minimum PSI rating of 3,000. Professional installation is essential to ensure the lift is properly anchored and secure. At Panther Lift, we recommend having a professional verify your floor's specifications before installation.
You must have a minimum ceiling height of approximately 148 inches (12 feet 4 inches) to safely operate the 9KOHX. This allows for the 142-inch overall height of the lift plus adequate clearance for safe operation and maintenance access.
The lift features a 2HP motor rated for 208-230V, 60Hz, single-phase electrical service. This is standard commercial electrical service found in most shop environments. A qualified electrician should verify your facility can support these requirements.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles all mounting, electrical connections, and safety system verification to ensure your lift operates safely and reliably. Contact us for installation availability in your area and pricing details.
The 9KOHX achieves a rise time of approximately 60 seconds from the lowest to highest position. This consistent rise speed allows technicians to efficiently lift vehicles while maintaining precise control throughout the lifting cycle.
The 9KOHX includes mechanical safety locks that prevent unexpected lowering during vehicle service. An overhead shutoff mechanism is located approximately 135 inches from the floor, providing emergency shutdown capability. These features work together to protect technicians and prevent accidents in the shop.
Yes. The adjustable arm reach (front: 28.5" to 41.625" and rear: 39.125" to 57.625") and pad height adjustment (3.875" to 5.75") make the 9KOHX versatile for tire and wheel services, undercarriage inspection, and general vehicle maintenance.
Regular maintenance includes periodic inspection of mechanical locks, chain tension verification, and lubrication of moving parts according to the manufacturer's specifications. At Panther Lift, we recommend consulting your manual for detailed maintenance schedules and procedures. Professional servicing is available upon request.
No, the 9KOHX is rated for indoor use only. Exposure to rain, extreme temperatures, and outdoor elements can damage the electrical motor, corrosion-sensitive components, and safety mechanisms. This lift should only be installed and operated in a covered facility.
