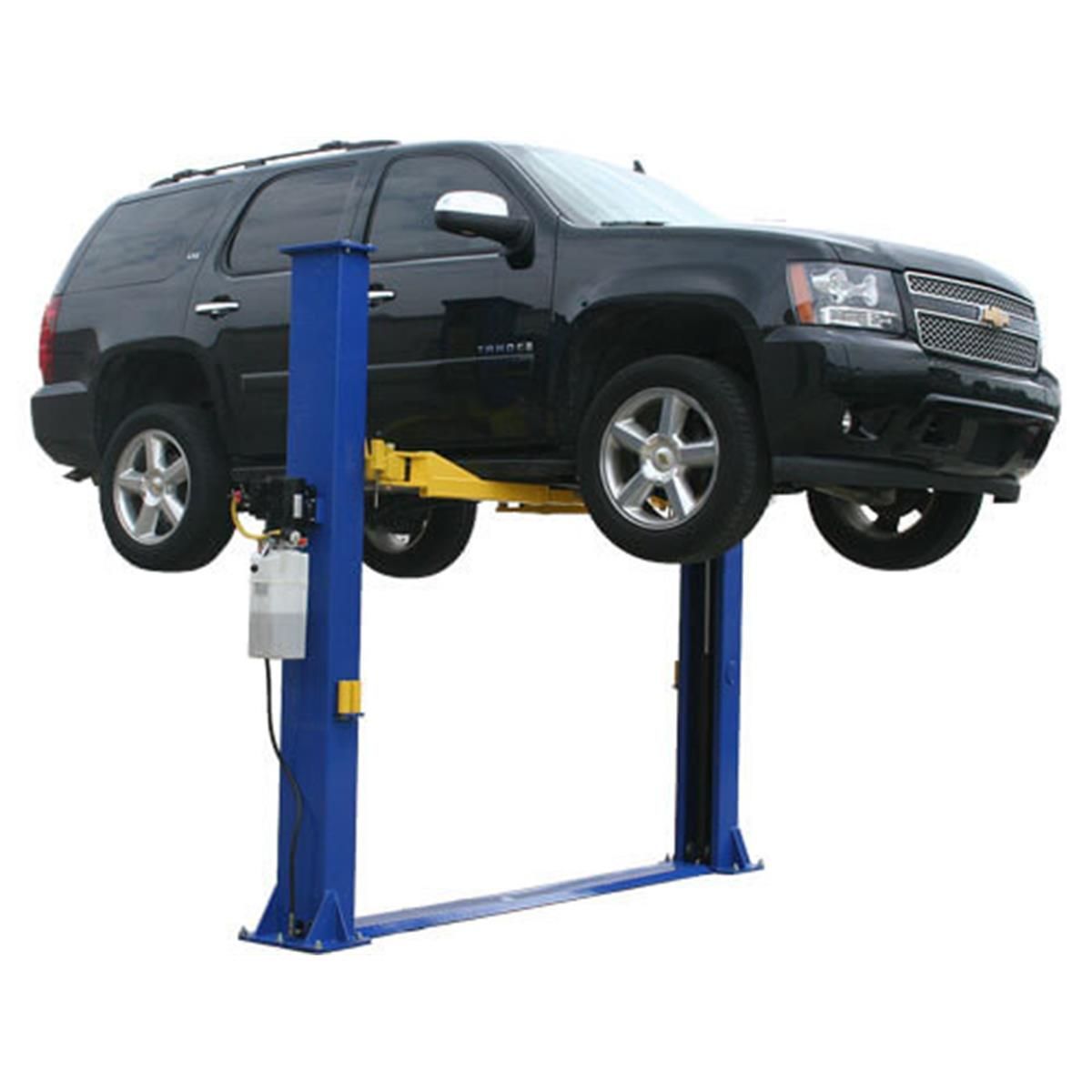

Atlas XH-9KBPX 9,000 lb Baseplate 2-Post Lift

SKU: ATEXH-9KBPX-FPD

Ships from manufacturer

Baseplate 2-Post Lift, 9,000 lb Capacity, Low Ceiling Design (9 ft 6 in. Minimum), Symmetric Arms, Dual Chain-Drive Cylinders, Secondary Lock System, 74½ in. Rise Height, Free 8-Piece Truck Adapter Set, 220V Single Phase

Part #: ATEXH-9KBPX-FPD

MFR #: ATEXH-9KBPX-FPD

Atlas XH-9KBPX — 9,000 lb Baseplate 2-Post Lift

The Atlas XH-9KBPX is an economically designed baseplate two-post lift built for professional shops and home garages with limited ceiling clearance. With a total column height of just 111½ inches (9 feet 3½ inches), the XH-9KBPX installs in spaces with ceilings as low as 9 feet 6 inches — making it one of the most compact full-capacity 2-post lifts available. The 9,000-pound lifting capacity handles cars, SUVs, crossovers, and light-duty trucks with ease, while the open-top baseplate design eliminates the need for overhead beam connections and simplifies installation in garages where ceiling structure cannot support a traditional overhead lift.

Designed for Low-Ceiling Garages

The XH-9KBPX addresses the most common barrier to installing a 2-post lift at home or in a compact commercial bay: ceiling height. The columns stand 111½ inches tall and require just 9 feet 6 inches of overhead clearance for safe operation. The baseplate mounting system anchors directly to the concrete floor with no overhead connections, making this lift ideal for standard-height residential garages, older commercial bays, and portable buildings. The symmetric arm design provides equal reach on both sides of the vehicle, with arms extending from 31½ inches to 44¾ inches to accommodate a wide range of wheelbases. An included 8-piece truck adapter set with four 1½-inch and four 5-inch stackable adapters extends the maximum lift height from 74½ inches to 81 inches for undercarriage access on taller vehicles.

Reliable Chain-Drive Power System

The XH-9KBPX uses dual hydraulic chain-drive cylinders with 2½-inch bore for smooth, balanced lifting across both columns. The 3-horsepower motor running on 220-volt single-phase power delivers a full rise in approximately 60 seconds. The chain-over-roller design minimizes friction and extends chain life, while the spring-loaded Secondary Lock System (SLS) automatically engages in the event of a slack or broken chain — providing a critical safety backup during every lift cycle. The dual-point lock release allows the operator to lower the lift from a single location, and the automatic arm restraints keep the swing arms secured during vehicle positioning.

Installation Requirements

The XH-9KBPX requires a concrete floor at least 4 inches thick with a minimum compressive strength of 3,000 PSI. Anchor points must be positioned at least 5 inches from any concrete edge. The overall floor footprint measures 134½ inches wide (11 feet 2½ inches), and the drive-through clearance between columns is 101 inches (8 feet 5 inches). Electrical setup requires a dedicated 220-volt single-phase circuit with a 30-amp breaker, installed by a licensed electrician to local code. The lift requires 3 to 5 gallons of AW32 or AW46 hydraulic oil, which is not included and must be purchased separately. This lift is designed for indoor installation only, in covered and sheltered locations.

Features & Benefits

9,000 lb Lifting Capacity

Rated for 9,000 pounds across four symmetric lifting arms — enough for cars, SUVs, crossovers, and light-duty trucks.

  • 2,250 lbs per arm at maximum capacity
  • 8-piece truck adapter set included (1.5" and 5" stackable)
  • Max lift height of 81" with adapters installed

Low-Ceiling Baseplate Design

Purpose-built for garages with limited overhead clearance. The open-top baseplate mounts directly to the floor with no overhead beam connections.

  • Column height of just 111½" (9 ft 3½ in.)
  • Fits ceilings as low as 9 ft 6 in.
  • Baseplate anchoring — no overhead structure required

Dual Chain-Drive Cylinders

Heavy-duty dual hydraulic cylinders with chain-over-roller design provide smooth, synchronized lifting across both columns.

  • 2½-inch bore cylinders for consistent power
  • Chain-over-roller reduces friction and wear
  • Balanced lift on both sides of the vehicle

Secondary Lock System (SLS)

Spring-loaded safety mechanism that automatically engages in the event of a slack or broken chain — no operator action required.

  • Automatic engagement on chain failure detection
  • Locking positions every 3 inches starting at 16" from ground
  • Dual-point lock release for controlled lowering

Symmetric Arms with Auto-Restraints

Four symmetric swing arms with automatic restraints keep arms locked in position during vehicle approach and lifting.

  • Arm reach range: 31½" to 44¾"
  • Automatic arm restraints prevent unintended swing
  • Symmetric configuration for equal reach both sides

Quick 60-Second Rise Time

The 3-horsepower motor delivers a full rise to 74½ inches in approximately 60 seconds on standard 220-volt single-phase power.

  • 3HP motor on 220V single-phase, 60Hz
  • 30-amp dedicated circuit recommended
  • Minimum pad height of just 4 inches

Specifications

ModelATEXH-9KBPX-FPDATEXH-9KBPX
Price
$2,899.00
$2,599.00
Shipping Weight1,400 lbs1,400 lbs
Lifting Capacity9,000 lb lbs9,000 lb lbs
Lift ConfigurationSymmetric BaseplateSymmetric Baseplate
Rise Height74.5" "74.5" "
Overall Height111.5 in111.5 in
Overall Width134.5134.5
Drive-Thru Clearance101"101"
Speed of Rise~60s sec~60s sec
Inside Columns110"110"
Motor3HP, 220v, 60Hz, 1Ph HP3HP, 220v, 60Hz, 1Ph HP
Voltage220V Single Phase220V Single Phase
ControlsDual-Point Lock ReleaseDual-Point Lock Release
Ceiling Height Required9 ft 6 in.9 ft 6 in.
Colors AvailableBlueBlue

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 1,400 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Concrete & Electrical Requirements

Requires a minimum 4-inch concrete slab rated at 3,000 PSI. Anchoring points must be at least 5 inches from any concrete edge. Electrical setup requires a dedicated 220V single-phase circuit with a 30-amp breaker, installed by a licensed electrician to local code.

Indoor Installation Only

The XH-9KBPX is designed for indoor use only in covered, sheltered locations. Do not install near washing areas, painting workbenches, or areas exposed to solvents or moisture. Outdoor installation will void the warranty.

Low Ceiling Compatible

Designed specifically for garages with limited overhead clearance. The columns stand just 111½ inches tall (9 ft 3½ in.), requiring a minimum ceiling height of only 9 feet 6 inches. Ideal for standard residential garages and older commercial bays.

Hydraulic Fluid Not Included

The lift requires 3 to 5 gallons of AW32 or AW46 hydraulic oil, which is not included. Purchase separately and fill according to the Installation & Operations Manual before operating the lift.

Not Recommended for Heavy Trucks

The XH-9KBPX is rated for 9,000 lbs and is designed for cars, SUVs, crossovers, and light-duty trucks. It is not recommended for diesel dually trucks or other heavy-duty commercial vehicles that may exceed the arm reach or capacity limitations.

Professional Installation Recommended

Panther Lift offers professional installation services nationwide. Our team handles concrete inspection, electrical prep, full lift assembly, hydraulic commissioning, and safety testing. Contact us to schedule or get a quote.

Frequently Asked Questions

The Atlas XH-9KBPX requires a concrete floor at least 4 inches thick with a minimum compressive strength of 3,000 PSI. Anchor points must be positioned at least 5 inches from any concrete edge. The concrete should be fully cured — a minimum of 28 days for new pours. If your existing slab does not meet these requirements, you can pour a dedicated reinforced concrete pad to support the lift. All mounting hardware is included with the lift.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic commissioning, and safety testing. Contact us to schedule an installation or to get a quote for your location.
Daily checks include inspecting hydraulic connections and hoses for leaks, verifying the lock mechanism engages properly, and confirming arm restraints function correctly. Weekly maintenance involves checking chain tension and alignment on both columns, inspecting cables and pulleys for wear, and verifying all safety labels are legible. Monthly tasks include lubricating all pivot points, checking anchor bolt torque, inspecting the hydraulic fluid level and condition, and examining the concrete pad for cracking. Every six months, perform a complete hydraulic system inspection, check cylinder seals, and verify the Secondary Lock System engages properly at every locking position.
The XH-9KBPX was specifically designed for low-ceiling applications. The columns stand 111½ inches tall (9 feet 3½ inches), and we recommend a minimum ceiling height of 9 feet 6 inches for safe operation and clearance. This makes the XH-9KBPX one of the most compact full-capacity 2-post lifts available, fitting in standard residential garages and older commercial bays that cannot accommodate taller lift models.
The XH-9KBPX has a 9,000-pound capacity and handles cars, sedans, SUVs, crossovers, minivans, and light-duty pickup trucks. The symmetric arms extend from 31½ inches to 44¾ inches to accommodate a wide range of wheelbases. The included 8-piece truck adapter set provides additional height for undercarriage access on taller vehicles. Note that this lift is not recommended for diesel dually trucks or other heavy-duty commercial vehicles.
The XH-9KBPX ships complete with the baseplate 2-post lift structure, four symmetric swing arms, dual chain-drive hydraulic cylinders, 3HP 220V motor and power unit, a free 8-piece truck adapter set (four 1½-inch and four 5-inch stackable adapters), all mounting hardware, and the Installation and Operation Manual. Hydraulic oil (3 to 5 gallons of AW32 or AW46) is not included and must be purchased separately.
The lift requires 220-volt single-phase power at 60 Hz. A dedicated 30-amp circuit breaker is recommended. The electrical circuit must be installed by a licensed electrician according to local building codes. The power unit should be positioned within reach of the electrical supply — plan the circuit run before installation begins.
Yes. The XH-9KBPX requires 3 to 5 gallons of AW32 or AW46 hydraulic oil, which is not included with the lift. Purchase the oil separately and fill according to the Installation and Operations Manual before operating the lift. Do not mix oil types or grades.
No. The XH-9KBPX is designed for indoor installation only, in covered and sheltered locations. Do not install near washing areas, painting workbenches, or areas exposed to solvents, moisture, or direct weather. Outdoor installation will void the warranty.
The drive-through clearance between columns is 101 inches (8 feet 5 inches). The inside column measurement is 110 inches (9 feet 2 inches). The overall floor width is 134½ inches (11 feet 2½ inches). These dimensions accommodate most standard passenger vehicles, SUVs, and light-duty trucks.
The Atlas XH-9KBPX includes a 2-year structural warranty and a 1-year hydraulic warranty, both parts only. The warranty covers manufacturing defects in materials and workmanship under normal use. Damage from improper installation, overloading beyond the rated 9,000-pound capacity, or outdoor use is not covered.
The Atlas XH-9KBPX is available in the standard blue finish. Contact Panther Lift for current color availability and any special-order options.
