ATETTCWB-COMBO4-FPD

Atlas Automotive Equipment

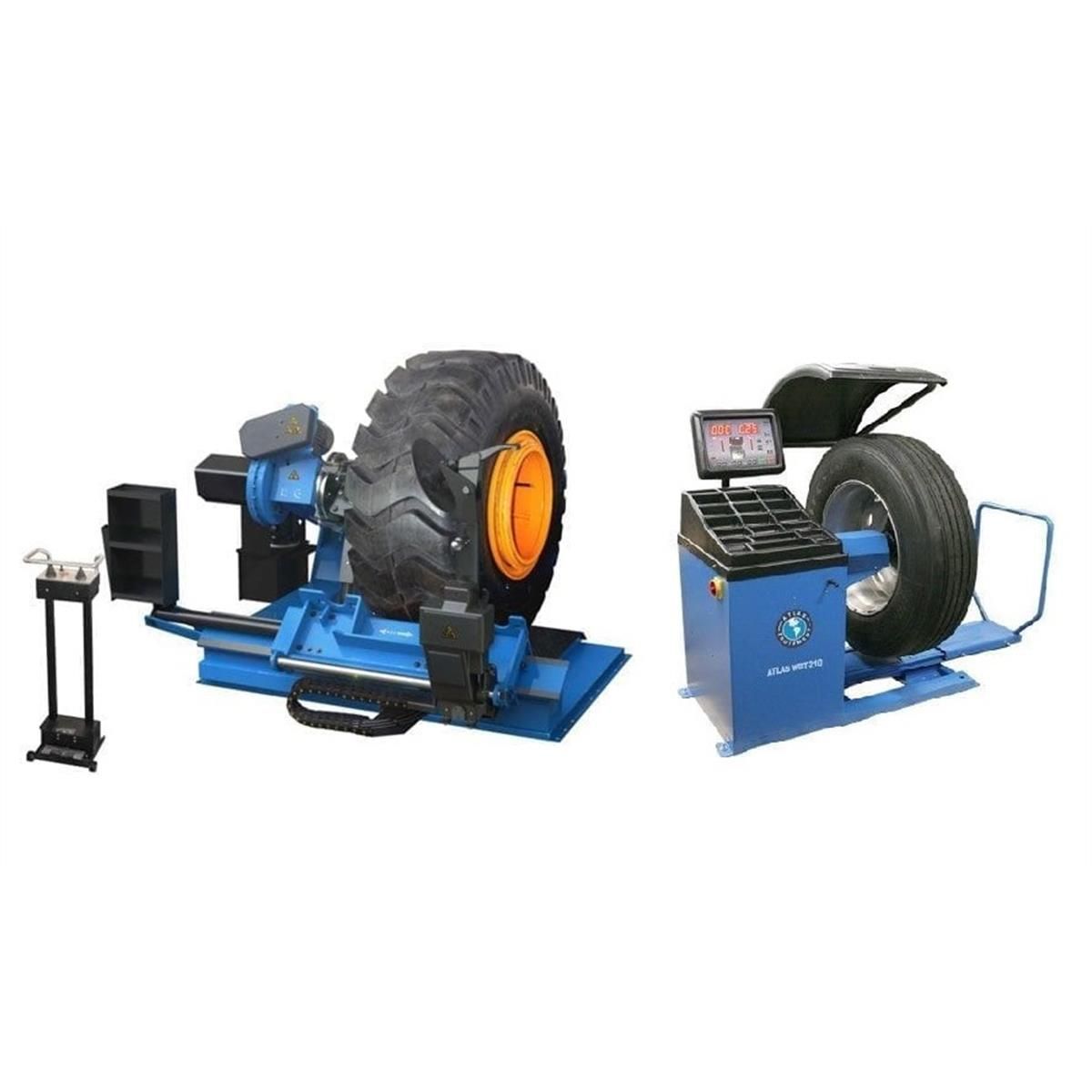

TTC-306 + WBT-210 Fully Automated Super-Duty Truck Tire Changer and Wheel Balancer Combo

SKU: ATETTCWB-COMBO4-FPD

Ships from manufacturer

Atlas TC306 Tire Changer & WBT210 Balancer Combo

Part #: ATETTCWB-COMBO4-FPD

MFR #: ATETTCWB-COMBO4-FPD

TTC-306 Fully Automated Super-Duty Truck Tire Changer

The TTC-306 is the ultimate truck tire changer, combining full automation with super-duty capacity for high-volume commercial fleet centers and mega-truck specialists. It handles rim sizes from 14 to 56 inches with tire diameters up to 94.5 inches and tire widths to 51 inches. Featuring a 2690kg (5930lb) bead break force and 1800kg (3968lb) wheel capacity, the TTC-306 provides unmatched power and capability. Its advanced hydraulic system includes a 2.2kW pump and 2.6/3.2kW dual-speed gearbox, all operating on 220V three-phase power. The unit weighs approximately 2311 lbs.

WBT-210 Wheel Balancer Specifications

The WBT-210 is a versatile dual-mode balancer that handles both car and truck wheels. It features a 200kg (440lb) maximum truck wheel weight capacity and accommodates wheels up to 47 inches in diameter with a 10-32 inch rim range. The balancer achieves ±1g precision for cars and ±10g precision for trucks, with cycle times of 7 seconds for cars and 15 seconds for trucks. Powered by 220V single-phase at 250W with 8-10 bar air pressure, it weighs 705 lbs and includes auto brake and self-diagnosis features.

Combo Benefits

This ultimate combo pairs the TTC-306's full automation, dual-speed hydraulics, and extreme capacity with the WBT-210's dual-mode balancing precision. The combination delivers maximum automation and capacity for the most demanding commercial applications, enabling high-volume tire and wheel service for mega-truck fleets and specialized commercial centers.

Features & Benefits

Full Automation with Dual-Speed Hydraulics

Advanced automation system with 2.6/3.2kW dual-speed gearbox for maximum efficiency and performance.

  • 2.2kW pump powers the system
  • Dual-speed gearbox optimizes performance
  • Full tire changing automation

14-56 Inch Rim Range

Ultimate heavy-duty range handles the largest commercial and agricultural vehicle tires.

  • Accommodates tires up to 94.5 inches in diameter
  • Supports tire widths up to 51 inches
  • Handles mega-trucks and extreme applications

5930 Lbs Bead Break Force

Massive 2690kg bead break force handles the most stubborn tire beads.

  • Breaks bead on mega-truck tires
  • 3968 lb wheel capacity for super-duty loads
  • Maximum breaking power in class

Dual-Mode Balancing

WBT-210 balances both car and truck wheels with precision accuracy.

  • ±1g precision for cars
  • ±10g precision for trucks
  • Up to 47 inch diameter capacity

Three-Phase Power for Maximum Performance

220V three-phase power enables the most demanding automation and hydraulic operations.

  • 220V three-phase operation
  • Enables full automation capabilities
  • Optimized for high-volume operations

High-Volume Fleet Service Solution

Purpose-built for maximum productivity in commercial fleet centers and mega-truck specialists.

  • Approximately 2311 lbs tire changer weight
  • 705 lbs wheel balancer weight
  • Complete automation for high-volume service

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This combo ships curbside via freight truck. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at delivery. The carrier will not unload the freight.

Frequently Asked Questions

The TTC-306 features a full automation system with advanced hydraulics powered by a 2.2kW pump and 2.6/3.2kW dual-speed gearbox, automating the tire changing process from bead breaking to mounting.
The TTC-306 handles rim sizes up to 56 inches in diameter, with tire diameters up to 94.5 inches and tire widths to 51 inches.
The TTC-306 delivers 2690kg (5930lb) bead break force, the maximum breaking power needed for the most difficult mega-truck tire breaking.
Dual-speed hydraulics optimize performance for different tire sizes and types, providing maximum efficiency and speed for high-volume operations while maintaining precision.
The TTC-306 operates on 220V three-phase power at up to 30A. The WBT-210 requires 250W at 220V single-phase with 8-10 bar air pressure for both units.
Yes, the TTC-306 plus WBT-210 is designed for high-volume commercial fleet centers and mega-truck specialists requiring maximum automation and capacity.
The TTC-306 has a 1800kg (3968lb) wheel capacity, capable of handling the largest commercial and mega-truck wheel assemblies.
Yes, the WBT-210 is a dual-mode balancer that handles both car and truck wheels with respective precision levels of ±1g for cars and ±10g for trucks.
The TTC-306 weighs approximately 2311 lbs and the WBT-210 weighs 705 lbs, for a combined total of approximately 3016 lbs.
The TTC-306 plus WBT-210 is the ultimate truck tire service combo designed for high-volume commercial fleet centers and mega-truck specialists requiring maximum automation and capacity.
