ATEMPAF9P-FPD

Atlas Automotive Equipment

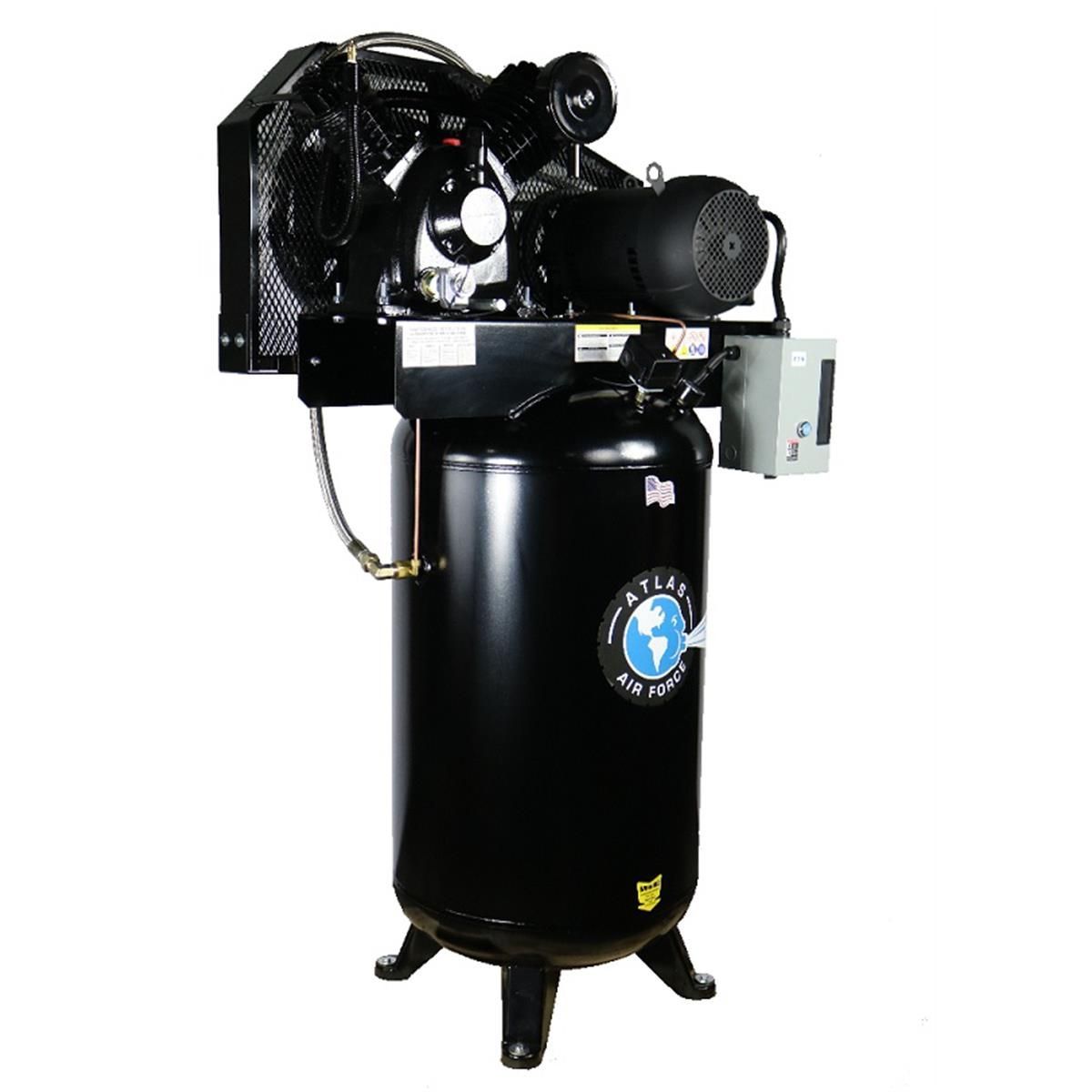

Atlas Air Force AF9P 7.5HP 80 Gallon Air Compressor with Plus Package

SKU: ATEMPAF9P-FPD

Ships from manufacturer

Industrial-grade compressor with Plus Package featuring automatic low oil monitor, automatic tank drain, and air cooled aftercooler. Most recommended for multi-bay shops and growing operations.

Part #: ATEMPAF9P-FPD

MFR #: ATEMPAF9P-FPD

Industrial-Grade Performance with Plus Package

The Atlas Air Force AF9P is the most advanced compressor in the Air Force lineup, engineered for demanding multi-bay shop environments and facilities planning for growth. With a 7.5HP commercial-grade motor at 1740 RPM running on 220V/1PH (40 amp breaker, #8 wire required), this compressor delivers sustained, powerful air delivery throughout extended operations.

Professional-Grade Components & Control

The AF9P pairs a 3-cylinder, 2-stage belt-driven pump with an 80-gallon vertical tank manufactured in the USA. Operating at 145-175 PSI, it delivers 23 CFM at 90PSI and 20 CFM at 175PSI through a 3/4" NPT outlet. Industrial-grade Hubbell pressure switch and EATON starter provide commercial-level control and reliability, while an included magnetic starter ensures smooth operation and extended equipment life. Measuring 40"L × 24"W × 71"H, the AF9P weighs significantly more due to its robust construction and advanced features.

The Plus Package Advantage

The Plus Package sets the AF9P apart with three essential features for serious operations. An automatic low oil monitor alerts operators to oil levels before damage occurs. An automatic tank drain removes moisture automatically, eliminating manual maintenance and reducing rust. An air cooled aftercooler reduces compressed air temperature, protecting downstream tools and components while improving efficiency. Combined with the oil drain extension tube, vibro-isolation pads, hands-free tank drain, and finned tank inlet, the AF9P provides a complete, worry-free compressed air solution.

Designed for Daily Shop Dependence

The AF9P is most recommended for large multi-bay shops where multiple technicians depend on compressed air throughout the day. Shops planning to expand operations benefit from the AF9P's reserve capacity and advanced features. With 20 CFM at 175PSI, it powers multiple high-demand tools simultaneously and maintains pressure during peak usage.

Support & Warranty

The AF9P comes with a 1-year parts-only warranty and represents the pinnacle of commercial air compression for professional shop environments.

Features & Benefits

7.5HP Industrial Motor

Commercial-grade motor at 1740 RPM, 220V/1PH, 40 amp breaker, #8 wire—industrial-class power delivery.

  • 7.5HP commercial grade
  • 1740 RPM operation
  • 220V/1PH configuration

23 CFM Output

Delivers 23 CFM at 90PSI and 20 CFM at 175PSI for powerful multi-tool operations.

  • 23 CFM @90PSI
  • 20 CFM @175PSI
  • 3/4" NPT outlet

Plus Package Features

Automatic low oil monitor, automatic tank drain, and air cooled aftercooler—advanced maintenance automation.

  • Automatic low oil monitor
  • Automatic tank drain
  • Air cooled aftercooler

80 Gallon Tank

Vertical steel tank manufactured in the USA with 40"L × 24"W × 71"H dimensions.

  • 80 gallon capacity
  • Made in USA
  • Vertical orientation

Industrial Controls

Industrial-grade Hubbell pressure switch and EATON starter with magnetic starter for professional reliability.

  • Hubbell pressure switch
  • EATON starter
  • Magnetic starter included

Multi-Bay Capable

Reserve capacity and advanced features power multiple technicians and tools simultaneously throughout the day.

  • Multi-tool operation
  • Daily duty rated
  • Growth-ready capacity

Specifications

ModelATEMPAF9P-FPD
Price
$3,899.00
Shipping Weight500 lbs
Product TypeAir Compressors
Motor / Engine7.5 HP Electric (1740 RPM)
Amperage40A (#8 wire required) amps
Tank Size80 gallons gallons
Outlet Size3/4" NPT
Pump Type3-Cylinder, 2-Stage Belt-Driven
Dimensions40" x 24" x 71"
Tank OrientationVertical
Max PSI175 PSI PSI
CFM @ 90 PSI23 CFM CFM
CFM @ 175 PSI20 CFM CFM
Voltage220V, 60Hz, 1Ph

Before You Buy

Plus Package Automation

Automatic low oil monitor, automatic tank drain, and air cooled aftercooler provide complete maintenance automation for daily shop operations.

23 CFM Power

Industrial-class 23 CFM at 90PSI and 20 CFM at 175PSI powers multiple tools simultaneously throughout the day.

Industrial Controls

Hubbell pressure switch, EATON starter, and magnetic starter provide professional-grade reliability and protection.

Multi-Bay Ready

Most recommended for large multi-bay shops and operations planning for growth. Built for shops that depend on their compressor daily.

Free Shipping

Free shipping on all orders within the contiguous United States.

Ships via Freight

This item ships via freight carrier. Someone must be present to receive delivery.

Frequently Asked Questions

The AF9P features industrial-grade components including a Hubbell pressure switch, EATON starter, commercial-grade 7.5HP motor, and magnetic starter for professional shop reliability.
The Plus Package includes three advanced features: automatic low oil monitor for protection, automatic tank drain for maintenance automation, and air cooled aftercooler for superior air quality and tool protection.
The AF9P requires 220V/1PH power with a 40 amp breaker and #8 gauge wire. Verify your facility has this capacity before installation.
The AF9P delivers 23 CFM at 90PSI and 20 CFM at 175PSI, suitable for powering multiple high-demand tools simultaneously.
Yes, with 20 CFM at 175PSI, the AF9P is specifically designed to power multiple tools simultaneously and maintain pressure during peak usage.
The automatic tank drain removes moisture automatically, eliminating manual maintenance and reducing rust—essential for daily shop operations.
Yes, the AF9P includes a magnetic starter that manages electrical load and extends motor lifespan.
The air cooled aftercooler reduces compressed air temperature, protecting downstream tools and components while improving overall system efficiency.
Yes, the 80-gallon vertical tank is manufactured in the USA and measures 40"L × 24"W × 71"H.
The AF9P is most recommended for large multi-bay shops and facilities planning for growth where multiple technicians depend on compressed air daily.
