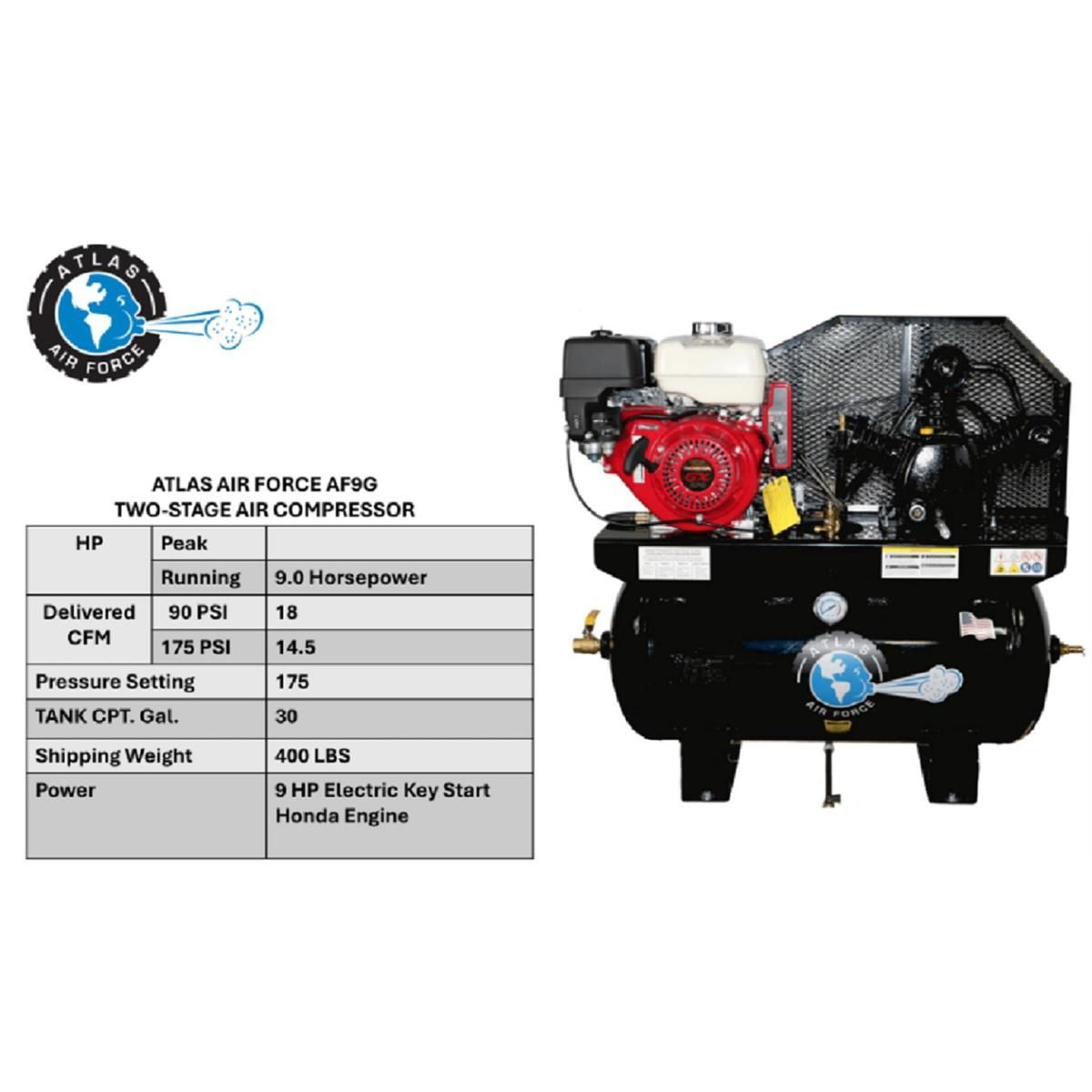

Atlas Air Force AF9G Gas 9HP 30 Gallon Air Compressor
SKU: ATEMPAF9G-FPD
Mobile gas-powered air compressor with Honda GX270 engine. No electricity needed—perfect for mobile service trucks, field work, and remote job sites. Powers large impact wrenches.
Part #: ATEMPAF9G-FPD
MFR #: ATEMPAF9G-FPD
Gas-Powered Mobility for Professional Service
The Atlas Air Force AF9G is purpose-built for mobile operations where electricity is unavailable or impractical. Powered by a Honda GX270 9HP gas engine with electric start, this compressor delivers professional-grade air compression to service trucks, field operations, and remote locations. EPA and CARB emission compliant with 4-cycle air-cooled single cylinder technology, it operates cleaner and quieter than traditional gas equipment.
Compact Tank, Powerful Performance
Unlike electric models, the AF9G features a 30-gallon horizontal tank manufactured in the USA, optimized for vehicle mounting and reduced footprint. Operating at 145-175 PSI, the compressor delivers 18 CFM at 90PSI and 14.5 CFM at 175PSI through a 3/4" NPT outlet. The 3-cylinder, 2-stage belt-driven pump design provides consistent, reliable air supply for extended work sessions. Weighing 267 lbs and measuring 46"L × 19"W × 37"H, it fits easily in truck beds and cargo areas.
Ready for Stubborn Fasteners
The AF9G is specifically engineered to power large impact wrenches for breaking loose BUDD wheel lug nuts on heavy trucks and trailers. The pneumatic throttle control allows operators to adjust engine RPM and air delivery based on task requirements, extending equipment life while maintaining consistent performance.
Smart Features for Field Work
Electric start eliminates the need for manual pulling, while the charging system keeps batteries fresh during extended operation. Pneumatic head unloaders reduce startup load on the engine. Vibro-isolator pads minimize noise and vibration for comfortable operation in close quarters.
Support & Warranty
Backed by a 1-year parts-only warranty, the AF9G is the industry standard for mobile air compression and field service operations.
Features & Benefits
Honda GX270 Engine
9HP gas engine with electric start, EPA and CARB emission compliant, 4-cycle air-cooled design.
- 9HP Honda GX270 engine
- Electric start capability
- EPA/CARB compliant
Mobile Ready
Gas-powered design means no electricity required—perfect for trucks, field operations, and remote sites.
- No electrical hookup needed
- Field-proven design
- Truck-mounted ready
18 CFM Output
Delivers 18 CFM at 90PSI and 14.5 CFM at 175PSI for powerful tool operation.
- 18 CFM @90PSI
- 14.5 CFM @175PSI
- 3/4" NPT outlet
3-Cylinder Pump
3-cylinder, 2-stage belt-driven pump for consistent, reliable air delivery.
- 3-cylinder pump
- 2-stage cooling
- Belt-driven reliability
30 Gallon Tank
Horizontal tank manufactured in the USA, optimized for truck mounting and compact footprint.
- 30 gallon capacity
- Made in USA
- Horizontal orientation
Impact Wrench Power
Designed to power large impact wrenches for BUDD wheel lug nuts and heavy-duty fasteners.
- BUDD wheel compatible
- Pneumatic throttle control
- Extended work sessions
Specifications
| Model | ATEMPAF9G-FPD | ATEMPAF9G |
|---|---|---|
| Price | $3,249.00 | $2,949.00 |
| Shipping Weight | 267 lbs | — |
| Product Type | Air Compressors | Air Compressors |
| Motor / Engine | Honda GX270 9HP Gas (Electric Start) | — |
| Tank Size | 30 gallons gallons | — |
| Outlet Size | 3/4" NPT | — |
| Dimensions | 46" x 19" x 37" | — |
| Pump Type | 3-Cylinder, 2-Stage Belt-Driven | — |
| Tank Orientation | Horizontal | — |
| Max PSI | 175 PSI PSI | — |
| CFM @ 90 PSI | 18 CFM CFM | — |
| CFM @ 175 PSI | 14.5 CFM CFM | — |
