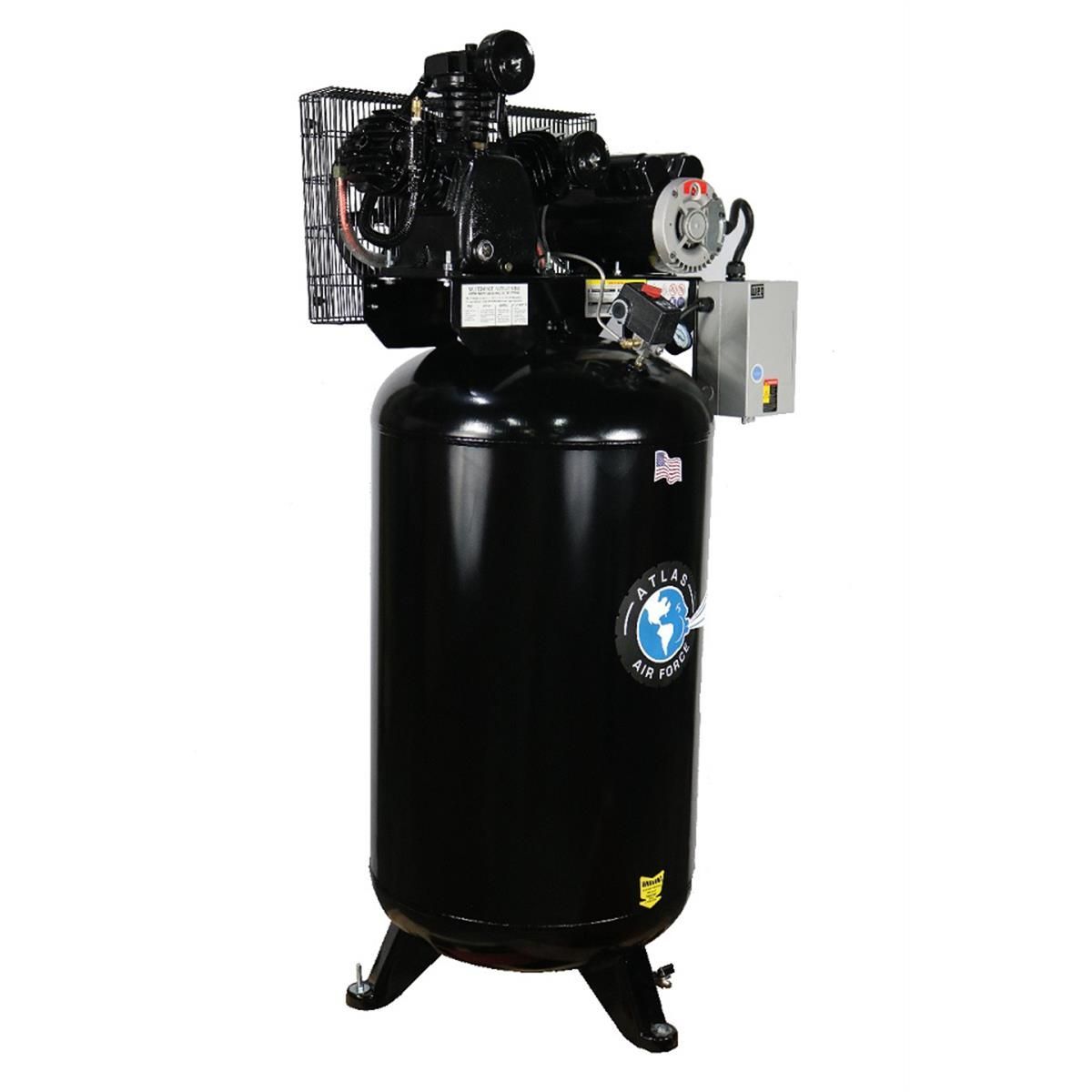

Atlas Air Force AF7 5HP 80 Gallon Air Compressor
SKU: ATEMPAF7-FPD
Enhanced commercial air compressor featuring low RPM 5HP motor with magnetic starter for superior longevity and control. 18.5 CFM delivery with quiet, reliable performance.
Part #: ATEMPAF7-FPD
MFR #: ATEMPAF7-FPD
Enhanced Commercial Air Compression with Magnetic Control
The Atlas Air Force AF7 builds on proven compressor design with a key enhancement: a professional-grade magnetic starter that controls electrical input and extends equipment lifespan. Running at 220V/1PH with low RPM technology, this 5HP compressor requires a 30 amp breaker and #10 wire, delivering consistent, controlled power delivery.
Matched Pump & Tank Performance
The AF7 features an identical 3-cylinder, 2-stage cast iron reciprocating pump paired with an 80-gallon vertical tank manufactured in the USA. Operating at 145-175 PSI, the compressor delivers 18.5 CFM at 145PSI and 14.5 CFM at 175PSI. The 1/2" NPT air outlet with included ball valve provides straightforward connection to shop air systems.
Durability Through Technology & Design
The magnetic starter automatically manages electrical load, reducing inrush current and mechanical stress on the motor. This technology adds years to compressor lifespan compared to direct-start systems. The AF7 incorporates vibro-isolation pads for quiet operation, a finned tank inlet tube to reduce water accumulation, hands-free tank drain extension, and a heavy-duty metal belt guard. At 485 lbs, it measures 36"L × 24"W × 69"H.
The Magnetic Starter Advantage
Low RPM motor technology combined with the magnetic starter means smoother operation, reduced electrical demand on your facility, and enhanced reliability. This makes the AF7 ideal for shops that depend on their compressor for daily operations.
Support & Warranty
The AF7 comes with a 1-year parts-only warranty and represents the ideal balance of features and affordability for growing commercial operations.
Features & Benefits
Magnetic Starter
Professional-grade magnetic starter controls electrical input and significantly extends motor lifespan.
- Automatic load management
- Reduced inrush current
- Enhanced motor longevity
Low RPM 5HP Motor
220V/1PH low RPM electric motor with 30 amp breaker and #10 wire requirements for smooth operation.
- Low RPM technology
- 220V/1PH configuration
- 30 amp breaker required
18.5 CFM Output
Delivers 18.5 CFM at 145PSI and 14.5 CFM at 175PSI for reliable multi-tool operations.
- 18.5 CFM @145PSI
- 14.5 CFM @175PSI
- 145-175 PSI range
Cast Iron Pump
3-cylinder, 2-stage reciprocating pump with belt drive for proven reliability.
- 3-cylinder design
- 2-stage cooling
- Belt-driven system
80 Gallon Tank
Vertical steel tank manufactured in the USA with enhanced capacity for continuous operation.
- 80 gallon capacity
- Made in USA
- 36"L × 24"W × 69"H
Quiet & Efficient
Vibro-isolation pads and low RPM design create extremely quiet, efficient operation.
- Vibro-isolation pads
- Finned inlet tube
- Hands-free drain extension
Specifications
| Model | ATEMPAF7-FPD | ATEMPAF7 |
|---|---|---|
| Price | $2,549.00$2,599.00 Save 2% ($50.00) | $2,299.00 |
| Shipping Weight | 485 lbs | — |
| Product Type | Air Compressors | Air Compressors |
| Motor / Engine | 5 HP Electric with Magnetic Starter | — |
| Tank Size | 80 gallons gallons | — |
| Amperage | 30A (#10 wire required) amps | — |
| Pump Type | 3-Cylinder, 2-Stage Cast Iron | — |
| Dimensions | 36" x 24" x 69" | — |
| Outlet Size | 1/2" NPT | — |
| Tank Orientation | Vertical | — |
| Max PSI | 175 PSI PSI | — |
| CFM @ 145 PSI | 18.5 CFM CFM | — |
| CFM @ 175 PSI | 14.5 CFM CFM | — |
| Voltage | 220V, 60Hz, 1Ph | — |
