ATEHT-CYCLELIFT-FPD

Atlas Automotive Equipment

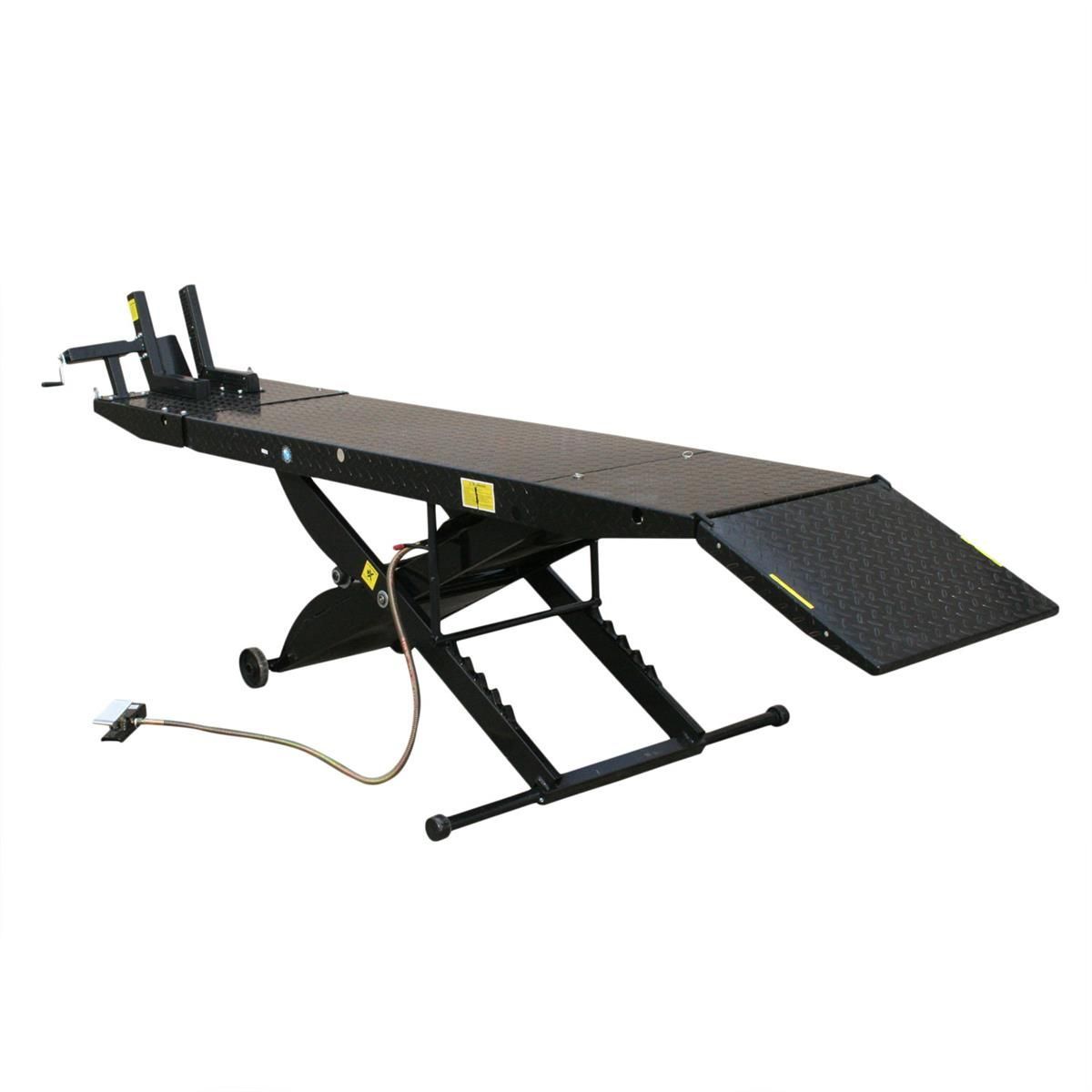

Atlas CycleLift 1000 Lb Air-Operated Motorcycle Lift

SKU: ATEHT-CYCLELIFT-FPD

Ships from manufacturer

1000 Lb Capacity, Pneumatic Operation, Foot Pedal Control, Drop Tail Design

Part #: ATEHT-CYCLELIFT-FPD

MFR #: ATEHT-CYCLELIFT-FPD

Overview

The Atlas CycleLift is a specialized pneumatic lift engineered specifically for motorcycle service and maintenance. With a 1,000 lbs lifting capacity and innovative air-operated design, the CycleLift transforms your motorcycle service workflow. Featuring a drop-tail section that provides full access to the rear wheel and a foot-pedal operated system that leaves both hands free for positioning and securing your motorcycle, the CycleLift enables technicians to work on everything from tire service and brake maintenance to chain adjustments with unparalleled ease and safety.

Design & Operation

Unlike electric motorcycle lifts that require electrical hookup and installation, the CycleLift operates on standard shop air at 90-100 PSI—connect it to your existing compressed air line and you're ready to lift. The intuitive foot pedal system provides hands-free raising and lowering, allowing you to use both hands to position the motorcycle and manage safety straps. The robust front wheel vise clamp system features both fixed and moveable arms to securely grip various wheel widths, while tie-down eyelets throughout the platform enable you to secure your motorcycle with straps during service. The drop-tail section swings down to provide unobstructed rear wheel access, eliminating the need to remove your motorcycle from the lift for tire or brake work.

Safety & Stability

Professional motorcycle service demands absolute stability, and the CycleLift delivers with multiple locking positions secured by detent pins and a comprehensive lock bar system. The adjustable vise clamp arms accommodate motorcycles of different chassis widths and wheel sizes. An included approach ramp simplifies loading and reduces the risk of component damage during initial positioning. The tie-down eyelets and straps provided allow technicians to maintain stability throughout the service process. Panther Lift also offers an optional XLT Side Extension Kit for shops requiring additional access space or specialized service configurations. Daily bolt and latch inspections, combined with weekly parts inspections and monthly lubrication with air tool oil, keep your CycleLift operating at peak performance.

Why Choose the CycleLift

Panther Lift offers the CycleLift as the ideal solution for professional motorcycle shops and automotive service centers with dedicated motorcycle bays. Pneumatic operation means no electrical infrastructure requirements—simply tap into your shop air system. The foot pedal design frees your hands for securing and positioning the motorcycle, making your service workflow safer and more efficient. The drop-tail mechanism provides complete rear wheel access without repositioning the motorcycle. At just 350 lbs with no anchoring requirements, the CycleLift is the intelligent, flexible choice for shops seeking professional-grade motorcycle service capabilities.

Features & Benefits

Pneumatic Operation Only

Connect to your shop air system at 90-100 PSI and lift. No electricity required, no electrical hookup needed—perfect for shops with dedicated motorcycle bays.

  • Uses standard shop compressed air
  • No electrical infrastructure needed
  • Works with any PSI-regulated compressor system

Foot Pedal Control

Hands-free operation with foot pedal control lets you keep both hands free for positioning and securing your motorcycle during service.

  • Intuitive pedal interface
  • Both hands free for motorcycle positioning
  • Smooth, controlled raising and lowering

Drop Tail Design

The swing-down tail section provides complete, unobstructed access to the rear wheel for tire service, brake work, and chain adjustments without repositioning.

  • Full rear wheel access
  • Eliminates repositioning steps
  • Enables tire and brake service

Secure Vise Clamp System

Adjustable front wheel clamp with both fixed and moveable arms secures motorcycles of various widths and wheel sizes during service.

  • Accommodates multiple wheel widths
  • Fixed and moveable arm design
  • Prevents wheel movement during work

Tie-Down Eyelets & Straps

Multiple tie-down points throughout the platform let you secure your motorcycle with straps, maintaining stability throughout the entire service process.

  • Multiple securing points
  • Prevents motorcycle shifting
  • Enhances worker safety

Multiple Locking Positions

Professional-grade stability with multiple locking positions secured by detent pins and a comprehensive lock bar system for safe, stable work at any height.

  • Detent pin security
  • Lock bar engagement
  • Stable at all heights

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 350 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Frequently Asked Questions

No. The CycleLift is entirely pneumatic and requires only a connection to your shop's compressed air system at 90-100 PSI. No electrical hookup, wiring, or power requirements are needed.
The CycleLift operates on shop air at 90-100 PSI, with a maximum pressure of 100 PSI. Standard shop compressors with proper regulation are suitable. If your shop air system is unstable or lacks regulation, consult the manual for setup guidance.
Simply position your motorcycle on the platform using the included approach ramp, engage the front wheel vise clamp arms around the wheel, and use the foot pedal to raise or lower the motorcycle. Both hands remain free for positioning and adjusting the motorcycle on the platform.
No. The CycleLift sits on your shop floor and requires no anchoring, bolting, or permanent installation. This makes it portable and allows you to relocate it as needed.
Yes. The drop-tail section swings down to provide complete, unobstructed access to the rear wheel and tire. You can service brakes, replace tires, adjust the chain, and perform other rear-wheel work without repositioning the motorcycle.
If shop air pressure drops, the CycleLift will not raise. The multiple locking positions with detent pins and lock bar provide security at rest. For shops with unreliable shop air, ensure proper compressor sizing and system redundancy.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.
Monthly, lubricate all hinges and pivot points with air tool oil to maintain smooth operation. Additionally, perform daily bolt and latch inspections to ensure all fasteners remain tight, and conduct weekly parts inspections for wear, corrosion, or damage.
Panther Lift offers the optional XLT Side Extension Kit for shops requiring additional access space or specialized service configurations. Contact us to discuss your specific needs and available customization options.
The CycleLift weighs approximately 350 lbs and sits on your shop floor without requiring anchoring or permanent installation. Its compact footprint fits well in dedicated motorcycle service bays and can be repositioned as your shop layout evolves.
