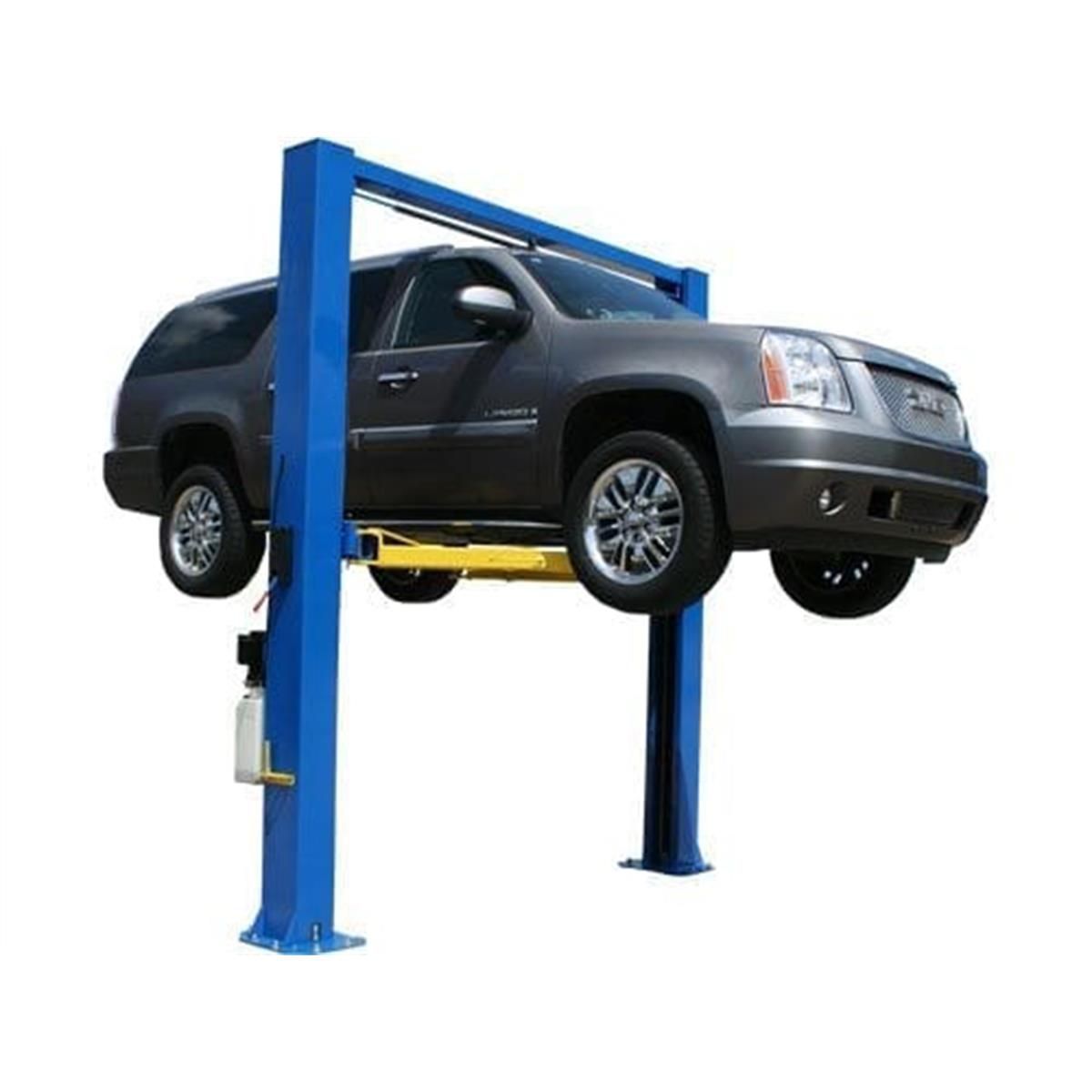

Atlas OH-10X 10,000 lbs 2-Post Overhead Lift

SKU: ATEATTD-OHX10000X-FPD

Ships from manufacturer

10,000 lbs Capacity, 76.375" - 85.375" Adjustable Rise, 151.75" Overall Height, Direct-Drive, 3HP Motor, Asymmetric Arm Design

Part #: ATEATTD-OHX10000X-FPD

MFR #: ATEATTD-OHX10000X-FPD

Premium Direct-Drive 2-Post Overhead Lift

The Atlas OH-10X represents the pinnacle of overhead lift technology, offering shops the highest capacity and most advanced features in this product line. At Panther Lift, we recognize that premium shops serving diverse vehicle types need equipment that delivers superior performance and flexibility. The OH-10X provides 10,000 lbs of total capacity (5,000 lbs per arm), a direct-drive overhead mechanism rather than chain-driven, and extensive height adjustability from 76.375 to 85.375 inches. This premium positioning makes the OH-10X ideal for high-end repair facilities, dealerships, and shops specializing in larger vehicles and trucks.

Direct-Drive Technology and Asymmetric Design

Unlike traditional chain-driven systems, the OH-10X employs direct-drive overhead technology, delivering more responsive control and reduced maintenance requirements. The asymmetric arm design provides specialized reach configurations: front arms reach from 28 to 50.67 inches while rear arms extend from 37 to 52.875 inches. This asymmetric approach optimizes positioning for different vehicle types without requiring repositioning between service tasks. The 3HP motor operates on 208-230V, 60Hz single-phase service and achieves approximately 60-second rise time. An overall height of 151.75 inches requires approximately 158 inches of ceiling height, which is the most demanding of the three models but delivers maximum working clearance underneath the raised vehicle.

Professional Installation and Safety Features

Panther Lift recommends professional installation for the premium OH-10X to ensure proper direct-drive mechanism calibration and electrical integration. The lift requires a minimum 4 inches of concrete with 3000 PSI rating and proper structural support due to its increased capacity and height. An overhead shutoff mechanism is positioned approximately 145 inches from the floor, providing convenient emergency stop capability. The single-point lock release maintains mechanical safety protection while simplifying technician control. These features work together to create a premium, reliable lifting solution for demanding shop environments.

Premium Capacity and Capability

The 10,000 lb capacity and extended height range make the OH-10X suitable for service work on larger vehicles, sport utility vehicles, light trucks, and commercial vehicles. The minimum pad height of 4.5 inches accommodates lower-slung vehicles while the extended rise height provides exceptional working clearance. Available in Blue, Red, and Black finishes, the OH-10X delivers premium aesthetics that reflect the quality of shops that choose this advanced system. At Panther Lift, we back the OH-10X with our commitment to quality service and support.

Features & Benefits

Direct-Drive Overhead Technology

Advanced direct-drive mechanism eliminates chain-dependent operation, delivering responsive control and reduced maintenance compared to traditional chain-driven systems.

  • Direct-drive vs. chain-driven
  • Responsive motion control
  • Lower maintenance requirements

Premium 10,000 lb Capacity

Class-leading 10,000 lbs total capacity (5,000 per arm) accommodates larger vehicles, SUVs, trucks, and commercial vehicles that exceed standard lift capacity.

  • 10,000 lb total capacity
  • 5,000 per arm
  • Handles larger vehicle types

Extended Height Adjustability

Rise height adjusts from 76.375 to 85.375 inches, providing exceptional range for vehicles with varying suspension and ride heights, plus maximum working clearance underneath.

  • 76.375" to 85.375" range
  • Maximum working clearance
  • Accommodates diverse vehicles

Asymmetric Arm Positioning

Specialized front and rear arm reach (front: 28" to 50.67", rear: 37" to 52.875") optimizes positioning for different vehicle configurations without repositioning between tasks.

  • Front: 28" to 50.67" reach
  • Rear: 37" to 52.875" reach
  • Optimized vehicle positioning

3HP Premium Motor

Powerful 3HP motor rated for 208-230V single-phase service provides smooth, confident lifting power for frequent and demanding service operations.

  • 3HP motor standard
  • 60-second rise time
  • Smooth operation

Premium Finish Options

Industrial-grade finishes available in Blue, Red, and Black provide premium appearance reflecting the quality and capability of the OH-10X system.

  • Blue finish
  • Red finish
  • Black finish

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 1,719 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Frequently Asked Questions

The OH-10X has a total weight capacity of 10,000 lbs (5,000 lbs per arm). This premium capacity accommodates larger vehicles including SUVs, light trucks, and commercial vehicles. At Panther Lift, we recommend verifying vehicle weight specifications before service operations.
The OH-10X requires approximately 158 inches of ceiling height (13 feet 2 inches). The lift's overall height is 151.75 inches, and this additional clearance ensures safe operation and adequate space for technicians to work efficiently on taller vehicles.
Direct-drive mechanisms provide more responsive control and require less maintenance than chain-driven systems. The OH-10X's direct-drive technology delivers smoother motion and reduced long-term wear on moving components, making it ideal for high-volume operations and shops prioritizing reliability.
The lift requires a minimum of 4 inches of concrete with a PSI rating of 3,000 or higher. Due to its premium capacity and height, proper structural support is critical. Panther Lift recommends professional installation to verify your floor meets these specifications.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles all mounting, electrical connections, and safety system verification to ensure your lift operates safely and reliably. Contact us for installation availability in your area and pricing details.
The OH-10X achieves approximately 60 seconds of rise time from lowest to highest position. Despite its premium capacity, the direct-drive mechanism maintains responsive lift speed suitable for busy shop operations.
The asymmetric design means the front and rear arms have different reach capabilities. Front arms extend from 28 to 50.67 inches while rear arms reach from 37 to 52.875 inches. This specialization optimizes positioning for different vehicle types and reduces repositioning time between service tasks.
Yes. The 10,000 lb capacity and extended 76.375" to 85.375" height range make the OH-10X ideal for SUVs, light trucks, and larger vehicles. The minimum pad height of 4.5 inches accommodates lower vehicles while the maximum height provides exceptional working clearance.
The direct-drive mechanism requires regular inspection and lubrication according to manufacturer specifications. At Panther Lift, we recommend consulting your manual for detailed maintenance schedules. Professional servicing is available upon request. The direct-drive design typically requires less maintenance than traditional chain-driven systems.
No, the OH-10X is rated for indoor use only. Outdoor exposure to weather, temperature extremes, and moisture can damage the electrical motor, direct-drive mechanism components, and safety systems. This lift must be installed and operated in a covered facility.
