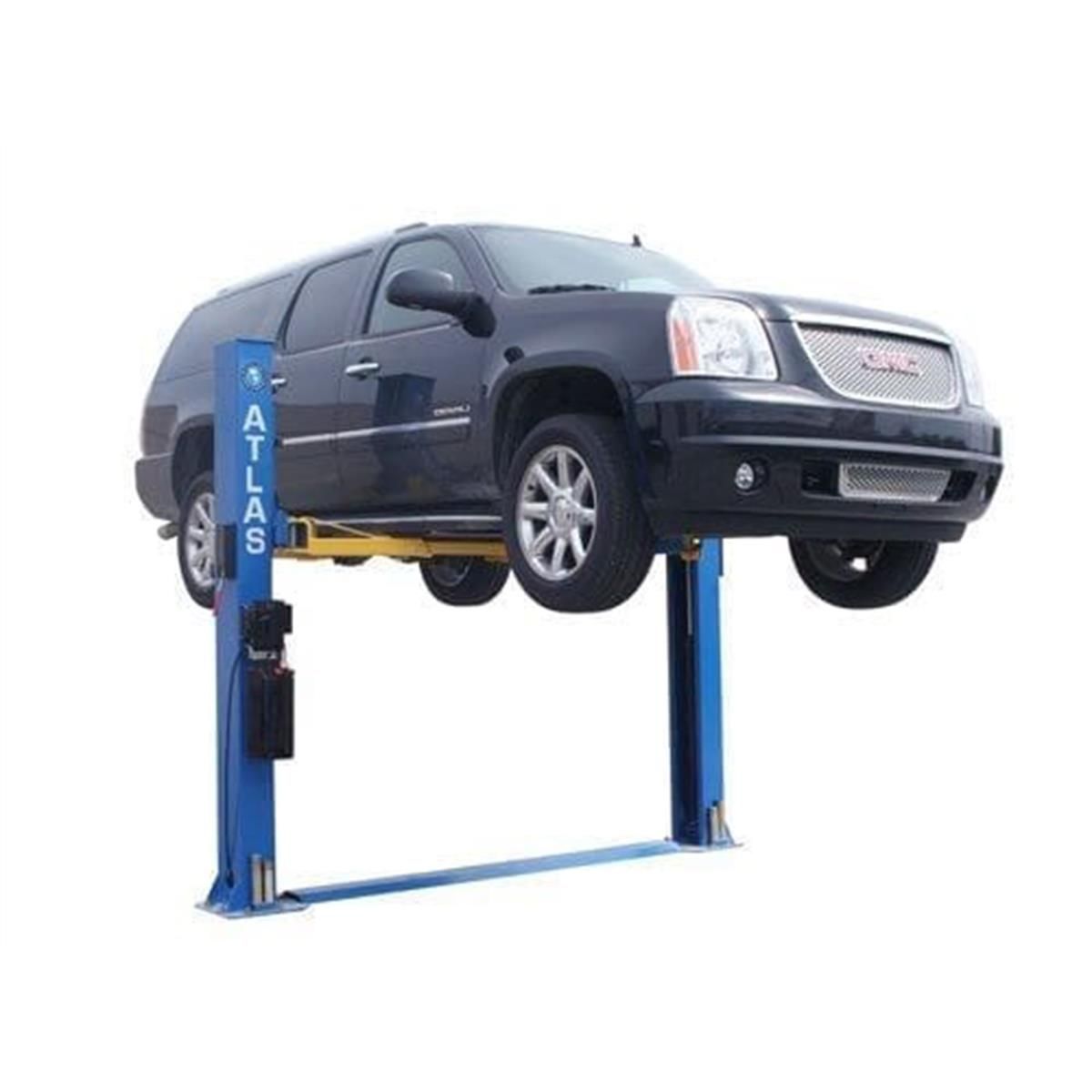

Atlas BP8000 8,000 lb ALI Certified Baseplate 2-Post Lift

SKU: ATEATTD-BP8000-FPD

Ships from manufacturer

The Atlas BP8000 delivers 8,000 lbs of ALI-certified lifting capacity in a versatile baseplate-mounted 2-post design. Featuring asymmetric and symmetric arm configurations, ALLY hydraulic power unit, and a 78-inch rise height, this lift handles everything from compact cars to light trucks with professional-grade reliability.

Part #: ATEATTD-BP8000-FPD

MFR #: ATEATTD-BP8000-FPD

Professional Baseplate 2-Post Lifting for Every Shop

The Atlas BP8000 brings professional-grade lifting to shops of all sizes with its 8,000 lb ALI-certified baseplate design. Unlike overhead-mounted lifts that require specific ceiling structures, the BP8000's baseplate installation anchors directly to your concrete floor, making it ideal for shops with open ceilings, low clearances, or structures that cannot support overhead mounting. The result is a faster, more flexible installation process that gets your lift operational with minimal structural requirements.

Versatile Arm Configuration for Maximum Coverage

One of the BP8000's standout advantages is its dual arm configuration capability. The lift operates in both asymmetric and symmetric positions, giving technicians the flexibility to service a wide range of vehicles. Asymmetric positioning allows the vehicle to sit slightly off-center, providing maximum door-opening clearance for interior work. Symmetric positioning centers the load evenly between the columns, which is ideal for trucks and heavier vehicles that benefit from balanced weight distribution.

ALLY Hydraulic Power System

At the heart of the BP8000 is the ALLY hydraulic power unit, a compact and efficient system that delivers smooth, consistent lifting performance. The 2HP motor operating on standard 220V single-phase power drives dual hydraulic cylinders through a chain-over-cylinder design that equalizes force across both columns. This configuration ensures the vehicle rises evenly regardless of weight distribution, preventing the tilting and instability that can occur with lesser lift designs. The system achieves a full 78-inch rise in approximately 45 seconds.

Built to Professional Standards

The BP8000 carries full ALI/ETL certification, meaning it has been independently tested and verified to meet the rigorous standards set by the Automotive Lift Institute. The heavy-duty steel column construction provides a rigid framework that resists flexing under load, while the integrated lock ladder system offers multiple secure parking positions throughout the lift's travel range. Stackable foot pad adapters are included to accommodate varying vehicle pickup points and rocker panel heights.

Features & Benefits

ALI/ETL Certified

Independently tested and certified to meet Automotive Lift Institute standards for safe commercial and professional use.

  • Full ALI/ETL certification
  • Meets ANSI/ALI ALCTV standard
  • Rated for professional shop environments
  • Third-party verified safety compliance

78-Inch Rise Height

Generous lift height provides comfortable standing-height access for undercarriage work on most vehicles.

  • 78" maximum rise height
  • Multiple lock positions throughout travel
  • Stackable adapter pads included
  • Comfortable working height for technicians

Asymmetric & Symmetric Arms

Dual arm configuration capability handles both offset door-clearance positioning and centered heavy-vehicle lifting.

  • Asymmetric mode for door clearance
  • Symmetric mode for balanced lifting
  • 3-stage front arms
  • 3-stage rear arms

ALLY Hydraulic Power Unit

Compact and efficient hydraulic system delivers smooth, consistent performance with a 45-second rise time.

  • 2HP electric motor
  • 220V single-phase operation
  • Chain-over-cylinder equalization
  • 45-second full rise time

Baseplate Floor Mount

Direct floor-mount installation eliminates the need for overhead structural support, simplifying setup in any shop.

  • Anchors directly to concrete floor
  • No overhead structure required
  • 4.5" minimum concrete depth
  • 3,000 PSI minimum concrete strength

Integrated Safety Systems

Multi-point lock ladder and automatic safety mechanisms ensure secure vehicle parking at any height.

  • Automatic arm lock restraints
  • Multi-position lock ladder
  • Slack cable detection
  • Rubber door guard bumpers

Specifications

ModelATEATTD-BP8000-FPDATEATTD-BP8000
Price
$3,499.00
$3,199.00
Shipping Weight~1,950 lbs~1,950 lbs
Amps20A20A
Lifting Capacity8,000 lb lbs8,000 lb lbs
Lift ConfigurationSymmetricSymmetric
Rise Height78" "78" "
Overall Height141.75 in141.75 in
Overall Width137.5137.5
Drive-Thru Clearance104"104"
Speed of Rise~45s sec~45s sec
Inside Columns115.5"115.5"
Motor2HP HP2HP HP
Voltage220V Single Phase220V Single Phase
ALI/ETL CertifiedALI CertifiedALI Certified
Colors AvailableBlueBlue

Before You Buy

ALI/ETL Certified

The BP8000 has been independently tested and certified by the Automotive Lift Institute to meet ANSI/ALI ALCTV safety standards for professional automotive lifting equipment.

Professional Grade Construction

Heavy-duty steel columns and reinforced baseplate assembly deliver the structural rigidity demanded by busy professional shops handling diverse vehicle types daily.

Free Freight Shipping

This lift ships freight-free to commercial addresses within the continental United States. Residential deliveries may require additional arrangements.

Unloading Requirements

A forklift or loading dock is required to unload this lift from the delivery truck. The shipping weight is approximately 1,950 lbs. Please ensure you have appropriate equipment available on delivery day.

Concrete Requirements

Minimum 4.5 inches of reinforced concrete rated at 3,000 PSI or greater is required for proper anchor holding strength and safe operation.

ALLY Hydraulic Power

The integrated ALLY hydraulic power unit provides reliable, smooth lifting performance with a compact footprint that keeps your shop floor clear.

Frequently Asked Questions

The BP8000 requires a minimum concrete depth of 4.5 inches with a minimum compressive strength of 3,000 PSI. The concrete must be in good condition without cracks or deterioration in the anchor zones. Steel-reinforced concrete is recommended for optimal holding strength.
Yes. The BP8000 is designed for both asymmetric and symmetric arm configurations. Asymmetric positioning offsets the vehicle slightly for better door clearance, while symmetric positioning centers the vehicle between columns for balanced lifting of heavier vehicles like trucks.
The BP8000 has an overall height of approximately 141.75 inches (11 feet 9.75 inches). You will need at least 12 feet of ceiling clearance to accommodate the lift structure plus adequate overhead space for operation and vehicle clearance.
The BP8000 requires 220V single-phase power at 60Hz. A dedicated 20-amp circuit is recommended. The ALLY hydraulic power unit connects to this standard shop power supply to drive the 2HP motor.
Yes. Panther Lift partners with a nationwide network of certified lift installers who can handle the complete installation process, from concrete assessment through final safety inspection. Contact our team after purchase to schedule professional installation in your area.
The BP8000 provides 104 inches of drive-through clearance between the column bases, with 115.5 inches of inside column width. This accommodates most standard passenger vehicles, SUVs, and light trucks.
The BP8000 achieves full rise in approximately 45 seconds under normal loading conditions. The ALLY hydraulic power unit delivers smooth, consistent speed throughout the entire lifting cycle.
Regular maintenance includes periodic inspection of hydraulic fluid levels, lubrication of moving parts and pivot points, inspection of lift cables and chains for wear, and verification of safety lock engagement. Atlas recommends a maintenance check at least every 3 months for commercial use or annually for lighter-use shops. Always follow the maintenance schedule outlined in the owner's manual.
Yes. With its 8,000 lb capacity, the BP8000 handles most standard trucks and SUVs. The symmetric arm configuration is particularly well-suited for heavier vehicles, while the 137.5-inch overall width provides ample clearance for wider truck bodies.
The Atlas BP8000 includes a comprehensive manufacturer warranty covering structural components and the hydraulic power system. Contact Panther Lift for complete warranty terms and coverage details specific to your purchase.
