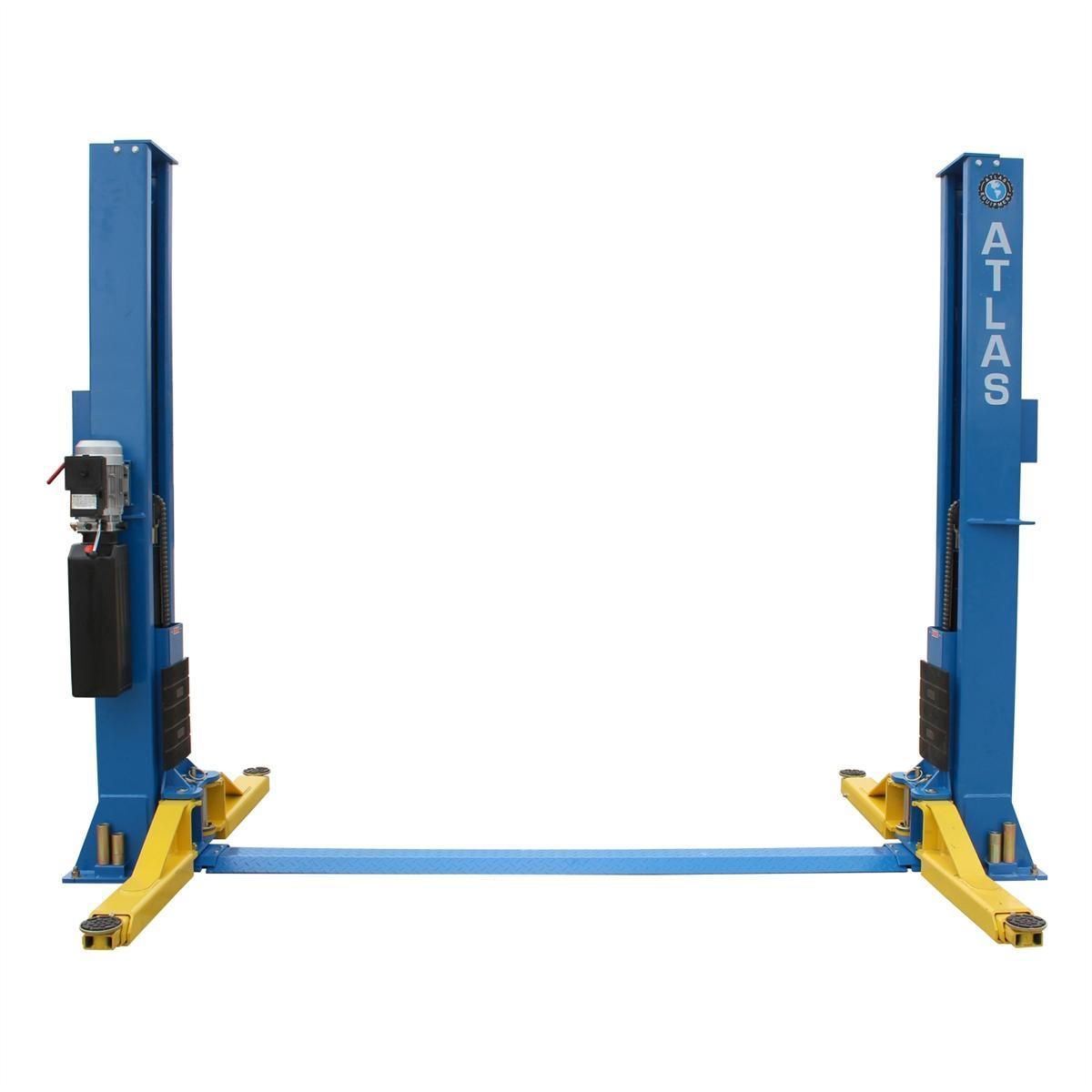

Atlas BP12000X 12,000 lb ALI Certified Heavy Duty Baseplate 2-Post Lift

Heavy-Duty Baseplate Lifting for Commercial Shops

The Atlas BP12000X sits at the top of the Atlas baseplate 2-post lineup, delivering a massive 12,000 lbs of ALI-certified lifting capacity. This is a lift built for high-volume commercial shops, fleet maintenance facilities, and dealerships that need to service the full spectrum of vehicles, from standard sedans all the way up to heavy-duty pickup trucks, commercial vans, and fleet vehicles that push the boundaries of lighter-duty lifts. The baseplate design anchors directly to your shop floor, providing a rock-solid foundation without requiring any overhead structural support.

3HP Motor for Heavy-Duty Performance

Where lighter-duty lifts rely on 2HP motors, the BP12000X steps up to a full 3HP motor to handle the demands of consistently lifting heavier vehicles. This additional power ensures that even fully loaded work trucks and commercial vans rise smoothly and consistently to the full 78-inch rise height. The ALLY hydraulic power unit channels this motor power through the proven chain-over-cylinder equalization system, keeping both columns rising in perfect synchronization regardless of how the vehicle's weight is distributed across the arms.

Double-S Column Construction for Maximum Rigidity

The BP12000X features the same reinforced Double-S column design found on the BP10000X, delivering superior structural rigidity compared to standard single-wall column construction. At 12,000 lbs of capacity, column strength is not just a feature but a necessity. The Double-S profile creates a nested channel structure that resists bending forces from all directions, minimizing column flex even when handling unevenly loaded vehicles. This rigidity translates to smoother operation, more precise arm positioning, and longer service life.

Extra-Wide Design for Every Vehicle

The BP12000X matches the expanded dimensions of the BP10000X, providing 122 inches of inside column clearance and 112 inches of drive-through width. These generous dimensions accommodate the widest vehicles in your customer base, including dual-wheel trucks and full-size commercial vans. The 150-inch overall height provides the overhead clearance needed for tall vehicles during the lifting cycle, while the asymmetric and symmetric arm configurations give technicians full flexibility for any service task.
