ATEATTD-BP10000X-FPD

Atlas Automotive Equipment

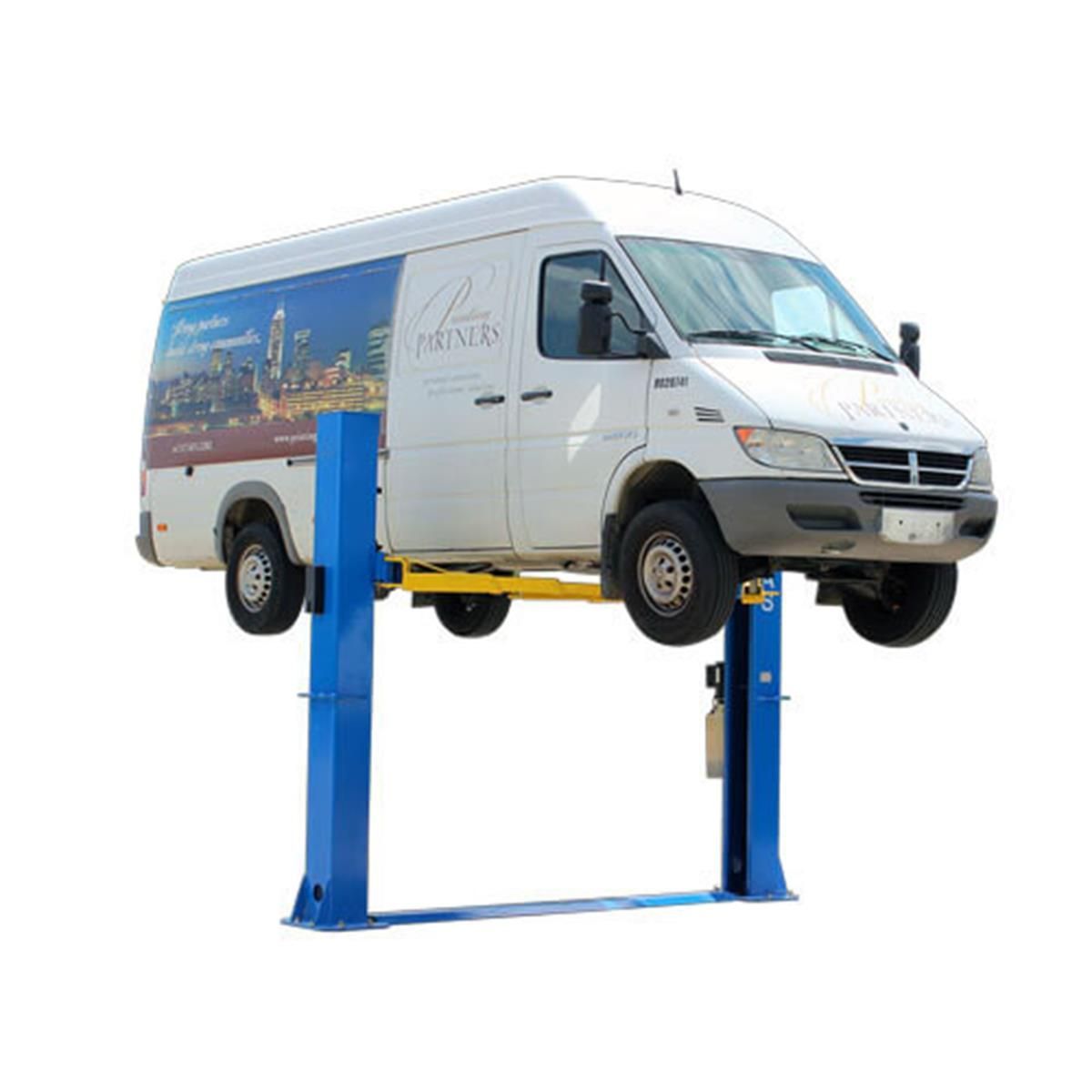

Atlas BP10000X 10,000 lb ALI Certified Baseplate 2-Post Lift

SKU: ATEATTD-BP10000X-FPD

Ships from manufacturer

The Atlas BP10000X delivers 10,000 lbs of ALI-certified lifting capacity in an extra-wide, extra-tall baseplate 2-post design. Featuring the reinforced Double-S column construction, asymmetric and symmetric arm configurations, and a 78-inch rise height, this lift handles full-size trucks and SUVs with room to spare.

Part #: ATEATTD-BP10000X-FPD

MFR #: ATEATTD-BP10000X-FPD

Extra-Wide, Extra-Tall Baseplate 2-Post Lifting

The Atlas BP10000X expands on the proven baseplate 2-post platform with extra width and height to accommodate larger vehicles. With 122 inches of inside column clearance and 112 inches of drive-through width, the BP10000X provides the space needed to service full-size trucks, SUVs, and commercial vans that simply do not fit on standard-width lifts. The extended 150-inch overall height means the columns provide greater overhead clearance for taller vehicles during the lifting cycle.

Double-S Column Engineering

The BP10000X features Atlas's Double-S column design, an engineering approach that significantly increases the structural rigidity of each column compared to traditional single-wall construction. The Double-S profile creates a nested channel that resists bending forces from multiple directions simultaneously, which is critical when lifting heavier, wider vehicles where load distribution can be uneven. This added column strength translates directly to reduced column flex, smoother operation, and greater long-term durability under repeated heavy use.

Versatile Arm Configuration for Any Vehicle

The BP10000X supports both asymmetric and symmetric arm positioning, giving technicians full flexibility to match the arm layout to the specific vehicle on the lift. Three-stage front and rear arms telescope to reach a wide range of factory-recommended pickup points, from compact cars all the way up to heavy-duty pickup trucks. The arm restraint system locks each arm securely in position during the lift cycle, preventing unintended rotation or drift that could compromise vehicle stability.

Built and Certified for Professional Use

Carrying full ALI/ETL certification, the BP10000X meets the highest industry standards for automotive lifting equipment. The 2HP motor and ALLY hydraulic power unit deliver reliable performance through a chain-over-cylinder equalization system that keeps both columns rising in perfect sync. The baseplate mounting design anchors directly to your shop floor, eliminating the need for overhead structural support while providing a rock-solid foundation for the lift's 10,000-pound capacity.

Features & Benefits

ALI/ETL Certified

Independently tested and certified to meet Automotive Lift Institute standards for safe professional use with 10,000 lb capacity.

  • Full ALI/ETL certification
  • Meets ANSI/ALI ALCTV standard
  • 10,000 lb rated capacity
  • Third-party verified safety compliance

Extra-Wide, Extra-Tall Design

Expanded column spacing and height accommodate full-size trucks, SUVs, and commercial vans with ease.

  • 150" overall height (12'6")
  • 147" overall width
  • 122" inside column clearance
  • 112" drive-through width

Double-S Column Construction

Reinforced Double-S column profile delivers superior rigidity and reduced flex under heavy loads.

  • Double-S nested channel design
  • Multi-directional bending resistance
  • Reduced column flex under load
  • Enhanced long-term durability

Asymmetric & Symmetric Arms

Dual arm configuration capability handles both offset door-clearance positioning and centered heavy-vehicle lifting.

  • Asymmetric mode for door clearance
  • Symmetric mode for balanced lifting
  • 3-stage telescoping front arms
  • 3-stage telescoping rear arms

ALLY Hydraulic Power Unit

Proven hydraulic system with chain-over-cylinder equalization delivers smooth, even lifting every time.

  • 2HP electric motor
  • 220V single-phase operation
  • Chain-over-cylinder equalization
  • Smooth consistent rise

Baseplate Floor Mount

Direct floor-mount design anchors securely to concrete without requiring overhead structural support.

  • Anchors directly to concrete floor
  • No overhead structure required
  • Minimum 4.5" concrete depth
  • 3,000 PSI minimum concrete strength

Specifications

ModelATEATTD-BP10000X-FPDATEATTD-BP10000X
Price
$4,299.00
$3,899.00
Amps20A20A
Shipping Weight~2,100 lbs~2,100 lbs
Lifting Capacity10,000 lb lbs10,000 lb lbs
Lift ConfigurationAsymmetricAsymmetric
Rise Height78" "78" "
Overall Height150 in150 in
Overall Width147147
Drive-Thru Clearance112"112"
Inside Columns122"122"
Motor2HP HP2HP HP
Voltage220V Single Phase220V Single Phase
ALI/ETL CertifiedALI CertifiedALI Certified
Colors AvailableBlueBlue

Before You Buy

ALI/ETL Certified

The BP10000X has been independently tested and certified by the Automotive Lift Institute to meet ANSI/ALI ALCTV safety standards for professional automotive lifting equipment.

Extra-Wide Design for Large Vehicles

With 122 inches of inside column clearance and 112 inches of drive-through width, the BP10000X accommodates full-size trucks, SUVs, and commercial vans that do not fit on standard-width lifts.

Free Freight Shipping

This lift ships freight-free to commercial addresses within the continental United States. Residential deliveries may require additional arrangements.

Unloading Requirements

A forklift or loading dock is required to unload this lift from the delivery truck. Please ensure you have appropriate equipment available on delivery day.

Concrete Requirements

Minimum 4.5 inches of reinforced concrete rated at 3,000 PSI or greater is required for proper anchor holding strength and safe operation.

Double-S Column Technology

Reinforced Double-S column design provides superior structural rigidity compared to standard single-wall columns, reducing flex under heavy loads.

Frequently Asked Questions

The BP10000X requires a minimum concrete depth of 4.5 inches with a minimum compressive strength of 3,000 PSI. The concrete must be in good condition without cracks or deterioration in the anchor zones. Steel-reinforced concrete is recommended for optimal holding strength.
The BP10000X provides 2,000 lbs of additional lifting capacity (10,000 vs 8,000), wider column spacing (122" inside vs 115.5"), wider drive-through clearance (112" vs 104"), and taller overall height (150" vs 141.75"). It also features the reinforced Double-S column design for greater rigidity under heavier loads.
The BP10000X has an overall height of 150 inches (12 feet 6 inches). You will need at least 13 feet of ceiling clearance to accommodate the lift structure plus adequate overhead space for operation and vehicle clearance at full rise.
The BP10000X requires 220V single-phase power at 60Hz. A dedicated circuit is required to power the 2HP ALLY hydraulic motor. Standard shop electrical service typically supports this requirement.
Yes. Panther Lift partners with a nationwide network of certified lift installers who can handle the complete installation process, from concrete assessment through final safety inspection. Contact our team after purchase to schedule professional installation in your area.
Absolutely. The BP10000X was specifically designed with extra width and height to accommodate full-size trucks and SUVs. The 10,000 lb capacity, 122-inch inside column clearance, and 112-inch drive-through width provide ample room and lifting power for even the largest consumer trucks.
The BP10000X provides 78 inches of rise height, which is the same proven rise height found across the Atlas baseplate 2-post lift line. This provides comfortable standing-height access for undercarriage work on most vehicles.
Regular maintenance includes periodic inspection of hydraulic fluid levels, lubrication of moving parts and pivot points, inspection of lift cables and chains for wear, and verification of safety lock engagement. Atlas recommends a maintenance check at least every 3 months for commercial use or annually for lighter-use shops. Always follow the maintenance schedule outlined in the owner's manual.
The Atlas BP10000X includes a comprehensive manufacturer warranty covering structural components and the hydraulic power system. Contact Panther Lift for complete warranty terms and coverage details specific to your purchase.
The BP10000X provides 112 inches of drive-through clearance between the column bases, with 122 inches of inside column width. This extra-wide design easily accommodates full-size trucks, SUVs, and commercial vans.
