ATEATTD-9OHSC-SS-FPD

Atlas Automotive Equipment

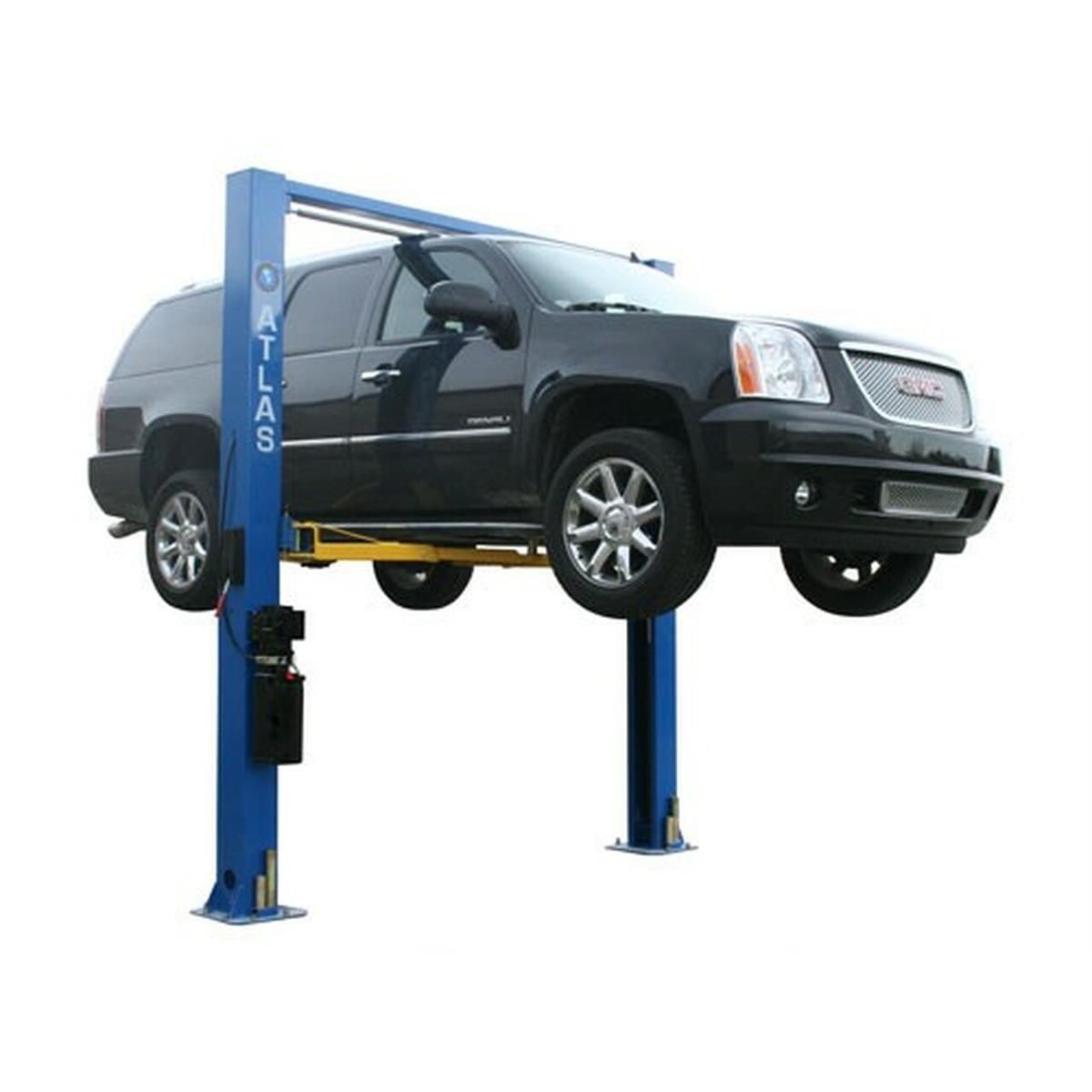

Atlas 9OHSC 9,000 lbs 2-Post Overhead Lift

SKU: ATEATTD-9OHSC-SS-FPD

Ships from manufacturer

9,000 lbs Capacity, 71.5" - 75.5" Adjustable Rise, 141.75" Overall Height, Chain-Driven, 2HP or 3HP Motor, 45-Second Rise Time

Part #: ATEATTD-9OHSC-SS-FPD

MFR #: ATEATTD-9OHSC-SS-FPD

Advanced Adjustable 2-Post Overhead Lift

The Atlas 9OHSC offers shops a more sophisticated overhead lifting solution with adjustable rise height capabilities. At Panther Lift, we understand that modern shops serve increasingly diverse vehicles with varying suspension designs and ride heights. This lift accommodates those differences with an adjustable rise range from 71.5 to 75.5 inches, providing flexibility that the 9KOHX cannot match. With a total capacity of 9,000 lbs (4,500 lbs per arm), the 9OHSC maintains the same weight capability while adding modern convenience features and faster operation.

Symmetric Arm Design and Performance

A key distinction of the 9OHSC is its symmetric arm design, offering balanced reach on both the front and rear of the vehicle. Front arm reach extends from 32 to 50 inches, while rear arm reach spans from 27 to 45.5 inches. The chain-driven mechanism operates at approximately 45 seconds rise time—15 seconds faster than the 9KOHX—significantly improving throughput in busy shops. The overall height of 141.75 inches requires a minimum ceiling height of approximately 148 inches. With an overall width of 133.5 inches and column spacing of 109.5 inches, the 9OHSC fits efficiently into standard shop configurations without sacrificing usable floor space.

Installation and Electrical Requirements

The 9OHSC is available with either a 2HP or 3HP motor, both rated for 208-230V, 60Hz, single-phase service. Panther Lift recommends professional installation to ensure proper electrical connection, structural anchoring, and verification of all safety systems. The lift requires a minimum 4 inches of concrete with a 3000 PSI rating. An overhead shutoff mechanism is positioned approximately 135 inches from the floor. The single-point lock release provides convenient control while maintaining full mechanical safety protection during vehicle service.

Superior Safety and Operational Control

The 9OHSC features a single-point lock release mechanism that simplifies operation while delivering the same mechanical safety protection as traditional dual-point systems. The overhead shutoff capability provides emergency stop functionality that is easily accessible to technicians. The symmetric arm design reduces the need for repositioning vehicles between different service operations, increasing efficiency and reducing vehicle handling time. Available in Blue and Red finishes, the 9OHSC represents a balance between proven overhead lift technology and modern shop workflow optimization.

Features & Benefits

Dual Motor Options

Choose between 2HP or 3HP motors rated for 208-230V single-phase service. The 3HP option accelerates rise time, improving shop throughput for high-volume operations.

  • 2HP or 3HP options available
  • 45-second rise time
  • Single-phase 208-230V service

Adjustable Rise Height

Rise height adjusts from 71.5 to 75.5 inches, accommodating vehicles with different suspension heights and ride positions for optimal working access.

  • 71.5" to 75.5" adjustment range
  • Suits various vehicle types
  • Precision height control

Symmetric Arm Reach

Balanced front and rear arm design provides consistent reach for both vehicle positioning and service access, reducing repositioning requirements.

  • Front: 32" to 50" reach
  • Rear: 27" to 45.5" reach
  • Reduced vehicle handling time

Single-Point Lock Release

Streamlined safety release mechanism maintains full mechanical protection while simplifying operator control and reducing learning curve.

  • Convenient single-point control
  • Full mechanical safety backup
  • Fail-safe design

Compact Space-Efficient Footprint

Overhead design with 133.5-inch overall width and 109.5-inch column spacing maximizes shop floor availability while maintaining operational access.

  • 141.75" overall height
  • 133.5" overall width
  • Preserves usable floor space

Modern Color Selection

Professional industrial finishes available in Blue and Red, allowing coordination with contemporary shop environments and brand identities.

  • Blue finish
  • Red finish
  • Industrial-grade durability

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 1,384 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Frequently Asked Questions

The 9OHSC has a total weight capacity of 9,000 lbs (4,500 lbs per arm), matching most standard automotive service requirements. At Panther Lift, we recommend verifying your specific vehicle weight against the lift's capacity before service operations.
Both motors provide the same lifting capacity, but the 3HP version delivers a faster rise time of approximately 45 seconds, compared to slightly longer rise times with the 2HP option. Choose 3HP if your shop prioritizes maximum throughput and efficiency for high-volume operations.
You must have a minimum ceiling height of approximately 148 inches (12 feet 4 inches). The lift's overall height is 141.75 inches, and the additional clearance ensures safe operation and adequate space for technicians to work comfortably.
The lift requires a minimum of 4 inches of concrete with a PSI rating of 3,000 or higher. Before installation, verify your floor meets these specifications. Panther Lift recommends professional installation to confirm proper anchoring.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles all mounting, electrical connections, and safety system verification to ensure your lift operates safely and reliably. Contact us for installation availability in your area and pricing details.
The 9OHSC achieves a rise time of approximately 45 seconds from lowest to highest position. This improved speed compared to many competitors increases shop efficiency, allowing technicians to serve more vehicles per day.
Symmetric arm reach (front: 32" to 50", rear: 27" to 45.5") provides balanced positioning on both ends of the vehicle. This reduces the need to reposition vehicles between different service tasks, saving time and improving workflow efficiency.
The single-point lock release is a streamlined safety control mechanism that activates all mechanical locks simultaneously. It maintains the same fail-safe protection as traditional systems while providing simpler, more intuitive operation for technicians.
Regular maintenance includes inspection of the single-point lock release mechanism, chain tension verification, and lubrication of moving parts per manufacturer specifications. At Panther Lift, we recommend consulting your manual for detailed maintenance schedules. Professional servicing is available upon request.
No, the 9OHSC is rated for indoor use only. Outdoor exposure to weather, temperature extremes, and moisture can damage the electrical motor, corrosion-sensitive components, and safety mechanisms. This lift must be installed and operated in a covered facility.
