Atlas 408SL 8,000 lb ALI Certified Hobbyist 4-Post Lift

SKU: ATEATTD-408SL-FPD

Ships from manufacturer

The Atlas 408SL is an 8,000 lb ALI-certified 4-post lift designed for hobbyist garages and light-commercial shops. Running on standard 110V household power with a 1.5HP motor, this lift offers professional-grade vehicle storage and service capability without requiring special electrical upgrades.

Part #: ATEATTD-408SL-FPD

MFR #: ATEATTD-408SL-FPD

Professional 4-Post Lifting on Household Power

The Atlas 408SL makes professional-grade 4-post lifting accessible to home garages and hobbyist shops by running on standard 110V household power. While most commercial lifts demand 220V circuits and dedicated electrical work, the 408SL plugs into the same outlets that power your other garage equipment. The compact 1.5HP motor delivers sufficient power to raise vehicles up to 8,000 lbs smoothly and consistently, making this an ideal solution for enthusiasts who want to store, display, or service their vehicles at home.

Drive-On Convenience for Any Skill Level

The 4-post runway design eliminates the arm positioning and pickup-point knowledge required by 2-post lifts. You simply drive the vehicle onto the runways, engage the safety locks, and raise the platform to your desired working height. This straightforward operation makes the 408SL accessible to home mechanics and enthusiasts who may not have professional training in lift operation. The built-in approach ramps provide a smooth, gradual incline for easy vehicle loading.

Dual-Purpose Vehicle Storage and Service

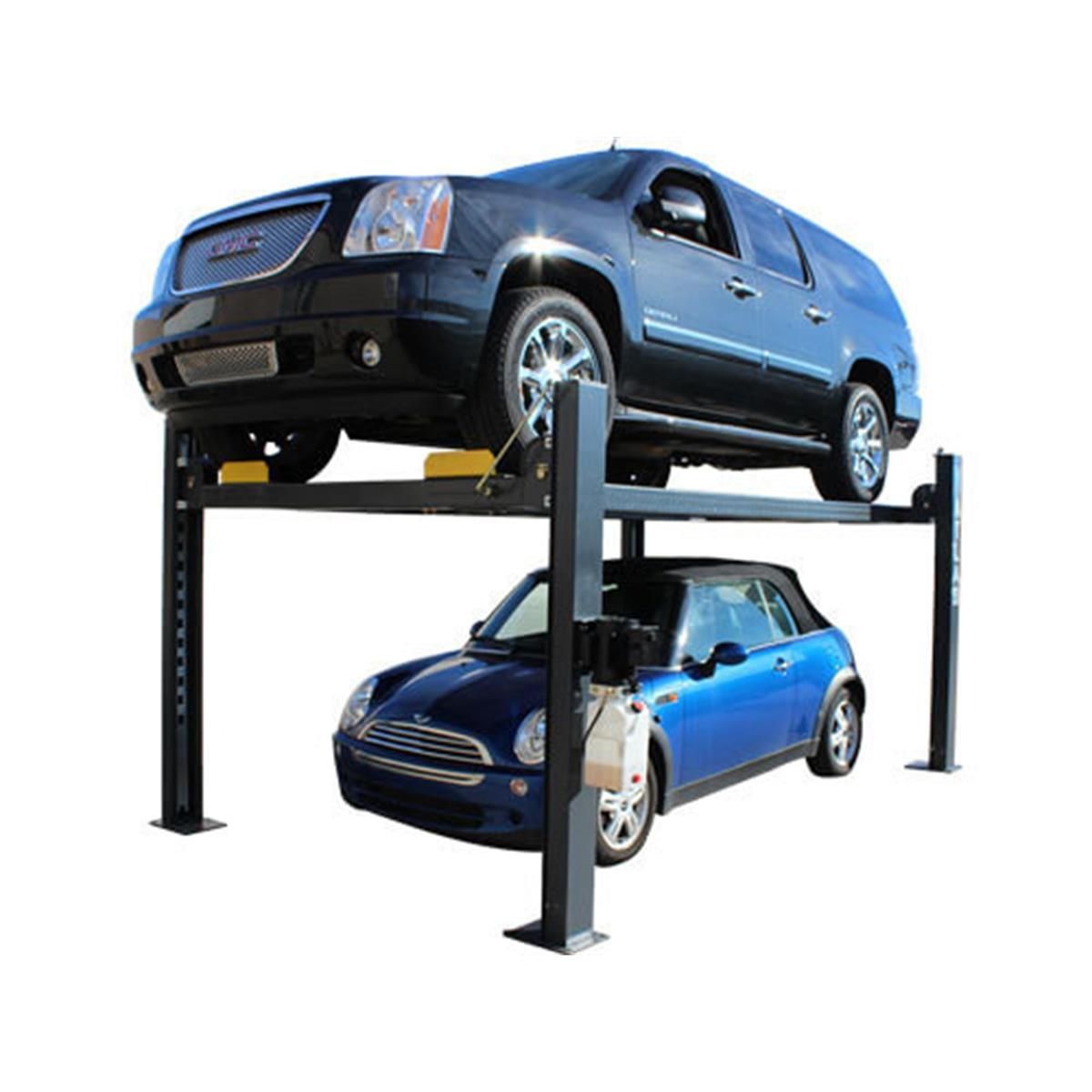

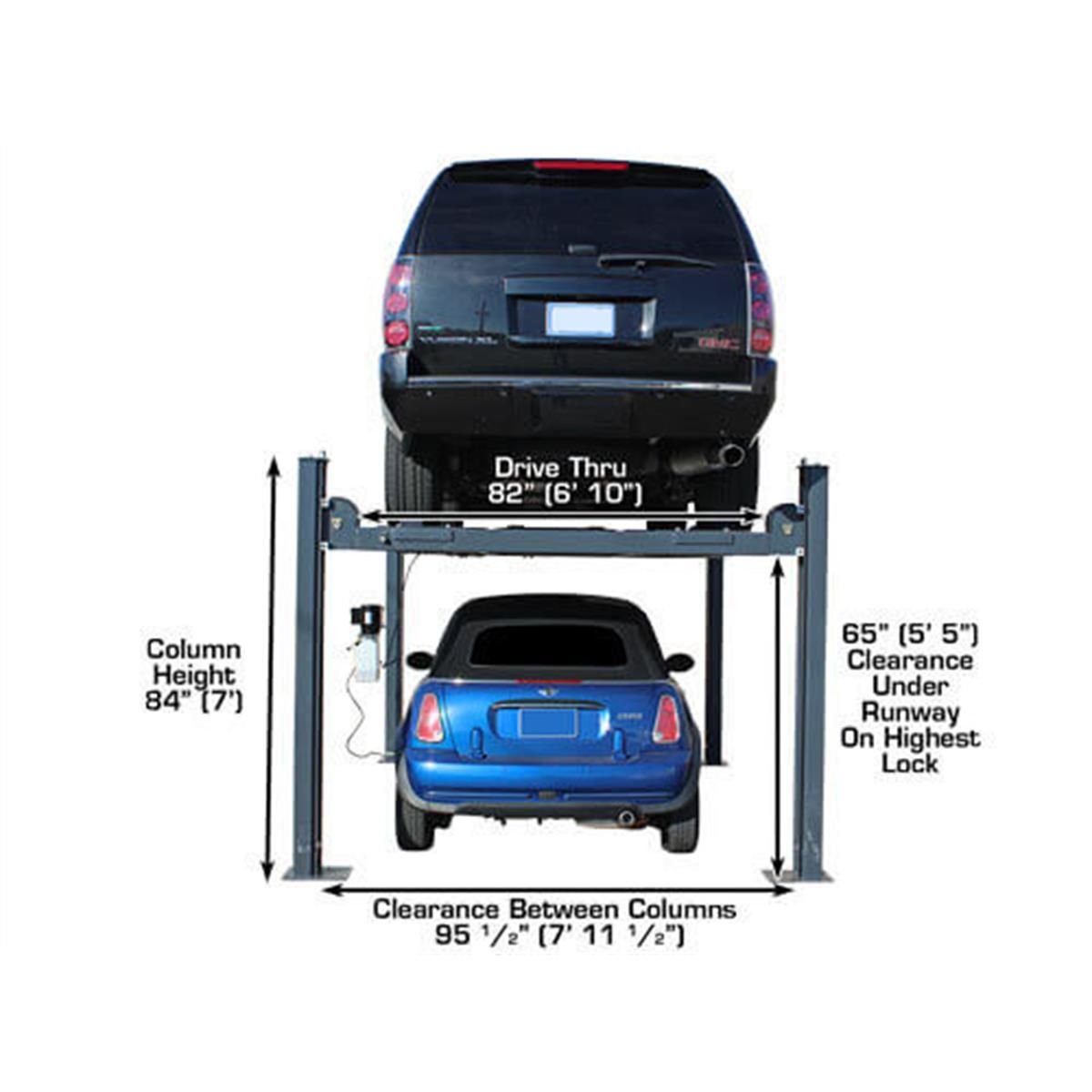

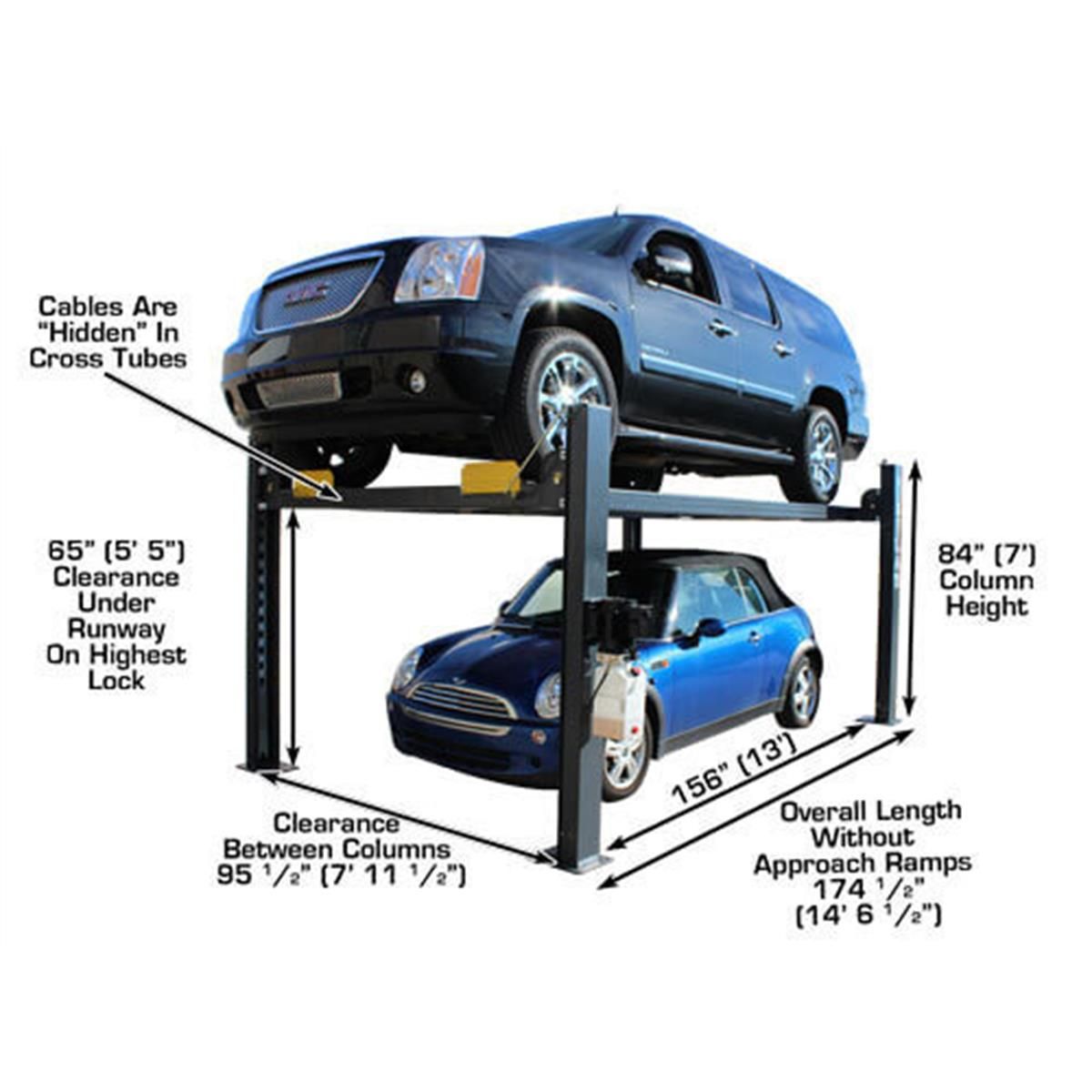

One of the greatest advantages of a 4-post lift is the ability to stack vehicles vertically. The 408SL lets you park one vehicle on the runways and store or work on a second vehicle underneath, effectively doubling your garage capacity. For collectors, enthusiasts, and anyone dealing with limited garage space, this vertical storage capability transforms a standard two-car garage into space for three or four vehicles. The lift also serves as a full-service platform for oil changes, brake work, exhaust repairs, and other undercarriage maintenance.

ALI-Certified Safety and Build Quality

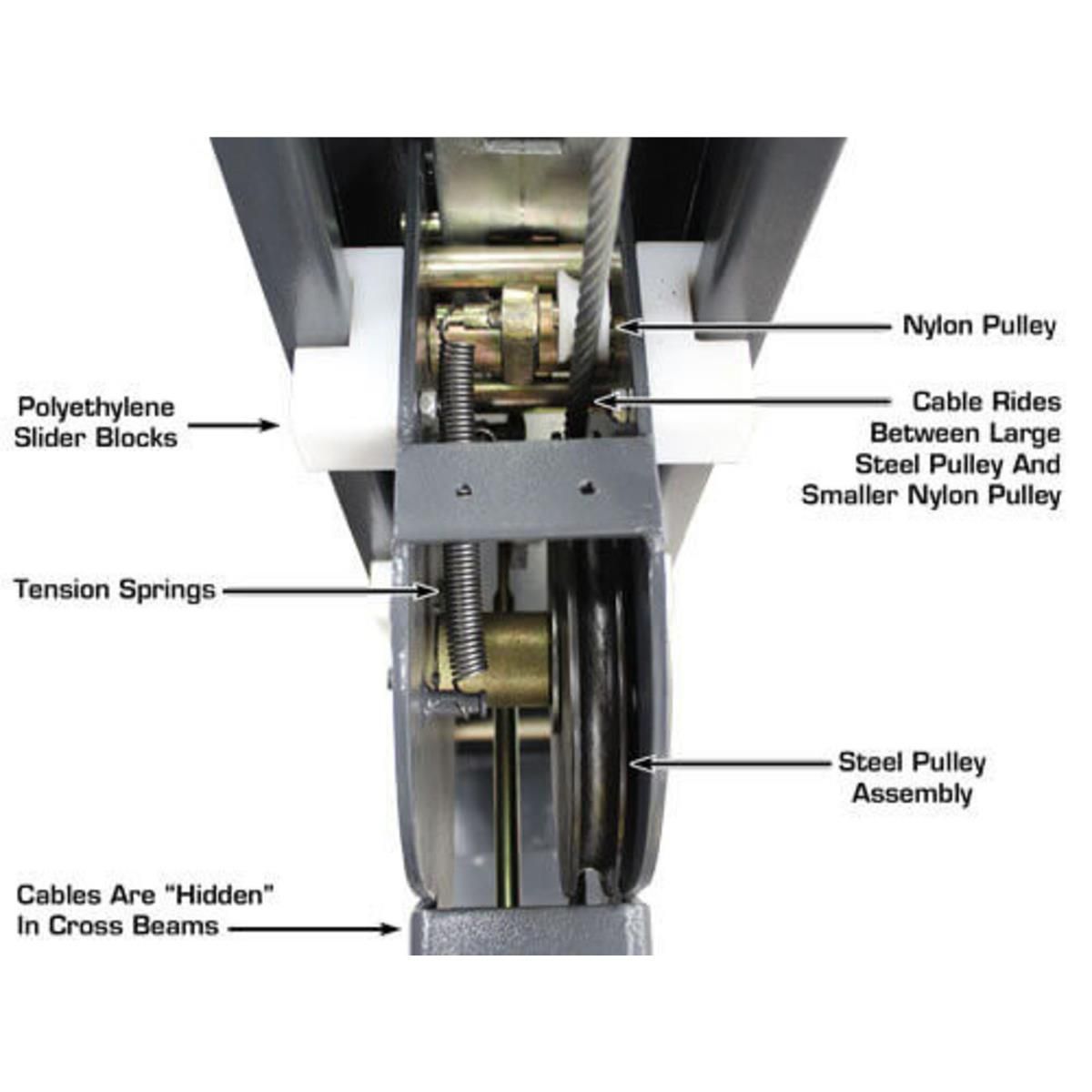

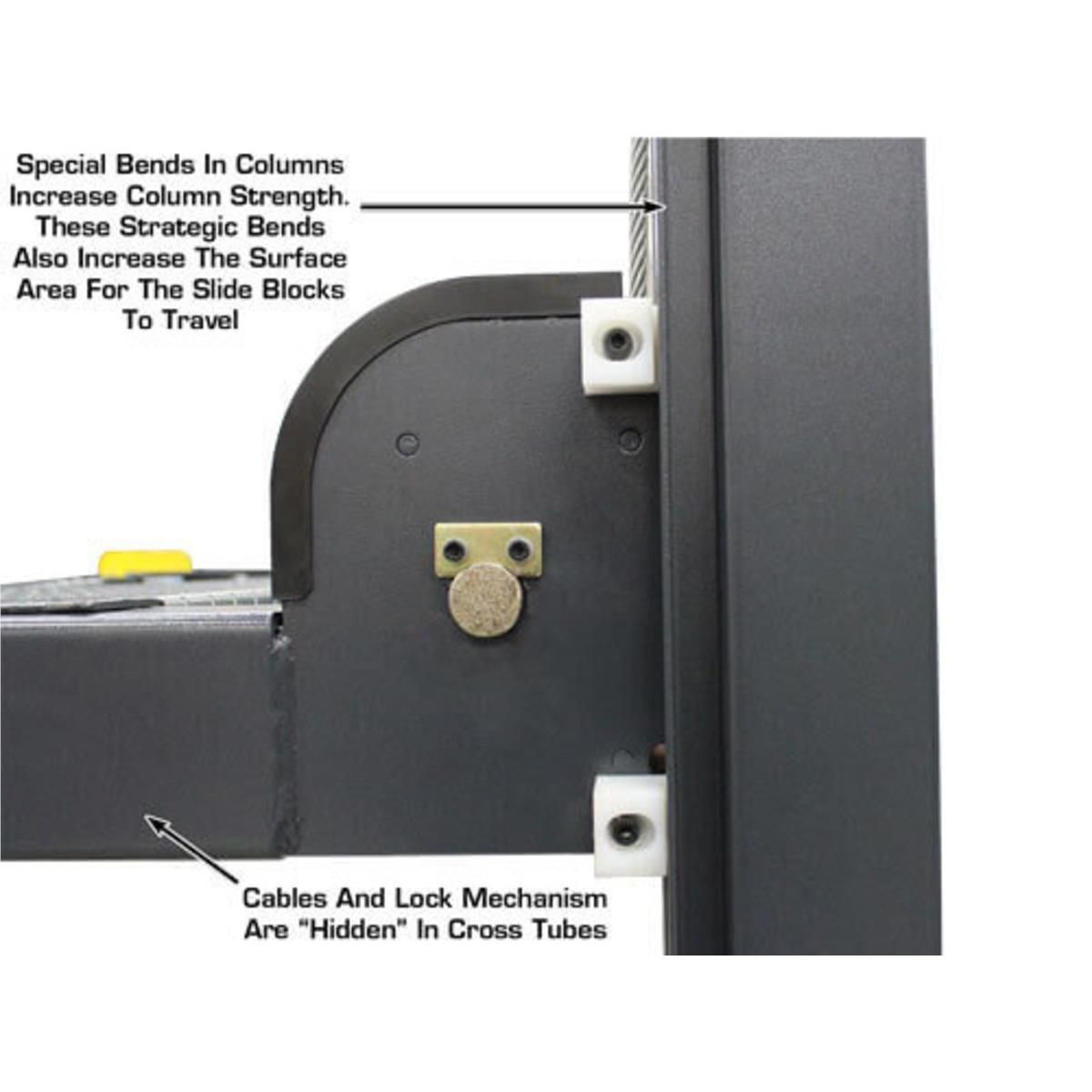

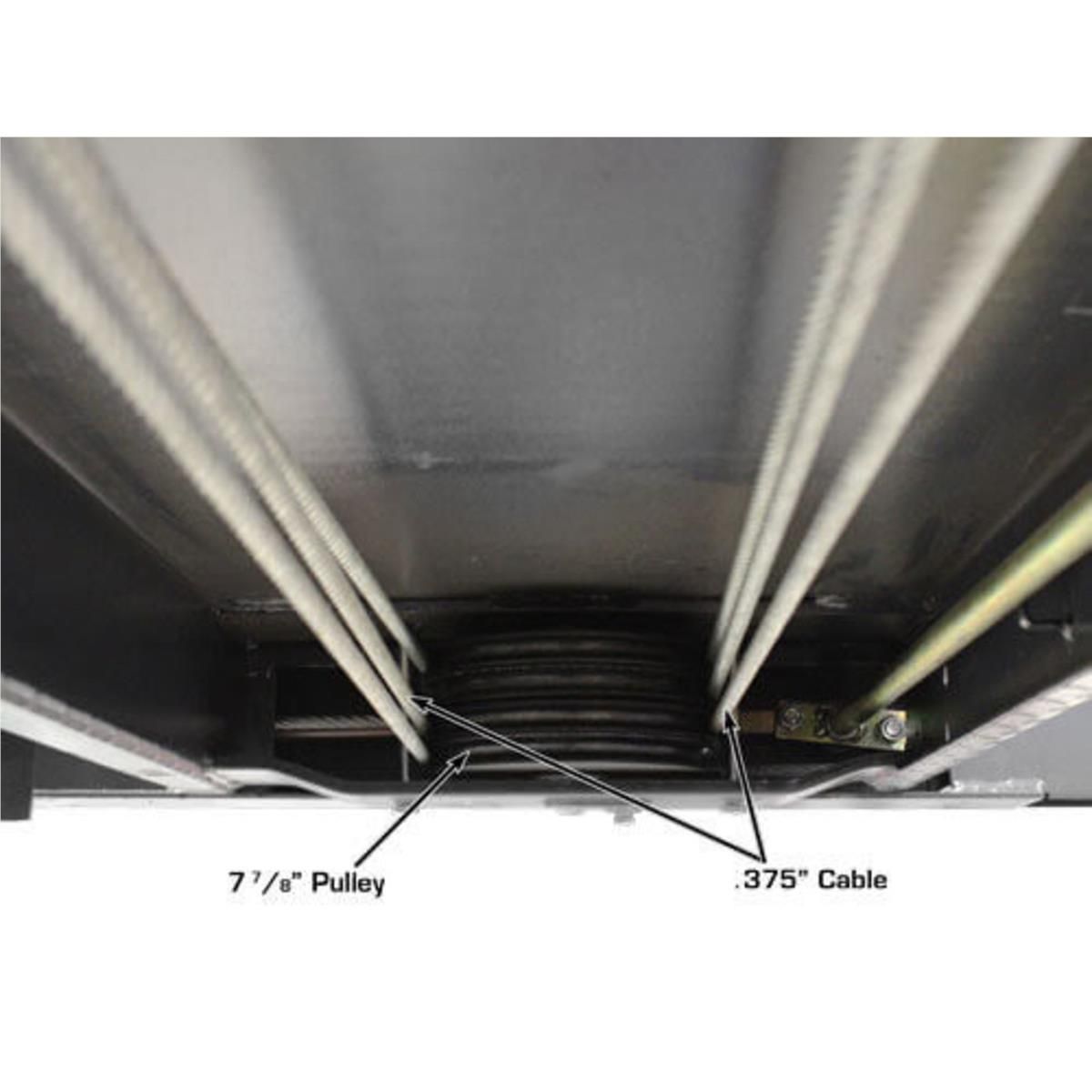

Despite its hobbyist positioning, the 408SL carries full ALI/ETL certification, meaning it has been independently tested and verified to meet the same rigorous safety standards as commercial shop lifts. The heavy-duty steel runway construction, multi-position lock ladder, and cable-and-chain equalization system ensure safe, stable operation at every height. Integrated wheel chocks and safety locks prevent vehicle movement on the runways during storage or service.

Features & Benefits

ALI/ETL Certified

Independently tested and certified to meet Automotive Lift Institute standards, delivering commercial-grade safety in a hobbyist-friendly package.

  • Full ALI/ETL certification
  • Meets ANSI/ALI ALCTV standard
  • 8,000 lb rated capacity
  • Third-party verified safety compliance

110V Household Power

Runs on standard 110V household outlets, eliminating the need for costly electrical upgrades in your home garage.

  • Standard 110V operation
  • No special wiring required

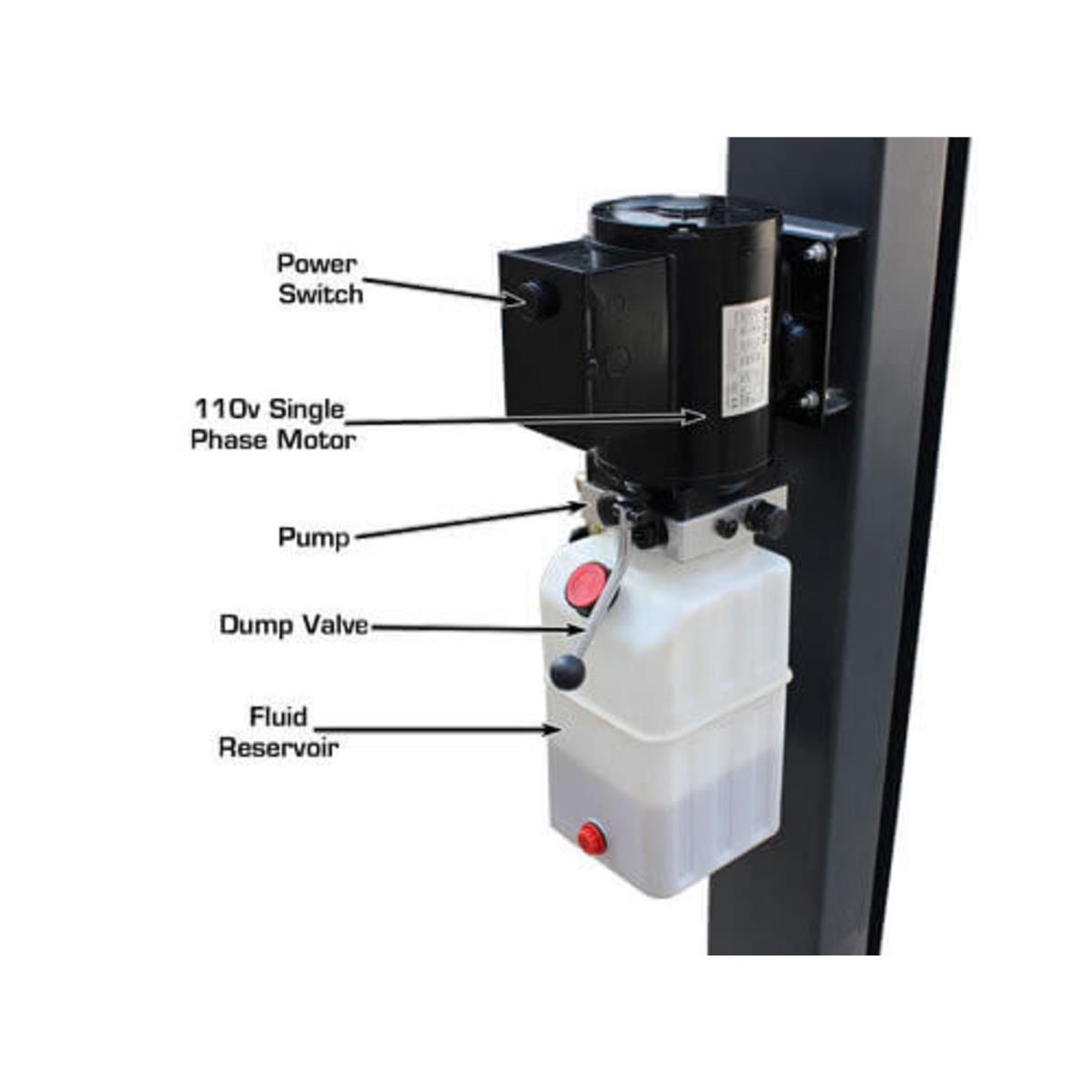

  • 1.5HP efficient motor
  • Plugs into existing outlets

Vehicle Storage Capability

Stack vehicles vertically to double your garage capacity, perfect for collectors and enthusiasts with limited space.

  • Park vehicles on elevated runways
  • Store second vehicle underneath
  • Double garage capacity
  • Ideal for vehicle collections

Drive-On Runway Design

Simple drive-on operation requires no arm positioning or pickup-point knowledge for easy, intuitive use.

  • Drive directly onto runways

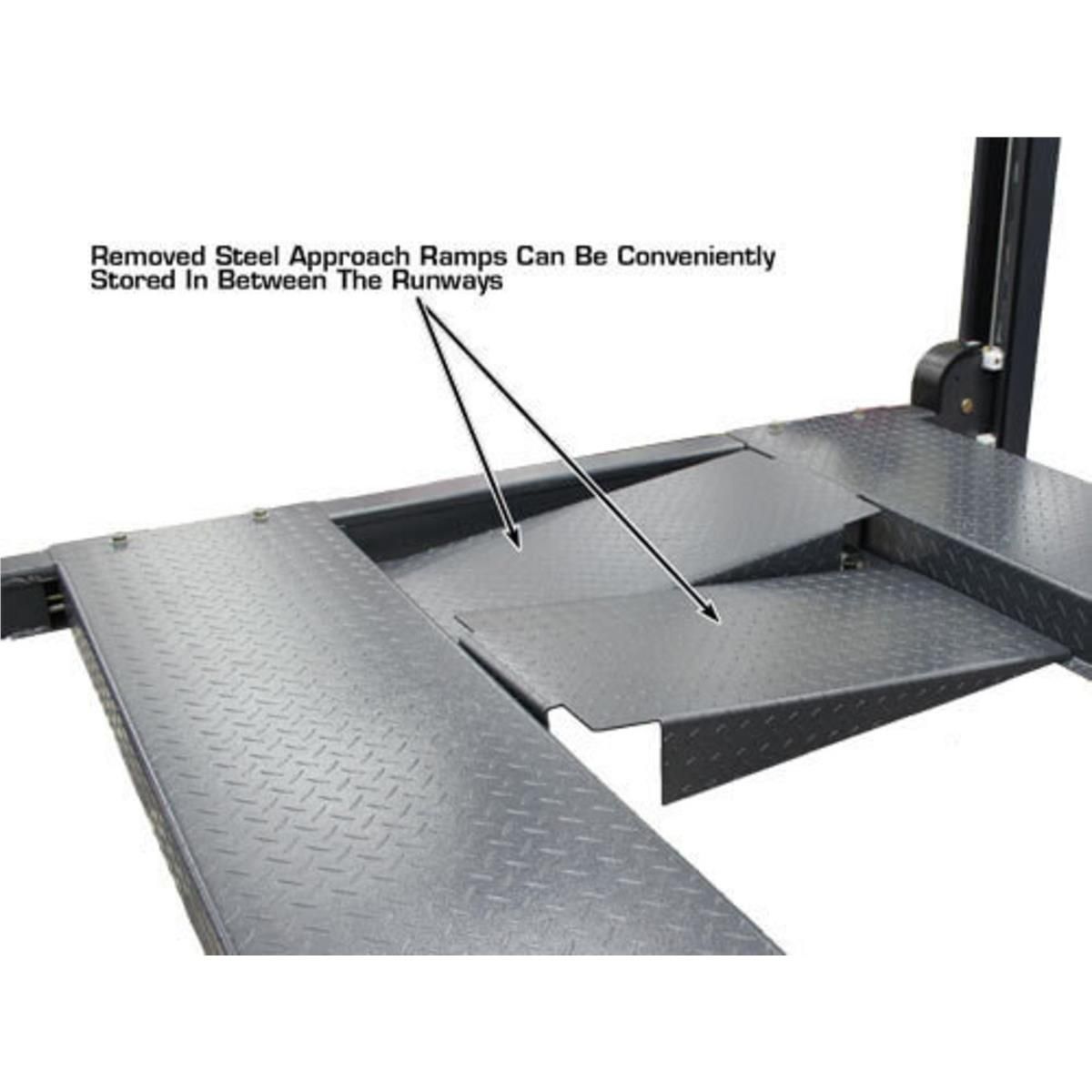

  • Built-in approach ramps
  • No arm positioning needed
  • Accessible for all skill levels

Multi-Position Safety Locks

Integrated lock ladder system provides secure parking positions throughout the lift's travel range.

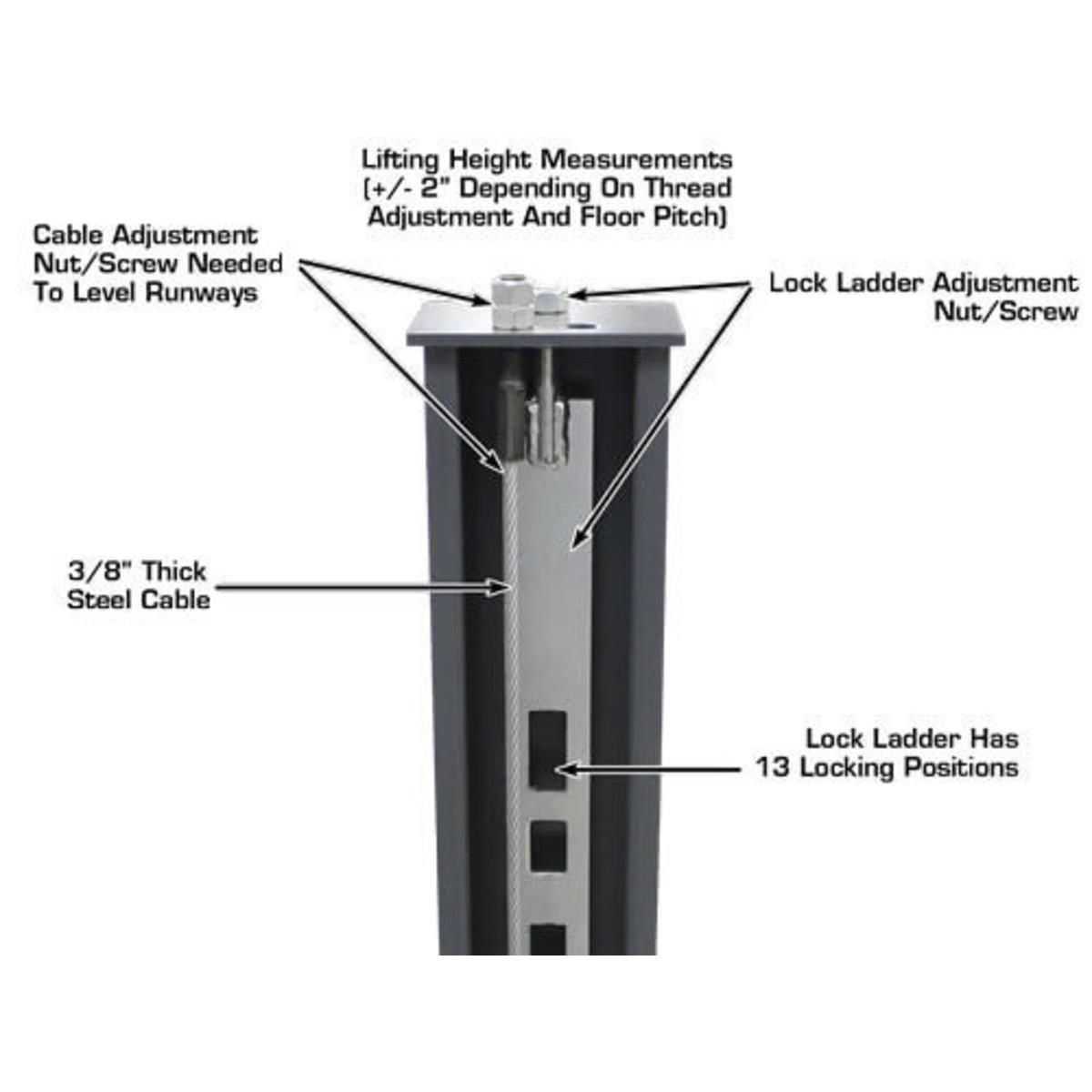

  • Multi-position lock ladder
  • Automatic safety engagement

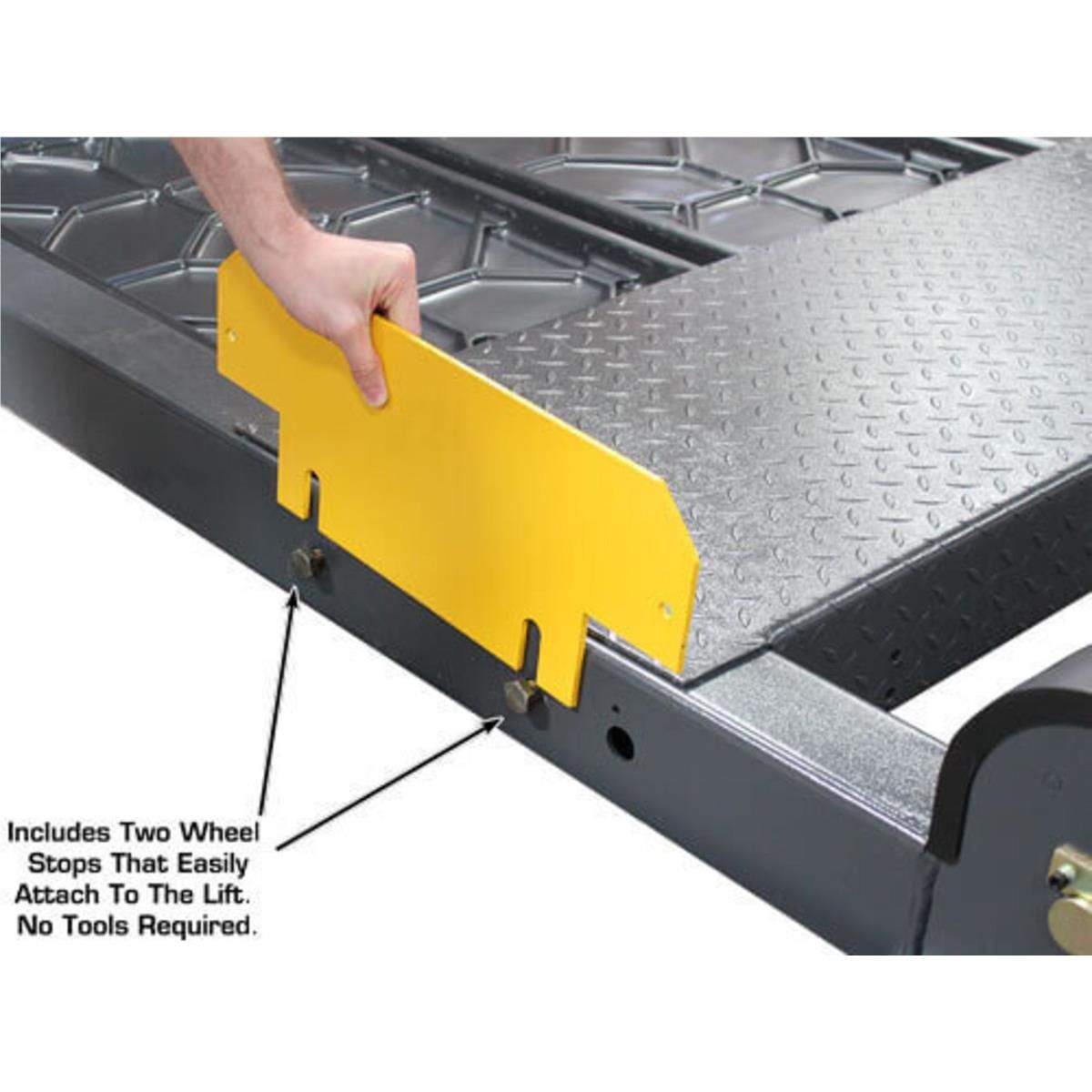

  • Integrated wheel chocks

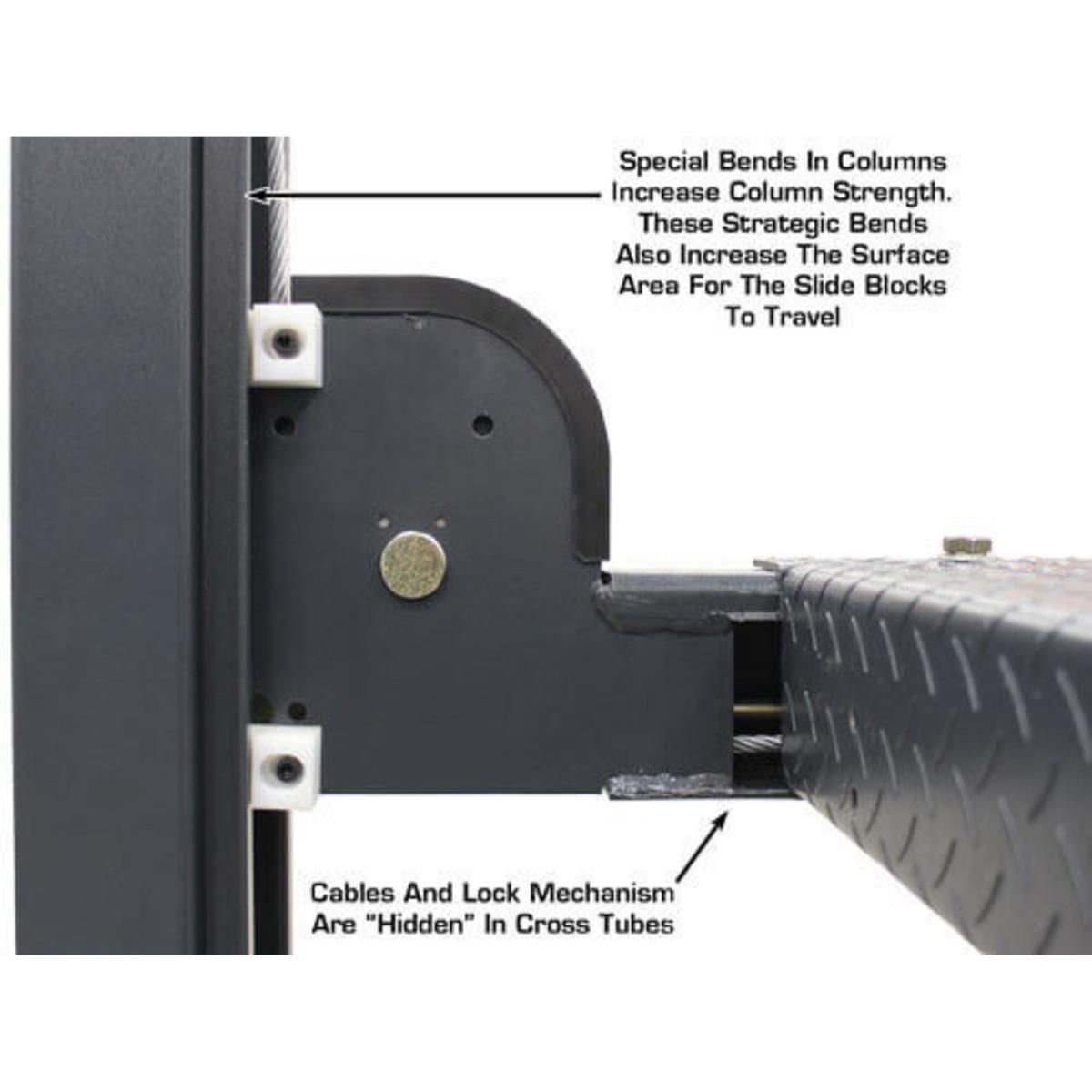

  • Cable-and-chain equalization

Full Undercarriage Access

Raised runway height provides comfortable access for oil changes, brake work, exhaust service, and inspections.

  • Oil change access at height
  • Brake and suspension work
  • Exhaust system service
  • Full undercarriage inspection

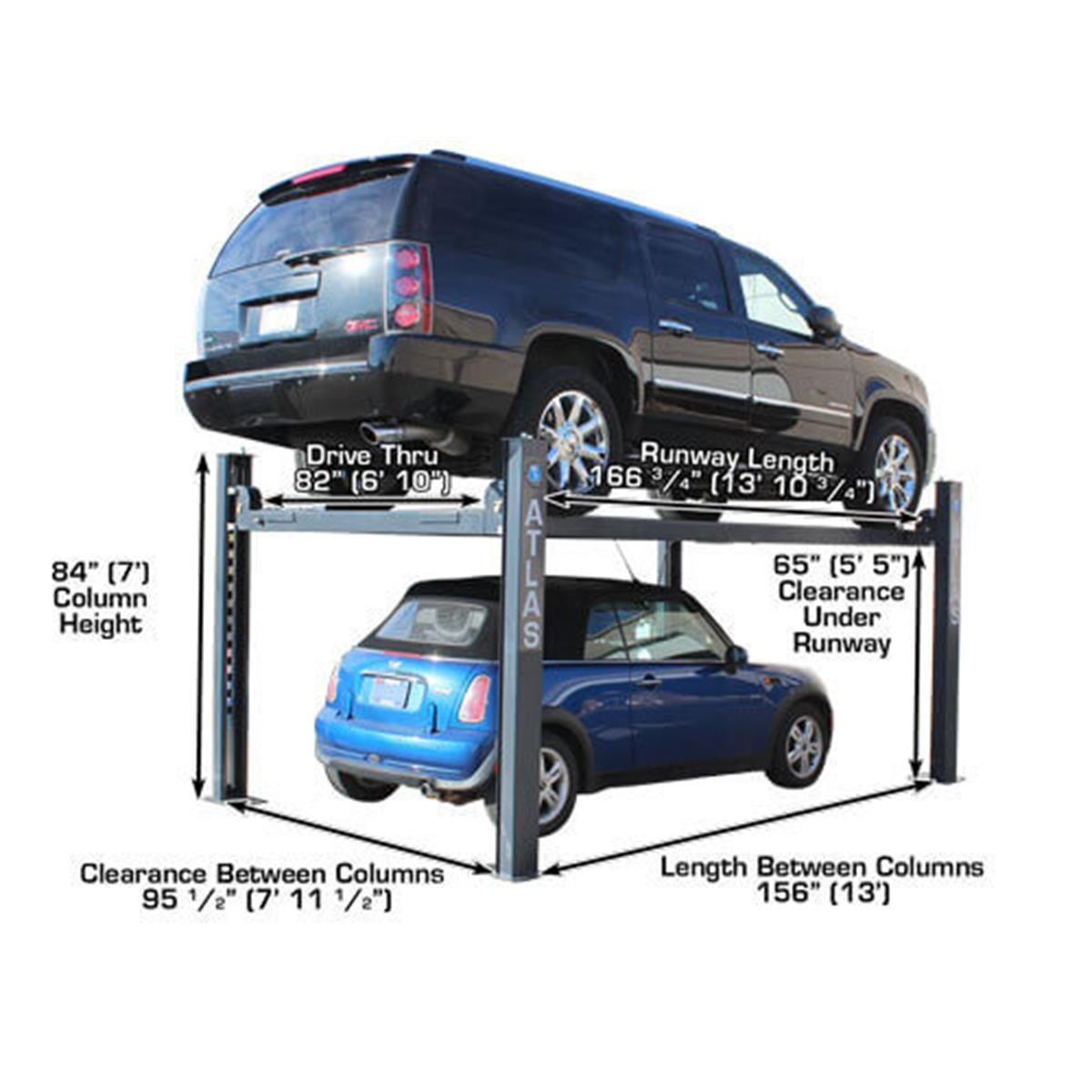

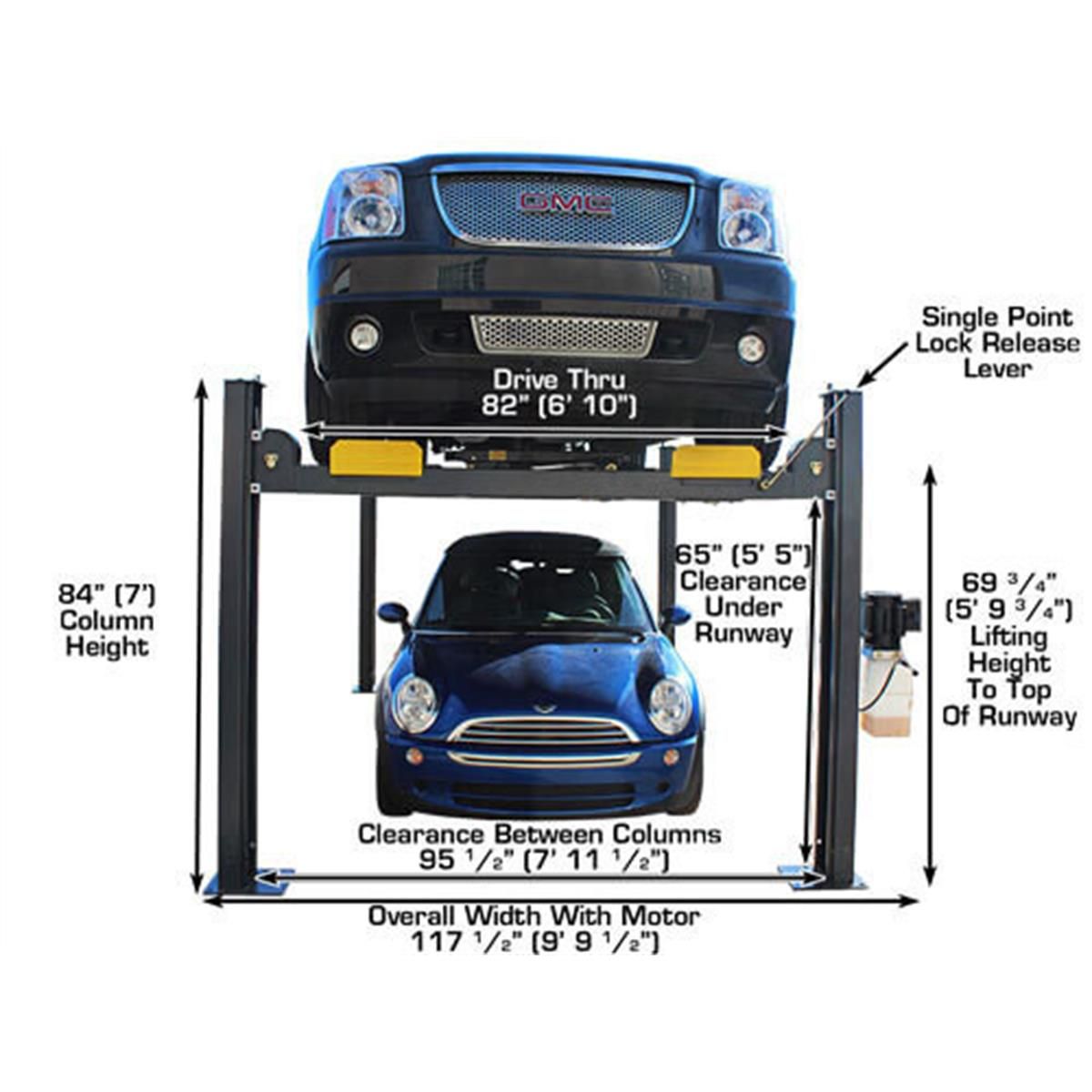

Specifications

ModelATEATTD-408SL-FPDATEATTD-408SL
Price
$4,899.00
$4,399.00

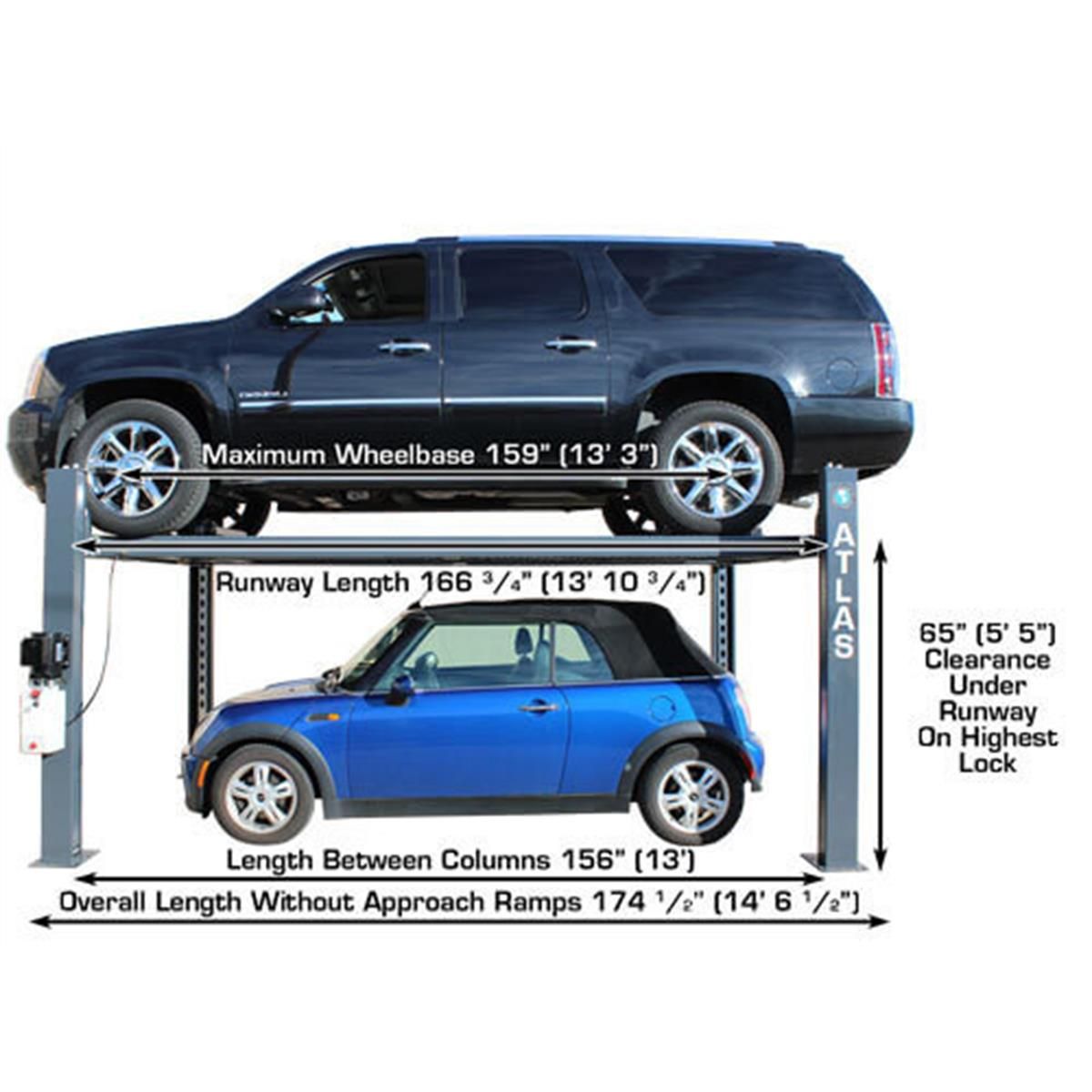

Overall Length209" in209" in
Shipping Weight~2,000 lbs~2,000 lbs

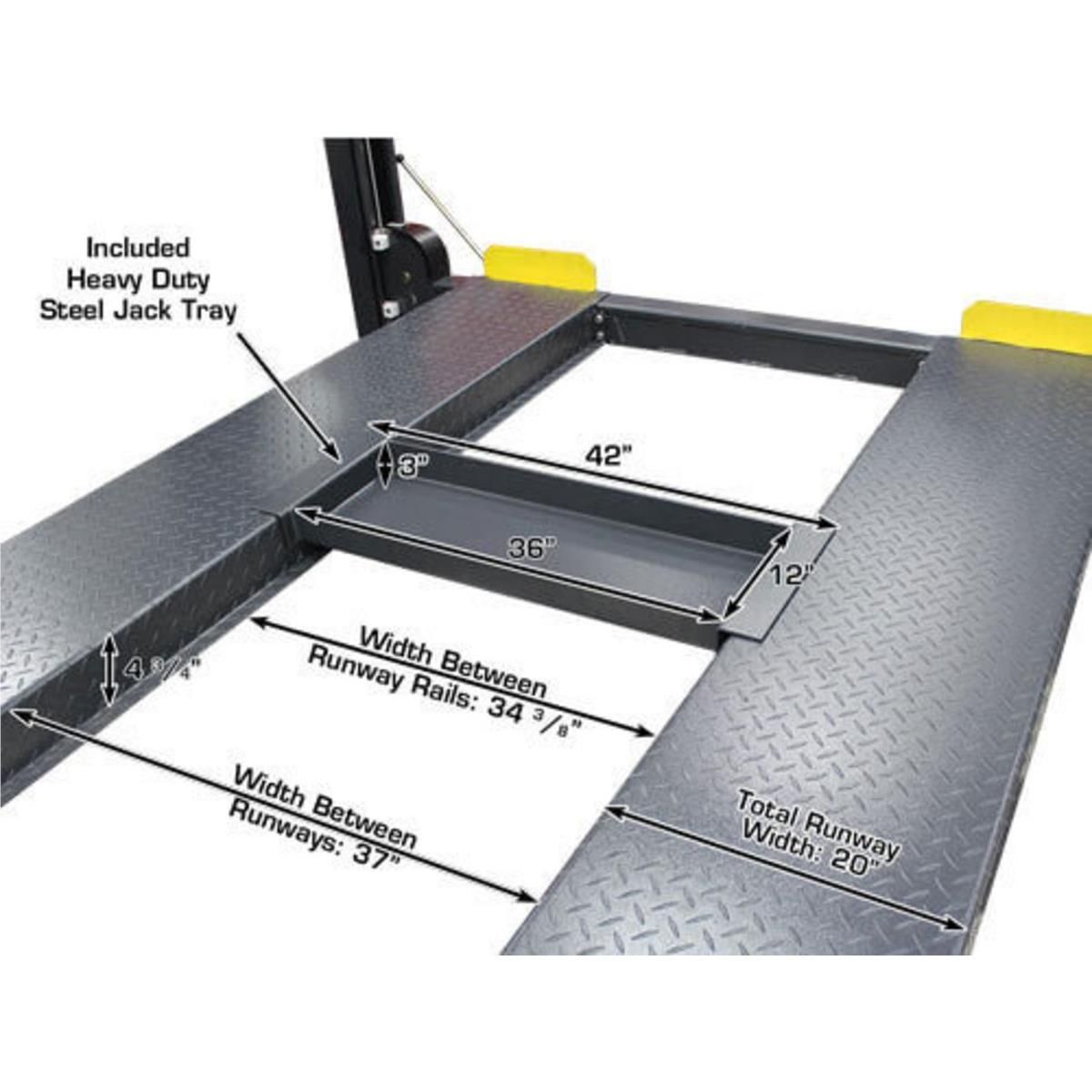

Width of Runways18" in18" in
Amps15A15A
Width Between Runways37" in37" in
Lifting Capacity8,000 lb lbs8,000 lb lbs
Lift ConfigurationOpen FrontOpen Front
Rise Height68" "68" "
Overall Height82 in82 in
Overall Width103103
Motor1.5HP HP1.5HP HP
Voltage110V Single Phase110V Single Phase
ALI/ETL CertifiedALI CertifiedALI Certified
Colors AvailableBlueBlue

Before You Buy

ALI/ETL Certified

The 408SL has been independently tested and certified by the Automotive Lift Institute to meet ANSI/ALI ALCTV safety standards.

110V Household Power

Runs on standard 110V power with no special electrical upgrades required, making professional-grade 4-post lifting accessible for any home garage.

Free Freight Shipping

This lift ships freight-free to commercial addresses within the continental United States. Residential deliveries may require additional arrangements.

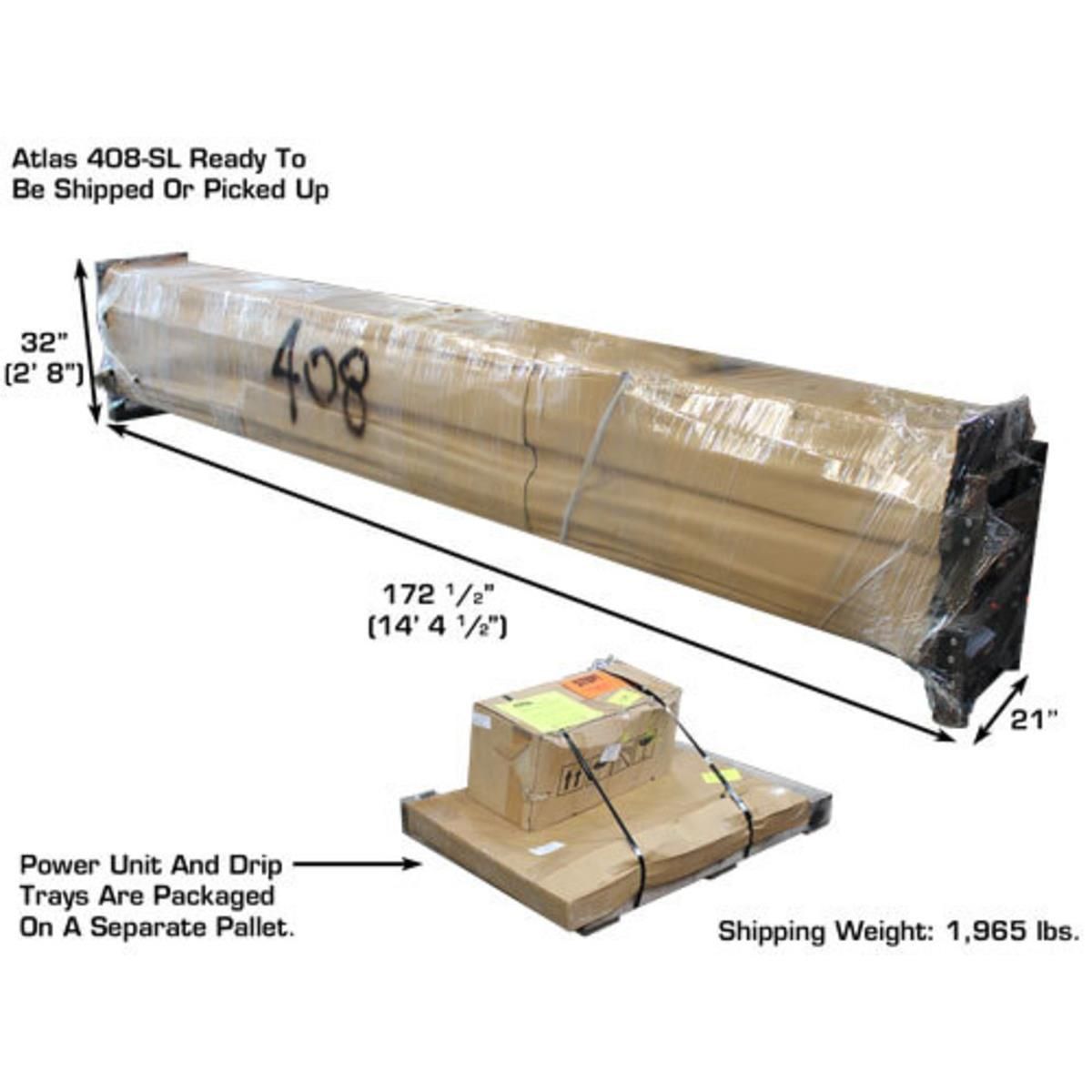

Unloading Requirements

A forklift or loading dock is required to unload this lift from the delivery truck. Please ensure you have appropriate equipment available on delivery day.

Concrete Requirements

Minimum 4 inches of concrete rated at 3,000 PSI or greater is required for proper installation and safe operation.

Double Your Garage Space

Store one vehicle on the elevated runways and park a second underneath to effectively double your garage capacity.

Frequently Asked Questions

The 408SL requires a minimum concrete depth of 4 inches with a minimum compressive strength of 3,000 PSI. The concrete must be in good condition and level for proper lift operation and safety.
Yes. The 408SL is designed to operate on standard 110V household power, making it one of the few ALI-certified lifts that does not require a 220V circuit. A dedicated 20-amp 110V circuit is recommended.
Yes. The 408SL is specifically designed for vehicle storage. You can safely park a vehicle on the raised runways for extended periods using the multi-position safety locks. A second vehicle can be parked underneath, effectively doubling your garage space.
You need sufficient ceiling clearance to accommodate the lift at full height plus the height of the stored vehicle. For most standard vehicles, a minimum ceiling height of 10-11 feet is recommended. Taller vehicles like SUVs and trucks will require more headroom.
Yes. Panther Lift partners with a nationwide network of certified lift installers who can handle the complete installation process, from concrete assessment through final safety inspection. Contact our team after purchase to schedule professional installation in your area.

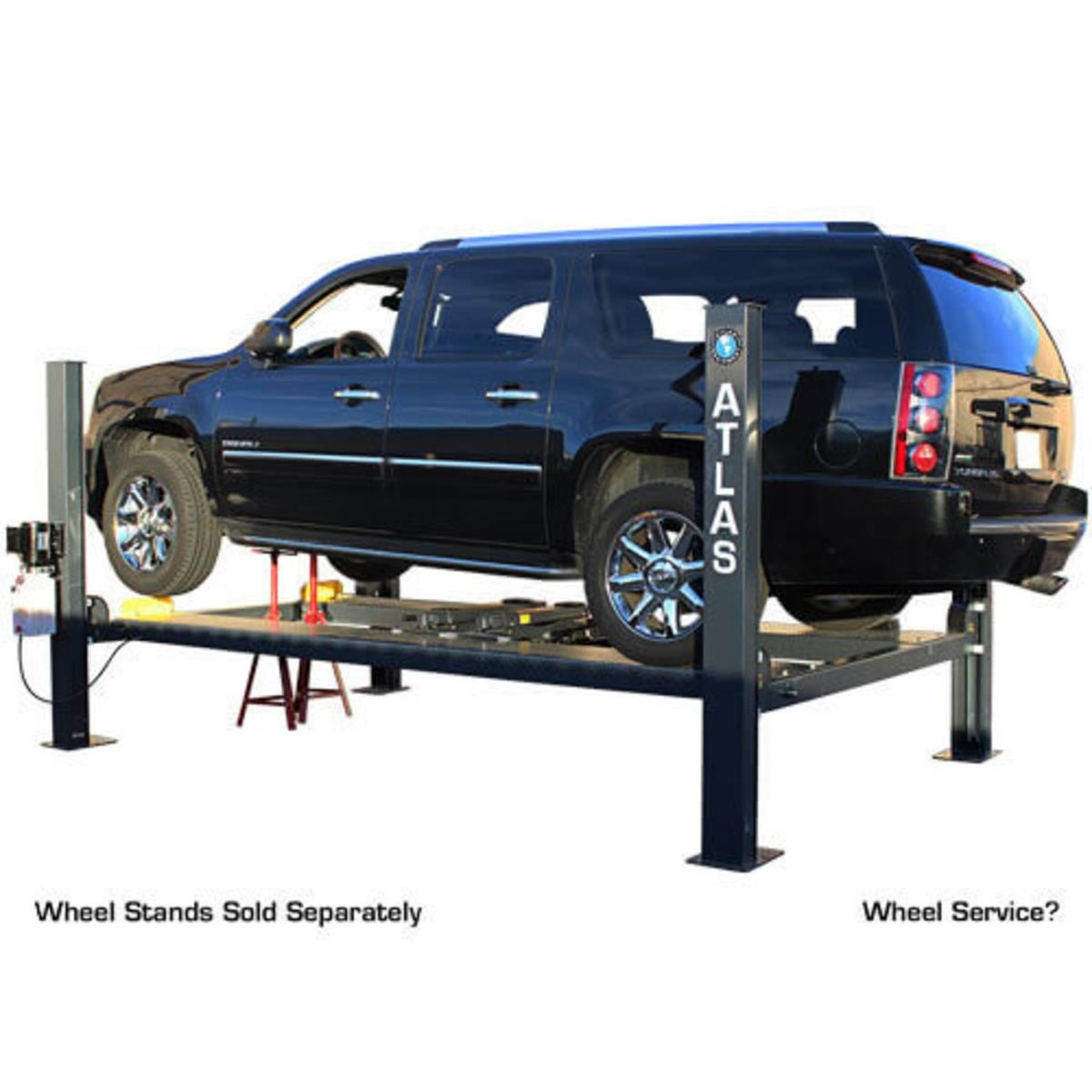

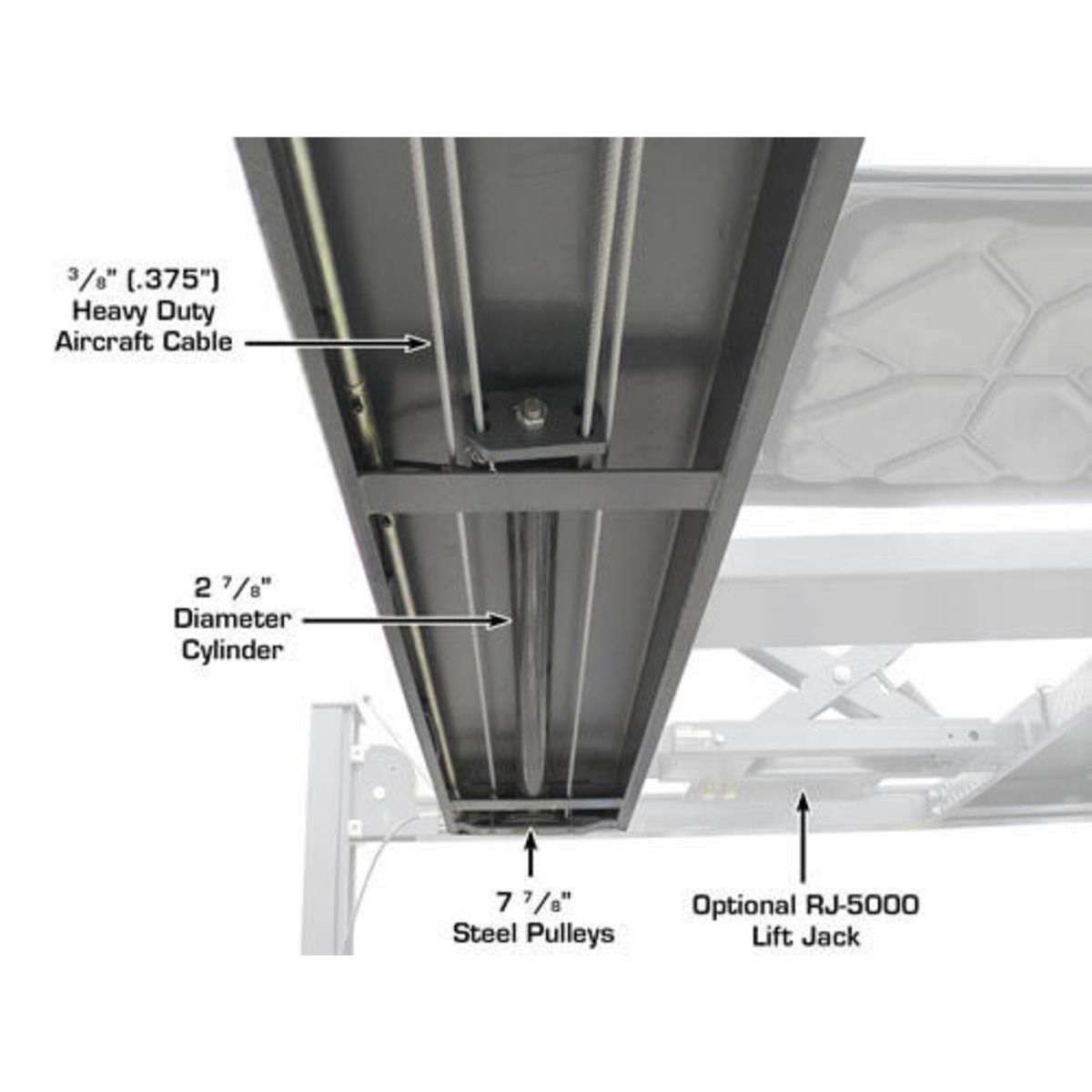

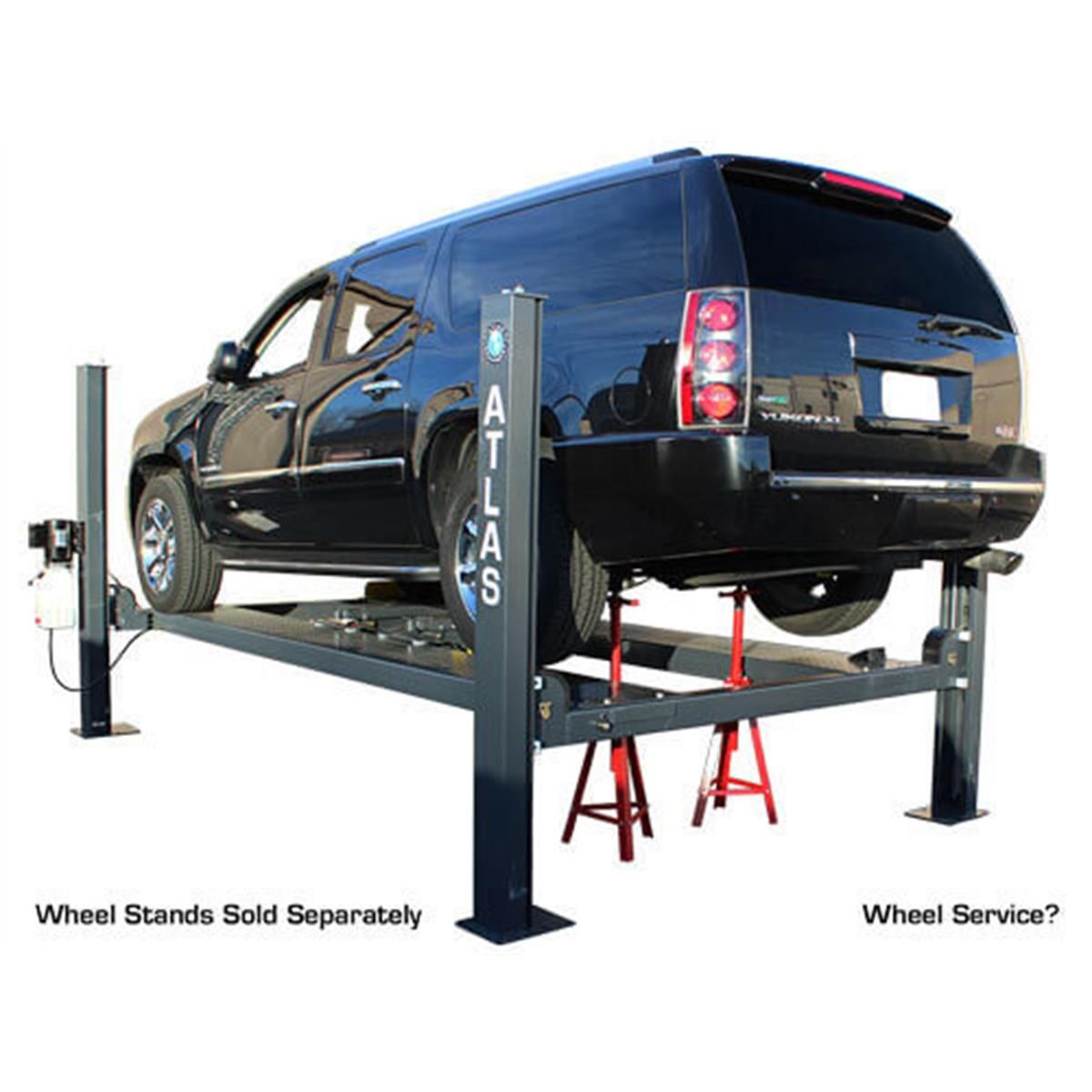

Yes. The 408SL is compatible with optional sliding bridge jacks that mount between the runways, allowing you to raise individual wheels for tire and brake service. These are sold separately.
The 408SL provides smooth, consistent lift speeds appropriate for safe vehicle raising and lowering. The 1.5HP motor delivers reliable performance throughout the full range of travel.
Regular maintenance includes periodic inspection of hydraulic fluid levels, lubrication of moving parts, inspection of cables and chains for wear, and verification of safety lock engagement. Atlas recommends maintenance checks at least annually for home use. Always follow the maintenance schedule in the owner's manual.
Yes. The 8,000 lb capacity accommodates most standard trucks and SUVs. Verify that your specific vehicle falls within the weight and dimensional limits specified in the product documentation.
The Atlas 408SL includes a comprehensive manufacturer warranty covering structural components and the hydraulic power system. Contact Panther Lift for complete warranty terms and coverage details specific to your purchase.
