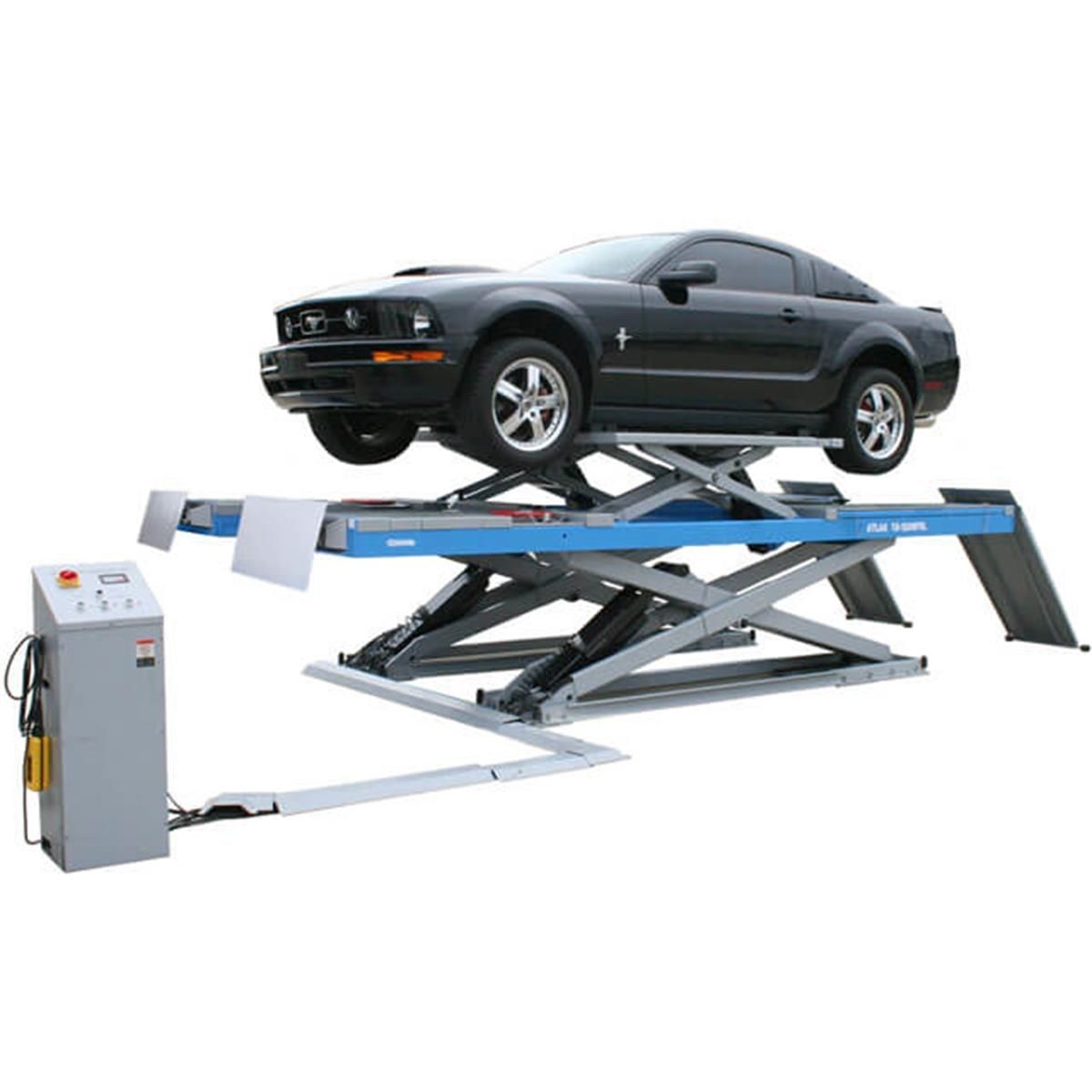

Atlas 12AWFSL 12,000 lb Wheel-Free Scissor Alignment Lift

SKU: ATEATTD-12AWFSL-N-FPD

Ships from manufacturer

12,000 lb Capacity, 8,800 lb Wheel-Free Lift, Integrated Lift Tables, 85" Max Height, In-Ground/Surface Mount, 220V 1Ph, 87-116 PSI Compressed Air

Part #: ATEATTD-12AWFSL-N-FPD

MFR #: ATEATTD-12AWFSL-N-FPD

Overview

The Atlas 12AWFSL is a full-rise scissor alignment lift with integrated wheel-free lift tables, combining the power of a 12,000 lb main platform with dedicated 8,800 lb wheel-free jacking surfaces. This revolutionary design eliminates the need for separate floor jacks when performing tire, brake, and wheel-bearing service. The dual lift system allows simultaneous main vehicle support and wheel-free work, transforming service efficiency and safety in high-volume shops. Available in both in-ground pit and surface-mount configurations, the 12AWFSL delivers professional-grade performance for comprehensive automotive service operations.

Technical Specifications

The 12AWFSL reaches a maximum primary lifting height of 85 inches, providing complete access for alignment, suspension, and drivetrain work. The integrated wheel-free lift tables independently lift to 17 inches, enabling full tire and wheel removal without additional equipment. The main platform lowers to 11.5 inches for efficient floor utilization when not in use. The adjustable wheel-free jack table extends from 59 to 78.75 inches, while the jacking beam arm spans 26.25 to 64 inches, accommodating virtually any vehicle wheelbase configuration. A 196.875-inch runway length and 24-inch platform width support standard and wide-body vehicles with precision alignment setup.

Features & Performance

Powered by a 220V, 1-phase motor delivering 2.2kW (~3HP) at 2800 rpm, the 12AWFSL operates on a robust gear-type pump system rated at 260 bar continuous and 280 bar peak pressure. The integrated wheel-free lift tables feature a dedicated 8,800 lb capacity, allowing simultaneous main-platform lifting and wheel work. Lifting and lowering cycles complete in 70 and 60 seconds respectively, maintaining efficient workflow in service environments. The lift operates optimally between 14°F and 104°F with a modest 80 dB(A) noise level at one meter. Compressed air requirements range from 87 to 116 PSI, supporting integration with existing facility compressor systems. Air-operated safety locks secure the vehicle at any height during extended service operations.

Installation & Concrete Requirements

Both in-ground pit and surface-mounted configurations are available to match facility layouts and service workflows. For in-ground installations, maintain a minimum 4-inch concrete slab rated at 3000 PSI. Surface-mounted systems provide the same performance without extensive pit excavation. Overall width spans approximately 122 inches at the base and 86.625 inches total. A suggested 39.5-inch free width between dual-runway installations ensures safe operation and full maintenance access. Panther Lift provides professional installation services throughout the United States, handling all aspects from site assessment and concrete preparation to full lift assembly, hydraulic setup, and comprehensive safety testing. Contact us to schedule installation or request a quote for your location.

Features & Benefits

Integrated Wheel-Free Lift Tables

Dedicated 8,800 lb wheel-free jacking eliminates separate floor jacks

  • 8,800 lb wheel-free jack capacity
  • 17" maximum secondary lifting height
  • Adjustable table length from 59" to 78.75"

Dual Lift System

Simultaneously support vehicle and perform wheel-free service

  • 12,000 lb main platform capacity
  • Independent wheel-free operation
  • Perfect for tire, brake, and bearing work

Flexible Installation Options

Choose in-ground pit or surface-mount based on facility needs

  • In-ground pit configuration available
  • Surface-mount option included
  • Both support 4" minimum 3000 PSI concrete

Powerful Motor & Pump System

220V 1-phase motor with robust gear-type pump for continuous operation

  • 2.2kW (~3HP) at 2800 rpm
  • 260 bar continuous, 280 bar peak pressure
  • 70-second lift, 60-second lower cycles

Air-Operated Safety Locks

Secure your vehicle at any height with dependable pneumatic locks

  • Holds 12,000 lbs safely on main platform
  • Holds 8,800 lbs on wheel-free tables
  • 87-116 PSI compressed air requirement

Spacious Runway Platform

196.875" runway length and 24" width for precise alignment setup

  • 196.875" total runway length
  • 24" platform width
  • 39.5" suggested spacing between dual lifts

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 5,900 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Compressed Air Required

The 12AWFSL operates on 87-116 PSI compressed air for safety lock and wheel-free lift table operation. Ensure your facility has an adequate air compressor system with proper filtration to protect pneumatic components.

Frequently Asked Questions

The 12AWFSL features integrated wheel-free lift tables with an 8,800 lb capacity. This allows you to safely perform tire removal, brake service, and wheel-bearing work without requiring separate floor jacks. The wheel-free tables lift independently up to 17 inches.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.
Yes, the dual-lift design allows you to lift the main vehicle on the primary platform while simultaneously raising the wheel-free tables for tire and brake service. This simultaneous operation maximizes efficiency in high-volume service environments.
The 12AWFSL requires a minimum 4-inch concrete slab with a compressive strength of 3000 PSI. For in-ground pit installations, dig deeper to fully accommodate the lift mechanism while maintaining the 4-inch minimum slab thickness at the base. Proper concrete preparation ensures reliable, safe operation.
The 12AWFSL operates on 87-116 PSI compressed air. Most service facilities already have compressed air systems in this range. Ensure your facility compressor can maintain consistent pressure and include air filtration to protect pneumatic components and safety locks.
The 12AWFSL ships with all integrated components and weighs approximately 5,900 lbs. You must have adequate offloading equipment available at your facility, such as a forklift or tractor with forks, as freight carriers do not unload.
The 12AWFSL main platform reaches a maximum lifting height of 85 inches, providing complete access for alignment, suspension, and drivetrain service work. The lift lowers to 11.5 inches, maximizing floor space utilization.
The 12AWFSL operates on 220V, single-phase power delivering 2.2kW (~3HP) at 2800 rpm. This standard industrial power supply is typical in most service facilities and requires standard electrical installation by a qualified electrician.
The integrated wheel-free lift tables eliminate the need for manual floor jacks, improving safety and efficiency. Technicians no longer need to manually position and pump separate jacks—the integrated system lifts with the same reliability and control as the main platform.
Regular maintenance includes monthly visual inspection of hydraulic lines, pump, and motor for leaks; quarterly air filtration checks and compressor dryer maintenance; six-month pressure testing to verify pump performance; annual professional inspection of mechanical components, runways, lift tables, and safety lock operation; and as-needed repairs of worn components. Panther Lift can schedule professional maintenance services to keep your lift operating safely and efficiently.
