ATEATTD-12ASL-N-FPD

Atlas Automotive Equipment

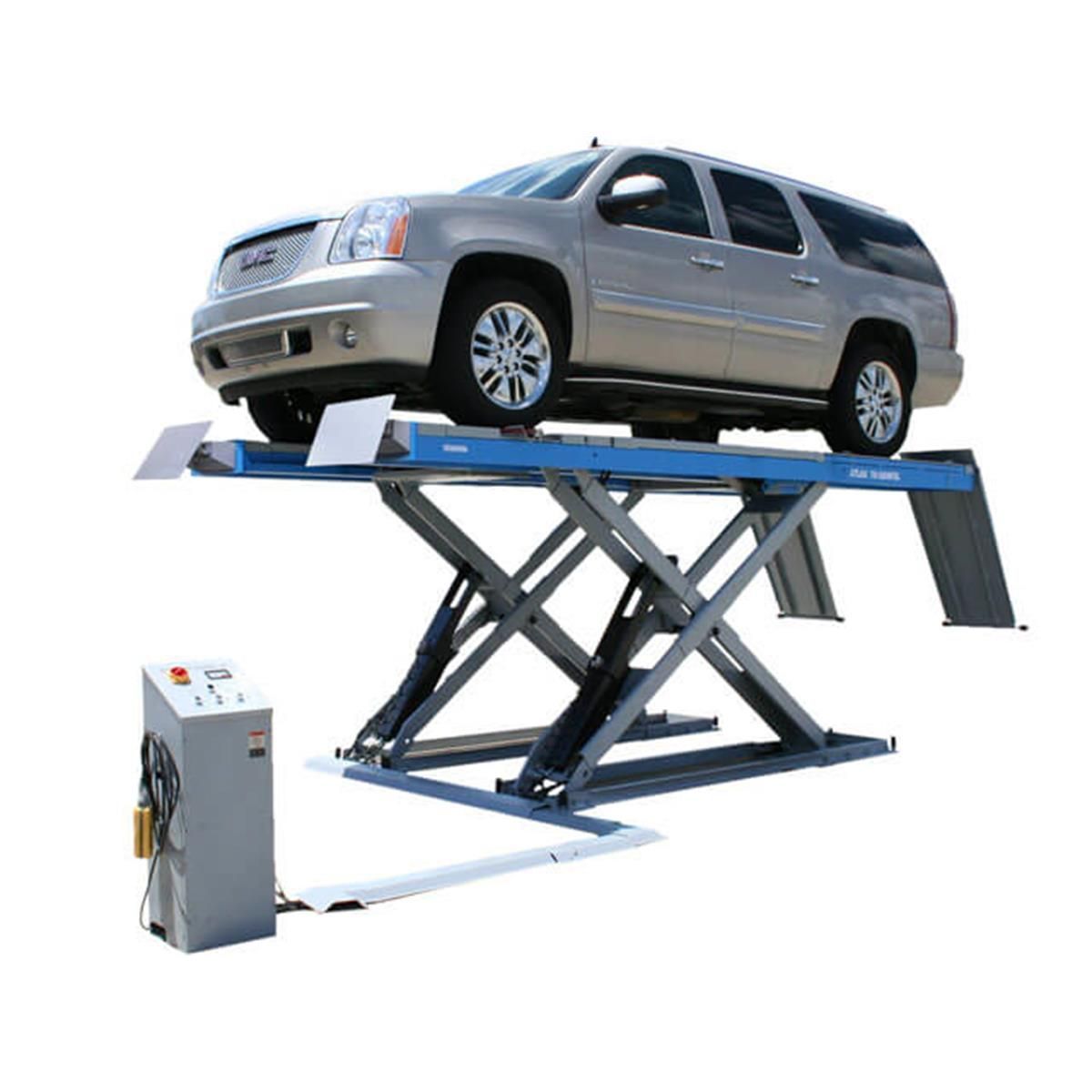

Atlas 12ASL 12,000 lb Scissor Alignment Lift

SKU: ATEATTD-12ASL-N-FPD

Ships from manufacturer

12,000 lb Capacity, 84.25" Max Height, Rolling Jacking Beam, In-Ground/Surface Mount, 220V 1Ph, 90-120 PSI Compressed Air

Part #: ATEATTD-12ASL-N-FPD

MFR #: ATEATTD-12ASL-N-FPD

Overview

The Atlas 12ASL is a full-rise scissor alignment lift designed for heavy-duty automotive service and alignment work. With a 12,000 lb total capacity and integrated rolling jacking beam system, this lift provides the lifting power and precision needed for complete wheel-free service without requiring separate floor jacks. Whether configured for in-ground pit installation or surface mounting, the 12ASL delivers professional-grade performance with industry-leading safety features and flexible installation options.

Technical Specifications

The 12ASL reaches a maximum lifting height of 84.25 inches, enabling full access to vehicle undercarriage systems for alignment, suspension, and brake work. The lift lowers to just 11.5 inches, maximizing floor-to-lift clearance when not in use. The rolling jacking beam operates from 1.25 inches to 15.75 inches independently, allowing wheel-free service on multiple vehicle types. The 197-inch runway length and 23.75-inch platform width accommodate most standard and wide-body vehicles. Lifting and lowering cycles complete in 70 and 60 seconds respectively, ensuring efficient workflow in high-volume service environments.

Features & Performance

Powered by a 220V, 1-phase motor delivering 2.2kW (~3HP) at 2800 rpm, the 12ASL operates on a reliable gear-type pump system with continuous 3770 PSI and peak 4060 PSI pressure ratings. The lift operates optimally within a 14°F to 104°F temperature range and maintains a noise level of 80 dB(A) at one meter. Compressed air requirements range from 90 to 120 PSI, making integration straightforward in most service facilities. Air-operated safety locks secure the lift at any height, providing peace of mind during extended maintenance operations. The rolling jacking beam arm extends from 30 to 64 inches, adapting to diverse vehicle wheelbase requirements.

Installation & Concrete Requirements

Both in-ground pit and surface-mounted configurations are available to suit facility layouts. For in-ground installations, dig a pit to accommodate the lift mechanism while maintaining a minimum 4-inch concrete slab rated at 3000 PSI. Surface-mounted systems require the same concrete specifications but eliminate extensive pit work. Overall width spans approximately 122 inches for in-ground setups and 86.67 inches for surface mounting. A suggested free width of 39 inches between dual-runway installations ensures safe operation and maintenance access. Panther Lift provides professional installation services throughout the United States, handling all aspects from site assessment to final safety testing. Contact us to schedule installation or request a quote for your location.

Features & Benefits

Full-Rise Scissor Design

Reaches 84.25 inches maximum height for complete vehicle access

  • 84.25" maximum lifting height
  • 11.5" minimum lowered height
  • Perfect for alignment and suspension work

Rolling Jacking Beam System

Integrated rolling jack eliminates need for separate floor jacks

  • 6,000 lb jacking beam capacity
  • 1.25" to 15.75" independent lifting range
  • Adjustable beam arm from 30" to 64"

Flexible Installation Options

Choose in-ground pit or surface-mount based on facility needs

  • In-ground pit configuration available
  • Surface-mount option included
  • Both support 4" minimum 3000 PSI concrete

Powerful Motor & Pump System

220V 1-phase motor with reliable gear-type pump for continuous operation

  • 2.2kW (~3HP) at 2800 rpm
  • 3770 PSI continuous, 4060 PSI peak
  • 70-second lift, 60-second lower cycles

Air-Operated Safety Locks

Secure your vehicle at any height with dependable pneumatic locks

  • Holds 12,000 lbs safely at any elevation
  • 90-120 PSI compressed air requirement
  • Operates 14°F to 104°F year-round

Spacious Runway Platform

197" runway length and 23.75" width accommodate diverse vehicle types

  • 197" total runway length
  • 23.75" platform width
  • 39" suggested spacing between dual lifts

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 5,000 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Compressed Air Required

The 12ASL operates on 90-120 PSI compressed air for safety lock operation. Ensure your facility has an adequate air compressor system with proper filtration to protect pneumatic components.

Frequently Asked Questions

The 12ASL requires a minimum 4-inch concrete slab with a compressive strength of 3000 PSI. For in-ground pit installations, dig deeper to fully accommodate the lift mechanism while maintaining the 4-inch minimum slab thickness at the base. Proper concrete preparation ensures reliable, safe operation over the lift's lifespan.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.
The 12ASL operates on 90-120 PSI compressed air. Most service facilities already have compressed air systems in this range. Ensure your facility compressor can maintain consistent pressure and include air filtration to protect the lift's pneumatic components and safety locks.
Yes, the 12ASL offers both in-ground pit and surface-mount installation options. In-ground installations maximize floor space and provide a seamless service pit. Surface-mount setups avoid extensive excavation and work well in existing facilities. Choose based on your facility layout and preferences.
The integrated rolling jacking beam features a 6,000 lb capacity, allowing you to perform wheel-free service on one side of the vehicle while maintaining full vehicle support on the scissor platform. The beam's arm adjusts from 30 to 64 inches to accommodate various vehicle wheelbases.
The 12ASL completes a full lift cycle in 70 seconds and a full lower cycle in 60 seconds. These efficient cycles support high-volume service environments where throughput is critical.
The 12ASL operates on 220V, single-phase power delivering 2.2kW (~3HP) at 2800 rpm. This standard industrial power supply is typical in most service facilities and requires standard electrical installation by a qualified electrician.
The 12ASL operates at 80 dB(A) at one meter, comparable to a typical busy traffic intersection. This modest noise level makes the lift suitable for indoor service environments without disruptive sound during normal operation.
The 12ASL is rated for operation between 14°F and 104°F. This wide temperature range supports year-round use in most climates. For facilities outside this range, consult with Panther Lift for guidance.
Regular maintenance includes monthly visual inspection of hydraulic lines, pump, and motor for leaks; quarterly air filtration checks and compressor dryer maintenance; six-month pressure testing to verify pump performance; annual professional inspection of mechanical components, runways, and safety lock operation; and as-needed repairs of worn components. Panther Lift can schedule professional maintenance services to keep your lift operating safely and efficiently.
