ATEATTD-12ASL-COMBO-FPD

Atlas Automotive Equipment

Atlas 12ASL + RJ6 Combo Package

SKU: ATEATTD-12ASL-COMBO-FPD

Ships from manufacturer

12,000 Lb Capacity, Scissor Alignment Lift, 220V 3HP, In-Ground Installation, Turning/Slip Plates, Includes RJ6 Rolling Jack

Part #: ATEATTD-12ASL-COMBO-FPD

MFR #: ATEATTD-12ASL-COMBO-FPD

Professional Scissor Alignment Solution

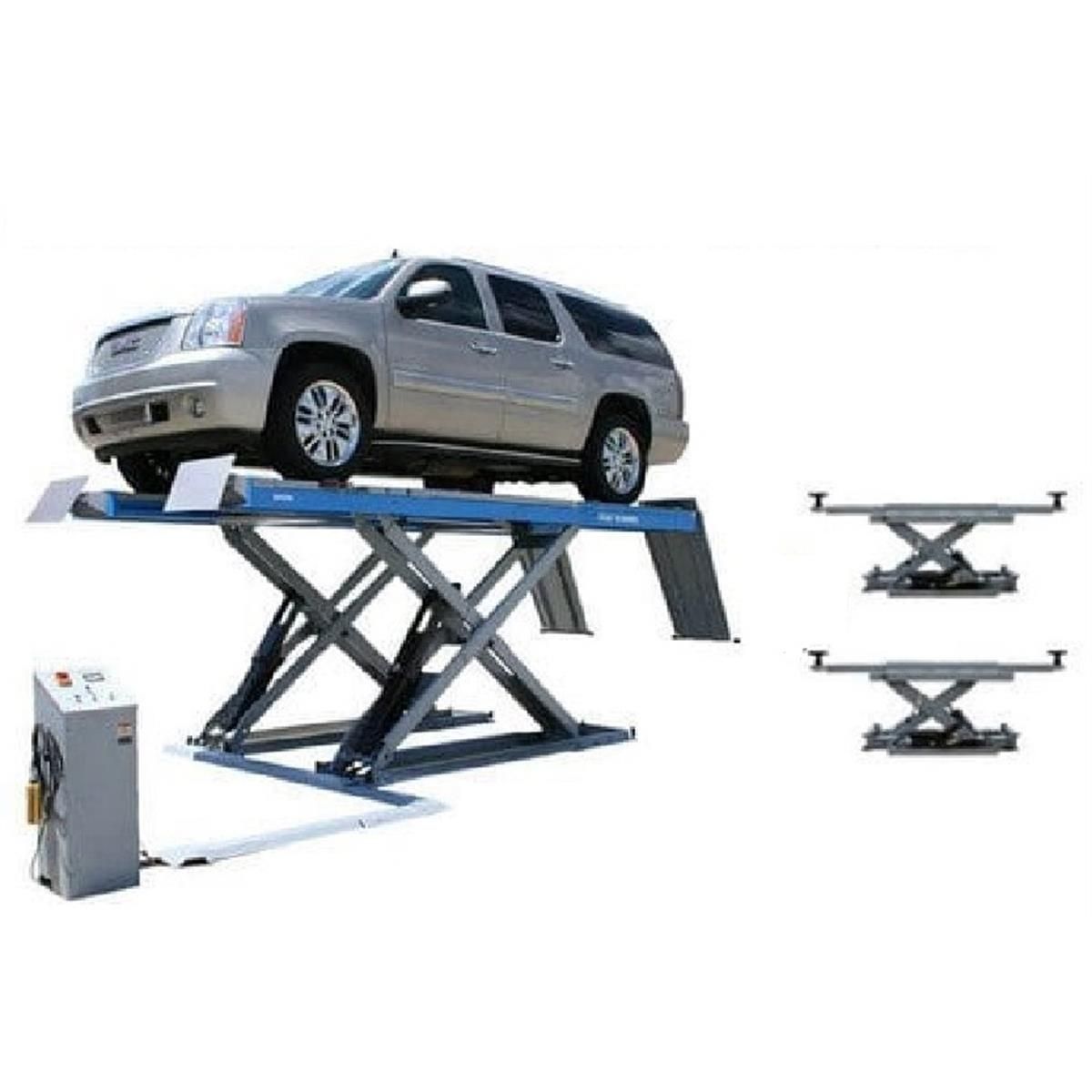

The Atlas 12ASL + RJ6 Combo Package pairs a heavy-duty 12,000 lb scissor alignment lift with a 6,000 lb rolling bridge jack for complete alignment and undercar service capability. The in-ground scissor design maximizes shop floor space while the RJ6 provides mobile access for component work during alignment procedures.

Atlas 12ASL Specifications and Capabilities

The Atlas 12ASL is a 12,000 lb in-ground scissor alignment lift with a maximum height of 84.25 inches and a minimum height of 11.5 inches. Operating on 220V with a 3HP motor, it provides smooth, powerful operation with a 70-second rise time. The integrated turning and slip plates enable precise vehicle positioning for alignment work. The in-ground installation creates a flush-mount work surface when lowered, maximizing usable shop floor area. Air pressure requirements are 90-120 PSI. ALI/ETL certified for professional use. Shipping weight is approximately 5,000 lbs.

RJ6 Rolling Bridge Jack Capabilities

The RJ6 6,000 lb air/hydraulic rolling bridge jack provides mobile undercar access during alignment procedures. Its air/hydraulic hybrid design delivers smooth, controlled lifting with excellent maneuverability. The rolling design enables rapid repositioning to access different wheel areas and suspension components without disturbing vehicle position on the main lift.

Installation Requirements

The Atlas 12ASL requires in-ground installation with proper pit preparation. Concrete work must accommodate the scissor mechanism and provide adequate structural support. Electrical preparation for 220V 3HP motor and compressed air integration for 90-120 PSI operation are required. Professional installation through Panther Lift is strongly recommended for in-ground lifts.

Features & Benefits

12,000 Lb Scissor Alignment Capacity

Heavy-duty in-ground scissor lift with 84.25-inch max height for full-size vehicle alignment service.

  • Professional-grade scissor construction
  • 84.25" max / 11.5" min height
  • 70-second rise time

Integrated Turning and Slip Plates

Built-in turning and slip plates provide precise vehicle positioning for professional alignment work.

  • 360-degree rotation capability
  • Smooth slip plate operation
  • Professional alignment accuracy

220V 3HP Motor System

Powerful motor delivers responsive operation with compressed air integration at 90-120 PSI.

  • Fast 70-second rise time
  • 90-120 PSI air requirement
  • Energy-efficient operation

In-Ground Space-Saving Design

Flush-mount installation maximizes shop floor space when the lift is lowered.

  • Flush-mount surface when lowered
  • Maximum shop floor utilization
  • Clean professional appearance

6,000 Lb Rolling Jack Mobility

The included RJ6 rolling jack provides mobile undercar access during alignment procedures.

  • Air/hydraulic power system
  • Smooth floor mobility
  • Alignment-focused access

ALI/ETL Safety Certified

Both lift and jack meet ALI and ETL safety standards for professional alignment shops.

  • Industry-standard certification
  • Maximum safety assurance
  • Professional liability protection

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded — contact us for a quote.

Unloading Requirements

This combo ships curbside via freight truck. You are responsible for offloading. A forklift or equivalent heavy equipment must be available on-site at delivery.

Frequently Asked Questions

Yes. Panther Lift provides professional installation services. In-ground scissor lifts require specialized pit preparation and we strongly recommend professional installation.
The 12ASL requires an in-ground pit with specific depth, width, and concrete specifications. Our installation team handles all pit preparation as part of the professional installation service.
The 12ASL requires 220V three-phase electrical with a dedicated circuit and proper grounding.
The 12ASL operates with compressed air at 90-120 PSI. Your shop compressor must maintain adequate volume and pressure.
This combo includes the Atlas 12ASL in-ground scissor alignment lift with turning/slip plates, the RJ6 6,000 lb rolling bridge jack, and all necessary hoses and documentation.
When lowered, the 12ASL sits flush with the shop floor, creating usable drive-over space. This maximizes your shop layout and provides a clean, professional work environment.
The 12ASL reaches 84.25 inches maximum height with a minimum height of 11.5 inches, providing excellent working clearance.
The 12ASL completes a full rise in approximately 70 seconds with the 220V 3HP motor and compressed air system.
The 12ASL ships at approximately 5,000 lbs. A forklift or equivalent heavy equipment is required for unloading.
Yes, the RJ6 is specifically designed for use during alignment procedures, providing mobile access to wheel areas and suspension components.
