ATEATTC306-FPD

Atlas Automotive Equipment

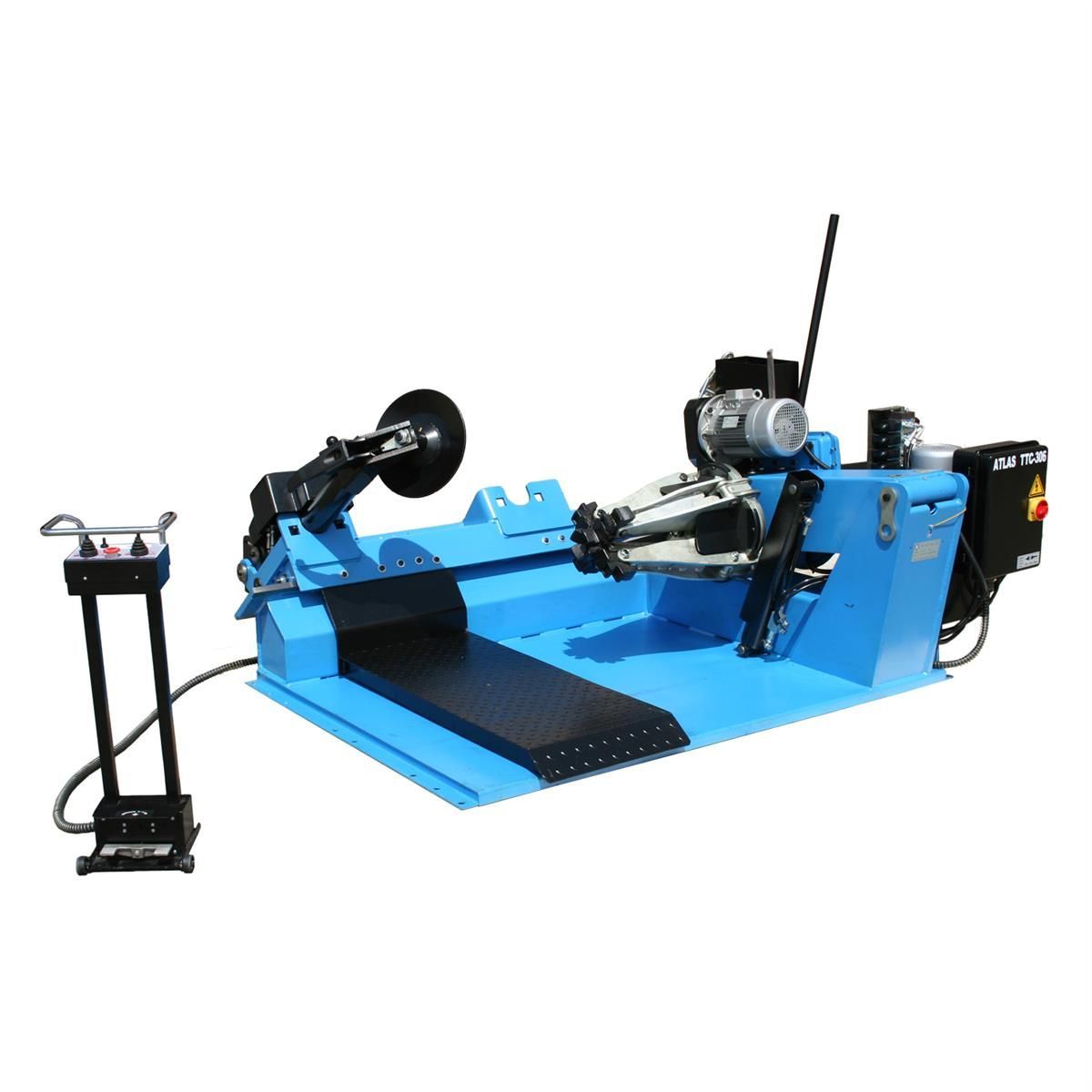

Atlas TTC-306 Deluxe Automated Truck Tire Changer 3-Phase

SKU: ATEATTC306-FPD

Ships from manufacturer

14"-56" rim range, 94.5" max tire diameter, 51" max tire width, Fully automated 2.2kW pump + 2.6/3.2kW dual-speed gearbox, 2690kg max bead break, 220V/3Ph, 1800kg wheel capacity

Part #: ATEATTC306-FPD

MFR #: ATEATTC306-FPD

Overview

The Ultimate in Tire Changing Technology

The Atlas TTC-306 represents the absolute pinnacle of automated tire changing equipment, engineered for operations that demand the best. This fully automated, super-duty machine combines advanced three-phase power systems with dual-speed hydraulic technology to deliver unmatched performance, speed, and reliability. The TTC-306 is the choice for high-volume tire service centers, large commercial fleets, and mega-truck specialists who require maximum automation with exceptional capability.

Exceptional Automation & Power

Dual-Speed Hydraulic Excellence

The TTC-306 features a sophisticated power delivery system combining a 2.2-kilowatt pump motor with a unique dual-speed gearbox system (2.6/3.2 kilowatt ratings). This advanced architecture delivers both fine-control precision at slower speeds and powerful performance at higher speeds, optimizing the tire changing process across all tire sizes and types. The 2690-kilogram (5930-pound) maximum bead breaking force ensures even the most stubborn tire beads separate cleanly and safely.

Massive Capacity with Complete Automation

Accommodating rim sizes from 14 to 56 inches with maximum tire diameters reaching 2400 millimeters (94.5 inches) and maximum tire widths of 1300 millimeters (51 inches), the TTC-306 handles every commercial and industrial tire application. The 1800-kilogram (3968-pound) wheel weight capacity combined with full automation makes the TTC-306 ideal for the most demanding tire service environments.

Superior Installation & Integration

Three-Phase Power for Maximum Performance

Operating on 220-volt three-phase power, the TTC-306 delivers the electrical capacity needed for simultaneous pump and gearbox operation without performance compromise. Three-phase installations are common in industrial settings, manufacturing facilities, and large service centers where this configuration aligns with existing electrical infrastructure.

Peak Efficiency for High-Demand Operations

Automation Efficiency at Scale

The TTC-306's complete automation means technicians focus on positioning tires while the machine handles all changing operations. This division of labor significantly increases daily throughput. For operations handling dozens of tire changes daily, the TTC-306 delivers the productivity gains that directly impact bottom-line profitability.

Features & Benefits

Full Automation System

Complete automated operation with minimal technician intervention

  • Fully automated tire mounting
  • Automated tire demounting
  • Synchronized dual-speed operation
  • Push-button ease of use

Super-Duty Capacity

Handles the largest commercial and industrial tires globally

  • 14-56 inch rims
  • Up to 2400mm (94.5") diameter
  • Up to 1300mm (51") width
  • 3968 lbs wheel capacity

Dual-Speed Hydraulics

Advanced power system for precision and force control

  • 2.2kW pump motor
  • 2.6/3.2kW dual-speed gearbox
  • 5930 lbs bead breaking force
  • Optimized performance profile

Three-Phase Power

Industrial-grade electrical system for maximum capacity

  • 220V/3Ph operation
  • Industrial infrastructure ready
  • Simultaneous motor operation
  • Premium power delivery

Maximum Productivity

Highest throughput for high-volume tire service

  • Complete automation
  • Minimal technician effort
  • Reduced cycle times
  • Maximum daily volume

Enterprise Reliability

Premium construction for mission-critical operations

  • Industrial-grade components
  • Redundant safety systems
  • Comprehensive diagnostics
  • Extended service intervals

Before You Buy

Free Freight Shipping

We cover all freight costs to your location in the continental United States.

Unloading Requirements

The TTC-306 weighs approximately 1048 kg (2311 lbs) and requires heavy-duty forklift, crane, or specialized rigging equipment for unloading and positioning. Please ensure adequate equipment is available at delivery.

220V 3-Phase Power Required

Three-phase 220-volt electrical connection is required. Industrial-grade electrical infrastructure is essential. Panther Lift's pre-installation assessment confirms your facility's three-phase capacity.

Compressed Air Required

Substantial compressed air supply must be available for the TTC-306's advanced dual hydraulic systems. Industrial-grade compressor capacity will be assessed during pre-installation consultation.

Professional Installation Required

Professional installation by Panther Lift is essential for proper configuration of three-phase power, dual hydraulic systems, automation synchronization, and operator training on this enterprise-grade equipment.

Industrial-Grade Floor Certification Required

Your facility's concrete floor must be certified for heavy dynamic loads. Panther Lift's pre-installation assessment confirms floor strength for rapid, continuous tire service operations.

Frequently Asked Questions

The TTC-306 accommodates rim sizes from 14 to 56 inches with maximum tire diameters of 2400 millimeters (94.5 inches) and maximum tire widths of 1300 millimeters (51 inches). It supports wheel weights up to 1800 kilograms (3968 pounds), covering all commercial, agricultural, and mining tire applications globally.
The TTC-306 is engineered for high-volume commercial tire service centers, large fleet operations, agricultural specialists, mining tire services, and mega-truck service providers. It excels in environments requiring rapid tire changes on the largest and most challenging tire assemblies.
The TTC-306 operates on 220V three-phase power, delivering maximum electrical capacity for simultaneous pump and gearbox motor operation. Three-phase power is standard in industrial facilities, manufacturing centers, and large commercial establishments.
The TTC-306 requires compressed air supply consistent with its advanced hydraulic and pneumatic systems. Given its size and capability, facility compressor capacity will be comprehensively assessed during pre-installation consultation by Panther Lift's technical team.
The TTC-306 requires a heavily reinforced, level concrete floor certified to support dynamic loads from massive tire assemblies being processed rapidly in succession. Industrial space planning is essential. Panther Lift's pre-installation assessment confirms floor strength, electrical infrastructure, and space adequacy.
Yes. Panther Lift provides professional equipment installation services throughout the United States. Our installation team handles everything from site preparation to full assembly, calibration, and final testing. Contact us to schedule an installation or to get a quote for your location.
The TTC-306 requires comprehensive monitoring of dual hydraulic systems, advanced pump and gearbox maintenance, fluid analysis programs, and preventive component replacement according to the detailed maintenance protocol. Professional maintenance service is strongly recommended for this enterprise-grade equipment.
The TTC-306 is custom configured for your specific operation requirements and delivered fully assembled. Delivery includes the complete machine, comprehensive technical documentation, advanced operator manuals, sophisticated maintenance protocols, system diagnostics guides, and custom setup instructions for your facility.
The TTC-306's unique dual-speed gearbox combines precise control at lower speeds for delicate tire positioning with powerful operation at higher speeds for rapid bead breaking and tire mounting. This sophisticated system automatically adjusts operation speed according to the task phase, optimizing both safety and efficiency.
Yes. Comprehensive, advanced operator training is provided as part of professional installation. Training covers safe operation of fully automated systems, dual-speed gearbox management, advanced hydraulic system operation, sophisticated maintenance protocols, system diagnostics, and best practices for maximum equipment performance and operator safety.
The TTC-306's exceptional 94.5-inch tire diameter capacity, 51-inch tire width accommodation, and 5930-pound bead breaking force, combined with full automation, make it ideal for mega-truck fleets, mining haul trucks, and specialized industrial tire services. Its dual-speed hydraulics manage the unique challenges of extreme-duty tire applications.
Unlike mid-duty automated tire changers, the TTC-306 combines super-duty capacity with full automation and dual-speed hydraulics. It handles massive tires at high speed while maintaining precision, making it the only choice for high-volume operations processing the largest and most challenging tire assemblies.
