ATEATTC289-FPD

Atlas Automotive Equipment

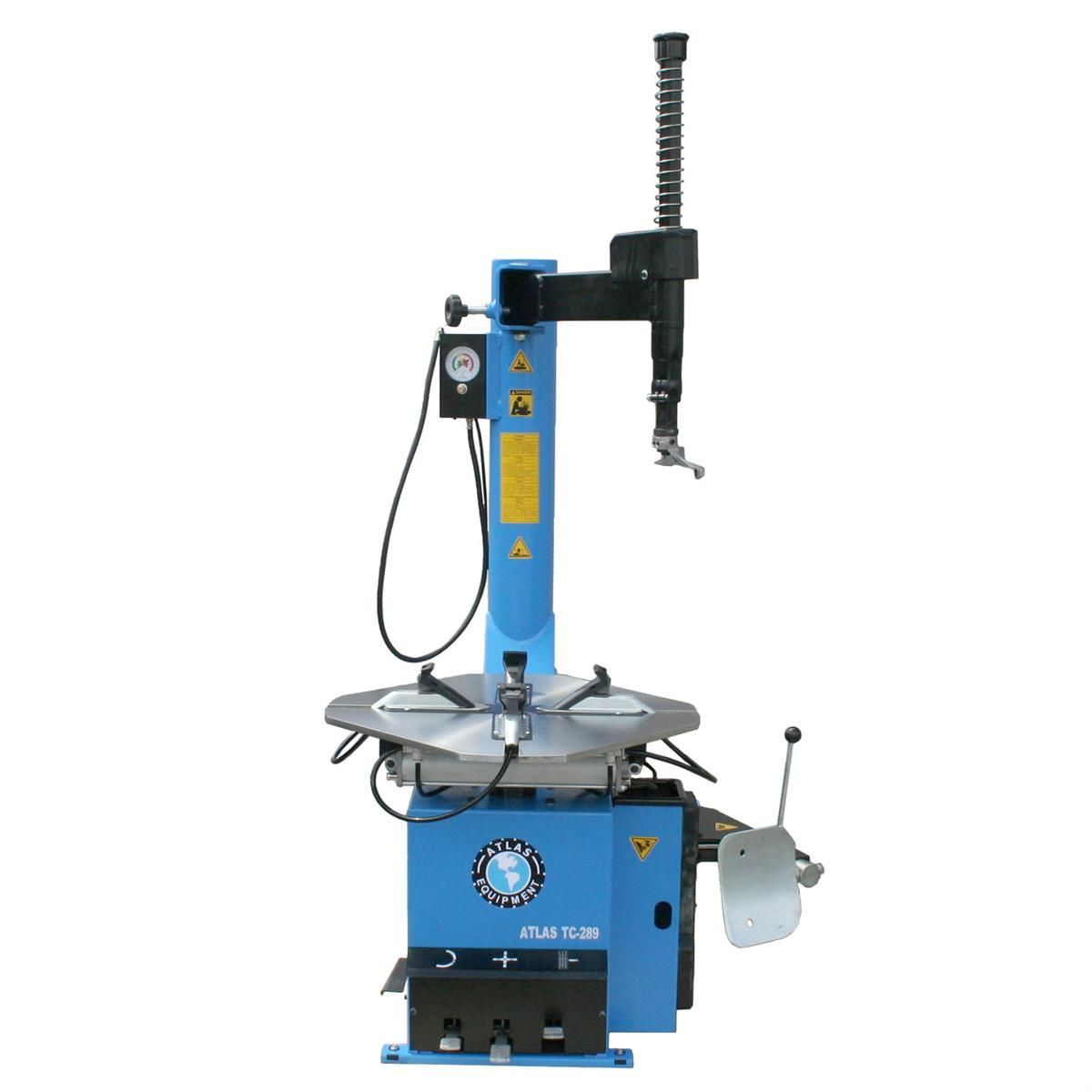

Atlas TC289 Tilt-Back 12-28in Beadblaster Large Rim Tire Changer

SKU: ATEATTC289-FPD

Ships from manufacturer

Tilt-back design for large rims, 12-28in external rim clamp, 45in max tire diameter, built-in bead blaster, assist arm compatible, 3000 lbs bead breaker force, 110V or 220V, 8-10 bar air supply, light truck and SUV wheels

Part #: ATEATTC289-FPD

MFR #: ATEATTC289-FPD

Large Wheel Tire Changer with Advanced Seating System

Design for Large Rim Applications

The Atlas TC289 introduces a tilt-back mechanism specifically engineered for large wheel and tire applications common on light trucks, SUVs, and specialty vehicles. This design pivots the head backward to provide superior access and leverage for oversized rims, reducing operator strain and improving precision during tire mounting and demounting operations. The tilt-back feature accommodates wheels up to 28 inches with tire diameters reaching 45 inches, making it ideal for modern truck and SUV fleets.

Capacity and Performance Specifications

The TC289 supports rim clamping from 12 to 28 inches external diameter, covering a wide range of light truck and SUV applications. The maximum tire diameter capability of approximately 45 inches handles large, aggressive tread patterns and reinforced tire constructions. The bead breaker system generates approximately 3000 pounds of force, providing additional breaking power for tougher tire-to-rim bonds common in larger tire formats. The integrated bead blaster system facilitates rapid and safe bead seating across all tire types handled by this equipment.

Versatile Power Options and Advanced Features

Flexible Electrical Supply

The TC289 offers dual voltage capability with both 110V and 220V operation, providing flexibility for facilities with varying electrical infrastructure. This dual-voltage design allows shops to integrate the TC289 into existing power systems or take advantage of higher voltage for improved performance in high-volume environments. The compressed air requirement of 8-10 bar remains consistent across both voltage settings, simplifying pneumatic system integration.

Assist Arm Compatibility and Installation

The TC289 is designed with assist arm compatibility, allowing optional installation of external arm equipment to further reduce operator fatigue on large tire applications. This modular approach enables shops to upgrade capability as their service mix evolves. Weighing approximately 750 pounds, the TC289 ships fully assembled and requires professional installation for optimal floor mounting, electrical connection, and pneumatic integration. The robust construction and powerful bead breaker make this equipment suitable for high-volume, full-service tire operations.

Features & Benefits

Tilt-Back Large Rim Design

Tilt-back mechanism provides superior access and leverage for large wheels, reducing operator fatigue and improving precision on oversized rim applications.

  • Tilt-back pivoting head
  • Large rim access
  • Operator ergonomics
  • Precision positioning

12-28 Inch Rim Clamp Range

Accommodates large light truck and SUV wheels with external clamping from 12-28 inches, extending beyond standard passenger vehicle wheel sizes.

  • 12-28in external clamp
  • Light truck capable
  • SUV wheel support
  • Oversized wheel range

Built-in Bead Blaster System

Integrated pneumatic bead seating system efficiently handles large tire constructions and challenging bead seating on reinforced sidewalls.

  • Pneumatic bead seating
  • Large tire capable
  • Reinforced sidewall support
  • Controlled air pulses

3000 lbs Bead Breaker Force

Enhanced bead breaking power for large and reinforced tire constructions with stubborn bead-to-rim bonds requiring additional force.

  • 3000 lbs breaking force
  • Large tire support
  • Powerful separation
  • Tough bonding handling

Dual Voltage 110V/220V Power

Flexible electrical operation accommodates both standard single-phase 110V and higher-capacity 220V power systems for improved performance options.

  • 110V or 220V operation
  • Flexible infrastructure
  • Performance options
  • Installation flexibility

Assist Arm Compatible

Designed to support optional tire changer assist arm equipment for further reduction of operator fatigue on large rim and tire applications.

  • External assist arm ready
  • Operator fatigue reduction
  • Optional upgrade path
  • Modular design

Before You Buy

Free Freight Shipping

Complimentary shipping to your location via freight carrier.

Unloading Requirements

This equipment weighs approximately 750 lbs. Site must have access for freight truck unloading, such as a loading dock or clear ground-level access. Receiving area should be clear of obstacles and capable of handling heavy equipment movement.

Compressed Air Required

8-10 bar (110-145 PSI) compressed air supply required. Verify your facility has adequate air volume and properly maintained air lines for continuous large-scale tire service operations.

Dual Voltage Capability

Available in 110V single-phase or 220V configurations. Specify your preferred voltage at time of order to match your facility's electrical infrastructure.

Professional Installation Recommended

For optimal performance and safety, professional installation is highly recommended. The tilt-back mechanism and larger equipment footprint require proper floor preparation and secure mounting.

Frequently Asked Questions

The TC289 supports external rim clamping from 12-28 inches, making it ideal for light truck and SUV applications. This includes large wheels that exceed the capacity of standard passenger vehicle tire changers.
The TC289 handles large and oversized tires for light trucks, SUVs, and specialty vehicles. It accommodates reinforced sidewall constructions and large tread patterns with tire diameters up to approximately 45 inches. The enhanced 3000 lbs bead breaker force makes it suitable for tough, high-grip tire designs.
Yes. The TC289 includes a built-in bead blaster system specifically optimized for large tire applications. The integrated pneumatic system efficiently seats beads on reinforced and oversized tires without damaging sidewalls or rims.
The TC289 requires compressed air at 8-10 bar (110-145 PSI). This is consistent with other Atlas tire changers, making integration with existing shop air systems straightforward. Verify your facility has adequate air volume for large-scale operations.
The TC289 offers flexible voltage options with both 110V single-phase and 220V capability. Choose the appropriate voltage based on your facility's electrical infrastructure. Both voltage options provide consistent performance.
The TC289 ships as a fully-assembled unit including the tilt-back tire changer head with integrated bead blaster, turntable base, electrical cord with dual voltage capability, and quick-connect pneumatic fittings. Mounting hardware, floor bolts, and air line adapters are included. Assist arm equipment is sold separately.
The TC289 should be installed on a level, reinforced concrete floor capable of supporting approximately 750 pounds of equipment weight plus operational forces. The floor must be able to withstand the tilt-back motion and bead breaker forces. Adequate drainage and proper preparation are essential. Professional installation is highly recommended.
Yes. Panther Lift provides professional equipment installation services throughout the United States. Our installation team handles everything from site preparation to full assembly, calibration, and final testing. Contact us to schedule an installation or to get a quote for your location.
Regular maintenance includes checking pneumatic lines, bead blaster connections, and tilt-back mechanism for leaks or wear. Lubricate all pivot points and bearing surfaces monthly. Inspect the bead breaker blade and blaster nozzles for wear. Clean the turntable, clamps, and all contact surfaces regularly. Ensure all bolts remain tight, especially those securing the tilt-back assembly. Annual professional servicing is recommended.
Yes. The TC289 is specifically designed with assist arm compatibility. Optional assist arm equipment can be installed to further reduce operator fatigue on large tire applications. Contact Panther Lift for assist arm options and compatibility details.
