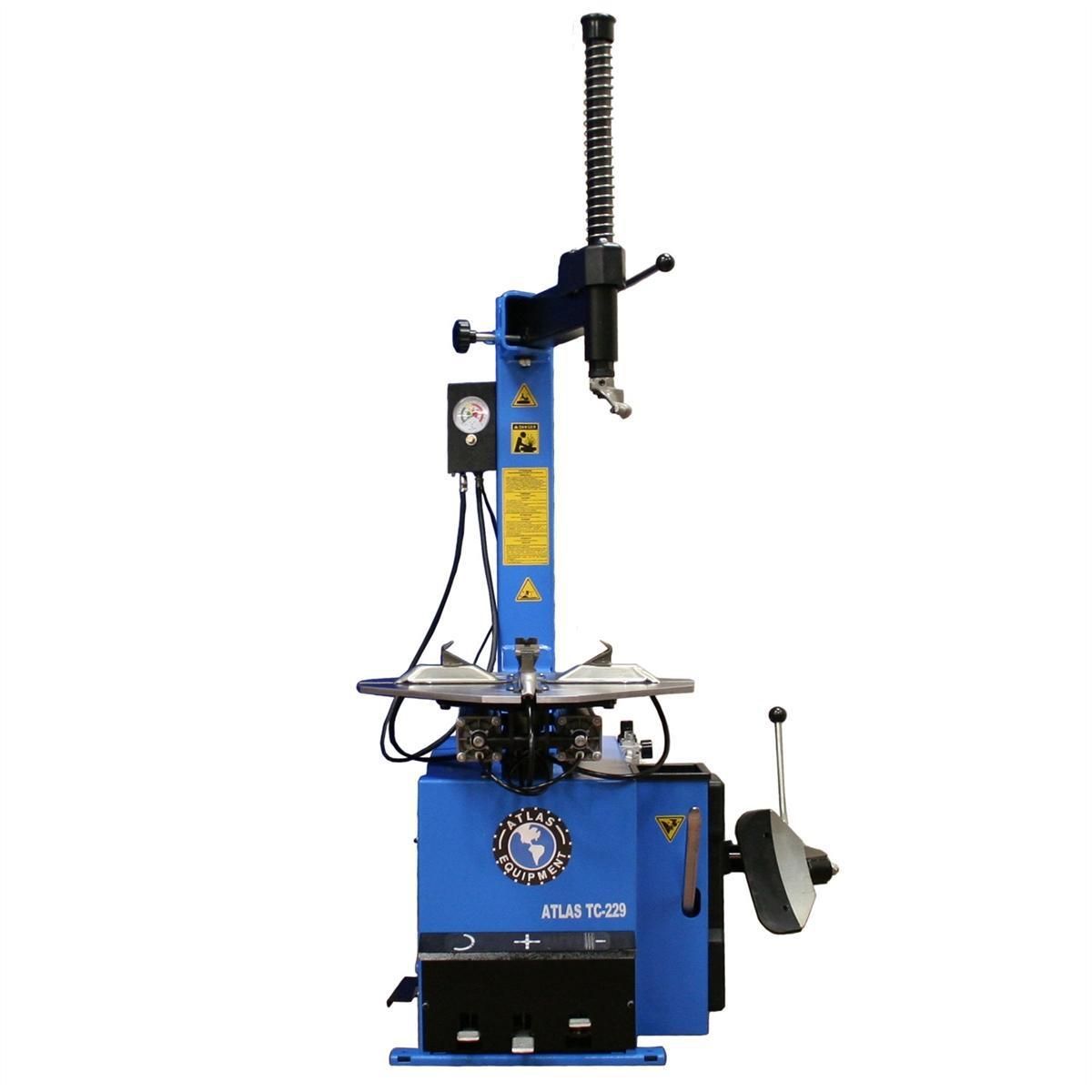

Atlas TC229 Swing-Arm 10-24in Beadblaster Tire Changer

SKU: ATEATTC229-FPD

Ships from manufacturer

Swing-arm design with built-in bead blaster, 10-24in external/12-24in internal rim clamp, 41in max tire diameter, 2500 lbs bead breaker force, 1HP turntable motor, 110V/60Hz single-phase, 8-10 bar air supply, enhanced bead seating for low-profile and run-flat tires

Part #: ATEATTC229-FPD

MFR #: ATEATTC229-FPD

Professional Tire Changer with Advanced Bead Seating

Design and Functionality

The Atlas TC229 builds on the proven swing-arm design with an integrated bead blaster system for enhanced bead seating capabilities. This addition makes the TC229 ideal for shops handling modern tire constructions, including low-profile, run-flat, and reinforced sidewall designs. The bead blaster helps seat tire beads quickly and reliably, reducing operational time and improving customer satisfaction on challenging tire applications.

Capacity and Performance

With a rim clamp range supporting 10-24 inches external and 12-24 inches internal diameters, the TC229 accommodates most passenger vehicle wheels. The maximum tire diameter capability of approximately 41 inches covers standard and low-profile configurations. The bead breaker generates approximately 2500 pounds of force for efficient bead separation, while the built-in bead blaster system provides a pneumatic assist for seating stubborn beads without damaging tire sidewalls or rims.

Technical Specifications and Advanced Features

Bead Blaster Technology

The integrated bead blaster system uses controlled compressed air pulses to seat tire beads against wheel rims, particularly effective for low-profile tires with stiffer sidewalls and run-flat designs. This system reduces manual repositioning time and increases throughput for shops handling diverse tire types. The bead blaster operates efficiently within the standard 8-10 bar air supply requirement, requiring no additional air line infrastructure.

Power and Installation

The TC229 operates on 110V single-phase 60Hz electrical power with a 1HP turntable motor providing smooth wheel rotation. Weighing approximately 600 pounds, the unit ships fully assembled and requires minimal setup. Professional installation is recommended to ensure proper floor mounting, electrical connections, and air system integration. The equipment operates efficiently in standard shop environments with adequate ventilation and proper air line maintenance.

Features & Benefits

Swing-Arm Design with Bead Blaster

Combines intuitive bead breaker positioning with integrated pneumatic bead seating system for efficient handling of modern tire constructions.

  • Controlled arm movement
  • Integrated bead blaster
  • Fast bead seating
  • Low-profile tire capable

10-24 Inch Rim Clamp Range

Accommodates standard and mid-size passenger vehicle wheels with external clamping from 10-24 inches and internal support for 12-24 inches.

  • 10-24in external clamp
  • 12-24in internal support
  • Passenger vehicle focus
  • Secure wheel positioning

Built-in Bead Blaster System

Pneumatic bead seating system handles low-profile and run-flat tire constructions without damaging sidewalls or rims.

  • Pneumatic bead seating
  • Run-flat tire capable
  • Low-profile compatible
  • Damage prevention

2500 lbs Bead Breaker Force

Powerful bead separation system efficiently handles standard and reinforced tire constructions and stubborn bead-to-rim bonds.

  • 2500 lbs breaking force
  • Reliable separation
  • Quick bead release
  • Modern tire support

110V Single-Phase Power

Standard electrical supply compatibility makes installation straightforward in most shop environments without special power upgrades.

  • 110V/60Hz operation
  • Single-phase power
  • Standard outlet
  • Easy integration

1HP Turntable Motor

Smooth rotation with controlled speed enables precise tire positioning and efficient mounting and demounting operations.

  • 1HP motor capacity
  • Smooth rotation
  • Speed control
  • Reliable operation

Before You Buy

Free Freight Shipping

Complimentary shipping to your location via freight carrier.

Unloading Requirements

This equipment weighs approximately 600 lbs. Site must have access for freight truck unloading, such as a loading dock or clear ground-level access. Receiving area should be clear of obstacles.

Compressed Air Required

8-10 bar (110-145 PSI) compressed air supply required. Verify your facility has adequate air capacity and properly maintained air lines for bead blaster operation.

110V Standard Power

Operates on standard 110V single-phase 60Hz power. Compatible with most North American electrical installations.

Professional Installation Recommended

For optimal performance and safety, professional installation ensures proper floor mounting, electrical connections, and pneumatic integration.

Frequently Asked Questions

The TC229 supports external rim clamping from 10-24 inches and internal support from 12-24 inches, covering most standard passenger vehicle wheels and some light truck applications.
The TC229 is designed for passenger vehicle tires including standard, all-season, low-profile, and run-flat designs. The integrated bead blaster makes it especially effective for reinforced sidewall and low-profile applications. It accommodates steel and alloy wheels up to 24 inches external diameter with tire diameters up to approximately 41 inches.
Yes. The TC229 includes a built-in bead blaster system that uses controlled compressed air pulses to seat tire beads against wheel rims. This is especially useful for low-profile and run-flat tires that require careful bead seating without damaging sidewalls.
The TC229 requires compressed air at 8-10 bar (110-145 PSI). The integrated bead blaster operates within this standard pressure range. Most shop compressors providing consistent air at this pressure will work well with the TC229.
The TC229 operates on 110V, 60Hz, single-phase electrical power, which is standard in most North American shops. No special electrical upgrades are typically required.
The TC229 ships as a fully-assembled unit including the swing-arm tire changer head with integrated bead blaster, turntable base, electrical cord, and quick-connect pneumatic fittings. Mounting hardware, floor bolts, and air line adapters are included.
The TC229 should be installed on a level, reinforced concrete floor capable of supporting approximately 600 pounds of equipment weight plus operational forces. The floor should have adequate drainage and be free of significant cracks or debris. A dedicated equipment pad or marked service bay is recommended.
Yes. Panther Lift provides professional equipment installation services throughout the United States. Our installation team handles everything from site preparation to full assembly, calibration, and final testing. Contact us to schedule an installation or to get a quote for your location.
Regular maintenance includes checking pneumatic lines and bead blaster connections for leaks, lubricating the swing-arm pivot points monthly, inspecting the bead breaker blade and blaster nozzles for wear, cleaning the turntable and clamps, and ensuring all bolts remain tight. Annual professional servicing is recommended for optimal performance and longevity.
The TC229 is not designed for assist arm compatibility. The swing-arm design does not support external assist equipment. For assist arm capability, consider the TC289 or TC755 models.
