ATEATTC221-FPD

Atlas Automotive Equipment

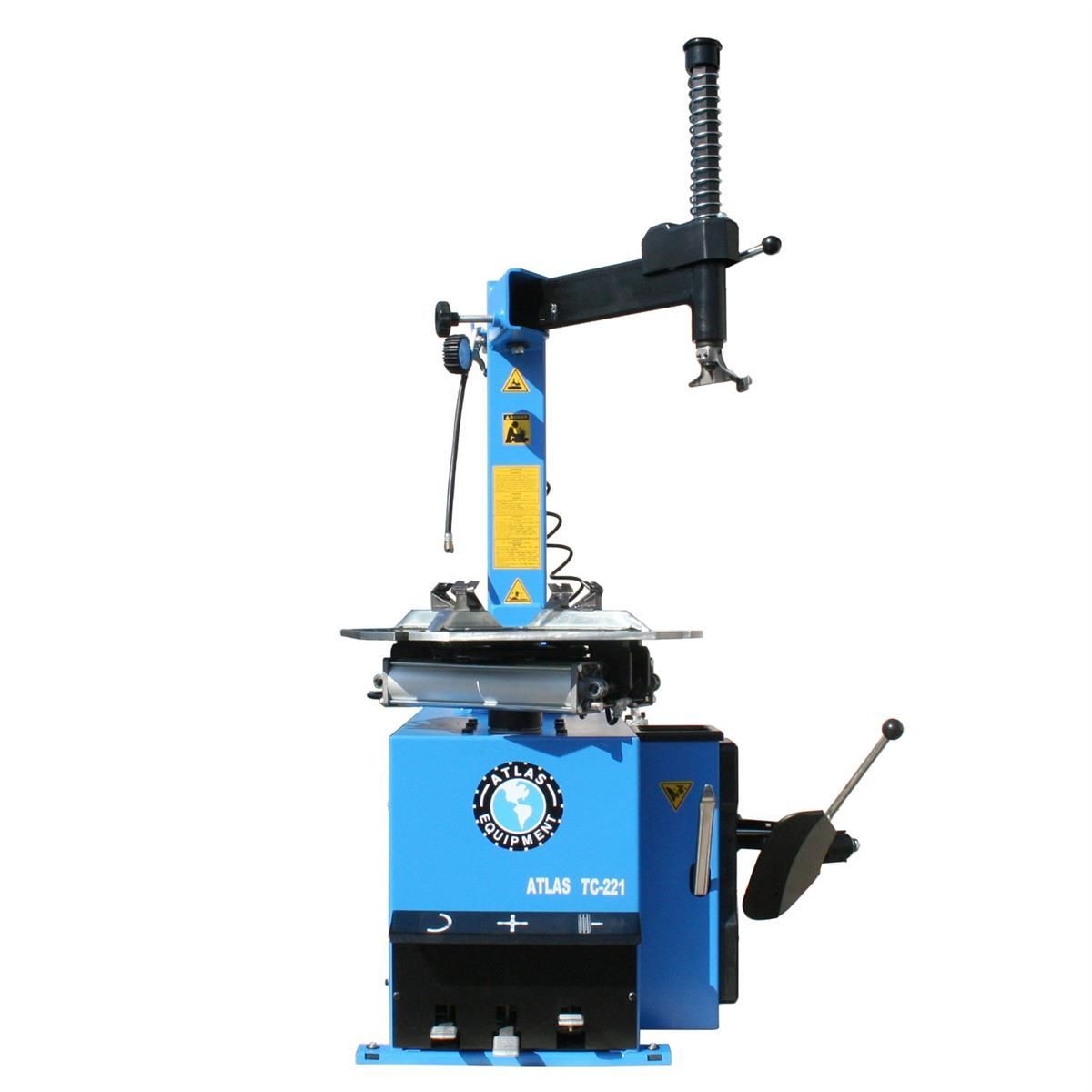

Atlas TC221 Swing-Arm 10-24in Rim Clamp Tire Changer

SKU: ATEATTC221-FPD

Ships from manufacturer

Swing-arm design, 10-24in external/12-24in internal rim clamp, 41in max tire diameter, 2500 lbs bead breaker force, 1HP turntable motor, 110V/60Hz single-phase, 8-10 bar air supply, entry-level passenger tire changer

Part #: ATEATTC221-FPD

MFR #: ATEATTC221-FPD

Professional Entry-Level Tire Changer

Design and Functionality

The Atlas TC221 is a swing-arm design tire changer engineered for high-volume tire service facilities and independent shops handling passenger vehicles. The swing-arm mechanism provides intuitive operation with smooth, controlled positioning of the bead breaker and wheel clamp assembly. This design minimizes operator fatigue while delivering consistent, professional results across diverse tire and wheel combinations.

Capacity and Performance

With a rim clamp range supporting 10-24 inches external and 12-24 inches internal diameters, the TC221 accommodates most passenger vehicle wheels. The maximum tire diameter capability of approximately 41 inches covers standard and low-profile configurations. The bead breaker generates approximately 2500 pounds of force, efficiently separating tire beads from wheel rims. The 1HP turntable motor ensures smooth rotation and positioning during the tire mounting and demounting process.

Technical Specifications and Requirements

Power and Pneumatic Systems

The TC221 operates on 110V single-phase 60Hz electrical power, standard in most North American facilities. Compressed air at 8-10 bar (110-145 PSI) drives the pneumatic components. This accessible power profile makes the TC221 an excellent choice for shops expanding their tire service capacity without substantial infrastructure modifications.

Installation and Operation

Weighing approximately 550 pounds, the TC221 ships as a fully-assembled unit requiring minimal setup. The equipment operates efficiently in standard shop environments with adequate floor space and proper ventilation. Professional installation is recommended to ensure proper floor mounting, power connections, and air line integration for optimal performance and safety.

Features & Benefits

Swing-Arm Design

Smooth, intuitive bead breaker positioning reduces operator fatigue and increases throughput for high-volume service facilities.

  • Controlled arm movement
  • Consistent bead separation
  • Ergonomic operation
  • Durable construction

10-24 Inch Rim Clamp Range

Accommodates standard and mid-size passenger vehicle wheels with external clamping from 10-24 inches and internal support for 12-24 inches.

  • 10-24in external clamp
  • 12-24in internal support
  • Passenger vehicle focus
  • Secure wheel positioning

2500 lbs Bead Breaker Force

Powerful bead separation system efficiently handles standard tire constructions and stubborn bead-to-rim bonds.

  • 2500 lbs breaking force
  • Reliable separation
  • Quick bead release
  • Consistent performance

1HP Turntable Motor

Smooth rotation with controlled speed enables precise tire positioning and efficient mounting and demounting operations.

  • 1HP motor capacity
  • Smooth rotation
  • Speed control
  • Reliable operation

110V Single-Phase Power

Standard electrical supply compatibility makes installation straightforward in most shop environments without special power upgrades.

  • 110V/60Hz operation
  • Single-phase power
  • Standard outlet
  • Easy integration

8-10 Bar Air Supply

Moderate compressed air requirement of 110-145 PSI works with most standard shop compressors and air line infrastructure.

  • 8-10 bar requirement
  • 110-145 PSI standard
  • Compatible compressors
  • Efficient pneumatics

Before You Buy

Free Freight Shipping

Complimentary shipping to your location via freight carrier.

Unloading Requirements

This equipment weighs approximately 550 lbs. Site must have access for freight truck unloading, such as a loading dock or clear ground-level access. Receiving area should be clear of obstacles.

Compressed Air Required

8-10 bar (110-145 PSI) compressed air supply required. Verify your facility has adequate air capacity and properly maintained air lines.

110V Standard Power

Operates on standard 110V single-phase 60Hz power. Compatible with most North American electrical installations.

Professional Installation Recommended

For optimal performance and safety, professional installation ensures proper floor mounting, electrical connections, and pneumatic integration.

Frequently Asked Questions

The TC221 supports external rim clamping from 10-24 inches and internal support from 12-24 inches, covering most standard passenger vehicle wheels and some light truck applications.
The TC221 is designed primarily for passenger vehicle tires, including standard, all-season, and low-profile designs. It accommodates steel and alloy wheels up to 24 inches external diameter with tire diameters up to approximately 41 inches.
The TC221 is a basic entry-level tire changer without an integrated bead blaster. For enhanced bead seating capability on low-profile or run-flat tires, consider the TC229 model which includes a built-in bead blaster system.
The TC221 requires compressed air at 8-10 bar (110-145 PSI). Most standard shop compressors providing consistent air at this pressure range will work well with the TC221.
The TC221 operates on 110V, 60Hz, single-phase electrical power, which is standard in most North American shops. No special electrical upgrades are typically required.
The TC221 ships as a fully-assembled unit including the swing-arm tire changer head, turntable base, electrical cord, and quick-connect pneumatic fittings. Mounting hardware, floor bolts, and air line adapters are included.
The TC221 should be installed on a level, reinforced concrete floor capable of supporting approximately 550 pounds of equipment weight plus operational forces. The floor should have adequate drainage and be free of significant cracks or debris. A dedicated equipment pad or marked service bay is recommended.
Yes. Panther Lift provides professional equipment installation services throughout the United States. Our installation team handles everything from site preparation to full assembly, calibration, and final testing. Contact us to schedule an installation or to get a quote for your location.
Regular maintenance includes checking pneumatic lines for leaks, lubricating the swing-arm pivot points monthly, inspecting the bead breaker blade for wear, cleaning the turntable and clamps, and ensuring all bolts remain tight. Annual professional servicing is recommended for optimal performance and longevity.
The TC221 is not designed for assist arm compatibility. The basic swing-arm design does not support external assist equipment. For assist arm capability, consider the TC289 or TC755 models.
