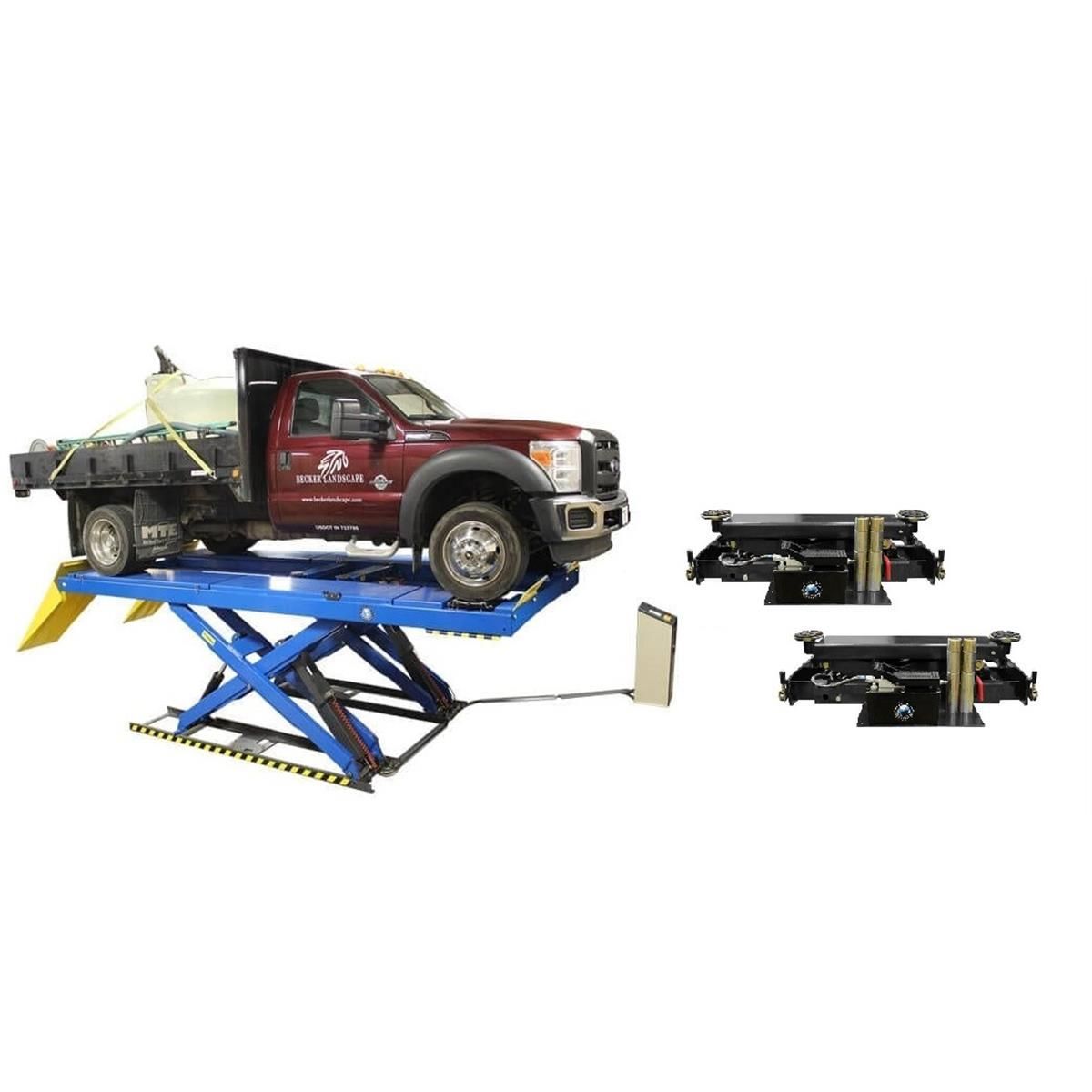

Atlas PX16A + RJ8 Combo Package

SKU: ATEATPK-PX16ACF-COMBO-FPD

Ships from manufacturer

16,000 Lb Capacity, Scissor Alignment Lift, 220V 4HP, In-Ground, Turning/Slip Plates, Includes RJ8 Rolling Jack

Part #: ATEATPK-PX16ACF-COMBO-FPD

MFR #: ATEATPK-PX16ACF-COMBO-FPD

Heavy-Duty Scissor Alignment Solution

The Atlas PX16A + RJ8 Combo Package is the ultimate scissor alignment platform for shops servicing the heaviest vehicles. This combination pairs a 16,000 lb in-ground scissor alignment lift with an 8,000 lb heavy-duty rolling jack, creating the most capable alignment and service solution in the Atlas lineup.

Atlas PX16A Specifications and Capabilities

The Atlas PX16A is a 16,000 lb in-ground scissor alignment lift with a maximum height of 73.625 inches and a minimum height of 13 inches. Powered by a 4HP motor on 220V, it delivers an 82-second rise time for the heaviest vehicles. Integrated turning and slip plates enable precision alignment on full-size trucks, commercial vehicles, and heavy SUVs. Air pressure requirements are 58-87 PSI. The in-ground installation provides a flush work surface when lowered. Shipping weight is approximately 6,132 lbs. ALI/ETL certified.

RJ8 Rolling Bridge Jack Capabilities

The RJ8 8,000 lb air/hydraulic rolling jack is the heavy-duty companion for the PX16A. With 8,000 lb capacity, it provides excellent load margin for supporting large vehicle components during alignment and service work on heavy vehicles.

Installation Requirements

The PX16A requires in-ground installation with heavy-duty pit preparation for the 16,000 lb capacity mechanism. The 4HP motor requires a 220V dedicated circuit. Compressed air at 58-87 PSI must be integrated. Professional installation through Panther Lift is essential.

Features & Benefits

16,000 Lb Heavy-Duty Capacity

The highest-capacity scissor alignment lift in the Atlas lineup handles the heaviest commercial vehicles.

  • 16,000 lb rated capacity
  • 73.625" max / 13" min height
  • 82-second rise time

Turning and Slip Plates

Precision turning and slip plates for professional alignment on heavy vehicles.

  • Heavy-duty turning plates
  • Smooth slip plate operation
  • Professional alignment accuracy

220V 4HP Motor System

Upgraded 4HP motor delivers the power needed for 16,000 lb lifting capacity with 58-87 PSI air.

  • 4HP heavy-duty motor
  • 58-87 PSI air requirement
  • 82-second rise time

In-Ground Space-Saving Design

Flush-mount installation maximizes shop floor utilization for heavy commercial operations.

  • Flush surface when lowered
  • Heavy-duty pit construction
  • Professional shop appearance

8,000 Lb Heavy-Duty Rolling Jack

The RJ8 provides heavy-duty mobile access for large vehicle components during alignment.

  • Air/hydraulic power system
  • 8,000 lb capacity
  • Heavy vehicle component support

ALI/ETL Safety Certified

Both lift and jack meet ALI and ETL safety standards for heavy commercial operations.

  • Industry-standard certification
  • Heavy-duty safety assurance
  • Professional liability protection

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded — contact us for a quote.

Unloading Requirements

This combo ships curbside via freight truck. You are responsible for offloading. A forklift or equivalent heavy equipment must be available on-site.

Frequently Asked Questions

Yes. Professional installation is essential for the PX16A due to its in-ground heavy-duty design. Panther Lift handles all pit preparation, electrical, and air integration.
The PX16A's 16,000 lb capacity handles full-size trucks, heavy SUVs, commercial vehicles, and specialty equipment that exceeds lighter lift capacities.
The PX16A requires 220V electrical with a dedicated circuit for its 4HP motor.
The PX16A operates at 58-87 PSI, lower than many scissor lifts, making it compatible with most shop compressor systems.
This combo includes the Atlas PX16A 16,000 lb in-ground scissor alignment lift with turning/slip plates, the RJ8 8,000 lb rolling bridge jack, and all documentation.
The PX16A offers 16,000 lb capacity vs 12,000 lb, a 4HP motor vs 3HP, and is designed for heavier commercial vehicles. Choose the PX16A for shops regularly servicing vehicles over 12,000 lbs.
The PX16A reaches 73.625 inches max with a 13-inch minimum, providing adequate working clearance for heavy vehicle service.
The PX16A ships at approximately 6,132 lbs. Heavy equipment is required for unloading.
Professional installation typically takes 3-5 days including pit preparation, concrete work, electrical, and air integration.
Yes, the PX16A is specifically designed for alignment work with integrated turning and slip plates rated for heavy vehicles.
