ATEAP-PWB90XL-FPD

Atlas Automotive Equipment

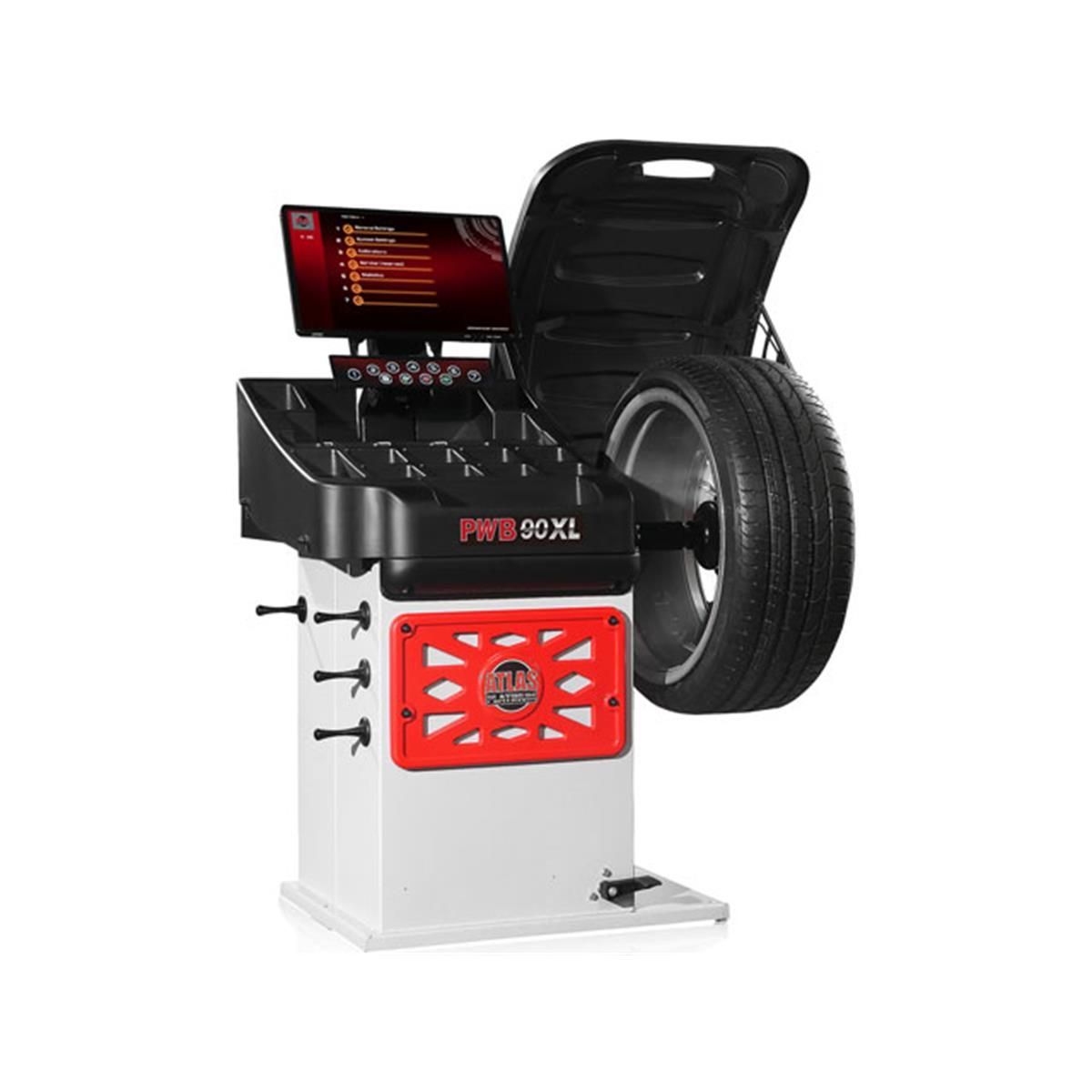

Atlas Platinum PWB90XL Self-Calibrating Computer Wheel Balancer

SKU: ATEAP-PWB90XL-FPD

Ships from manufacturer

Professional-grade XL wheel balancer with advanced self-calibration technology, delivering precision measurements at <0.5g uncertainty. Italian-engineered for high-volume tire shops and fleet operations.

Part #: ATEAP-PWB90XL-FPD

MFR #: ATEAP-PWB90XL-FPD

Professional XL Wheel Balancing Excellence

The Atlas Platinum PWB90XL represents the pinnacle of automatic wheel balancing technology. Engineered in Italy with premium components, this top-tier model delivers exceptional speed and accuracy for demanding commercial tire shops and automotive service centers. The self-calibrating system requires no manual adjustments, ensuring consistent, reliable results on every wheel.

Superior Performance Specifications

Operating at up to 150 rpm with an impressive 4.7-second cycle time (on a 5¾" × 14" wheel, 15 kg), the PWB90XL balances wheels with a measurement uncertainty of just 0.5 grams—the most precise in the Atlas Platinum line. The 0.65 kW motor provides robust power for efficient high-volume operations. Supporting rim widths from 1.5" to 20" (40-510mm) and diameters from 10" to 30" (255-765mm), this machine accommodates virtually any wheel configuration with maximum wheel weight capacity of 165 lbs (75 kg).

Advanced Features & Operator Flexibility

The PWB90XL includes an intuitive control panel with LED display, offering machine settings customization, selectable grams or ounces measurement units, and comprehensive optimization programs. Match-mounting technology automatically optimizes both tire and rim imbalance for perfect balance. Static programme, aluminum wheel programs, and the innovative SPLIT function provide flexibility for specialized balancing needs. Double operator mode enables two technicians to work simultaneously, increasing throughput.

Reliability & Certification

Engineered for demanding professional environments, the PWB90XL features self-diagnostics to identify potential issues before they impact operations. Built-in self-calibration maintains accuracy without downtime. The machine operates reliably in temperatures from 41°F to 122°F (5°C to 50°C) and generates under 70 dB(A) of noise, making it suitable for any shop environment. With IP54 protection against dust and moisture, 2-year parts warranty, and CE certification, this machine delivers years of dependable service.

Specifications & Dimensions

Dimensions measure 1100mm × 1200mm × 1480mm (43.3" × 47.2" × 58.3"), with net weight of 198 lbs (90 kg) including guard. Single-phase 110V power input (US market) makes installation straightforward in any shop.

Features & Benefits

Ultra-Fast Cycle Time

4.7-second cycle time delivers rapid throughput for high-volume operations.

  • 4.7 sec on 5¾" × 14" wheel
  • 150 rpm balancing speed
  • Maximizes daily production

Precision Measurement

Industry-leading 0.5g measurement uncertainty ensures perfectly balanced wheels.

  • 0.5g accuracy standard
  • Match-mounting optimization
  • Self-calibration technology

Intelligent Self-Calibration

Automatic calibration system eliminates manual adjustments and setup time.

  • Self-calibrating design
  • Self-diagnostics
  • Zero-downtime maintenance

Flexible Operating Modes

Double operator mode and multiple program options maximize shop efficiency.

  • Double operator capability
  • Static & ALU programs
  • SPLIT function

Universal Wheel Compatibility

Accommodates wheels from 10" to 30" diameter and 1.5" to 20" width.

  • 10-30" rim diameter
  • 1.5-20" rim width
  • 165 lb max wheel weight

Premium Italian Engineering

Built to exacting standards with 2-year parts warranty and CE certification.

  • Italian engineering
  • 2-year warranty
  • CE certified

Specifications

ModelATEAP-PWB90XL-FPD
Price
$5,599.00
Shipping Weight198 lbs
Product TypeWheel Balancers
CE CertifiedYes
Rim Diameter Range10" - 30" inches
Rim Width Range1.5" - 20" inches
Max Wheel Weight165 lbs lbs
Balancing Speed< 150 RPM RPM
Cycle Time4.7 seconds seconds
Accuracy0.5g (±0.5g) g
Motor0.65 kW HP
Voltage110V, 60Hz, 1Ph

Before You Buy

XL Tier Performance

The PWB90XL is our top-tier model with the fastest cycle time (4.7 sec) and most precise accuracy (0.5g) in the professional Platinum line.

Maintenance-Free Accuracy

Self-calibration technology ensures consistent precision without manual adjustments, reducing downtime and service costs.

Double Operator Ready

Dual-operator mode lets two technicians work simultaneously, effectively doubling your balancing capacity per shift.

Free Shipping

Free shipping on all orders within the contiguous United States.

Ships via Freight

This item ships via freight carrier. Someone must be present to receive delivery.

Frequently Asked Questions

The PWB90XL delivers 0.5g measurement uncertainty, the finest precision in the Atlas Platinum line, ensuring perfectly balanced wheels with minimal vibration.
The PWB90XL completes a full balancing cycle in 4.7 seconds on a typical 5¾" × 14" wheel (15 kg), maximizing shop throughput and reducing technician wait time.
Yes, the double operator mode allows two technicians to work on the same machine simultaneously, effectively doubling your balancing capacity per shift.
The PWB90XL accommodates rim diameters from 10" to 30" and widths from 1.5" to 20", covering motorcycles, cars, trucks, and specialty vehicles.
The machine automatically recalibrates itself using its intelligent self-calibration system, maintaining consistent accuracy without manual intervention or downtime.
The PWB90XL safely balances wheels up to 165 lbs (75 kg), including large truck and heavy-duty application wheels.
The PWB90XL operates on single-phase 110V power (US market) with 0.65 kW maximum draw, making it compatible with standard shop electrical installations.
Yes, the PWB90XL's fast 4.7-second cycle, double operator mode, and high-precision accuracy make it ideal for high-volume tire shops and fleet service centers.
The 2-year parts warranty covers all components, providing peace of mind and protecting your investment in this professional-grade equipment.
The PWB90XL generates less than 70 dB(A) of noise, allowing comfortable operation in any shop environment without disrupting other work areas.
