ATEAP-PWB70-FPD

Atlas Automotive Equipment

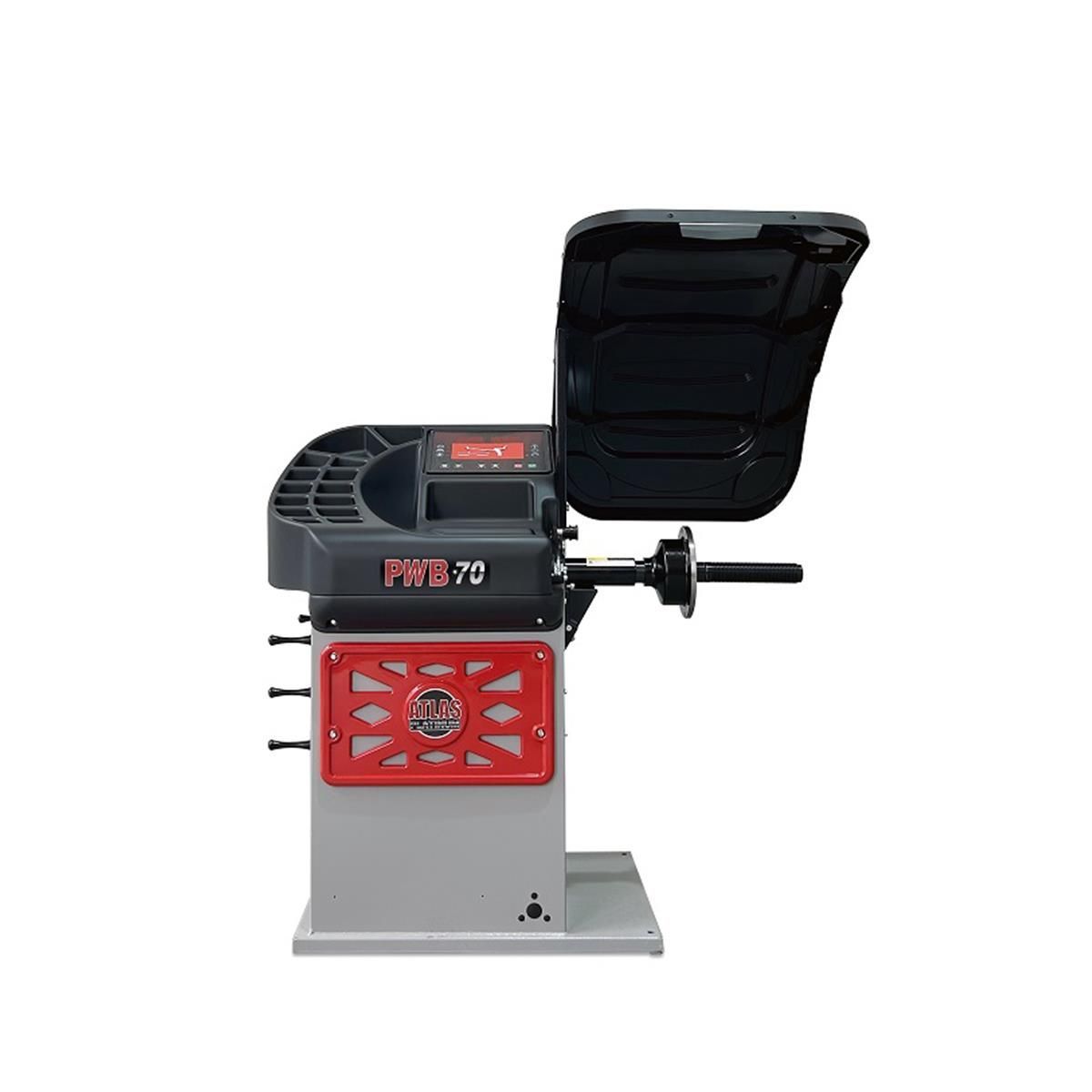

Atlas Platinum PWB70 Motorized Spin Balancer with Laser

SKU: ATEAP-PWB70-FPD

Ships from manufacturer

Mid-tier computerized wheel balancer featuring laser line guide, LED illumination, and 1-gram accuracy. Balances wheels up to 165 lbs with 7-second cycle times at 130 RPM.

Part #: ATEAP-PWB70-FPD

MFR #: ATEAP-PWB70-FPD

Advanced Balancing Technology

The Atlas Platinum PWB70 is a computer-controlled motorized spin balancer that bridges the gap between entry-level and premium models. Featuring a laser line guide for precise weight placement and LED illumination that lights the wheel interior, the PWB70 delivers professional-grade balancing performance. Operating at 130 RPM with a remarkably fast 7-second cycle time, it achieves 1-gram accuracy with a weight position resolution of just 1.4 degrees.

Comprehensive Wheel Specifications

The PWB70 accommodates tire diameters up to 43" and rim sizes from 10" to 30", with rim width compatibility ranging from 1½" to 20". The shaft accepts standard 40mm cone sizing, and the machine can balance wheels weighing up to 165 lbs. These specifications make it suitable for most automotive, light truck, and specialty vehicle applications.

Intelligent Balancing Features

The PWB70 includes both static and dynamic balancing modes with advanced functions like OPTIMATCH (match mounting), FES/Split function (hide adhesive weights behind spokes), and OPF (Opposite Position Function) for changing weight position from 12 to 6 o'clock. The Automatic 2D data entry system simplifies operation with a single data entry gauge, while the NWN (no wheel need) system provides ultimate flexibility. An electric brake with smart approach ensures controlled stopping, and automatic start/stop functionality activates when the hood is lowered or raised.

Design and Convenience

The machine requires no anchor-down installation, making it ideal for shops with flexible space requirements. An LED display provides clear feedback throughout the balancing cycle. The complete package includes plastic quick-release nut, 4 centering cones, wheel weight pliers, and measuring calipers. Self-diagnosing capabilities and USB hub support enable easy firmware updates when new features become available.

Quality and Support

Engineered in Italy with professional-grade reliability, the PWB70 carries a 2-year parts warranty and CE certification. As the middle tier between the PWB50 entry model and PWB90XL premium option, the PWB70 adds laser guidance and LED illumination for enhanced precision without the cost of the top-tier machine.

Features & Benefits

Laser Line Guide Technology

Precise laser line guide enables accurate weight placement directly on the wheel.

  • Laser line accuracy
  • Visual weight placement
  • Professional precision

LED Illumination System

LED light illuminates wheel interior for improved visibility during balancing operations.

  • Bright LED light
  • Interior visibility
  • Reduced errors

Exceptional Accuracy

1-gram accuracy with 1.4-degree weight position resolution ensures optimal balance.

  • 1-gram accuracy
  • 1.4-degree resolution
  • Premium balancing

Smart Automation Features

Automatic start/stop hood sensing and electric brake with smart approach optimize workflow.

  • Hood auto-detect
  • Smart brake control
  • 7-second cycle time

Advanced Balancing Modes

Multiple balancing functions including static/dynamic, OPTIMATCH, FES/Split, and OPF for maximum flexibility.

  • Static balancing
  • Dynamic balancing
  • Custom positioning functions

Installation Flexibility

No anchor-down installation required with self-diagnosing capability and USB firmware updates.

  • No installation needed
  • Self-diagnosing
  • USB firmware updates

Specifications

ModelATEAP-PWB70-FPD
Price
$4,399.00
Shipping Weight280 lbs
Product TypeWheel Balancers
CE CertifiedYes
Rim Diameter Range10" - 30" inches
Rim Width Range1.5" - 20" inches
Max Wheel Weight165 lbs lbs
Balancing Speed130 RPM RPM
Cycle Time7 seconds seconds
Accuracy1g (±1g) g
Voltage110V, 60Hz, 1Ph

Before You Buy

Laser Line Guide Precision

The innovative laser line guide technology enables precise weight placement, reducing errors and improving balancing accuracy for customer satisfaction.

LED Interior Illumination

LED light illuminates the wheel interior during operation, providing superior visibility for weight placement and reducing operator errors.

Mid-Tier Value

Positioned between entry-level PWB50 and premium PWB90XL, the PWB70 delivers laser and LED features at a balanced price point.

Free Shipping

Free shipping on all orders within the contiguous United States.

Ships via Freight

This item ships via freight carrier. Someone must be present to receive delivery.

Frequently Asked Questions

The laser line guide projects a precise line on the wheel, allowing technicians to place wheel weights exactly where needed for optimal balance with minimal visual estimation.
The PWB50 is entry-level without laser or LED light. The PWB70 adds laser guidance and LED illumination for enhanced precision. The PWB90XL is the premium model with additional advanced features.
No, the PWB70 requires no anchor-down installation, making it flexible for shops with changing space configurations or portable setup needs.
The PWB70 balances wheels in approximately 7 seconds, including data entry and measurement, providing excellent throughput for busy shops.
The NWN system allows balancing operations with ultimate flexibility, enabling the machine to work in various configurations and scenarios without requiring a physical wheel mounted.
Yes, with its 40mm shaft size and 1.4-degree weight resolution, the PWB70 can handle motorcycle wheels, ATV wheels, and other specialty applications within its 165 lbs weight capacity.
The FES (Front End Split) function allows technicians to hide adhesive weights behind wheel spokes, providing a cleaner appearance while maintaining perfect balance.
When the hood is lowered, the machine automatically starts the balancing cycle. When the hood is raised, it automatically stops, improving workflow efficiency and safety.
The PWB70 accommodates tire diameters up to 43", making it suitable for most commercial vehicles and large specialty tires.
Yes, the PWB70 includes a USB hub for easy firmware updates, ensuring your machine can receive new features and improvements as they become available.

Downloads & Resources

Certifications
