ATEAP-PVL9BP-FPD

Atlas Automotive Equipment

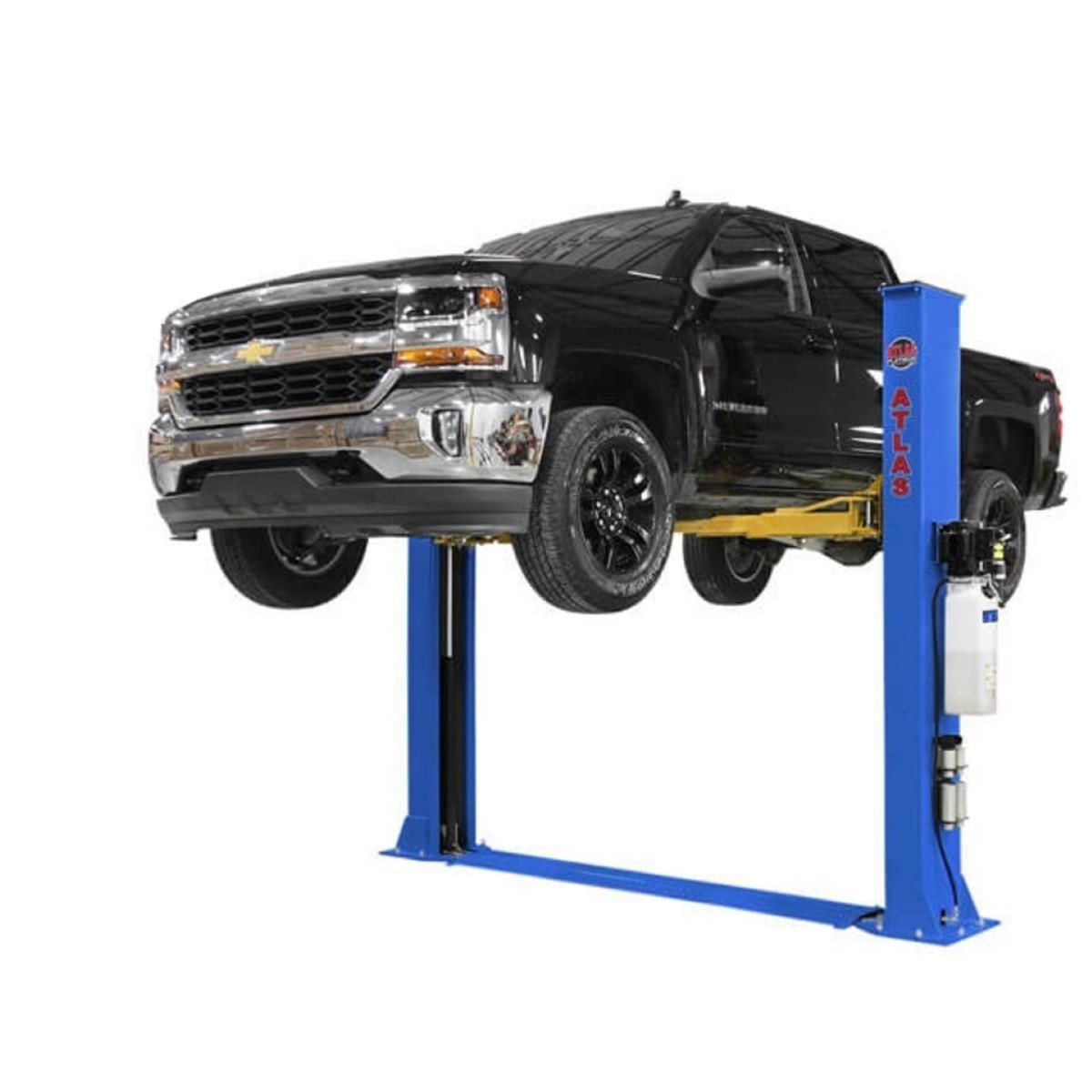

Atlas PVL9BP Platinum 9,000 lb ALI Certified Baseplate 2-Post Lift

SKU: ATEAP-PVL9BP-FPD

Ships from manufacturer

The Atlas PVL9BP brings the Platinum series' premium engineering to a baseplate-mounted 2-post configuration with 9,000 lbs of ALI-certified capacity. Featuring tri-point arm restraints, heavy-duty padded overhead shutoff bar, and the proven chain-over-cylinder equalization system, the PVL9BP delivers top-tier performance without requiring overhead structural support.

Part #: ATEAP-PVL9BP-FPD

MFR #: ATEAP-PVL9BP-FPD

Platinum-Grade Baseplate 2-Post Performance

The Atlas PVL9BP combines the premium engineering of the Platinum series with the installation flexibility of a baseplate-mounted design. With 9,000 lbs of ALI-certified lifting capacity, the PVL9BP occupies the sweet spot between the 8,000 lb standard models and the heavier 10,000+ lb lifts, making it an ideal choice for shops that regularly service a mix of passenger vehicles, SUVs, and light trucks. The baseplate design anchors directly to your concrete floor, eliminating the need for overhead structural support while providing a stable, rigid foundation.

Platinum Tri-Point Arm Restraint System

The PVL9BP features the Platinum series' tri-point arm restraint system, an advanced safety mechanism that secures each swing arm at three separate points during the lifting cycle. Traditional single-point restraints allow for some arm movement, but the tri-point design locks each arm firmly in position, preventing rotation or drift that could compromise vehicle stability. This is particularly important when working on vehicles with offset or asymmetric weight distribution.

Heavy-Duty Padded Overhead Shutoff Bar

A distinctive Platinum series feature is the heavy-duty padded overhead shutoff bar that spans between the tops of both columns. This bar serves as an automatic height limiter that contacts the vehicle and shuts off the lift motor before the vehicle can make contact with the lift structure. The padded design protects the vehicle's roof and body panels from damage while providing a reliable mechanical safety stop that functions independently of the electronic control system.

Proven Hydraulic Performance

The PVL9BP uses the same chain-over-cylinder equalization system found throughout the Atlas 2-post lineup, ensuring both columns rise in perfect synchronization regardless of load distribution. The hydraulic power unit delivers smooth, consistent lifting performance with a motor sized to handle the 9,000 lb capacity efficiently. Asymmetric and symmetric arm configurations give technicians full flexibility to position vehicles for optimal access during any service task.

Features & Benefits

ALI/ETL Certified

Independently tested and certified to Automotive Lift Institute standards for safe professional use with 9,000 lb capacity.

  • Full ALI/ETL certification
  • Meets ANSI/ALI ALCTV standard
  • 9,000 lb rated capacity
  • Third-party verified safety compliance

Tri-Point Arm Restraints

Premium Platinum series arm restraint system locks each arm at three points for superior stability during lifting.

  • Three-point locking per arm
  • Prevents arm rotation under load
  • Automatic engagement during lift
  • Enhanced vehicle stability

Padded Overhead Shutoff Bar

Heavy-duty padded bar provides automatic height limiting to protect vehicles from contact with the lift structure.

  • Automatic motor shutoff
  • Padded vehicle protection
  • Mechanical safety stop
  • Independent of electronic controls

Asymmetric & Symmetric Arms

Dual arm configuration handles both offset door-clearance positioning and centered heavy-vehicle lifting.

  • Asymmetric mode for door clearance
  • Symmetric mode for balanced lifting
  • 3-stage telescoping arms
  • Wide range of pickup points

Chain-Over-Cylinder Equalization

Proven equalization system ensures both columns rise in perfect sync regardless of vehicle weight distribution.

  • Synchronized column movement
  • Even lifting under unequal loads
  • Smooth consistent operation
  • 220V single-phase power

Baseplate Floor Mount

Direct floor-mount design anchors securely to concrete without requiring overhead structural support.

  • Anchors directly to concrete floor
  • No overhead structure required
  • Minimum 4.5" concrete depth
  • 3,000 PSI minimum concrete strength

Specifications

ModelATEAP-PVL9BP-FPDATEAP-PVL9BP
Price
$5,449.00
$5,049.00
Shipping Weight~1,800 lbs~1,800 lbs
Lifting Capacity9,000 lb lbs9,000 lb lbs
Lift ConfigurationSymmetricSymmetric
Rise Height78" "78" "
Overall Height143 in143 in
Overall Width138138
Drive-Thru Clearance106"106"
Inside Columns117"117"
Voltage220V Single Phase220V Single Phase
ALI/ETL CertifiedALI CertifiedALI Certified
Colors AvailableBlueBlue

Before You Buy

ALI/ETL Certified

The PVL9BP has been independently tested and certified by the Automotive Lift Institute to meet ANSI/ALI ALCTV safety standards for professional automotive lifting equipment.

Platinum Series Premium Features

Tri-point arm restraints, padded overhead shutoff bar, and enhanced build quality deliver the highest level of safety and vehicle protection in the Atlas baseplate lineup.

Free Freight Shipping

This lift ships freight-free to commercial addresses within the continental United States. Residential deliveries may require additional arrangements.

Unloading Requirements

A forklift or loading dock is required to unload this lift from the delivery truck. Please ensure you have appropriate equipment available on delivery day.

Concrete Requirements

Minimum 4.5 inches of reinforced concrete rated at 3,000 PSI or greater is required for proper anchor holding strength and safe operation.

Padded Vehicle Protection

The heavy-duty padded overhead shutoff bar automatically stops the lift motor before the vehicle contacts the lift structure, protecting roofs and body panels.

Frequently Asked Questions

The PVL9BP requires a minimum concrete depth of 4.5 inches with a minimum compressive strength of 3,000 PSI. The concrete must be in good condition without cracks or deterioration in the anchor zones. Steel-reinforced concrete is recommended for optimal holding strength.
The Platinum series designation reflects premium features including the tri-point arm restraint system, heavy-duty padded overhead shutoff bar, and enhanced build quality. These features provide additional safety and vehicle protection beyond what is found on standard Atlas 2-post lifts.
The PVL9BP requires 220V single-phase power at 60Hz. A dedicated circuit is required to power the hydraulic motor. Standard shop electrical service typically supports this requirement.
Yes. Panther Lift partners with a nationwide network of certified lift installers who can handle the complete installation process, from concrete assessment through final safety inspection. Contact our team after purchase to schedule professional installation in your area.
Yes. The 9,000 lb capacity handles most standard trucks and SUVs with ease. The asymmetric and symmetric arm configurations provide flexible vehicle positioning for a wide range of vehicle types and sizes.
The padded overhead shutoff bar spans between the tops of both columns and automatically shuts off the lift motor when the vehicle contacts it, preventing the vehicle from rising into the lift structure. The padded surface protects the vehicle's roof and body from damage.
The PVL9BP provides 1,000 lbs of additional capacity (9,000 vs 8,000) and includes Platinum-grade features like the tri-point arm restraint system and padded overhead shutoff bar. It represents a premium tier within the Atlas baseplate 2-post lineup.
Regular maintenance includes periodic inspection of hydraulic fluid levels, lubrication of moving parts and pivot points, inspection of lift cables and chains for wear, and verification of safety lock engagement. Atlas recommends a maintenance check at least every 3 months for commercial use or annually for lighter-use shops. Always follow the maintenance schedule outlined in the owner's manual.
The PVL9BP provides a generous rise height that delivers comfortable standing-height access for undercarriage work. The multi-position lock ladder allows technicians to park the lift at various heights throughout the travel range.
The Atlas PVL9BP includes a comprehensive manufacturer warranty covering structural components and the hydraulic power system. Contact Panther Lift for complete warranty terms and coverage details specific to your purchase.
