ATEAP-PVL15-EXT-FPD

Atlas Automotive Equipment

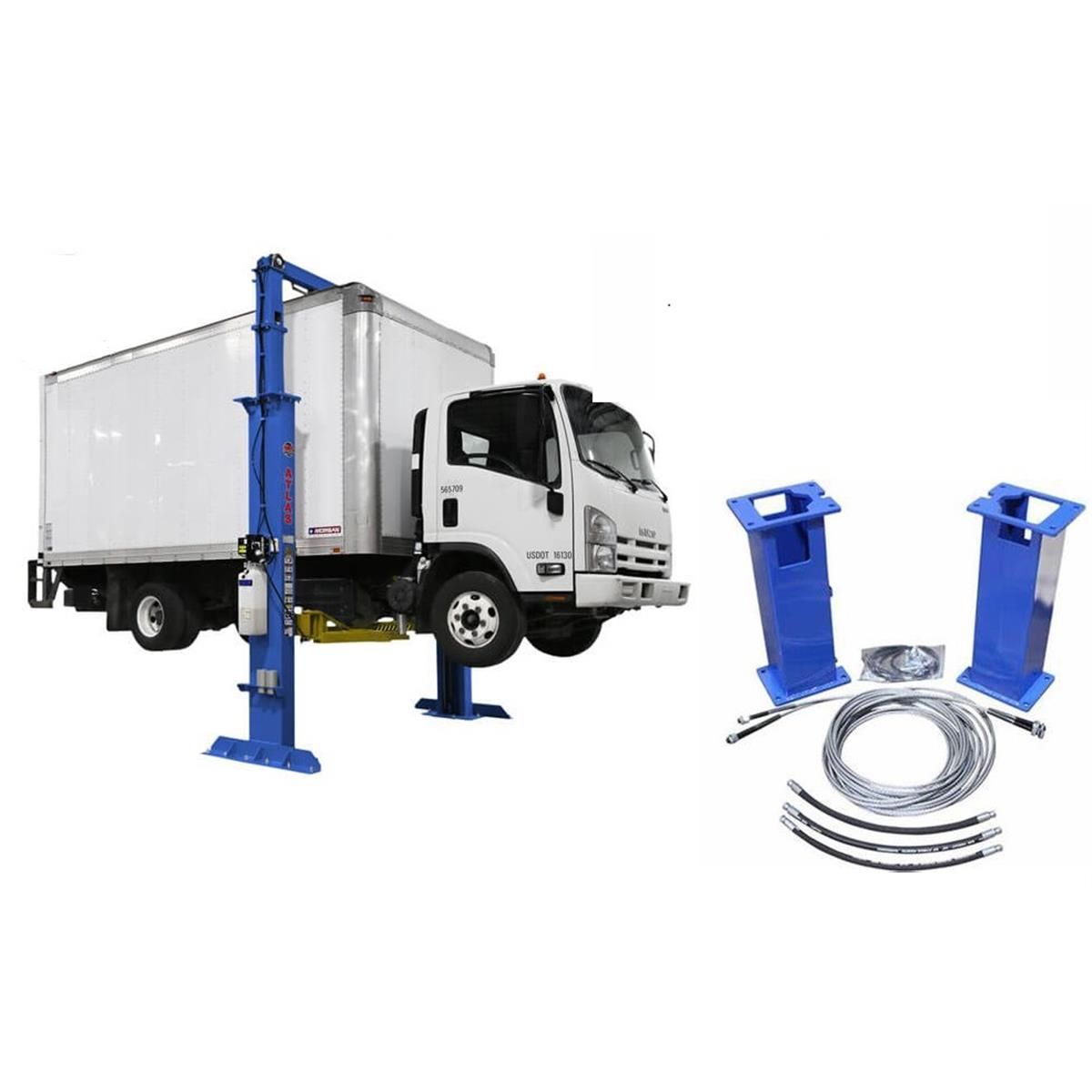

Atlas Platinum PVL15-EXT 15,000 lb 2-Post Overhead Lift with Height Extension Kit

SKU: ATEAP-PVL15-EXT-FPD

Ships from manufacturer

Heavy-duty 15,000 lb ALI-certified 2-post overhead lift with integrated 2-foot height extension kit, reaching 198½ inches for tall vehicles and commercial service applications.

Part #: ATEAP-PVL15-EXT-FPD

MFR #: ATEAP-PVL15-EXT-FPD

Overview

The Atlas Platinum PVL15-EXT combines professional-grade 15,000 lb lifting capacity with an integrated 2-foot height extension kit, delivering maximum overhead reach for commercial automotive service facilities. This complete package arrives fully engineered with extended hydraulic hoses, reinforced cables, and additional column sections designed to work seamlessly together. ALI certification guarantees compliance with industry safety standards for heavy-duty commercial applications.

Height Extension Advantage

The extension kit raises overall height from 174½ inches to 198½ inches (16'6½), requiring minimum ceiling clearance of approximately 16 feet 8 inches. This extended configuration enables shops to service taller commercial trucks, box vehicles, service vans, and specialty equipment that demand greater overhead clearance. The maximum lifting height reaches 72¾ inches, while the minimum arm height is just 6 inches, providing comprehensive coverage for diverse vehicle types.

Heavy-Duty Construction

Built with symmetric arms, padded carriages, and a professional-grade arm lock restraint system, the PVL15-EXT delivers industrial reliability. Dual direct-drive hydraulic cylinders power smooth, controlled lifting at 80 seconds per cycle, with lowering in 40 seconds. Heavy-duty 3/8 inch equalization cables maintain balanced performance across the full lifting range. The patented Double S column design provides exceptional stability, while 3-stage front arms and 2-stage rear arms ensure balanced lifting on diverse vehicle platforms. Inside column clearance of 119¼ inches (9'11¼) and drive-thru clearance of 107½ inches (8'11½) accommodate standard and wide-body vehicles without compromise.

ALLY Hydraulic Power Unit

The system includes an ALLY Hydraulic AL2300 Power Unit, MET Labs certified for US and Canada operation. This professional-grade motor features extra heavy-duty armatures with more motor windings and optimized heat generation, delivering constant torque performance. The 220V single-phase motor requires a 30 amp breaker and operates at 50-60Hz for flexible facility integration. Oil capacity is 3-5 gallons of AW32/AW46 (not included with purchase).

Comprehensive Specifications

Capacity: 15,000 lbs with ALI certification. Overall height: 198½ inches with extension (16'6½). Floor width: 148 inches (12'4). Outside column to outside column: 135 inches (11'3). Maximum lift height without adapters: 72¾ inches. Maximum lift height with adapters: 87½ inches. Minimum arm height: 6 inches. Inside column: 119¼ inches (9'11¼). Drive-thru clearance: 107½ inches (8'11½). Column size: 8 inches by 14½ inches with 8mm steel thickness. Base footprint: 21 inches by 48 inches. Adapters include 4 each of 5-inch and 10-inch heights with 2.75-inch peg size. Shipping weight: 2,750 lbs. Installation requires minimum 6-inch concrete with 3,000 psi rating.

Professional Applications

Ideal for commercial automotive service centers, fleet maintenance facilities, box truck dealers, service vehicle operations, and specialty equipment shops. The 15,000 lb capacity and extended height configuration supports medium to heavy-duty commercial vehicles, box trucks, full-size vans, delivery vehicles, and specialized commercial equipment servicing. Professional installation coordinated with Panther Lift's technical team ensures proper integration with your facility's ceiling clearance, electrical service, and concrete foundation specifications.

Features & Benefits

15,000 lb Capacity

ALI-certified heavy-duty lifting power for commercial vehicles and specialty equipment.

  • 15,000 lb maximum certified capacity
  • 6,800 kg metric equivalent
  • Medium to heavy-duty commercial applications

Extended 198½ Inch Height

2-foot height extension kit raises overall reach for tall vehicles and commercial operations.

  • 198½ inch overall height with extension kit
  • 72¾ inch maximum lift height
  • Minimum 6 inch arm height for compact vehicles

Symmetric Arm Design

3-stage front and 2-stage rear arms with chain-over-cylinder equalization for balanced performance.

  • 3-stage front arms for comprehensive reach
  • 2-stage rear arms for stability
  • Padded carriages and arm lock restraint system

Dual Direct-Drive Cylinders

Professional hydraulic performance with 80-second lift and 40-second controlled lowering cycles.

  • Dual direct-drive hydraulic cylinders
  • Heavy-duty 3/8 inch equalization cables
  • Smooth, controlled lift cycles

ALI Certified Safety

Full ALI/ETL certification with patented Double S column design for industrial-grade reliability.

  • ALI/ETL certified performance standard
  • Patented Double S column design
  • Professional-grade restraint systems

Complete Extension Package

Integrated kit includes all extended components: hoses, cables, column sections, and 8-piece truck adapter set.

  • Extended hydraulic hoses included
  • Reinforced lift cables and column sections
  • Free 8-piece truck adapter set and frame adapters

Specifications

ModelATEAP-PVL15-EXT-FPD
Price
$14,649.00
Shipping Weight2,750 lbs
Installation TypeSymmetric
Product Type2 Post Lifts
Lifting Capacity15,000 lb lbs
Rise Height72 3/4" "
ArmsSymmetric
Overall Height198 1/2" in
Overall Width148" (12' 4")
Drive-Thru Clearance107 1/2" (8' 11 1/2")
Screw Pad Height6"
Inside Columns119 1/4" (9' 11 1/4")
Motor220V 1Ph HP
Voltage220V, 60Hz, 1Ph
ALI/ETL CertifiedYes

Before You Buy

2-Foot Height Extension Included

This lift arrives with the integrated 2-foot height extension kit already included. Extended hydraulic hoses, reinforced cables, and additional column sections are factory-engineered to work together for seamless 198½-inch reach.

Free Truck Adapter Set

Includes free 8-piece truck adapter set (4 each 5-inch and 10-inch heights with 2.75-inch peg size) plus 4 screw-up frame adapters for immediate versatile positioning on diverse vehicle platforms.

ALLY Professional Power Unit

Equipped with MET Labs certified ALLY Hydraulic AL2300 power unit featuring extra heavy-duty armatures, optimized motor windings, and constant torque performance for commercial-grade reliability.

ALI Certified Safety

Full ALI/ETL certification with patented Double S column design ensures professional industrial-grade safety and structural integrity for heavy-duty commercial lifting applications.

Free Shipping

Free shipping on all orders within the contiguous United States.

Ships via Freight

This item ships via freight carrier. Someone must be present to receive delivery.

Frequently Asked Questions

With the 2-foot height extension kit installed, the PVL15-EXT reaches 198½ inches (5,040 mm) overall height, requiring minimum ceiling clearance of approximately 16 feet 8 inches for safe operation.
The extension kit adds 24 inches of height to the base PVL15 (174½ inches), resulting in the total 198½-inch working height. This additional reach enables shops to service tall commercial trucks, box vehicles, and specialty equipment.
The PVL15-EXT has a 15,000 lb (6,800 kg) ALI-certified lifting capacity, making it suitable for medium to heavy-duty commercial vehicles, box trucks, service vans, and specialty automotive equipment.
The lift cycle takes 80 seconds to raise a vehicle, while controlled lowering completes in 40 seconds. These efficient cycles support productive operations in commercial service environments.
The PVL15-EXT requires 220V single-phase power with a 30 amp breaker recommended. It operates at 50-60Hz, compatible with standard North American facility electrical service. Verify your facility has adequate power before installation.
The PVL15-EXT package includes the base 15,000 lb lift, integrated 2-foot height extension kit with extended hoses and cables, ALLY Hydraulic AL2300 power unit, free 8-piece truck adapter set, 4 screw-up frame adapters, and all mounting hardware.
Inside column clearance is 119¼ inches (9'11¼), while drive-thru clearance is 107½ inches (8'11½). These measurements ensure safe working space for wide-body vehicles and specialty commercial equipment without lateral interference.
The lift requires minimum 6-inch concrete foundation with 3,000 psi rating. Professional installation coordinated with Panther Lift ensures proper integration with your facility's structural specifications and electrical service.
The PVL15-EXT requires 3-5 gallons of AW32/AW46 hydraulic oil (not included with purchase). Verify proper oil grade and quantity before initial operation for optimal performance.
No, the PVL15-EXT is designed exclusively for commercial and professional automotive service facilities. Residential applications lack the required ceiling clearance, electrical infrastructure, and concrete foundation specifications for safe operation.
