Atlas Platinum PVL14OF-EXT 14,000 lb Open-Front 4-Post Alignment Lift with Extended Runways

Overview

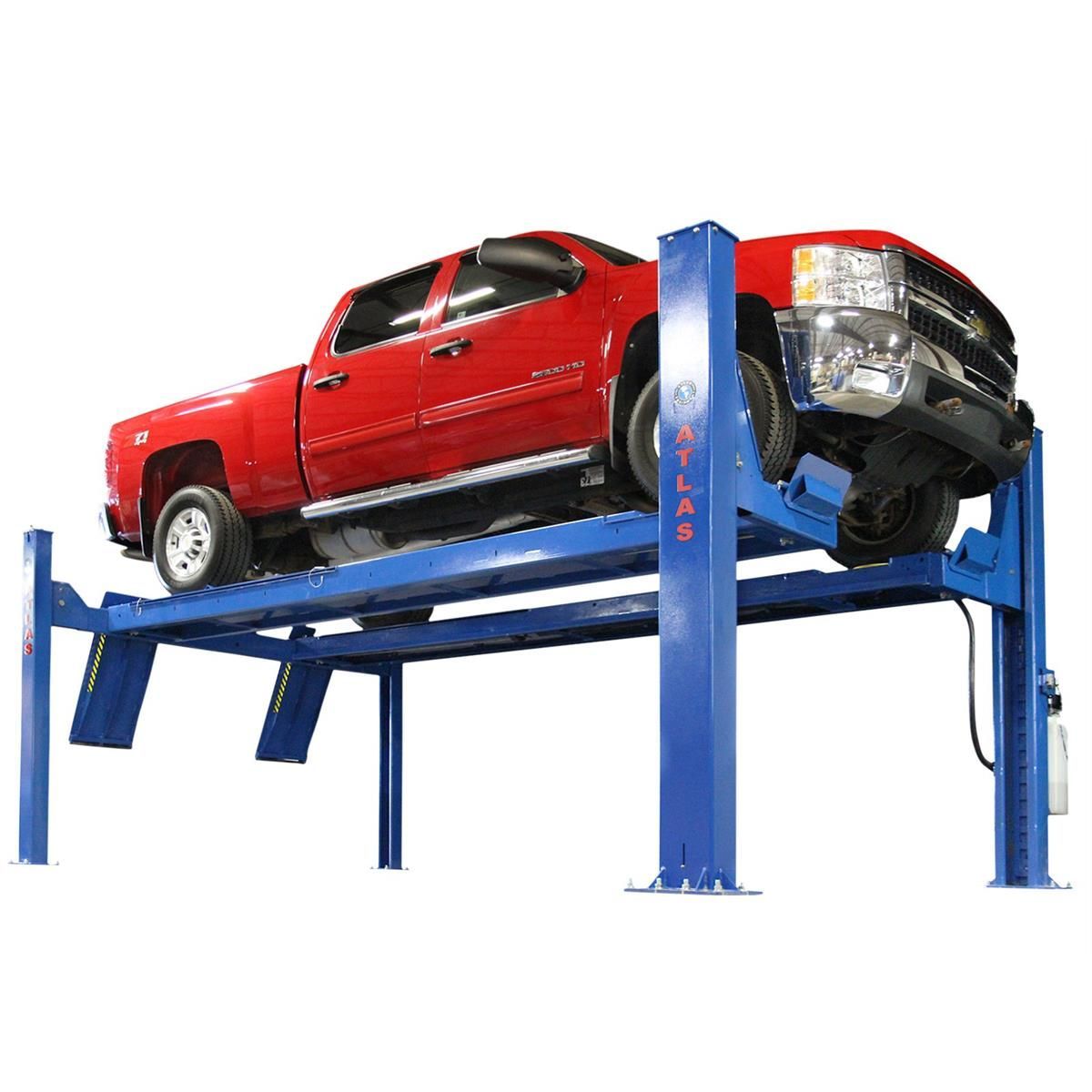

The Atlas Platinum PVL14OF-EXT is an open-front, extended-runway version of the proven PVL14 4-post lift. The open-front design (OF) eliminates the front crossbeam obstruction, providing easier drive-on access and complete freedom for alignment equipment placement. The extended runways (EXT) accommodate longer vehicles, making this lift ideal for modern automotive shops servicing everything from compact cars to extended-frame trucks. With 14,000 lbs capacity, a maximum raised height of 76¾ inches, and triple redundant safety systems, this lift delivers professional-grade performance and reliability.

Open-Front Design Benefits

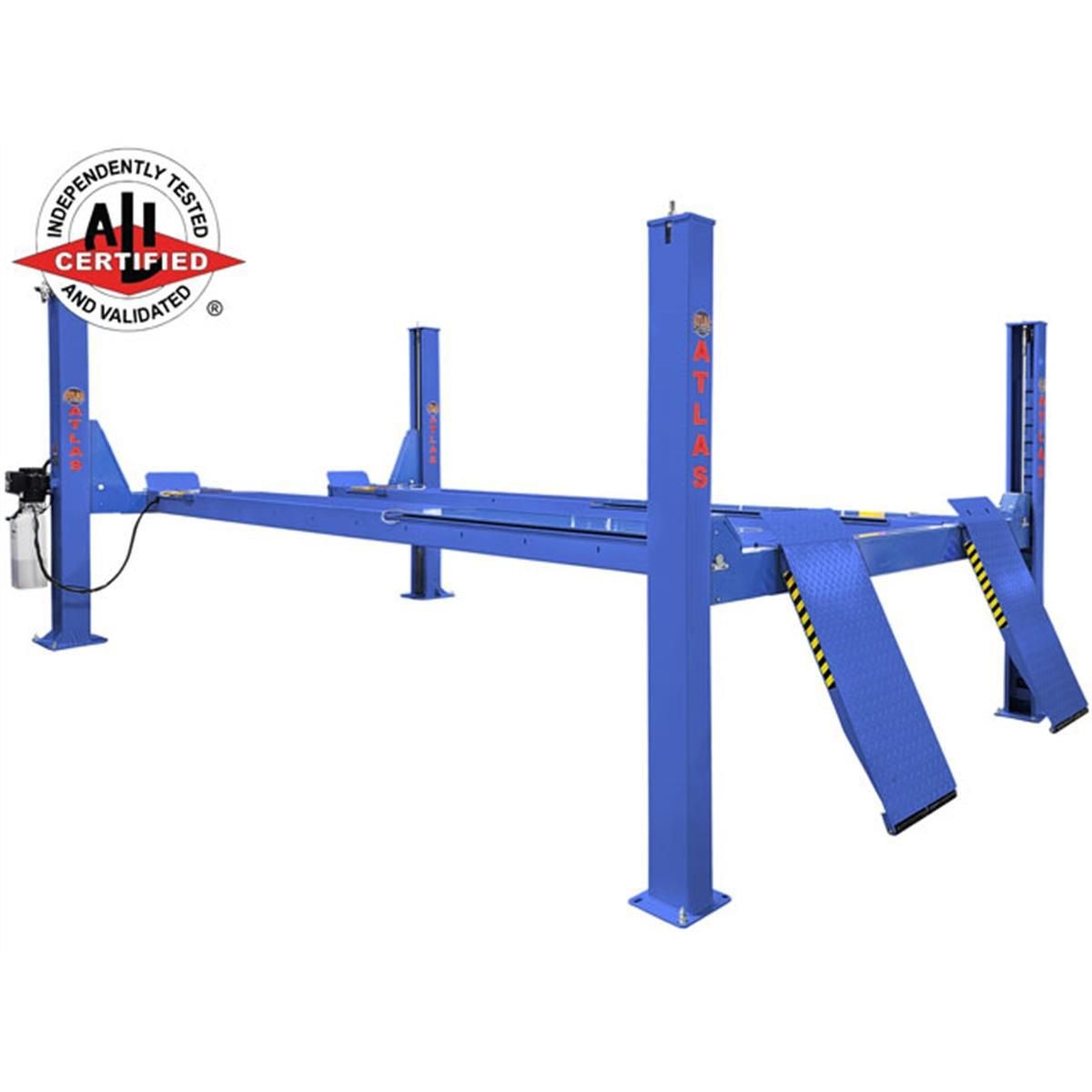

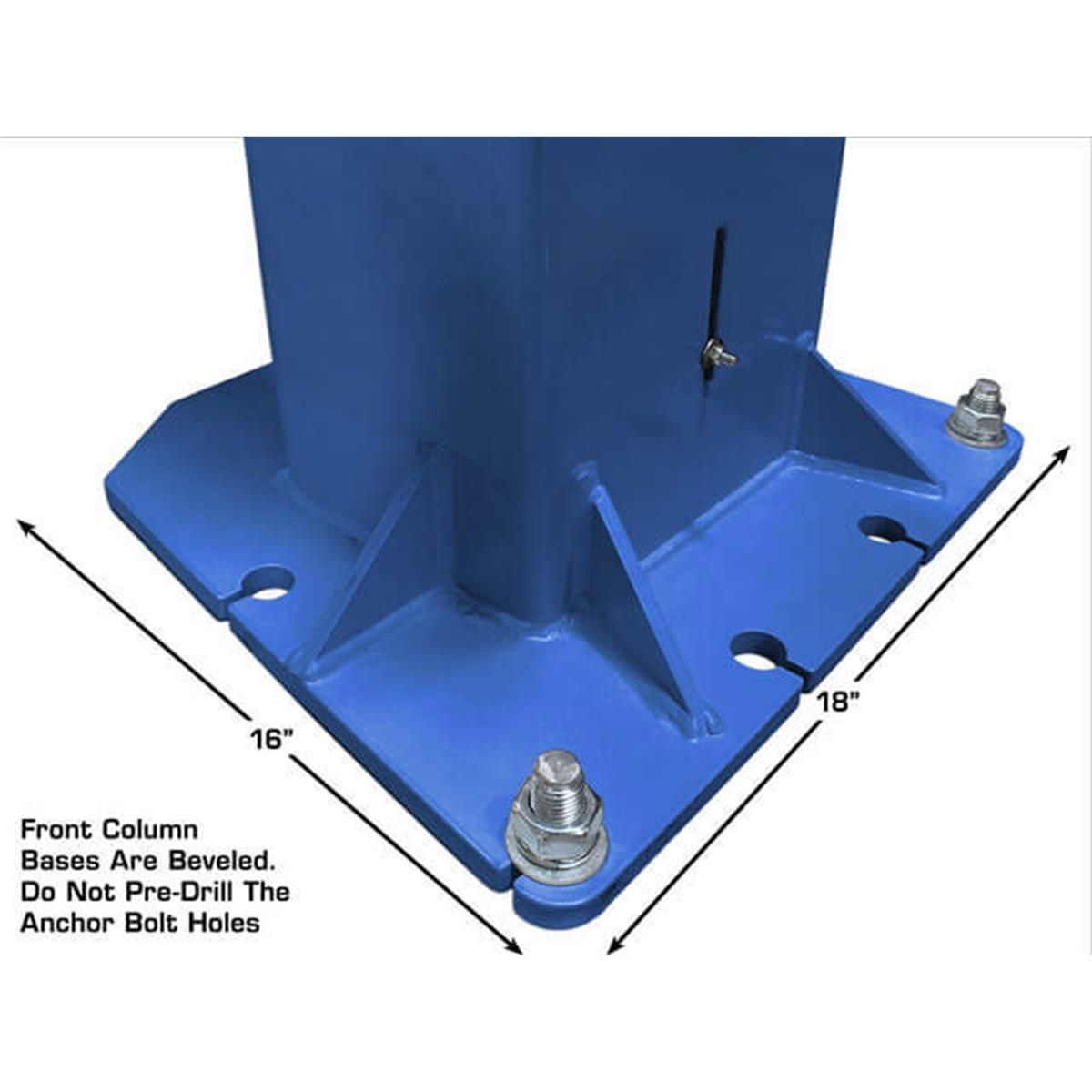

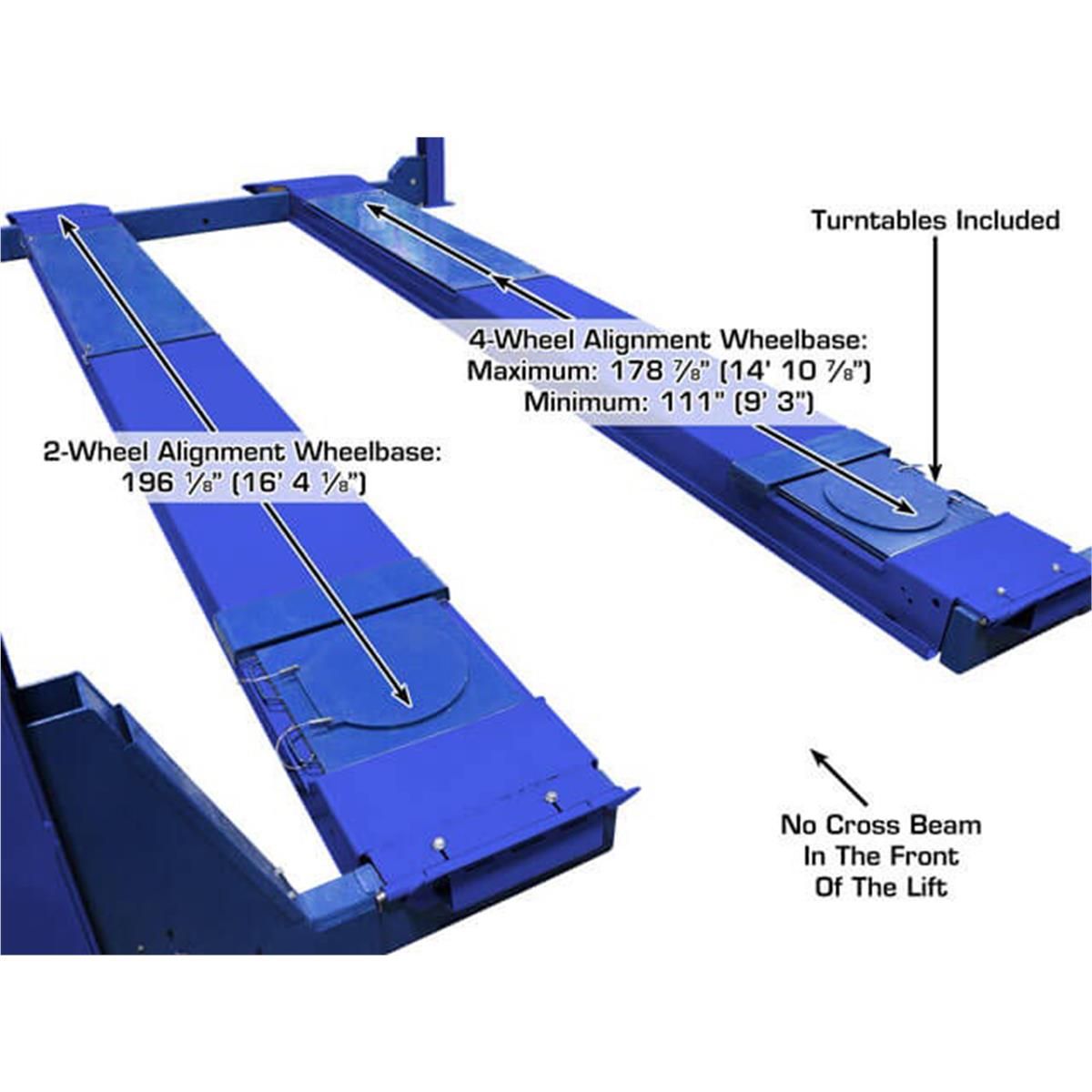

The open-front configuration removes the traditional front crossmember that can obstruct alignment equipment positioning. Technicians gain unrestricted access to turntables, slip plates, and measurement systems, allowing precise equipment placement without workarounds. This design significantly improves workflow efficiency and reduces setup time between vehicles. The 4-column design features 2 front columns and 2 rear columns with a power-side hydraulic platform and off-side platform, creating a stable yet unobstructed work environment.

Extended Runway Advantages

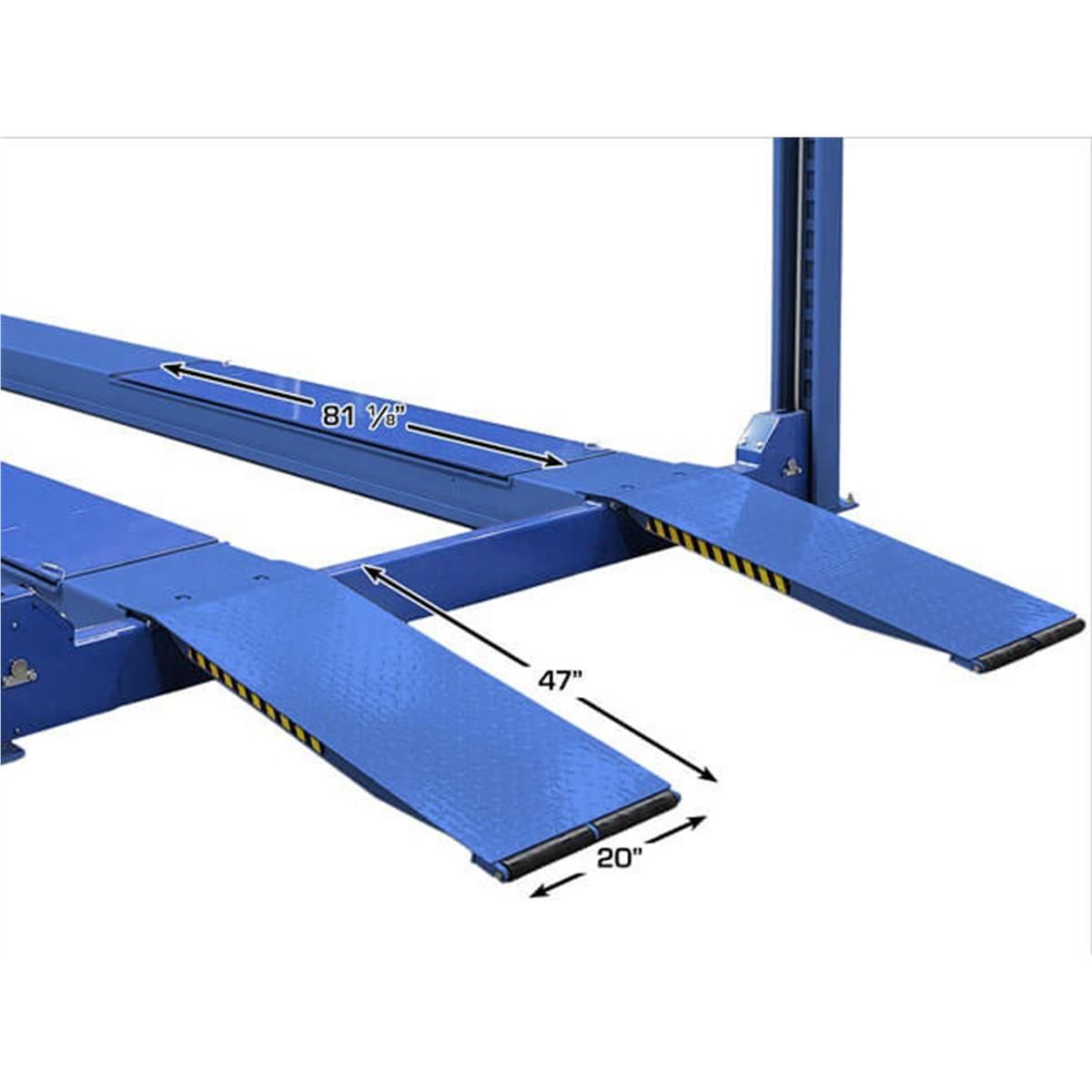

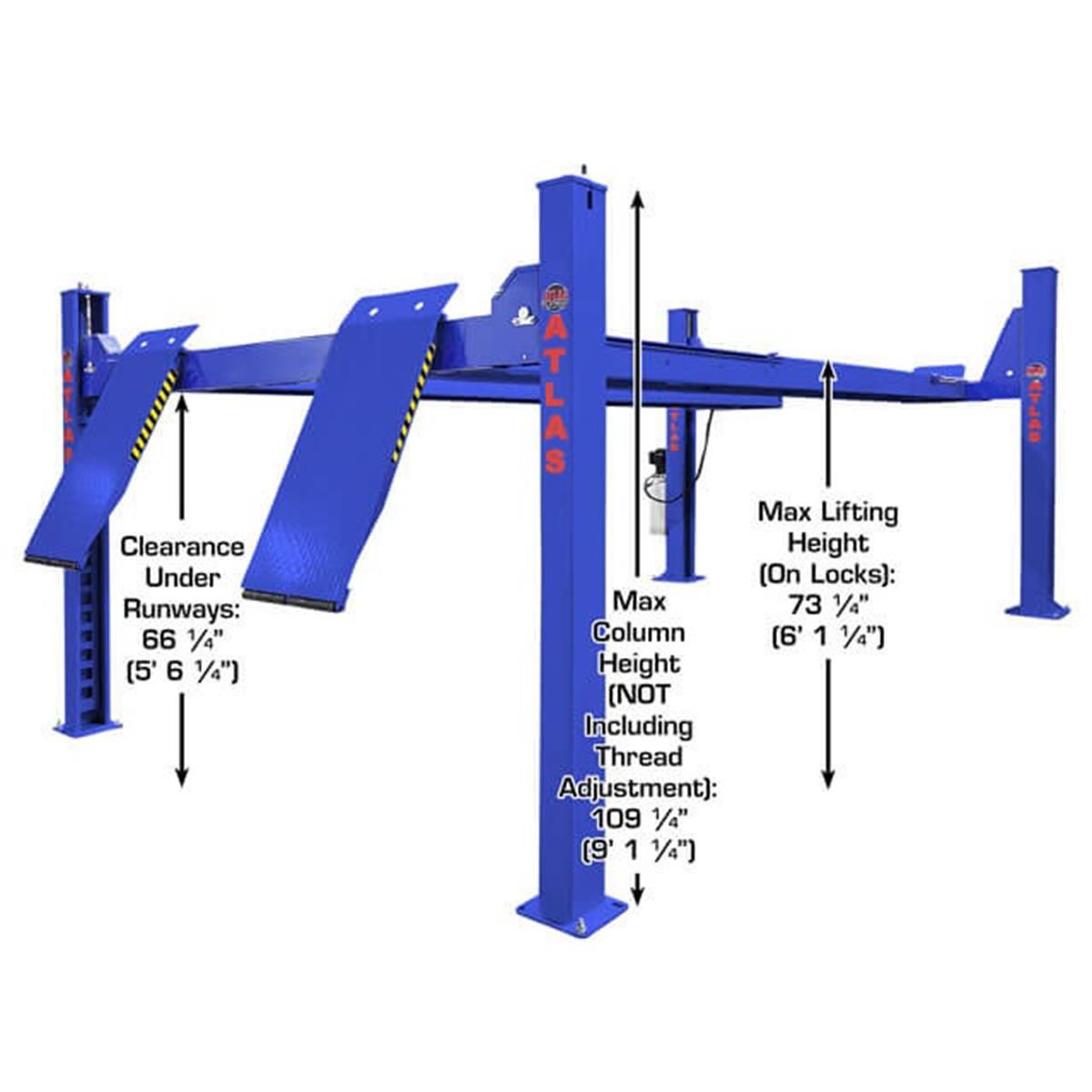

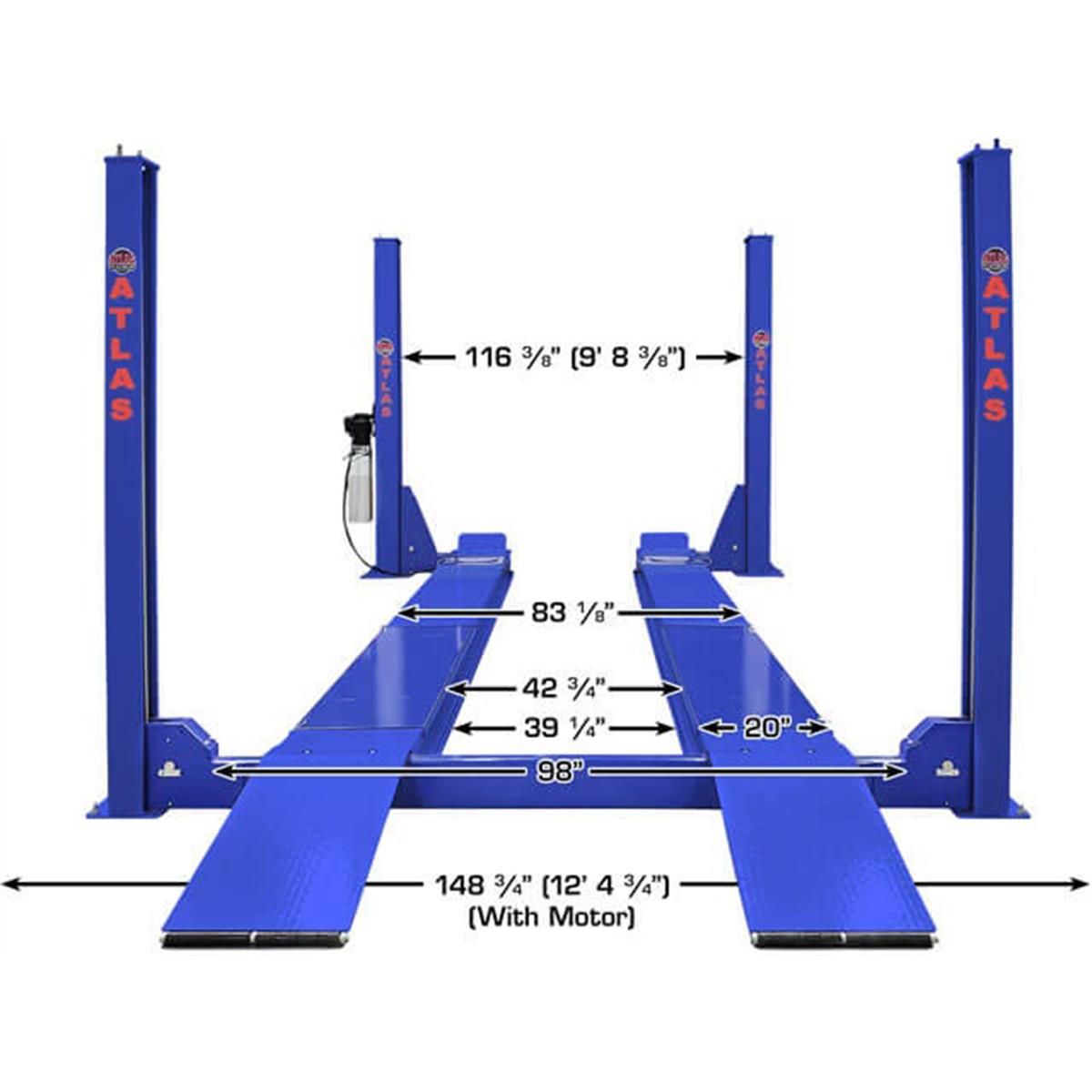

The extended runways measure 223½ inches in length with a 20-inch width, providing ample support for longer vehicles. The runway separation of 42¾ inches between platforms and 116⅜ inches between the two columns ensures proper weight distribution and stability across the entire vehicle length. Maximum overall length reaches 272⅛ inches, accommodating extended-frame trucks, commercial vehicles, and specialty automobiles. The overall height of 109¼ inches and width of 140⅛ inches ensure the lift fits within standard service bays while the minimum lowered height of just 7⅞ inches enables easy vehicle positioning.

Triple Safety System

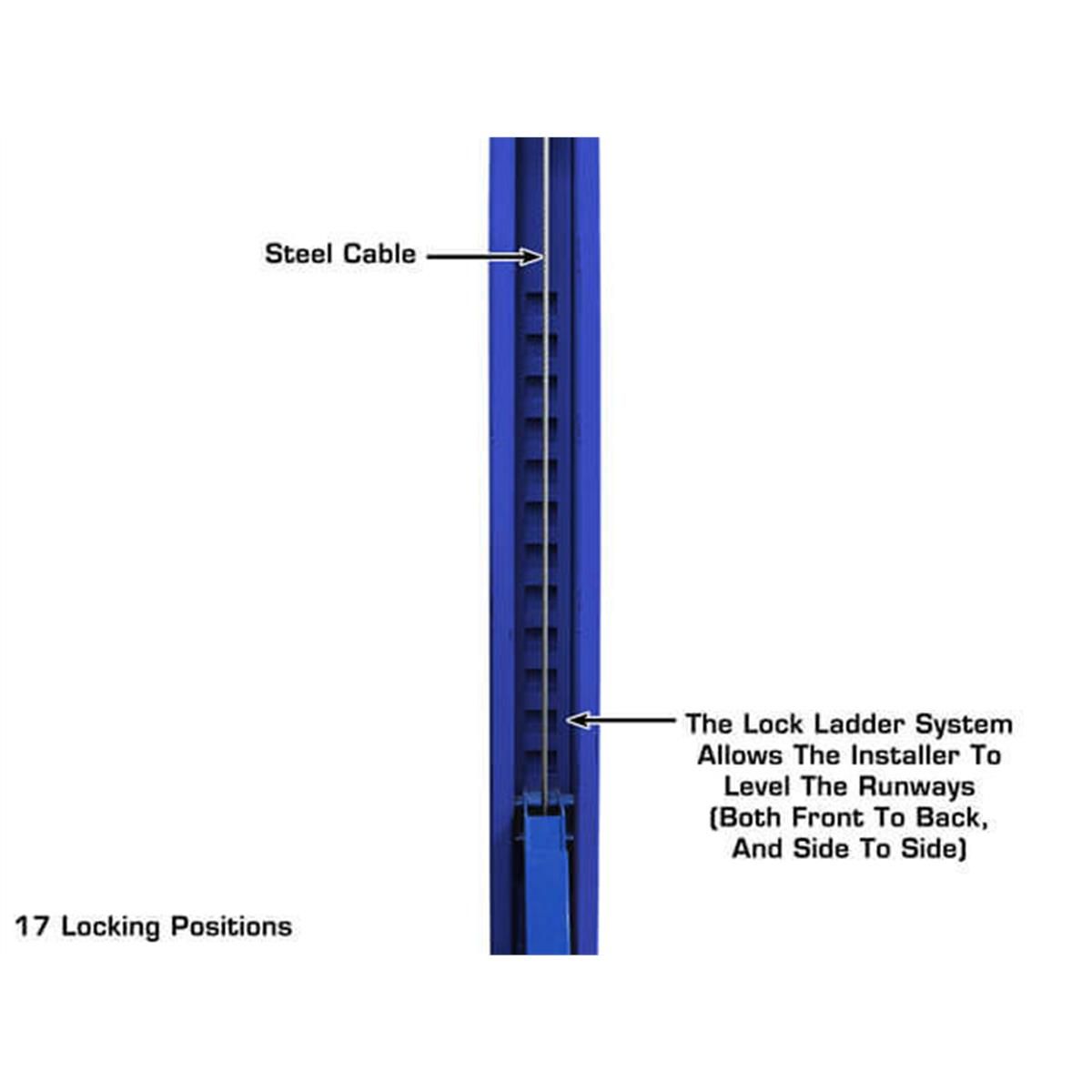

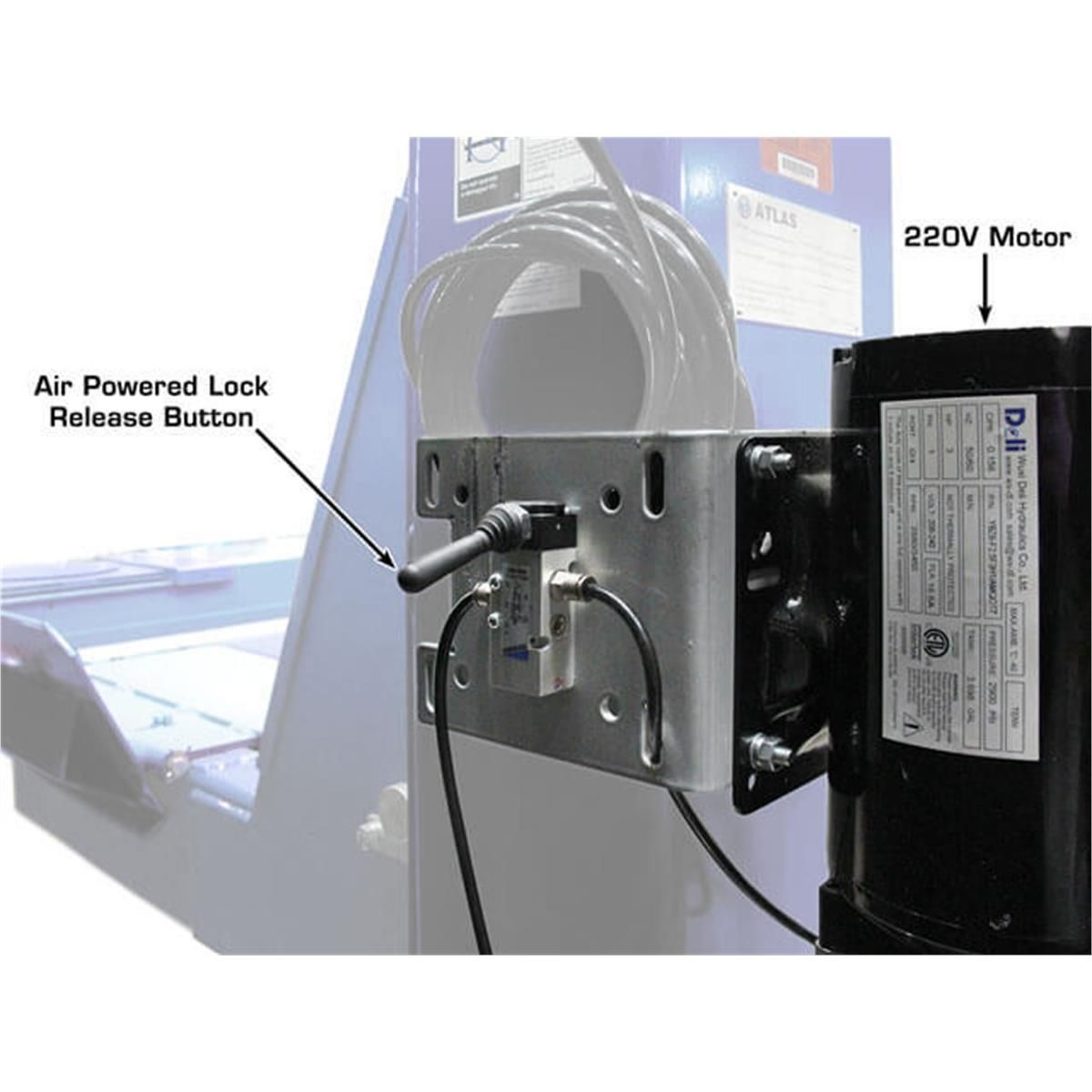

This lift incorporates three independent safety mechanisms working in concert. The mechanical backup safety holds the lift in elevated position should hydraulic pressure fail. The slack cable safety engages automatically if the cable slackens or fails, preventing uncontrolled descent. A pneumatic safety system employing a safety air cylinder and solenoid valve provides additional protection. Rated pneumatic pressure runs 6-8 bar (87-116 PSI) with an air filter/regulator required during setup. This redundant approach ensures maximum operator protection during alignment work.

Motor and Hydraulic Specifications

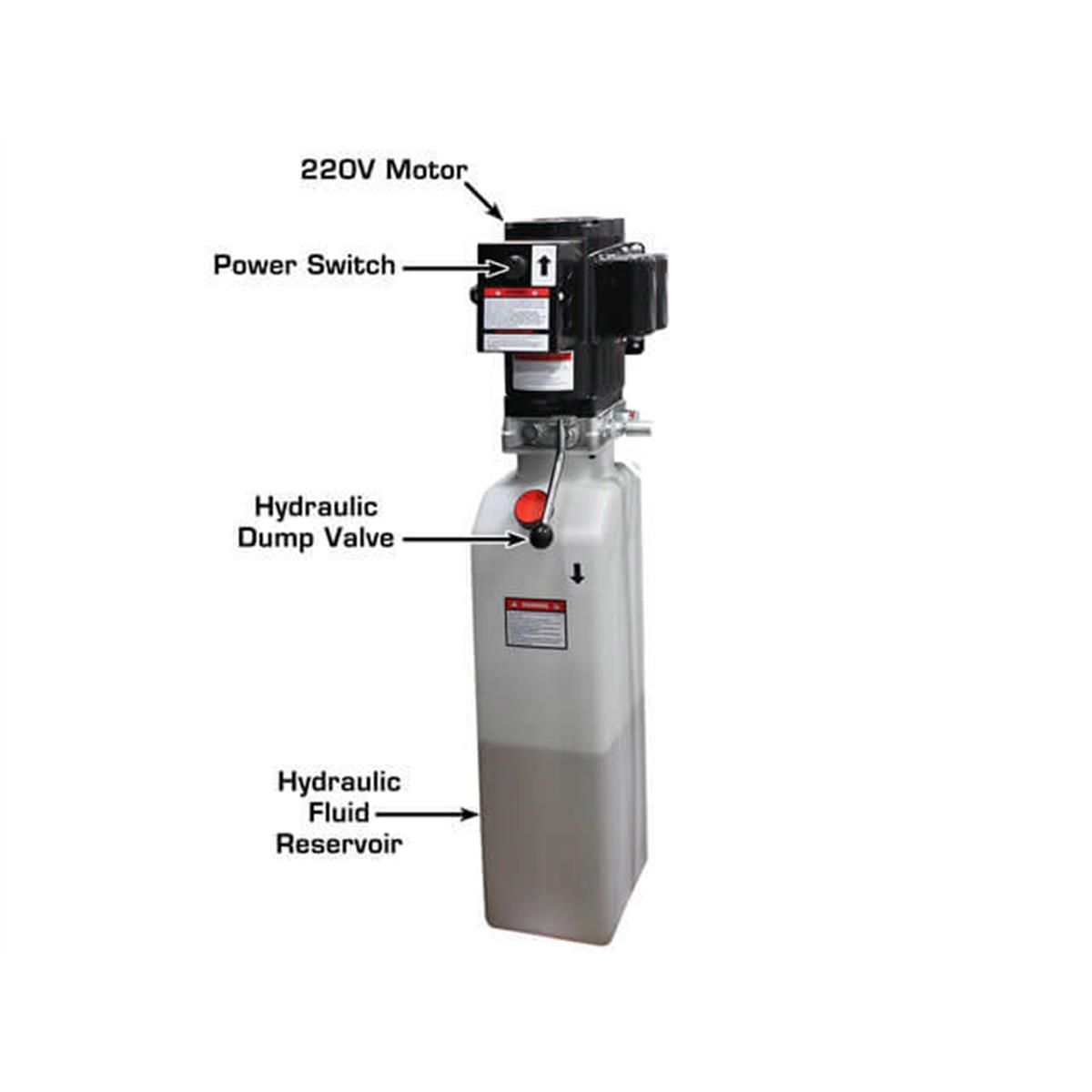

The electric motor operates on 208-240V at 50Hz/60Hz single-phase current, delivering 2 horsepower at 2,880/3,450 RPM with IP54 insulation and B14 enclosure for commercial automotive environments. A gear-type pump with 2.5 cm³ per revolution displacement provides consistent flow, operating at 160 bar continuous working pressure. The lift achieves a 66-second raise time and generates 80 dB(A) noise level at 1 meter, making it suitable for professional shops. Working temperature range spans 5°C to 40°C (41°F to 104°F). Average package weight is 4,400 lbs, and the system requires ISO 6743/4 HM class hydraulic oil with annual service intervals.

Professional Applications

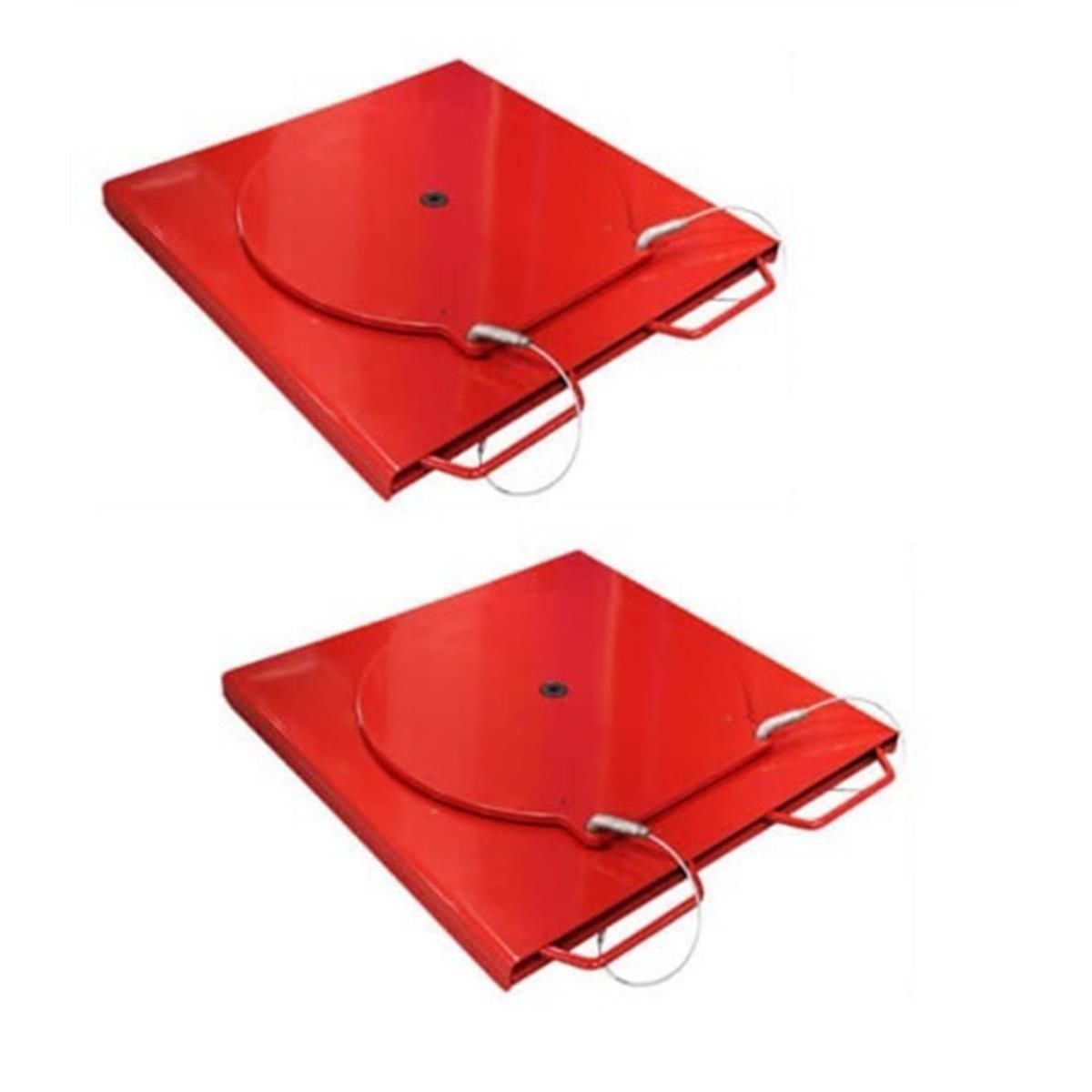

The PVL14OF-EXT serves wheel alignment shops, general service bays, suspension specialists, and multi-brand dealerships. The open-front design proves essential for modern alignment equipment including computerized measurement systems and turntable platforms. Extended runways make the lift indispensable for shops handling pickup trucks, SUVs, and commercial vehicles. Professional shops appreciate the combination of 14,000 lb capacity, extended reach, and triple safety redundancy for high-volume, precision alignment work.
