ATEAP-PVL12-FPD

Atlas Automotive Equipment

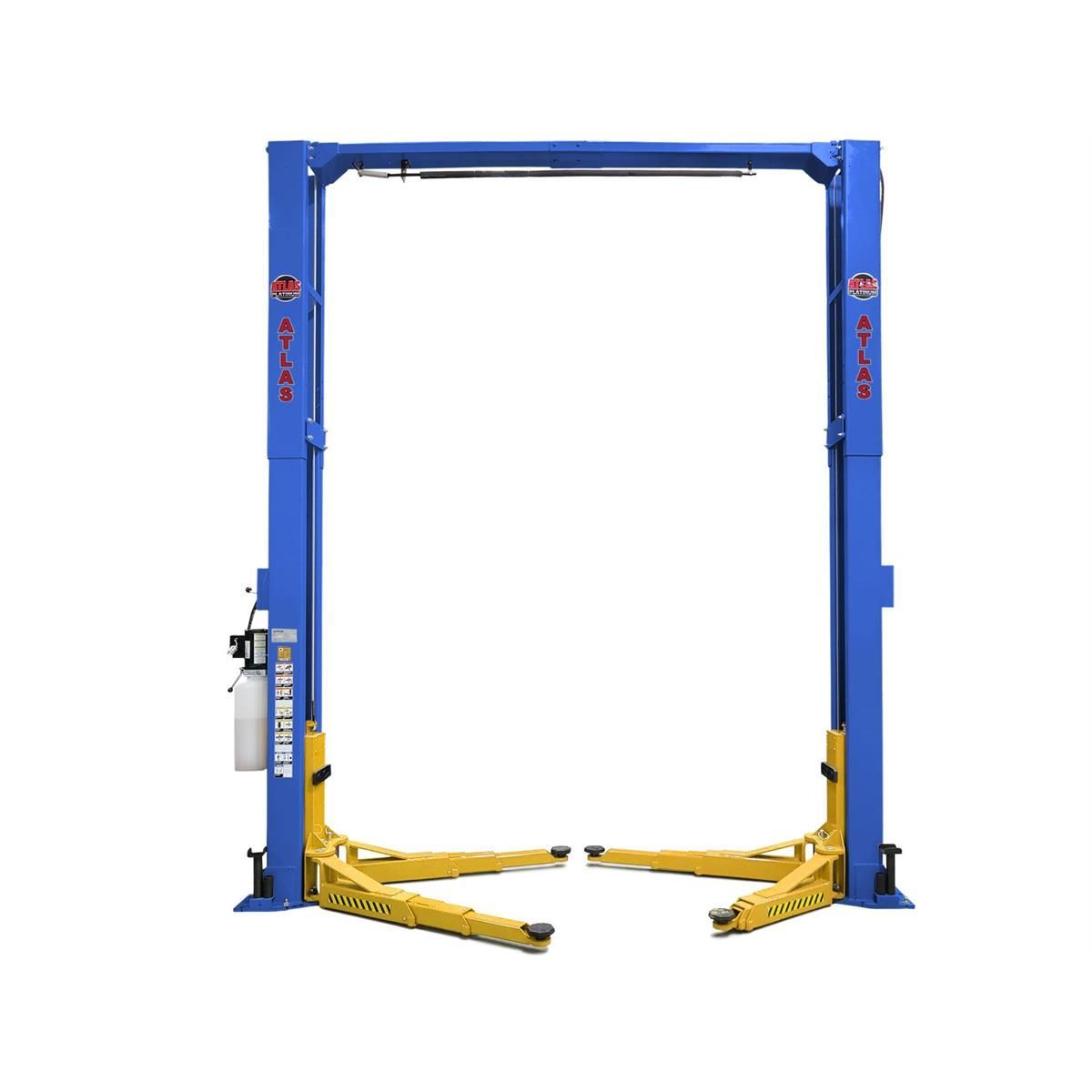

Atlas Platinum PVL12 — 12,000 lb ALI Certified 2-Post Overhead Lift

SKU: ATEAP-PVL12-FPD

Ships from manufacturer

Professional-grade 12,000 lb overhead lift featuring ALI certification, dual-stage arms, and patented Double S column design for symmetric and asymmetric vehicle installation.

Part #: ATEAP-PVL12-FPD

MFR #: ATEAP-PVL12-FPD

Atlas Platinum PVL12 — Professional 2-Post Overhead Lift

The Atlas Platinum PVL12 represents the pinnacle of two-post overhead lifting technology, engineered specifically for high-volume commercial service environments. With a 12,000 lb capacity and ALI certification, this lift meets the rigorous safety and performance standards demanded by professional automotive and equipment service facilities.

Lifting Performance & Dimensions

The PVL12 delivers impressive vertical travel with a maximum lifting height of 73⅝ inches (1,870mm) and a minimum lowered height of just 4½ inches (115mm). This range provides exceptional flexibility for servicing a wide variety of vehicles and equipment. The lift reaches its full height in just 55 seconds and lowers in 26 seconds, optimizing workflow efficiency in busy shops. At its lower setting, the overall height is 165 inches (4,192 meters), requiring a minimum ceiling height of 13'9". The higher setting reaches 177 inches (4,497mm), accommodating shops with ceilings up to 14'9".

Superior Engineering Features

The patented Double S column design provides exceptional stability and durability under demanding daily use. The lift features 3-stage front arms and 2-stage rear arms with 2-inch arm holes and double screw-up adapters for secure vehicle mounting. The single-point mechanical lock release operates both columns from one side, streamlining the operation and reducing manual effort. An overhead anti-crush safety bar with automatic cut-off prevents accidents and protects personnel.

Chain-over-cylinder equalization technology ensures balanced, synchronized lifting across both columns, maintaining perfect platform levelness even with asymmetric loading. The lift supports both symmetric and asymmetric installation configurations, adapting to virtually any service bay layout.

Power & Installation

The PVL12 is powered by a 2 HP motor operating at 208-240V/50-60Hz single-phase and requires a dedicated 30A circuit. The ALLY AL2850 Hydraulic Power Unit (MET Labs certified) utilizes a hydraulic gear pump system achieving approximately 2,250 PSI. The system requires 3-5 gallons of AW32 or AW46 hydraulic fluid, sold separately.

Installation requires a concrete foundation with a minimum thickness of 4 inches, 3,000 PSI compressive strength, and a full 20-day cure period. This lift is designed for indoor installation only, with an operating temperature range of 14°F to 104°F. The lift itself weighs 2,425 lbs (1,100kg), making professional installation highly recommended.

Features & Benefits

ALI Certified Safety

Meets rigorous American Lift Institute safety standards for commercial use

  • Overhead anti-crush safety bar with automatic cut-off
  • Single-point mechanical lock release
  • Chain-over-cylinder equalization for balanced lifting

Dual-Stage Arm Configuration

Professional 3-stage front and 2-stage rear arms for versatile vehicle mounting

  • 3-stage front arms with secure screw-up adapters
  • 2-stage rear arms for balanced weight distribution
  • 2-inch arm holes compatible with standard adapters

Powerful 2HP Motor System

Fast, efficient lifting with ALLY certified hydraulic power unit

  • 2HP motor with 208-240V single-phase operation
  • ALLY AL2850 power unit (MET Labs certified)
  • Hydraulic gear pump system ~2,250 PSI

Patented Double S Columns

Innovative column design provides superior stability and durability

  • Patented Double S column engineering
  • Exceptional structural rigidity under full load
  • Reliable performance in high-volume service environments

Flexible Installation Options

Adapts to virtually any service bay configuration

  • Symmetric and asymmetric installation capability
  • Adjusts to various ceiling heights and floor plans
  • Perfect for retrofit and new build applications

Optimized Lifting Speed

Quick cycle times maximize service bay productivity

  • 55-second full lift cycle
  • 26-second lower cycle
  • High-efficiency hydraulic design

Specifications

ModelATEAP-PVL12-FPD
Price
$8,499.00
Installation TypeSymmetric
Shipping Weight2,425 lbs
Product Type2 Post Lifts
Lifting Capacity12,000 lb lbs
Rise Height73 5/8" "
Arms3-Stage Symmetric
Overall Height165" (13' 9") or 177" (14' 9") in
Overall Width150 3/8" (12' 6 3/8")
Drive-Thru Clearance109 5/8" (9' 1 5/8")
Screw Pad Height4 1/2"
Inside Columns122 5/8" (10' 2 5/8")
Motor220V 1Ph HP
Voltage220V, 60Hz, 1Ph
ALI/ETL CertifiedYes

Before You Buy

Professional Freight Delivery

This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee. Please inspect all packaging for visible damage before signing the delivery receipt.

Ships Within 2-5 Business Days

This item typically ships within 2-5 business days from our warehouse. Freight transit times vary by destination, generally 3-7 additional business days. You will receive tracking information via email once your order ships.

Frequently Asked Questions

The PVL12 provides a maximum lifting height of 73⅝ inches (1,870mm) and a minimum lowered height of 4½ inches (115mm), allowing you to service vehicles from ground level to full working height.
The PVL12 requires a minimum ceiling height of 13'9" (165 inches) at its lower setting and 14'9" (177 inches) at its higher setting. We recommend a minimum of 14'9" for optimal service access.
Yes, the Atlas Platinum PVL12 is fully ALI (American Lift Institute) certified, meeting all professional safety standards required for commercial service facilities. It includes an overhead anti-crush safety bar with automatic cut-off.
The PVL12 requires a dedicated 30-amp, 220V single-phase circuit. The 2HP motor operates at 208-240V/50-60Hz single-phase. Have a licensed electrician verify your facility's electrical capacity before installation.
The PVL12 completes a full lift in 55 seconds and lowers in 26 seconds. These cycle times optimize workflow efficiency in busy service environments.
With a 12,000 lb capacity, the PVL12 accommodates most sedans, coupes, light trucks, and SUVs. The 3-stage front and 2-stage rear arms provide flexible mounting options for symmetric and asymmetric vehicle configurations.
The PVL12 includes the lift, motor, power unit, and arms. You must provide: concrete foundation (min 4" thick, 3,000 PSI), hydraulic fluid (3-5 gallons of AW32 or AW46, not included), and professional installation and electrical work.
This proprietary system synchronizes lift between both columns, maintaining perfect platform levelness even under asymmetric loading. This prevents tilting and ensures safe, balanced operation under all conditions.
Yes, the PVL12 supports both symmetric (centered between columns) and asymmetric (offset) vehicle positioning. This flexibility allows you to maximize your service bay layout and accommodate various lift bay arrangements.
Regular maintenance includes checking hydraulic fluid levels, inspecting for leaks, testing safety systems quarterly, and performing a comprehensive annual inspection. Consult the operator manual for detailed maintenance schedules and procedures.
