ATEAP-PVL10-FPD

Atlas Automotive Equipment

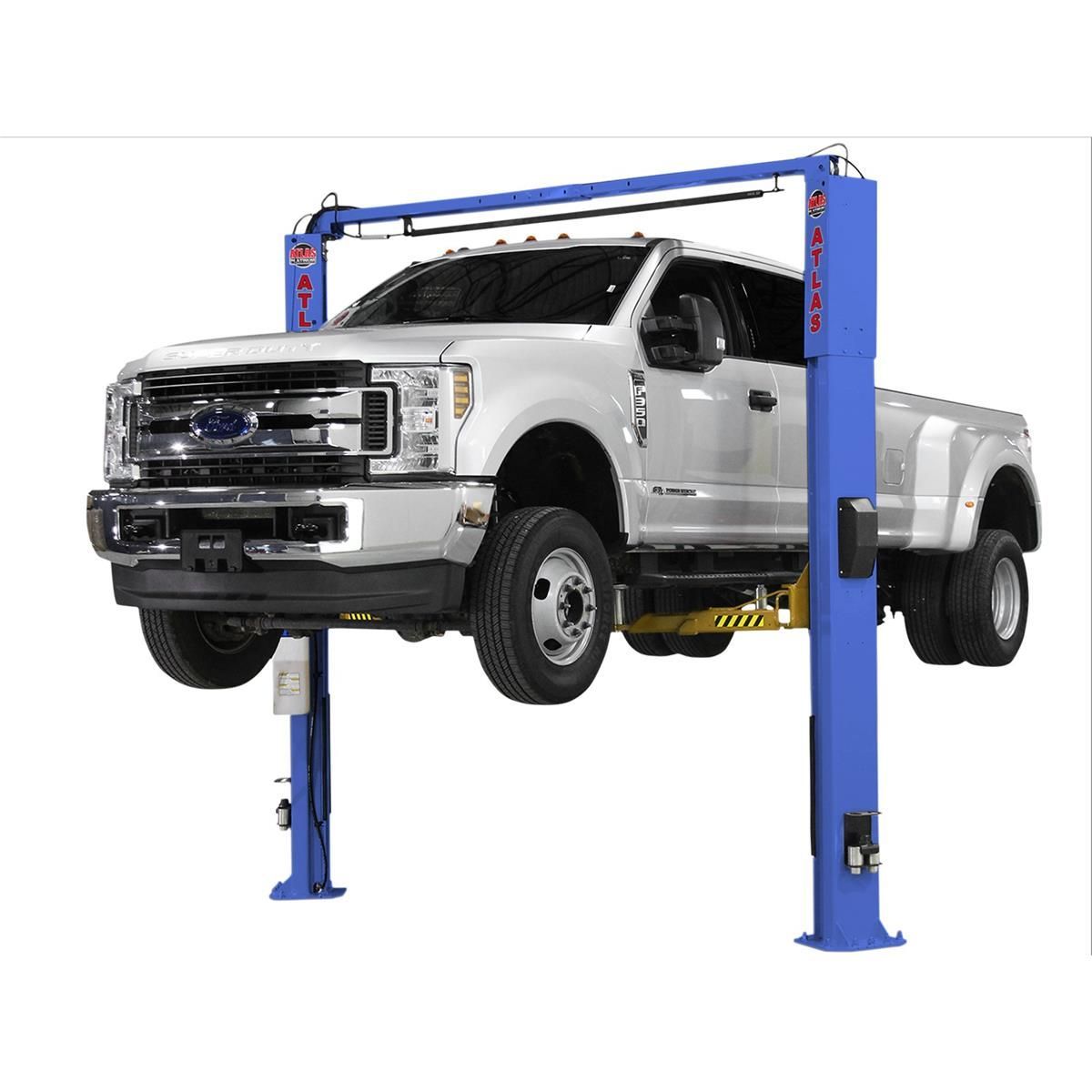

Atlas Platinum PVL10 ALI Certified 10,000 lb 2-Post Overhead Lift

SKU: ATEAP-PVL10-FPD

Ships from manufacturer

Heavy-duty 10,000 lb ALI-certified 2-post overhead lift with patented Double S column design and flexible symmetric/asymmetric installation for automotive service facilities.

Part #: ATEAP-PVL10-FPD

MFR #: ATEAP-PVL10-FPD

Atlas Platinum PVL10 Overview

The Atlas Platinum PVL10 is a professional-grade 10,000 lb capacity 2-post overhead lift engineered for automotive service facilities and light commercial vehicle lifting. This ALI-certified lift delivers reliable performance with a patented Double S bend column design (patent now expired) that provides exceptional stability and precision control. The PVL10 accommodates standard service bay requirements with flexible installation options and comprehensive safety features designed for operator protection and vehicle security.

Double S Column Design

The patented Double S bend column design is the engineering foundation of the PVL10. This distinctive column geometry provides superior lateral stiffness and load distribution, ensuring stable lifting across the entire height range. The design allows installation in either symmetric or asymmetric configurations, giving shops flexibility in bay layout and vehicle access patterns. Overall height is 139⅞ inches (11 feet 7⅞ inches), with cylinders extending to 12 feet 4 inches. A special low-height option reaches 135⅞ inches (11 feet 3⅞ inches) and requires purchase of extra cables sold separately.

Symmetric and Asymmetric Installation

The PVL10 accommodates both installation methods to suit facility layouts. In symmetric configuration, the overall width is 137½ inches with an outside column-to-column distance of 129¼ inches and inside column clearance of 112½ inches. Drive-thru width reaches 99½ inches. The asymmetric option provides an overall width of 139 inches, outside column spacing of 130 inches, inside clearance of 107¾ inches, and a drive-thru width of 91 inches. Column dimensions are a robust 7 inches by 10¼ inches, and the base footprint is 15 inches by 18 inches, requiring minimum 4-inch concrete with 3,000 PSI rating.

Arms and Lift Heights

The lifting system features 3-stage front arms and 2-stage rear arms with chain-over-cylinder equalization for balanced, controlled lifting. Maximum lift height is 72½ inches without adapters, expanding to 81½ inches with optional screw-up adapters. The minimum arm height is just 4 inches, providing exceptional flexibility for service applications ranging from low-profile sedans to light trucks. The package includes double screw-up adapters and a free 8-piece truck adapter set with four each 3-inch and 6-inch options (2-inch peg size).

ALLY Hydraulic Power Unit

The lift operates through an ALLY Hydraulic AL2850 Power Unit certified by MET Labs for US and Canadian electrical compliance. The system runs on 220V single-phase power requiring a 30 amp breaker, with a 1.5 KW motor delivering 1,700 RPM operation. Hydraulic specifications include 2,250 PSI continuous operation and 2,700 PSI peak pressure. The system requires 3-5 gallons of AW32 or AW46 hydraulic oil, which is not included. Rise time is 52-58 seconds, ensuring efficient workflow in busy service bays. Extra heavy-duty armatures, more motor windings, and increased silver metal in electrical wires and connections minimize heat generation for extended service life.

Safety and Build Quality

The PVL10 includes a single-point mechanical lock release and overhead anti-crush safety bar with automatic cut-off to protect operators during all lifting operations. Padded carriages protect vehicle paint and finish. Rubber column guards prevent damage from rolling equipment. The lift features a powder coat finish and is rated for indoor use only within 14°F to 104°F operating temperature range. Wireless pendant controls (optional) allow operators to manage lifting from a safe position away from the vehicle.

Specifications Summary

The PVL10 delivers 10,000 lb capacity in a compact footprint engineered for standard service bays. Lifting height ranges from 72½ to 81½ inches with adapters, minimum arm height is 4 inches, and rise time is 52-58 seconds. Column size of 7 by 10¼ inches with robust base dimensions of 15 by 18 inches ensures stability. The shipping weight is 1,850 lbs. Installation requires minimum 4-inch concrete with 3,000 PSI strength and 20-day cure period before operation.

Warranty and Support

The PVL10 is backed by a 5-year structural warranty, 2-year hydraulic system warranty, and 2-year power unit warranty. ALI/ETL certification confirms compliance with American Lift Institute safety standards and electrical safety requirements for United States and Canadian operation.

Features & Benefits

10,000 lb Capacity

Heavy-duty lifting capacity for standard automotive service applications.

  • 10,000 lb rated capacity
  • Balanced load distribution
  • ALI certification

Double S Column Design

Patented Double S bend column provides superior stability and lateral stiffness.

  • Patent expired, proven design
  • Symmetric or asymmetric installation
  • 7 by 10¼ inch column size

Flexible Lift Heights

72½ to 81½ inches lifting range with minimum 4-inch lowered position.

  • 72½ inch base height
  • 81½ inch extended height with adapters
  • 4 inch minimum arm height

Multi-Layer Safety

Overhead anti-crush bar, mechanical lock release, and automatic cut-off protection.

  • Anti-crush safety bar
  • Single-point lock release
  • Automatic cut-off system

Efficient Motor System

1.5 KW motor with 52-58 second rise time and extra heavy-duty construction.

  • 220V single-phase 1.5 KW motor
  • 2,250-2,700 PSI hydraulic range
  • Extra motor windings for less heat

Complete Accessory Package

Free 8-piece truck adapter set, padded carriages, and rubber column guards.

  • Free 8-piece truck adapter set (3 and 6 inch)
  • Padded carriage protectors
  • Rubber column guards

Specifications

ModelATEAP-PVL10-FPD
Price
$5,449.00
Installation TypeSymmetric or Asymmetric
Shipping Weight1,850 lbs
Product Type2 Post Lifts
Lifting Capacity10,000 lb lbs
Rise Height72 1/2" "
Arms3-Stage Front / 2-Stage Rear
Overall Height139 7/8" (11' 7 7/8") in
Overall Width139" Asymmetric / 137 1/2" Symmetric
Drive-Thru Clearance91" Asymmetric / 99 1/2" Symmetric
Screw Pad Height4"
Inside Columns107 3/4" Asymmetric / 112 1/2" Symmetric
Motor220V 1Ph HP
Voltage220V, 60Hz, 1Ph
ALI/ETL CertifiedYes

Before You Buy

Professional Freight Delivery

This item ships via freight carrier with delivery to your loading dock or business address. Residential delivery and liftgate service available at checkout for an additional fee.

5-Year Structural Warranty

The PVL10 is backed by a comprehensive 5-year structural warranty, 2-year hydraulic system warranty, and 2-year power unit warranty. ALI/ETL certification ensures compliance with safety standards.

Requires Professional Installation

The PVL10 requires minimum 4-inch concrete with 3,000 PSI strength. Concrete must cure 20 days before installation. We recommend professional installation to ensure safety compliance and warranty validity.

Free Shipping

Free shipping on all orders within the contiguous United States.

Ships via Freight

This item ships via freight carrier. Someone must be present to receive delivery.

Frequently Asked Questions

The patented Double S bend column geometry provides superior lateral stiffness and load distribution compared to standard single-bend designs. Although the patent has expired, this proven design delivers exceptional stability during lifting and ensures balanced performance across the entire height range.
Yes, the PVL10 supports both installation methods. Symmetric configuration offers 112½ inches inside column clearance and 99½ inches drive-thru width, while asymmetric configuration provides 107¾ inches inside clearance and 91 inches drive-thru width, allowing you to choose based on your facility layout.
The PVL10 reaches a maximum height of 72½ inches without adapters. With optional screw-up adapters, the height extends to 81½ inches. The lift also features a 4-inch minimum arm height for lowering vehicles close to the ground.
Yes, the PVL10 package includes double screw-up adapters and a free 8-piece truck adapter set with four each 3-inch and 6-inch options (2-inch peg size). These adapters provide flexibility for various vehicle types and service requirements.
The foundation must be a minimum of 4 inches thick with 3,000 PSI compressive strength. The concrete must cure for at least 20 days before the lift is installed and operational. The base footprint is 15 inches by 18 inches.
The PVL10 uses AW32 or AW46 ISO hydraulic fluid. Approximately 3-5 gallons are required for initial fill and maintenance. Hydraulic fluid is not included with the lift and must be sourced separately.
The rise time is 52-58 seconds depending on load distribution and hydraulic conditions. This efficient lifting cycle supports productive workflow in busy service bays.
The PVL10 operates on 220V single-phase power with a 1.5 KW motor at 1,700 RPM. A 30 amp circuit breaker is recommended. The ALLY AL2850 Power Unit is MET Labs certified for US and Canadian electrical compliance.
No, the PVL10 is rated for indoor use only within a 14°F to 104°F operating temperature range. Outdoor installation and operation are not supported.
The PVL10 is backed by a 5-year structural warranty, 2-year hydraulic system warranty, and 2-year power unit warranty. ALI/ETL certification confirms compliance with American Lift Institute and electrical safety standards.
