ATEAP-PVL10-EXT-FPD

Atlas Automotive Equipment

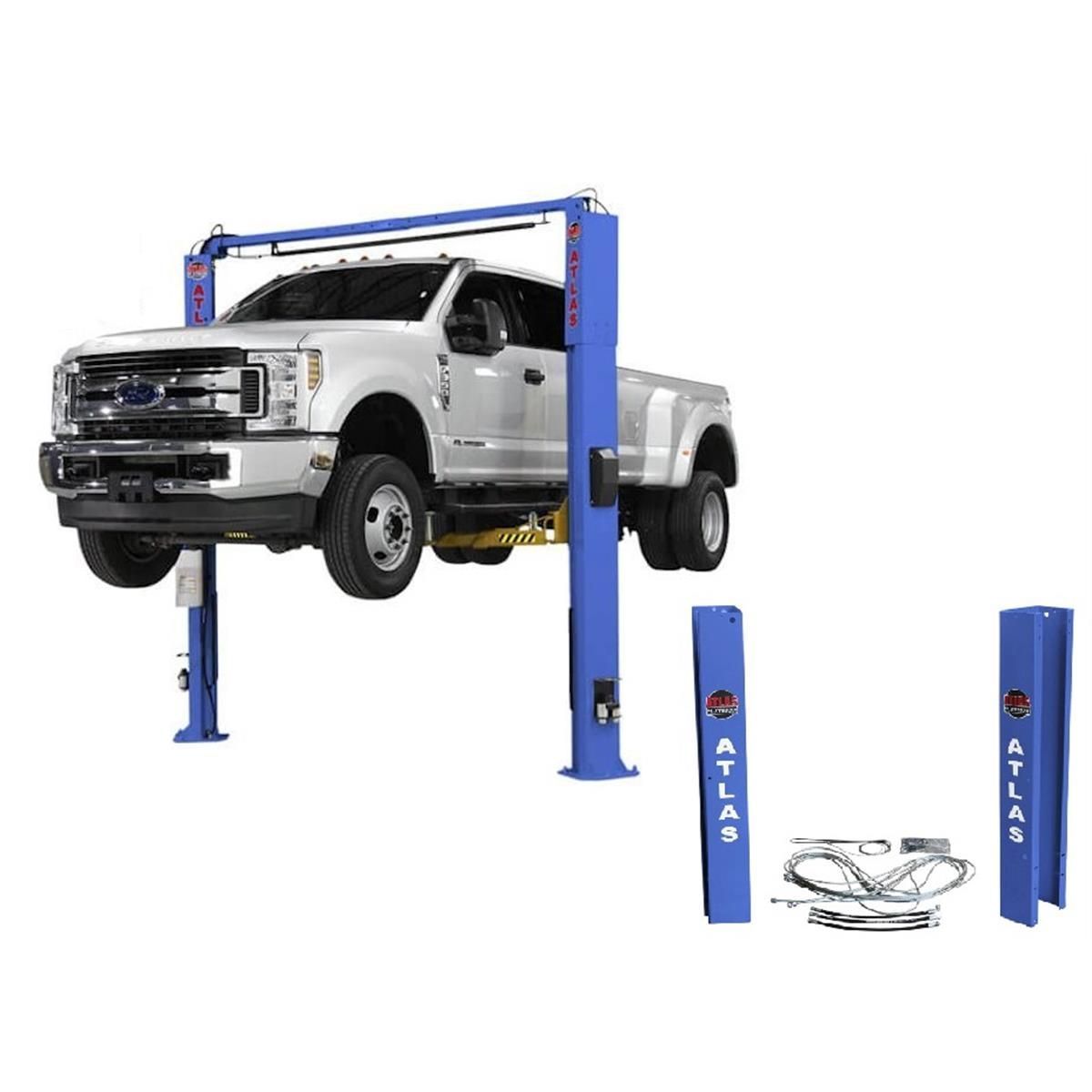

Atlas Platinum PVL10-EXT 10,000 lb 2-Post Lift with Height Extension

SKU: ATEAP-PVL10-EXT-FPD

Ships from manufacturer

ALI Certified 10,000 lb 2-Post Overhead Lift, Height Extension Kit Included, 3-Stage Front & 2-Stage Rear Arms, Single-Point Lock Release, Symmetric & Asymmetric Installation, Double S Column Design, 72½ In. Maximum Lift Height (163⅞ In. Overall Height)

Part #: ATEAP-PVL10-EXT-FPD

MFR #: ATEAP-PVL10-EXT-FPD

Atlas Platinum PVL10-EXT — 10,000 lb ALI Certified 2-Post Lift

The Atlas Platinum PVL10-EXT is a heavy-duty 10,000 lb capacity ALI Certified 2-post overhead lift designed for professional automotive service facilities, collision centers, and commercial repair shops. This configuration ships with the 2-foot height extension kit pre-bundled, giving you the full PVL10 lift plus 24 inches of additional column height right out of the crate. The PVL10-EXT features the patented Double S column design — a proven architecture used in tens of thousands of lifts worldwide over the past two decades — delivering smooth, balanced lifting across a wide range of vehicle types from sedans and SUVs to light-duty trucks and minivans.

Configurable Width & Height

The PVL10-EXT can be installed symmetrically or asymmetrically to match your shop's bay layout and workflow. In symmetric configuration, the overall width is 137½ inches with 112½ inches of inside column spacing and 99½ inches of drive-thru clearance — ideal for wider trucks and SUVs. In asymmetric configuration, overall width is 139 inches with 107¾ inches between columns and 91 inches of drive-thru — this offset positioning makes it easier to enter and exit the vehicle without door dings. The three-stage front arms and two-stage rear arms provide a maximum lift height of 72½ inches without adapters, or 81½ inches with the included screw-up adapters. Rise time is a consistent 52 to 58 seconds with a maximum stroke of 70⅝ inches, powered by a 1.5 KW gear pump hydraulic system operating at 2,250 PSI continuous pressure.

Height Extension Advantage

The included 2-foot height extension kit adds 24 inches to both the low and standard height positions, bringing overall heights to 159⅞ inches (13 ft 3⅞ in) in low position or 163⅞ inches (13 ft 7⅞ in) in standard position — compared to 135⅞ and 139⅞ inches on the base PVL10 model. Cylinders extend to 12 feet 4 inches at full stroke in either position. This extension is ideal for facilities with ceilings above 14 feet that need the extra headroom for working on taller vehicles or performing overhead service tasks. The extension kit includes longer hoses and cables specifically engineered for the PVL10 platform.

Installation Requirements

The PVL10-EXT requires 220V single-phase power with a dedicated 30-amp circuit breaker, installed by a licensed electrician to local code. The concrete floor must be at least 4 inches thick with a minimum 3,000 PSI rating and must have cured for at least 20 days before the lift is anchored. Anchoring points require a minimum 5-inch edge distance from any concrete edge or expansion joint. The lift requires 3 to 5 gallons of AW32 or AW46 hydraulic fluid, which is not included. Every PVL10-EXT ships with the ALLY AL2850 Hydraulic Power Unit (MET Laboratories certified for electrical compliance in the US and Canada), double screw-up adapters, a free 8-piece truck adapter set with 3-inch and 6-inch heights, and all mounting hardware. Panther Lift provides professional installation services nationwide — contact us to schedule or get a quote.

Features & Benefits

10,000 lb ALI Certified Capacity

Rated for 10,000 lbs with ALI certification to ANSI/ALI ALCTV safety standards. Handles sedans, SUVs, light trucks, and minivans with balanced, even lifting across both columns.

  • 10,000 lb total rated capacity — 5,000 lb per arm
  • ALI Certified to ANSI/ALI ALCTV safety standards
  • Handles passenger vehicles through light-duty trucks

3-Stage Front & 2-Stage Rear Arms

Three-stage telescoping front arms provide extended reach for a wide range of vehicle lift points, while two-stage rear arms deliver stability and precise positioning under the vehicle.

  • 72½ in. max lift height without adapters, 81½ in. with adapters
  • Minimum arm height of 4 in. for low-profile vehicles
  • 2 in. arm hole/adapter peg size with double screw-up adapters

Symmetric & Asymmetric Installation

Choose the column layout that fits your shop. Symmetric provides wider inside clearance for trucks and SUVs. Asymmetric offsets the columns for easier driver door access and reduced ding risk.

  • Symmetric: 112½ in. inside columns, 99½ in. drive-thru
  • Asymmetric: 107¾ in. inside columns, 91 in. drive-thru
  • Patented Double S column design for even pressure distribution

Integrated Safety Systems

Single-point mechanical lock release disengages both columns simultaneously from one side. Overhead anti-crush safety bar with automatic cut-off switch prevents vehicle and ceiling damage.

  • Single-point lock release — both columns from one side
  • Overhead anti-crush safety bar with automatic cut-off
  • Padded carriages and rubber column guards protect vehicles

ALLY AL2850 Hydraulic Power Unit

Premium MET Laboratories certified power unit with extra heavy-duty armatures and enhanced motor windings. Delivers consistent torque through the full lifting cycle with minimal heat generation.

  • 1.5 KW motor at 1,700 RPM on 220V single-phase power
  • 52–58 second rise time with 70⅝ in. maximum stroke
  • 2,250 PSI continuous / 2,700 PSI peak hydraulic pressure

2-Foot Height Extension Kit Included

Adds 24 inches to both low and standard height positions compared to the base PVL10, with longer hoses and cables engineered specifically for the PVL10 platform. Ideal for shops with 14+ foot ceilings.

  • Overall height: 159⅞ in. (low) to 163⅞ in. (standard)
  • Cylinders extend to 12 ft 4 in. at full stroke
  • Extension kit includes longer hoses, cables, and column sections

Specifications

ModelATEAP-PVL10-EXT-FPDATEAP-PVL10-EXT
Price
$5,749.00
$5,199.00
Installation TypeSymmetric or Asymmetric—
Shipping Weight2,000 lbs2,000 lb
Product Type2 Post LiftsEquipment Combos & Packages
Lifting Capacity10,000 lb lbs10,000 lb lbs
Lift ConfigurationSymmetric or Asymmetric 2-Post OverheadSymmetric or Asymmetric 2-Post Overhead
Rise Height72 1/2" "72½" (81½" with adapters) "
Arms3-Stage Front / 2-Stage Rear—
Overall Height159 7/8" (13' 3 7/8") or 163 7/8" (13' 7 7/8") in159⅞" (Low) / 163⅞" (Standard) in
Overall Width139" Asymmetric / 137 1/2" Symmetric139" (Asymmetric) / 137½" (Symmetric)
Drive-Thru Clearance91" Asymmetric / 99 1/2" Symmetric91" (Asymmetric) / 99½" (Symmetric)
Speed of Rise52-58s sec52-58s sec
Screw Pad Height4"—
Inside Columns107 3/4" Asymmetric / 112 1/2" Symmetric107¾" (Asymmetric) / 112½" (Symmetric)
Motor220V 1Ph HP1.5KW, 220V, 60Hz, 1Ph HP
Voltage220V, 60Hz, 1Ph220V Single Phase
ControlsSingle-Point Lock ReleaseSingle-Point Lock Release
Ceiling Height Required14 ft minimum recommended14 ft minimum recommended
ALI/ETL CertifiedYesALI
Colors AvailablePowder CoatPowder Coat

Before You Buy

Free Freight Shipping

Ships free via freight carrier to commercial addresses in the continental United States (48 states). Alaska, Hawaii, Puerto Rico, and Guam are excluded from free freight — contact us for a shipping quote to those locations.

Unloading Requirements

This lift ships curbside via freight truck and weighs approximately 2,000 lbs. You are responsible for offloading at your location. A forklift, tractor with forks, or equivalent heavy equipment must be available on-site at the time of delivery. The carrier will not unload the freight.

Concrete & Electrical Requirements

Requires a minimum 4-inch concrete slab rated at 3,000 PSI with at least 20 days of curing. Anchoring points must be at least 5 inches from any concrete edge. Electrical setup requires a dedicated 220V single-phase circuit with 30-amp breaker, installed by a licensed electrician to local code.

Indoor Installation Only

The PVL10-EXT is designed for indoor use only in covered, sheltered locations. Operating temperature range is 14°F to 104°F. Do not install near washing areas, painting workbenches, or areas exposed to solvents or moisture. Outdoor installation will void the warranty.

ALI Certified

Independently tested and validated to ANSI/ALI ALCTV safety standards — the highest professional standard for automotive lifts in the United States. Required or recommended by many insurance providers and OSHA compliance auditors.

Ceiling Height Required: 14 ft Minimum

With the included height extension kit, overall height reaches 159⅞ to 163⅞ inches (13 ft 3⅞ in. to 13 ft 7⅞ in.). Cylinders extend to 12 ft 4 in. at full stroke. We recommend a minimum 14-foot ceiling for safe operation. If your ceiling is below 14 feet, consider the base PVL10 without the extension.

Hydraulic Fluid Not Included

The lift requires 3 to 5 gallons of AW32 or AW46 hydraulic oil, which is not included. Purchase separately and fill according to the Installation & Operations Manual before operating the lift.

Professional Installation Recommended

Panther Lift offers professional installation services nationwide. Our team handles concrete inspection, electrical prep, full lift assembly, hydraulic commissioning, and safety testing. Contact us to schedule or get a quote.

Frequently Asked Questions

The Atlas PVL10-EXT requires a concrete floor at least 4 inches thick with a minimum compressive strength of 3,000 PSI. The concrete must be fully cured for at least 20 days before installation. All anchoring points must maintain a minimum 5-inch edge distance from any concrete edge, expansion joint, or control joint. The floor must be level — small differences can be compensated with shims, but significant slope will affect lifting performance. If your existing slab does not meet these requirements, you can pour a dedicated concrete pad that meets the specifications before installation.
Yes. Panther Lift provides professional lift installation services throughout the United States. Our installation team handles everything from concrete inspection and electrical prep to full lift assembly, hydraulic setup, and final safety testing. Contact us to schedule an installation or to get a quote for your location.
Daily checks include inspecting hydraulic connections and hoses for leaks, verifying safety lock engagement (both audibly and visually during operation), checking arm locks, and confirming all bolts, nuts, and screws are tight. Monthly maintenance includes checking all cable connections, pins, and bolts for proper mounting, inspecting and retightening anchor bolts, verifying columns are square and plumb, adjusting equalizer and safety cable tension, inspecting arm pivot pins, replacing worn lifting pads, lubricating columns with grease, and checking hydraulic oil level. Annually, a certified electrician should verify the motor and overhead limit switch, equalizer cables should be replaced if worn more than 5%, and the hydraulic oil should be fully drained and replaced with fresh AW32 or AW46 fluid.
With the included 2-foot height extension kit, the PVL10-EXT reaches 159⅞ inches (13 ft 3⅞ in.) in low position or 163⅞ inches (13 ft 7⅞ in.) in standard position. Cylinders extend to 12 feet 4 inches at full stroke. We recommend a minimum ceiling height of 14 feet to safely operate the lift without obstruction. If your ceiling is lower than 14 feet, the base PVL10 without the extension kit may be a better fit at 135⅞ to 139⅞ inches overall height.
The PVL10-EXT ships with the 2-foot height extension kit pre-bundled, adding 24 inches to both the low and standard height positions. The base PVL10 stands 135⅞ inches (low) or 139⅞ inches (standard), while the PVL10-EXT reaches 159⅞ inches (low) or 163⅞ inches (standard). All other specifications — capacity, arm design, column width, drive-thru clearance, motor, and hydraulic system — are identical between the two models. The PVL10-EXT ships at 2,000 lbs versus 1,850 lbs for the base PVL10 due to the extension kit components.
The lift requires 220V single-phase power at 60 Hz. A dedicated 30-amp circuit breaker is recommended. The included ALLY AL2850 power unit draws 1.5 KW through an ML90L2 motor at 1,700 RPM. A licensed electrician must perform the electrical connection to ensure compliance with local codes. If voltage fluctuation exceeds 10%, a voltage stabilizer is recommended.
ALI (Automotive Lift Institute) certification means the PVL10-EXT has been independently tested and validated to meet the ANSI/ALI ALCTV safety standard — the highest professional standard for automotive lifts in the United States. This certification verifies the lift's design, construction materials, safety mechanisms, and rated capacity through rigorous third-party testing. ALI certification is required or recommended by many insurance providers and OSHA compliance auditors for commercial repair facilities.
Yes — the PVL10-EXT supports both symmetric and asymmetric column configurations. Symmetric installation provides 112½ inches of inside column spacing and 99½ inches of drive-thru clearance, ideal for wider trucks and SUVs. Asymmetric installation provides 107¾ inches inside and 91 inches drive-thru, with an offset that makes it easier to open vehicle doors without hitting the columns. The column configuration is set during installation and is not adjustable afterward.
Yes. The PVL10-EXT requires 3 to 5 gallons of AW32 or AW46 hydraulic oil, which is not included with the lift. The hydraulic fluid must be added before the first operation per the Installation & Operations Manual. The oil should be changed annually as part of routine maintenance, and the level should be checked monthly and topped off as needed.
The PVL10-EXT ships complete with the 2-post lift structure, 2-foot height extension kit (column extensions, longer hoses, and longer cables), ALLY AL2850 Hydraulic Power Unit (MET Laboratories certified), double screw-up adapters, a free 8-piece truck adapter set (four at 3-inch height, four at 6-inch height), all anchor bolts and mounting hardware, rubber column guards, padded carriage protectors, and the Installation & Operations Manual. Hydraulic fluid (AW32 or AW46) is not included.
No. The PVL10-EXT is rated for indoor installation only, in covered and sheltered locations free of overhead obstructions. The operating temperature range is 14°F to 104°F. The lift should not be installed near washing areas, painting workbenches, or areas exposed to solvents, varnish, or moisture. Outdoor or partially covered installation may damage the hydraulic and electrical systems and will void the manufacturer warranty.
The Atlas Platinum PVL10-EXT features a durable powder coat finish in the standard Atlas Platinum color scheme. Contact Panther Lift for current color availability and any custom finish options.
