ATEAP-PTC600-FPD

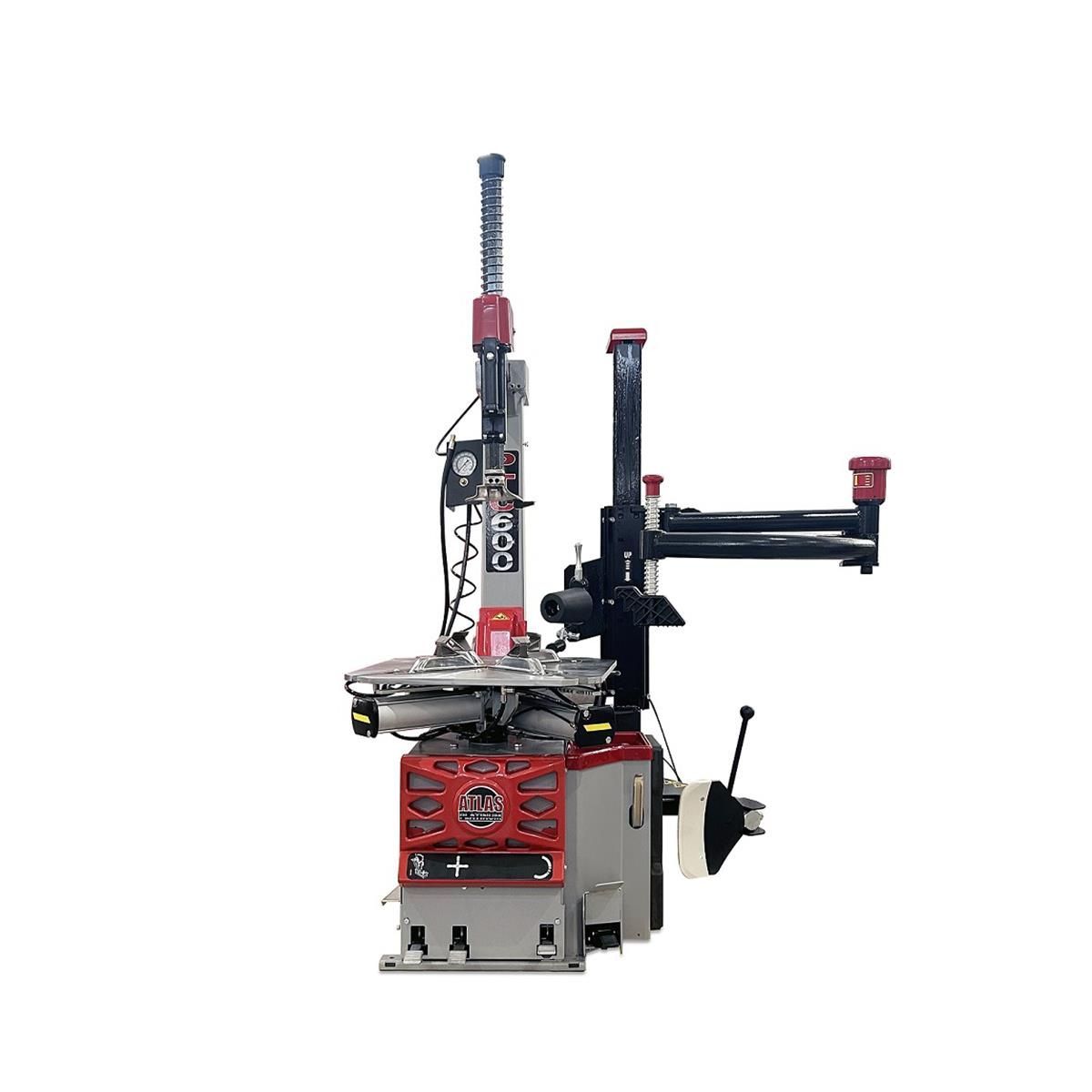

Atlas Platinum PTC600 Tilt-Back Rim Clamp Tire Changer with Assist Arm

SKU: ATEAP-PTC600-FPD · MPN: ATEAP-PTC600-FPD

$6,949.00
Special Order

Professional-grade tilt-back rim clamp tire changer with pneumatic locking mount/demount head and integrated bead blaster. Handles tire diameters up to 43" with air-operated jaws and electric turntable.

Part #: ATEAP-PTC600-FPD

Tilt-Back Design for Enhanced Safety

The Atlas Platinum PTC600 features a revolutionary tilt-back design with a pneumatic locking mount/demount head that dramatically lowers the risk of head movement during operation. This innovative approach combined with air-operated jaws and bead breaker makes it one of the safest tire changing solutions available for professional shops.

Comprehensive Specifications

The PTC600 accommodates external locking rims from 10" to 27" and internal locking rims from 12" to 29", with a maximum tire diameter of 43" and maximum wheel width of 16" at the bead breaker. Operating at 7 RPM, the turntable delivers reliable performance, while the bead breaker generates an impressive 6,924 lbs of force. The machine requires 120-145 PSI air supply and operates on standard 110V electrical power, with a substantial shipping weight of 795 lbs.

Built-In Efficiency Features

Unlike earlier models, the PTC600 includes an integrated beadblaster system rather than requiring an external attachment. A column-mounted inflator box with gauge provides convenient pressure monitoring. The complete package includes a metal mount/demount head with replaceable plastic inserts, anodized aluminum bead breaker cylinder, tire tool, lube bucket with brush, large plastic jaw protectors, bead breaker shovel cover, and multiple replacement plastic inserts for the mount/demount head.

Quality and Support

Italian engineered and built to professional standards, the PTC600 includes a comprehensive 2-year parts warranty and CE certification. The machine does require some assembly after purchase, and an external air supply is necessary for operation. Filter, regulator, and lubricator are included to ensure proper system function.

Features & Benefits

Tilt-Back Pneumatic Design

Pneumatic locking mount/demount head minimizes movement risk during tire changes.

  • Pneumatic locking technology
  • Reduces head movement
  • Enhanced operator safety

Air-Operated Components

Advanced pneumatic system powers jaws and bead breaker for reliable performance.

  • Air-operated jaws
  • Pneumatic bead breaker
  • 6,924 lbs breaking force

Electric Turntable System

110V electric turntable operates at 7 RPM for smooth, controlled rotation.

  • 110V powered
  • 7 RPM operation
  • Consistent performance

Integrated Bead Blaster

Built-in beadblaster system eliminates need for external attachments.

  • Integrated design
  • No external equipment
  • Space efficient

Complete Accessory Package

Includes all essential tools and protective components for immediate operation.

  • Tire tool included
  • Plastic jaw protectors
  • Multiple replacement inserts

Italian Engineering Quality

Professional-grade construction with 2-year warranty and CE certification.

  • CE certified
  • 2-year parts warranty
  • Professional reliability

Specifications

ModelATEAP-PTC600-FPD
Price
$6,949.00
Shipping Weight795 lbs
Product TypeTire Changers
CE CertifiedYes
Clamping Range (External)10" - 27" inches
Machine StyleTilt-Back Center Post
Clamping Range (Internal)12" - 29" inches
Max Tire Diameter43" inches
Max Wheel Width16" inches
Bead Breaker Force6,924 lbs lbs
Turntable Speed7 RPM RPM
Air Pressure Required120-145 PSI PSI
Voltage110V, 60Hz, 1Ph

Before You Buy

Integrated Bead Blaster System

Unlike the PTC500, the PTC600 features a built-in beadblaster, eliminating the need for external equipment and saving valuable shop space.

Pneumatic Locking Mount/Demount Head

The tilt-back design with pneumatic locking technology dramatically reduces movement risk, providing enhanced safety during tire changes.

Complete Shop-Ready Package

Includes tire tool, lube bucket with brush, jaw protectors, bead breaker shovel cover, and multiple replacement inserts for immediate operation.

Free Shipping

Free shipping on all orders within the contiguous United States.

Ships via Freight

This item ships via freight carrier. Someone must be present to receive delivery.

Frequently Asked Questions

The tilt-back design features a pneumatic locking mount/demount head that dramatically reduces the risk of head movement during tire changes, enhancing safety and preventing accidental shifts during operation.
The PTC600 handles external locking rims from 10" to 27" and internal locking rims from 12" to 29", accommodating virtually all common wheel sizes.
Yes, the PTC600 requires an external air supply operating at 120-145 PSI. The included filter/regulator/lubricator ensures proper system function.
Yes, the PTC600 requires some assembly after purchase. Complete instructions are provided, and most shops can have it operational within a few hours.
The built-in bead blaster eliminates the need for an external attachment, saving space in your shop and providing one less piece of equipment to maintain and store.
The PTC600 can handle tire diameters up to 43", making it suitable for most commercial and specialty vehicle applications.
The PTC600 includes a comprehensive 2-year parts warranty, protecting your investment and ensuring reliable service.
The bead breaker generates 6,924 lbs of force, providing powerful and reliable bead breaking for even the most stubborn tire seals.
Yes, multiple replacement plastic inserts are included with the machine, and additional inserts are available for purchase as wear items.
The PTC600 operates on standard 110V single-phase electrical power, compatible with most shop electrical systems.
