ATEAP-PTC500-KIT-FPD

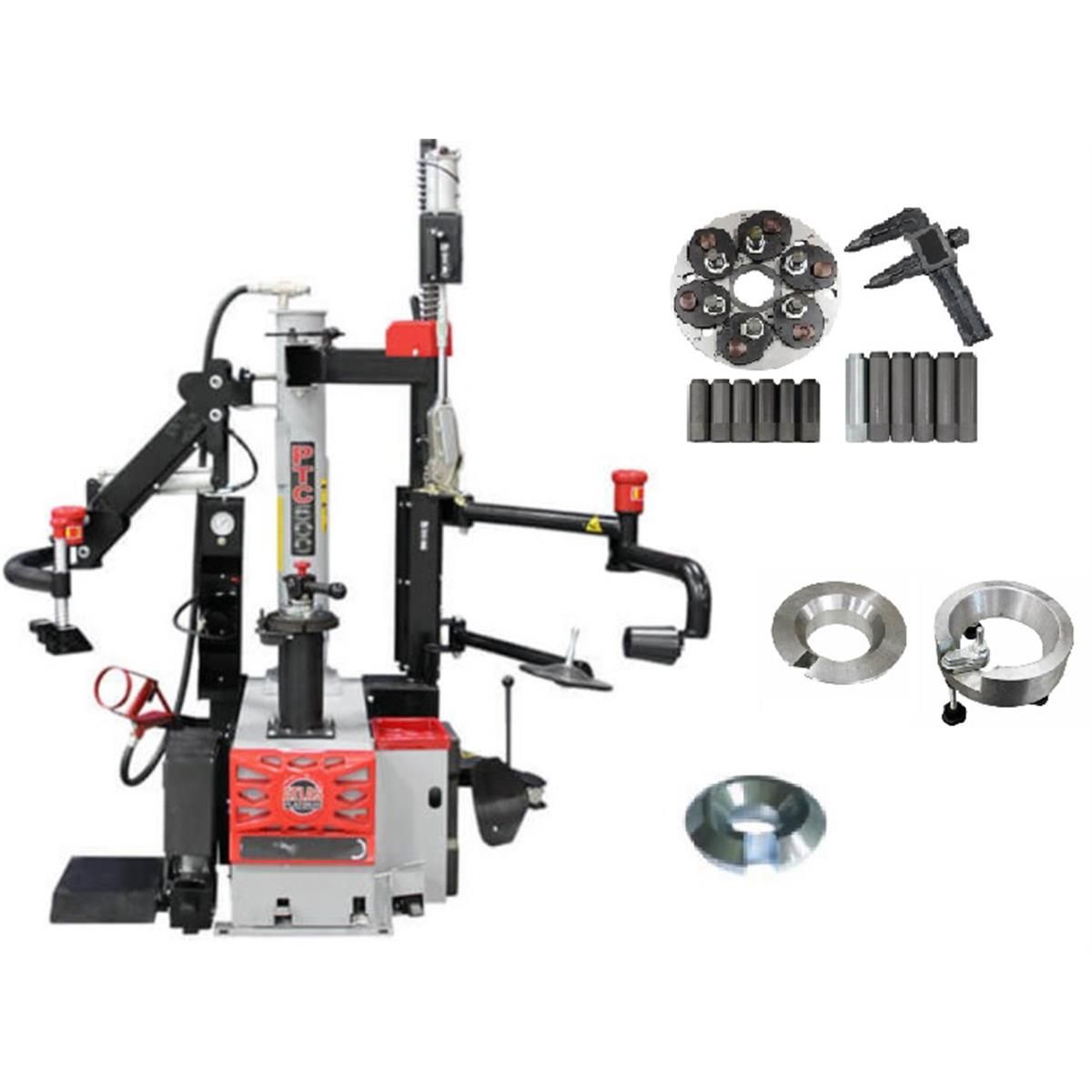

Atlas Platinum PTC500-KIT Center-Post Tire Changer with Adapters Kit

SKU: ATEAP-PTC500-KIT-FPD

$10,799.00
Ships from manufacturer

Complete tire changer system combining the PTC500 machine with a comprehensive adapter kit. Includes cone adapters, double-sided cone, reverse mount adapter, filter/regulator/lubricator, tools, and protective accessories.

Part #: ATEAP-PTC500-KIT-FPD

MFR #: ATEAP-PTC500-KIT-FPD

Atlas Platinum PTC500-KIT: Complete Tire Changer System

The Atlas Platinum PTC500-KIT brings together our professional-grade center-post tire changer with a comprehensive adapter package, creating a complete solution for shops seeking maximum versatility without investing in multiple machines. This kit delivers the proven PTC500 platform plus the accessories needed to handle an expanded range of wheel types and applications.

Core PTC500 Machine

The PTC500 features a leverless mount/demount system allowing operators to work with standard tire tools or leverless mode for maximum efficiency. The Smart Lock center-post mounting eliminates manual threading—simply flip the lever to secure the wheel. Dual assist arms and an integrated wheel lift provide operator support and comfort. The external flexible bead-blasting system with 6,924 lbs of separation force (3,200 kg at 10 bar) handles modern tire constructions reliably. The machine accommodates wheels from 12" to 30" (external clamping with 14"-26" internal range) and supports maximum tire diameters of 47" (1,200mm) with wheel widths to 15" (390mm).

Comprehensive Adapter Kit Included

The PTC500-KIT includes a Cone Adapter Kit (7.48"-8.66") for extended wheel size coverage, a Double Sided Cone (2.95"-5.7") for additional versatility, a Reverse Mount Adapter for specialized applications, and a Filter/Regulator/Lubricator system for optimized pneumatic operation. A professional Tire Tool, Lube Bucket with Brush for maintenance, and multiple Plastic Protectors to safeguard expensive customer wheels round out the package.

Enhanced Capability for Multi-Service Shops

By bundling these adapters with the base machine, the PTC500-KIT transforms a capable tire changer into a comprehensive platform for shops servicing diverse wheel types. The cone adapters extend wheel clamping capability, the reverse mount adapter accommodates unconventional mounting scenarios, and the complete protective accessory set ensures wheels remain undamaged during service. Shops can serve a broader customer base without capital investment in additional equipment.

Technical Foundation

The PTC500 operates on 110V single-phase power (US market) with a 0.75kW / 1HP motor. Compressed air supply requires 120-145 PSI (8-10 bar). The turntable rotates at 7 RPM with maximum torque of 110 Kgm. Steel, aluminum, and alloy rims are all supported. The machine operates at less than 70 dB(A) within a temperature range of 32°-131°F (0°-55°C). The complete kit weighs approximately 220 kg (485 lbs machine) plus adapter kit, with total shipping weight of approximately 885 lbs. Italian-designed engineering and 2-year parts warranty ensure professional reliability.

Perfect for Growing Your Business

Whether you're expanding service offerings, consolidating equipment footprints, or seeking a single professional-grade machine that grows with your business, the PTC500-KIT delivers comprehensive tire-changing capability with included accessories for immediate deployment across diverse applications.

Features & Benefits

Leverless Mount/Demount System

Dual-mode operation allows standard tools or leverless technique for operator flexibility.

  • Standard tire tool compatible
  • Leverless mode option
  • Reduced operator strain

Smart Lock Center-Post Mounting

Flip-lever quick lock eliminates threading for faster wheel setup.

  • No manual threading required
  • Flip-lever quick mechanism
  • Safer, faster operation

Cone Adapter Kit Expansion

Cone Adapter Kit (7.48"-8.66") and Double Sided Cone (2.95"-5.7") extend clamping versatility.

  • Cone Adapter Kit included
  • Double-sided cone adapter
  • Extended wheel compatibility

Integrated Bead-Blasting & Pneumatic System

6,924 lbs bead breaker force plus Filter/Regulator/Lubricator for optimized air supply.

  • 6,924 lbs separation force
  • Filter/regulator/lubricator included
  • Pneumatic system ready

Complete Protection & Maintenance Tools

Multiple plastic protectors, tire tool, and lube bucket with brush included.

  • Multiple plastic protectors
  • Professional tire tool
  • Lube bucket and brush

Wide Capability & Reverse Mounting

12"-30" clamping range plus reverse mount adapter for specialized applications.

  • 12"-30" clamping range
  • Reverse mount adapter included
  • 47" maximum tire diameter

Specifications

ModelATEAP-PTC500-KIT-FPD
Price
$10,799.00
Shipping Weight885 lbs
Product TypeTire Changers
Machine StyleLeverless Center Post
CE CertifiedYes
Clamping Range (External)12" - 30" inches
Clamping Range (Internal)14" - 26" inches
Max Tire Diameter47" inches
Max Wheel Width15" inches
Bead Breaker Force6,924 lbs lbs
Turntable Speed7 RPM RPM
Air Pressure Required120-145 PSI PSI
Motor0.75 kW / 1 HP HP
Voltage110V, 60Hz, 1Ph

Before You Buy

Complete System Ready to Deploy

The PTC500-KIT arrives with all adapters, tools, protective accessories, and pneumatic optimization equipment—no additional purchases needed to service expanded wheel types.

Cone Adapter Expansion

Cone Adapter Kit (7.48"-8.66") and Double Sided Cone (2.95"-5.7") extend clamping capability beyond the base machine's 12"-30" range for specialty applications.

Professional Support & Maintenance

Includes tire tool, lube bucket with brush, Filter/Regulator/Lubricator system, and multiple plastic protectors for comprehensive maintenance and protection.

Free Shipping

Free shipping on all orders within the contiguous United States.

Ships via Freight

This item ships via freight carrier. Someone must be present to receive delivery.

Frequently Asked Questions

The kit includes a Cone Adapter Kit (7.48"-8.66"), Double Sided Cone (2.95"-5.7"), Reverse Mount Adapter, Filter/Regulator/Lubricator system, professional Tire Tool, Lube Bucket with Brush, and multiple Plastic Protectors—everything needed for expanded wheel application coverage.
The cone adapters allow clamping of wheel sizes beyond the standard range, expanding your shop's ability to service specialty wheels. The reverse mount adapter accommodates unconventional mounting scenarios, making the system truly versatile.
Yes, the included FRL system optimizes compressed air supply by filtering contaminants, regulating pressure to the machine's requirements (120-145 PSI), and automatically lubricating pneumatic components. This extends machine life and ensures consistent performance.
The base PTC500 handles 12"-30" wheels with 47" maximum tire diameter. The cone adapter kit expands this capability further, making the complete system suitable for a much broader range of wheel types and specialty applications.
Yes, the included multiple plastic protectors are essential for safeguarding expensive customer wheels during mounting and demounting. They prevent scratches and damage to aluminum and alloy rims, protecting customer assets and your reputation.
The professional tire tool is included for convenient operation without requiring separate purchases. The lube bucket and brush are essential for routine maintenance of turntable and bearing systems, extending machine life significantly.
The KIT includes a comprehensive adapter and accessory package valued at thousands of dollars separately. If you serve diverse wheel types or anticipate expanding services, the KIT is the more economical choice providing immediate capability without additional purchases.
The PTC500 machine weighs 485 lbs (220 kg). With the complete adapter kit and accessories, total shipping weight is approximately 885 lbs. Dimensions are 50"L × 42"W × 76"H. Freight delivery with professional handling is included.
Yes, the PTC500-KIT requires 110V single-phase power (US market) and compressed air supply of 120-145 PSI (8-10 bar). The included Filter/Regulator/Lubricator helps optimize any shop air system for reliable operation.
The complete system is backed by a 2-year parts-only manufacturer's warranty. Panther Lift provides installation support, operator training for the complete system including adapter use, and ongoing technical assistance.

Downloads & Resources

Certifications
